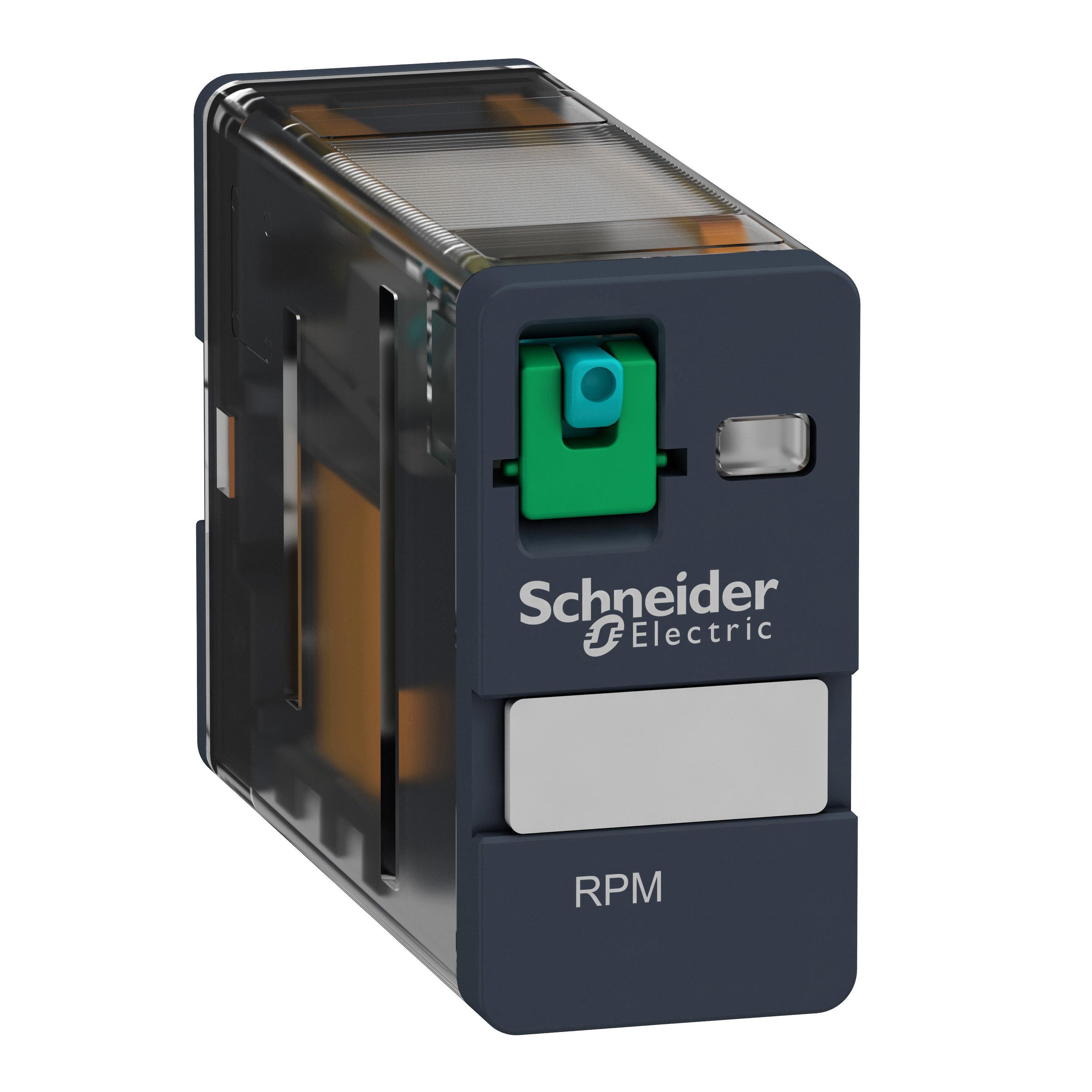

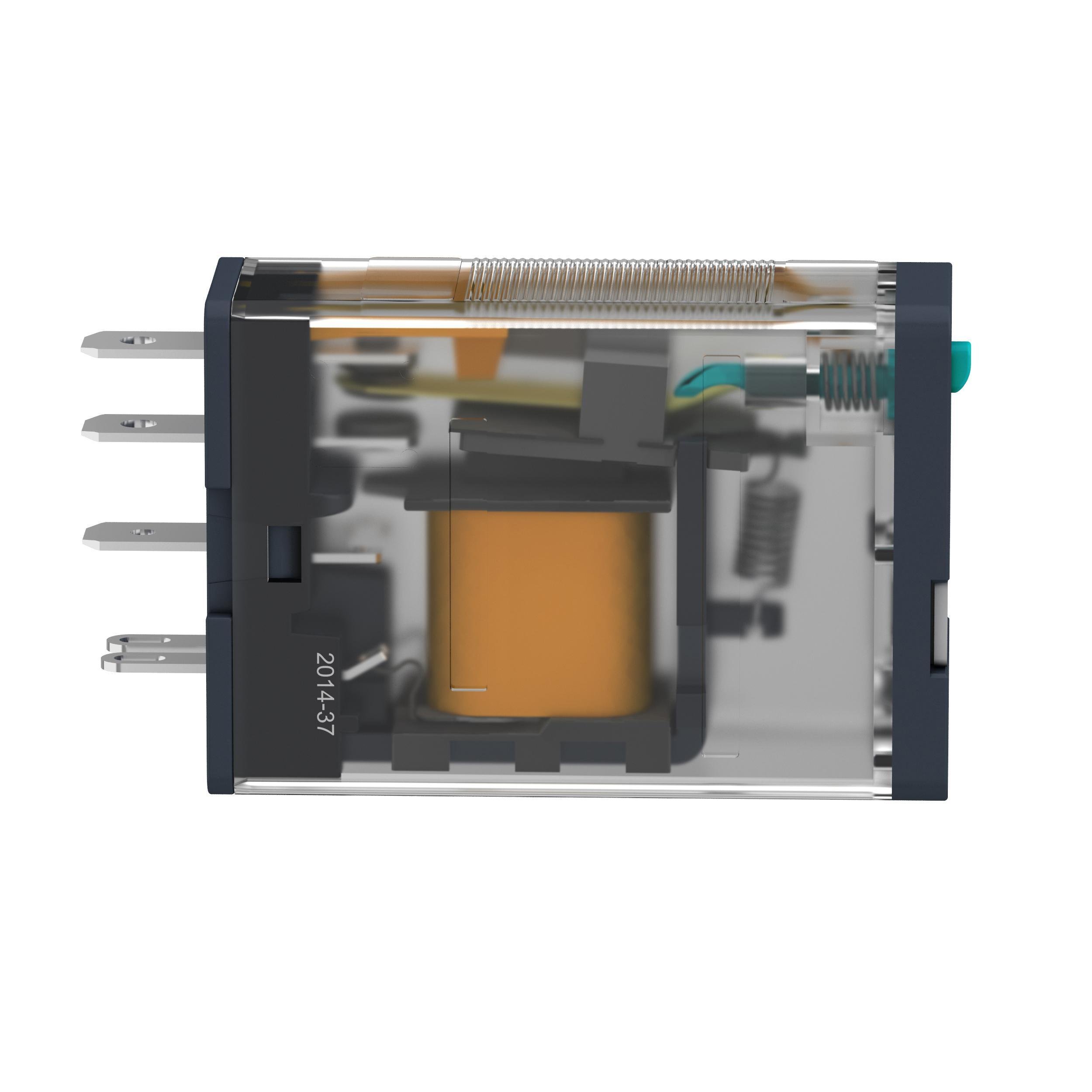

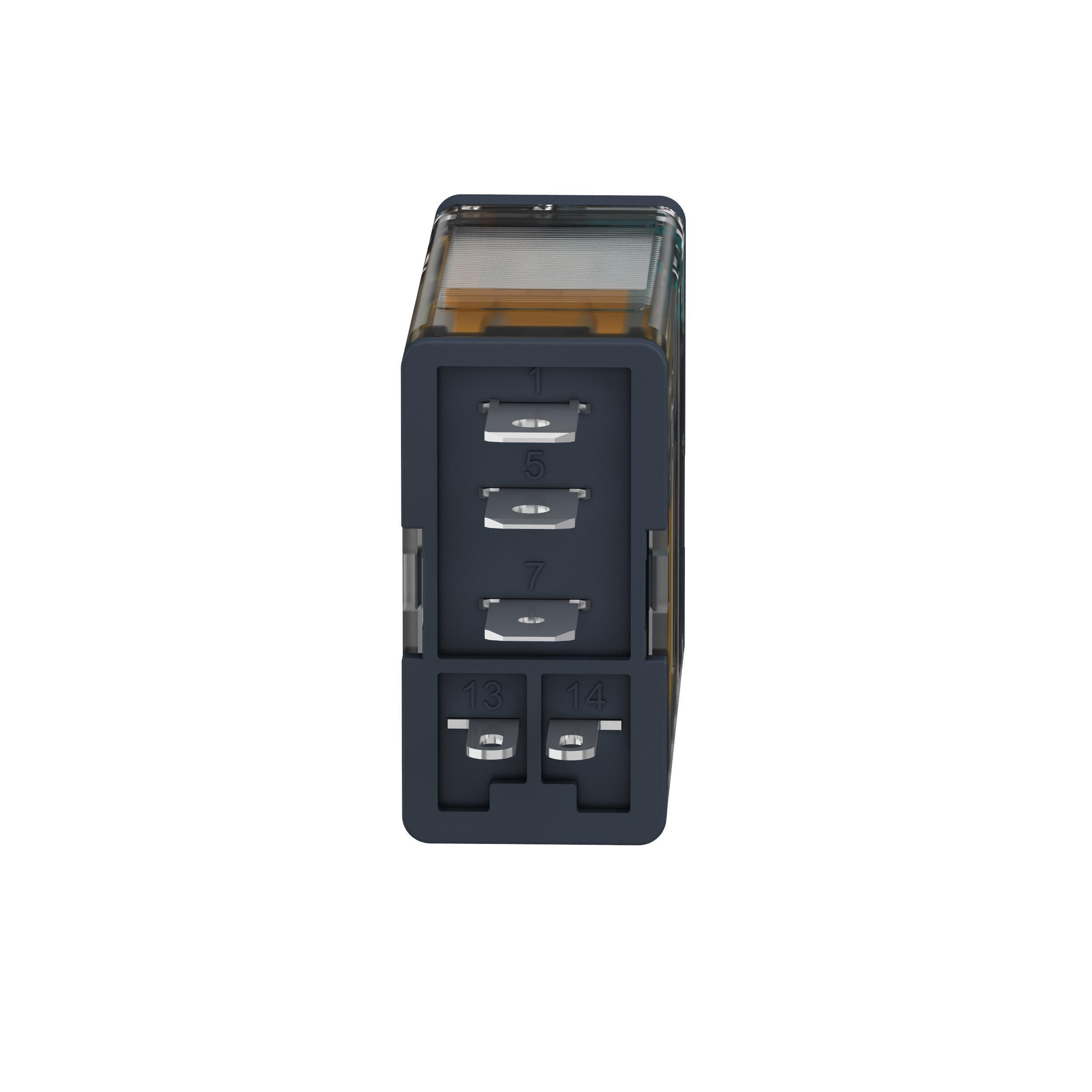

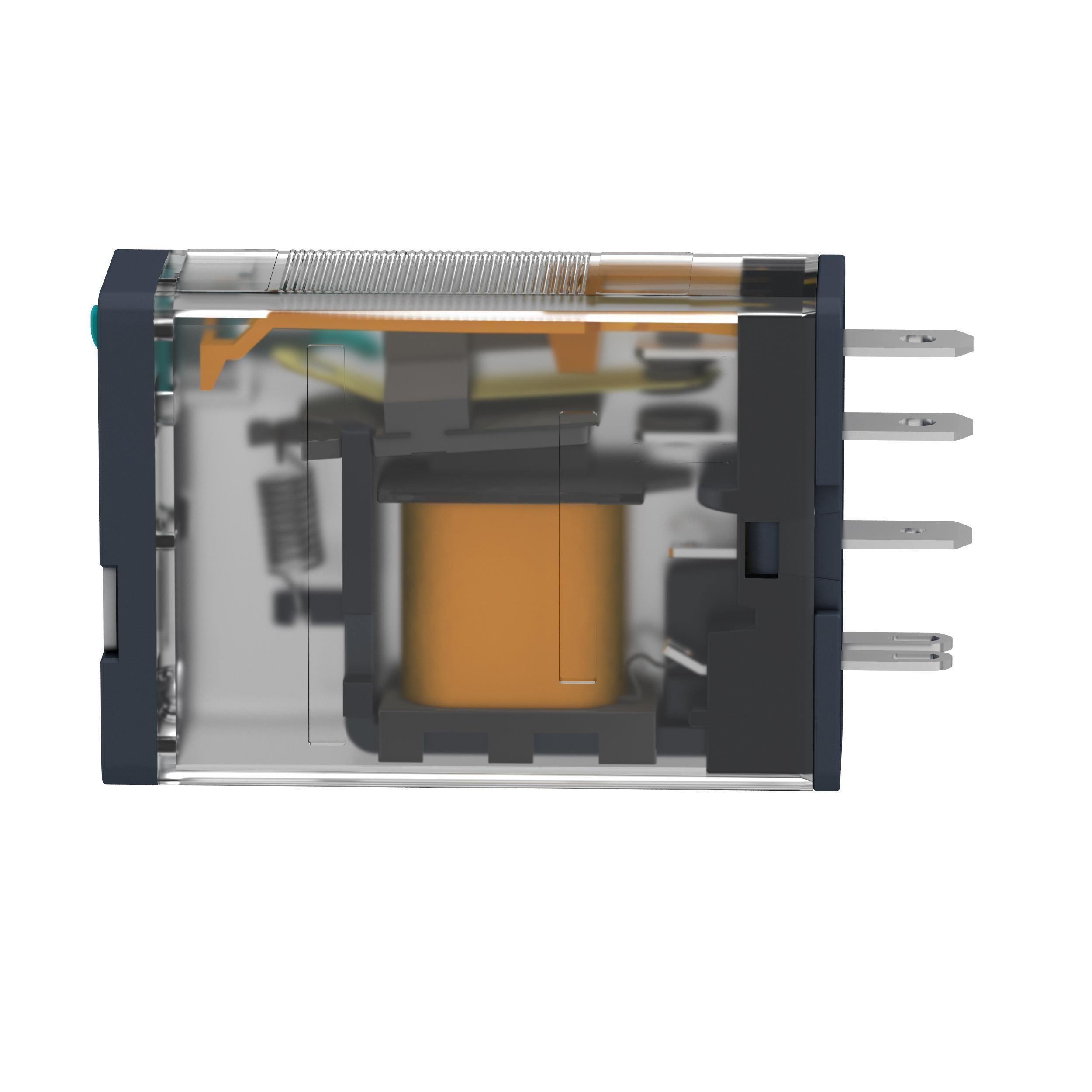

RPM11BD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V DC
Description
Specifications
0.05
0.55
1.09
Industrial Machines, Packaging Machines, Textile Machines, HVAC, Conveyance Lines, Food and Beverage, Automation Control Panels, Low/Medium Voltage Switchgear, Motor Controls, Compressor, Blower Controls and PLC Interfaces Applications
Schneider Electric
USA
US
RELAY PWR 15A 1NO-1NC 24VDC 1.1W 1 RPM
Help to reduce the size of enclosures
Provides economical solution for the implementation of many switching functions
Flexible design for space-saving
Plug in type is easy installation and maintenance
Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Schneider Electric
IN
1.0900
IN
1
0.0500
LB
0.5500
IN
https://www.youtube.com/embed/W6W-90ovcos
Square D
GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES
Amperage Rating
A
15
Temperature Rating
deg C
-40 To 55
Terminal Type
Faston/Flat Pin/Spade
Coil Voltage
V DC
24
Contact Form
1NO-1NC 1 Form A/1 Form B
Dimensions
1.58 in W x 1.06 in H x 0.55 in D
Enclosure Type
IP20/IP40
Mounting Type
DIN Rail/Flange/Plug-In/Socket
Number Of Poles
1
Power Rating
W
1.1
Series
RPM
