Schneider Electric

RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC

Category General Purpose Plug-In Relays & Accessories

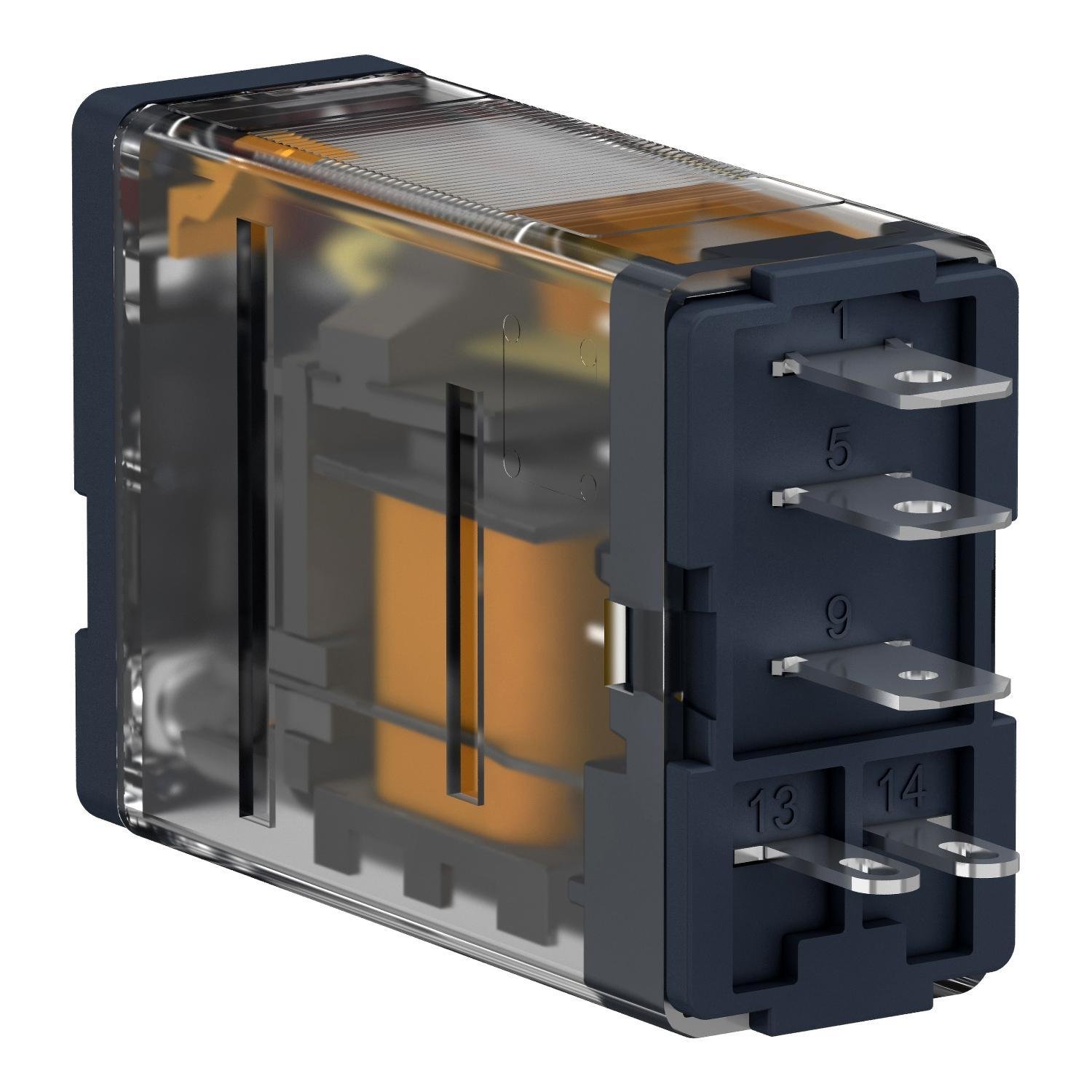

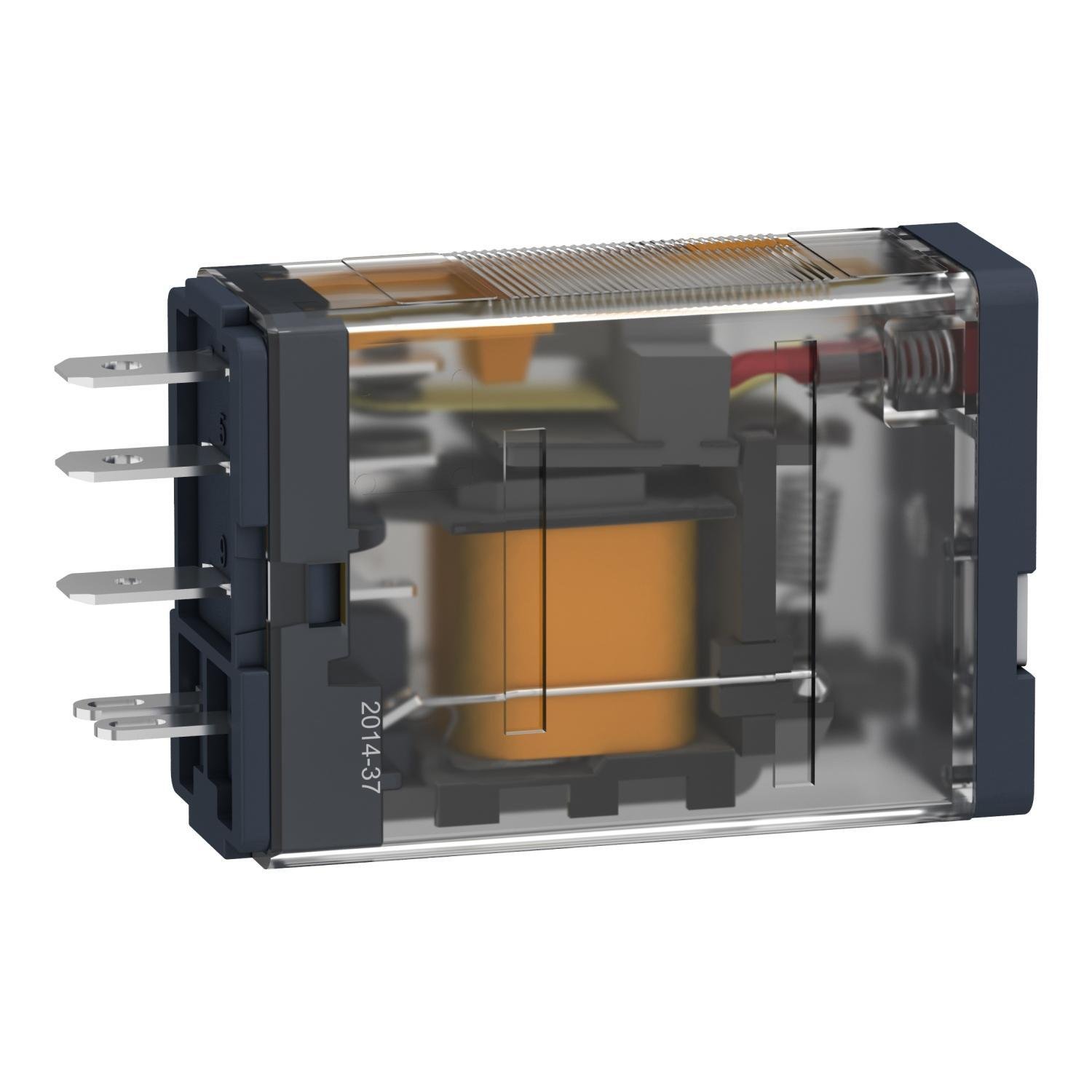

Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC
Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC
Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC
Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC Picture of RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC
Schneider Electric

RPM12B7 - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC

Item Code: 623320
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM12B7

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicato

Specifications

Weight

0.06

Width

0.97

Length

1.75

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY PWR 15A 1NO-1NC 24VAC 3750VA 60HZ

AD Item Features 01

Provides economical solution for the implementation of many switching functions with large number of contacts

AD Item Features 02

It is flexibility to design with easily gripped for space-saving

AD Item Features 03

Plug in type is easy installation and maintenance

AD Item Features 04

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

0.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

VA

Spec 10 Attribute Value

3750

Spec 11 Attribute

Series

Spec 11 Attribute Value

RPM

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-40 To 55

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Faston/Flat Pin/Spade

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1NO-1NC 1 Form A/1 Form B

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

15 A at 277 V AC/15 A at 28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

40 mm W x 14 mm D x 27 mm H

Spec 6 Attribute

Display Type

Spec 6 Attribute Value

Led

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP40

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

60

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Plug-In/Socket
