Schneider Electric

RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC

Category General Purpose Plug-In Relays & Accessories

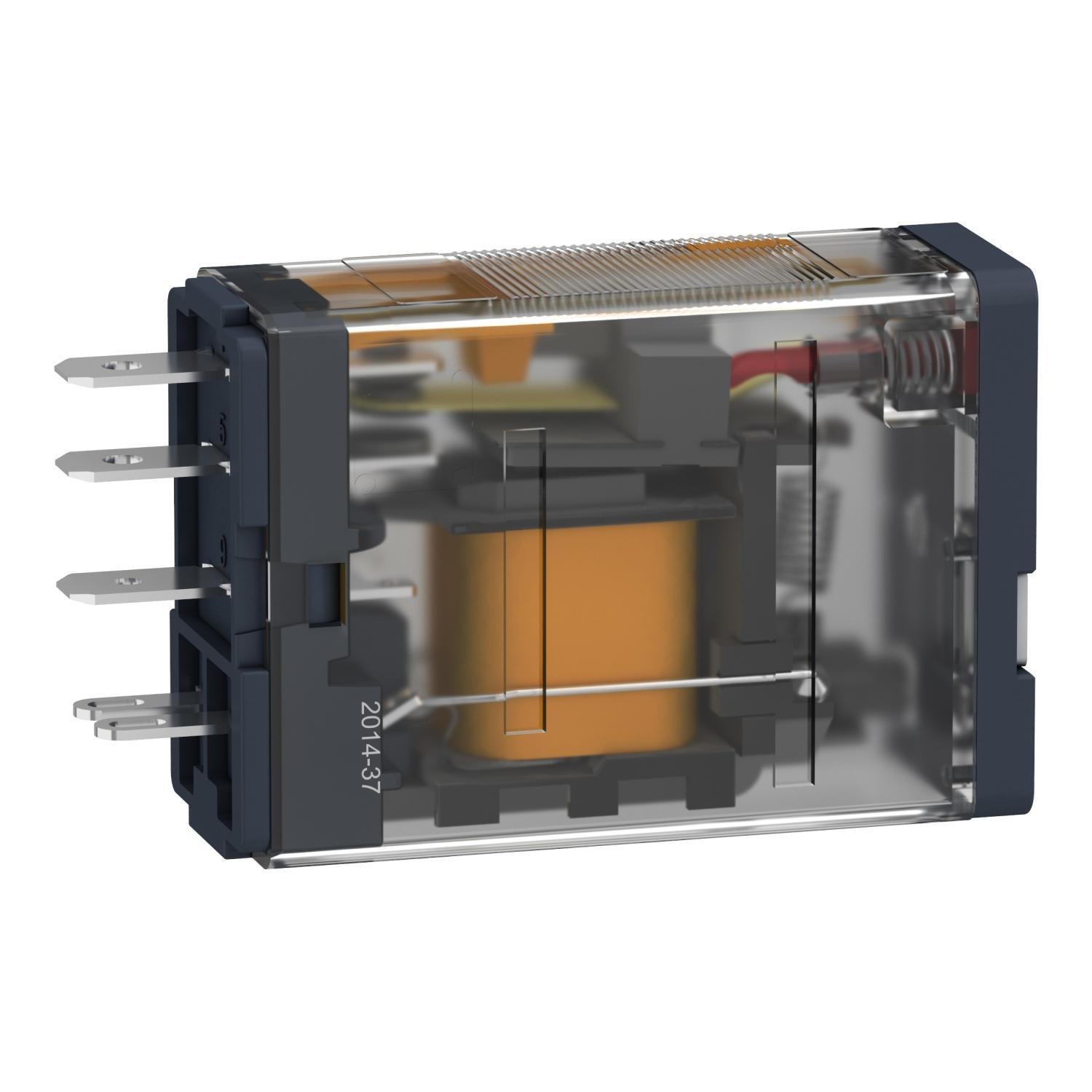

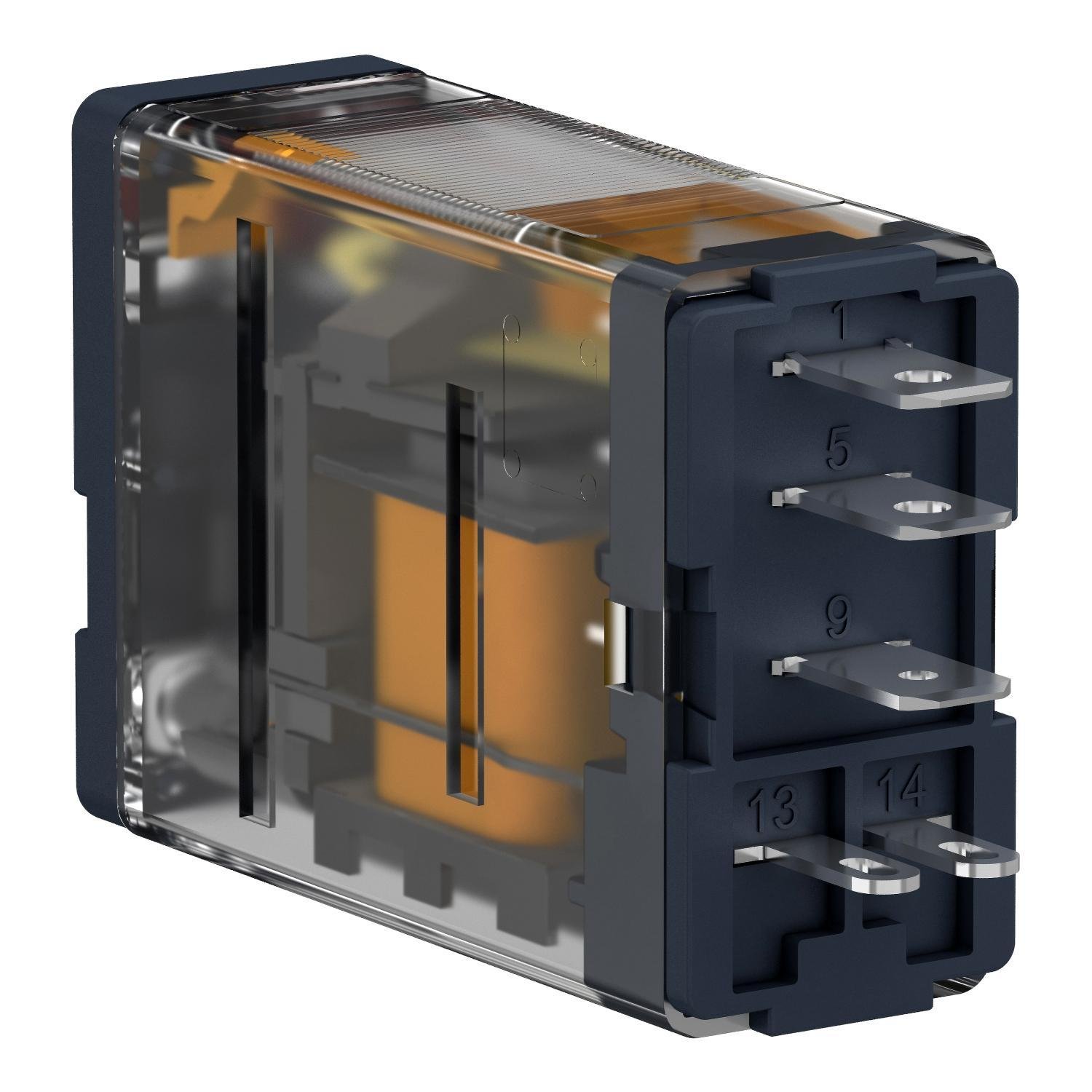

Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC
Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC
Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC
Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC Picture of RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC
Schneider Electric

RPM12JD - plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 12V DC

Item Code: 1218331
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM12JD

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicato

Specifications

Weight

0.06

Width

0.97

Length

1.75

AD All Features

High performance ensuring machine and system availability

AD Application

General Purpose

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PLUG-IN PWR 15A SPDT 1C/O 12VDC

AD Item Features 01

High performance ensuring machine and system availability

AD Item Features 02

Pre-assembled to simplify selection and installation

AD Item Features 03

Simplicity of use with test button and visual indicators

AD Item Features 04

Mechanical durability of 10 million cycles

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

0.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

W

Spec 10 Attribute Value

1.1

Spec 11 Attribute

Series

Spec 11 Attribute Value

RPM Series

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-40 To 55

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Flat Pin

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

12

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1CO 1 Form C SPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

15 A at 277 V AC/15 A at 28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

0.55 in W x 1.06 in H

Spec 6 Attribute

Display Type

Spec 6 Attribute Value

Green LED

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP40

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail/Panel

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

1
