Schneider Electric

RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC

Category General Purpose Plug-In Relays & Accessories

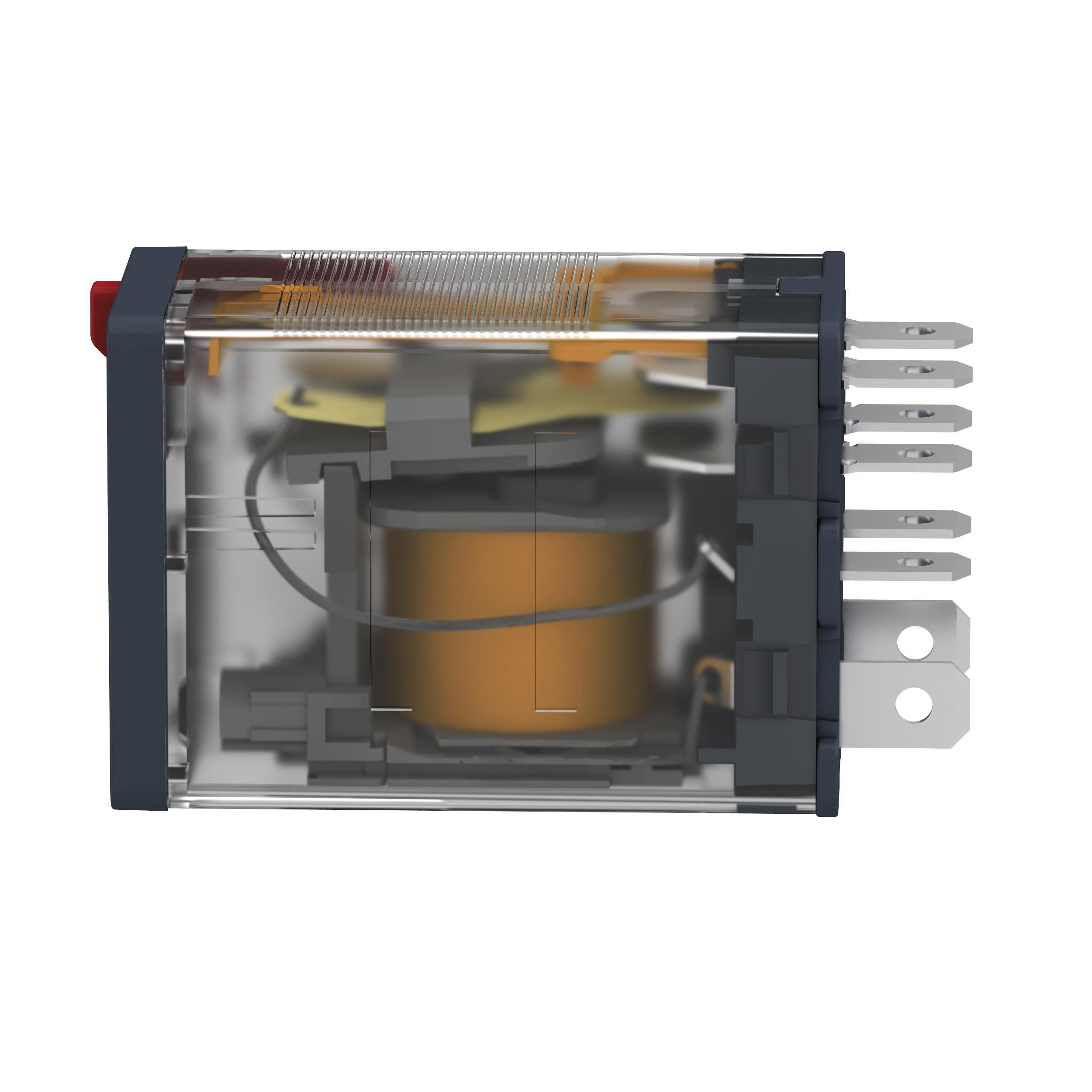

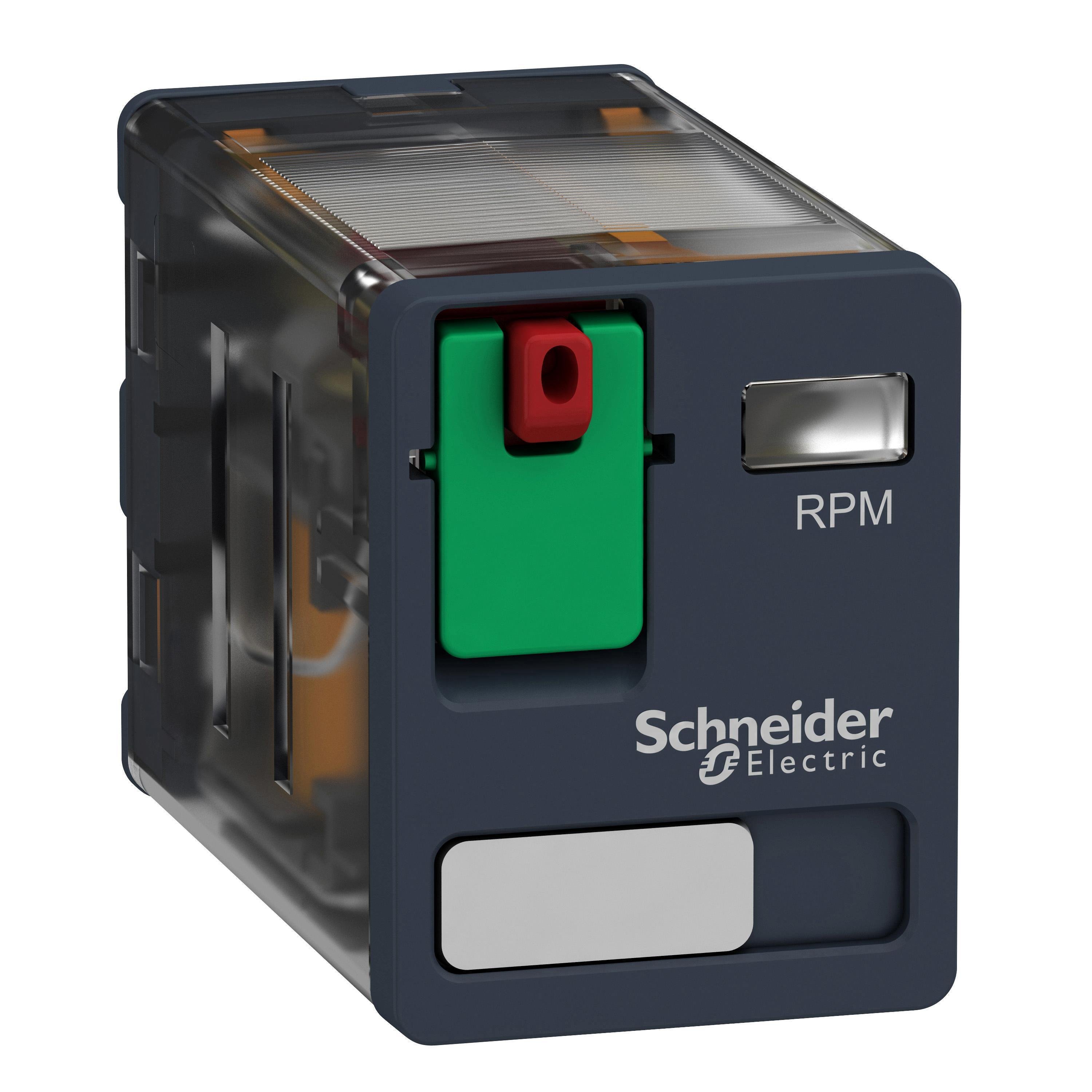

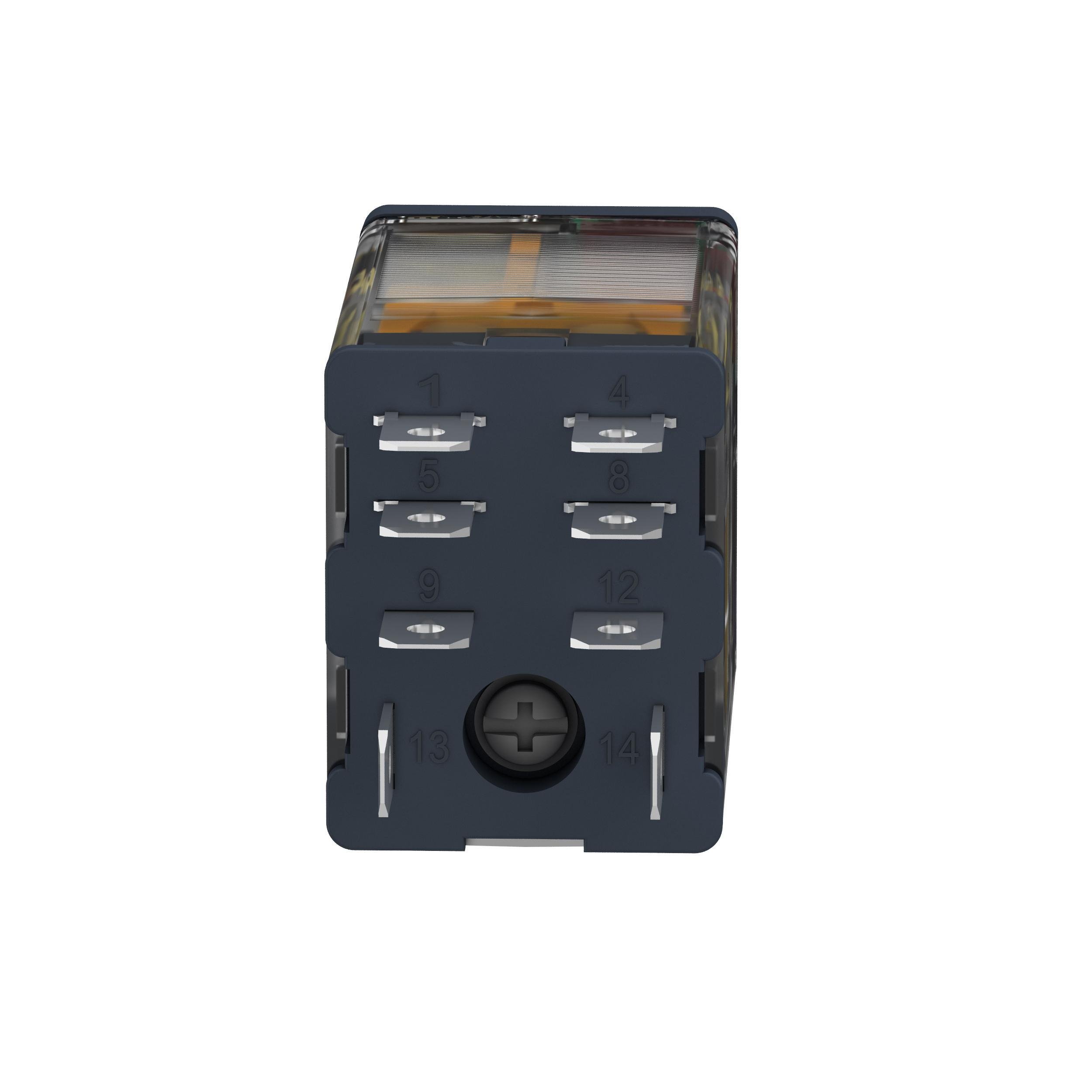

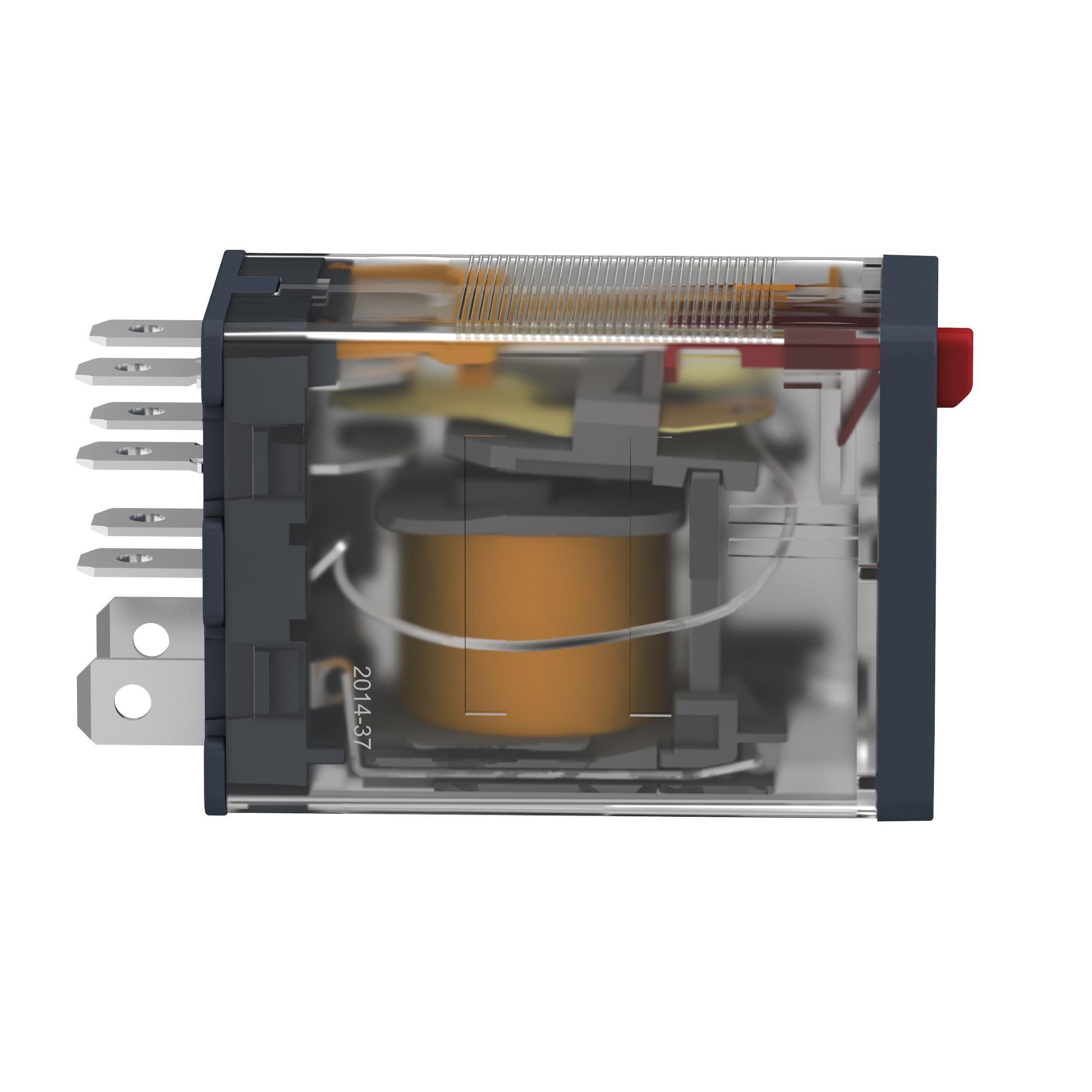

Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC
Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC
Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC
Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC
Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC Picture of RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC
Schneider Electric

RPM21B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 24V AC

Item Code: 649182
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM21B7

RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size

Specifications

Weight

0.08

Width

0.97

Length

1.95

Amperage Rating

15 A

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Coil Voltage

24 V AC

Contact Form

2NO-2NC 2 Form C

Dimensions

1.54 in W x 1.06 in H x 0.83 in D

Enclosure Type

IP20/IP40

Frequency Rating

60 Hz

Mounting Type

DIN Rail/Flange/Plug-In/Socket

Number Of Poles

2

Power Rating

1.1 VA

Series

RPM

Temperature Rating

-40 to 55 deg C

Terminal Type

Faston/Flat Pin/Spade
