Schneider Electric

RPM22B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, lockable test button, 24V AC

Category General Purpose Plug-In Relays & Accessories

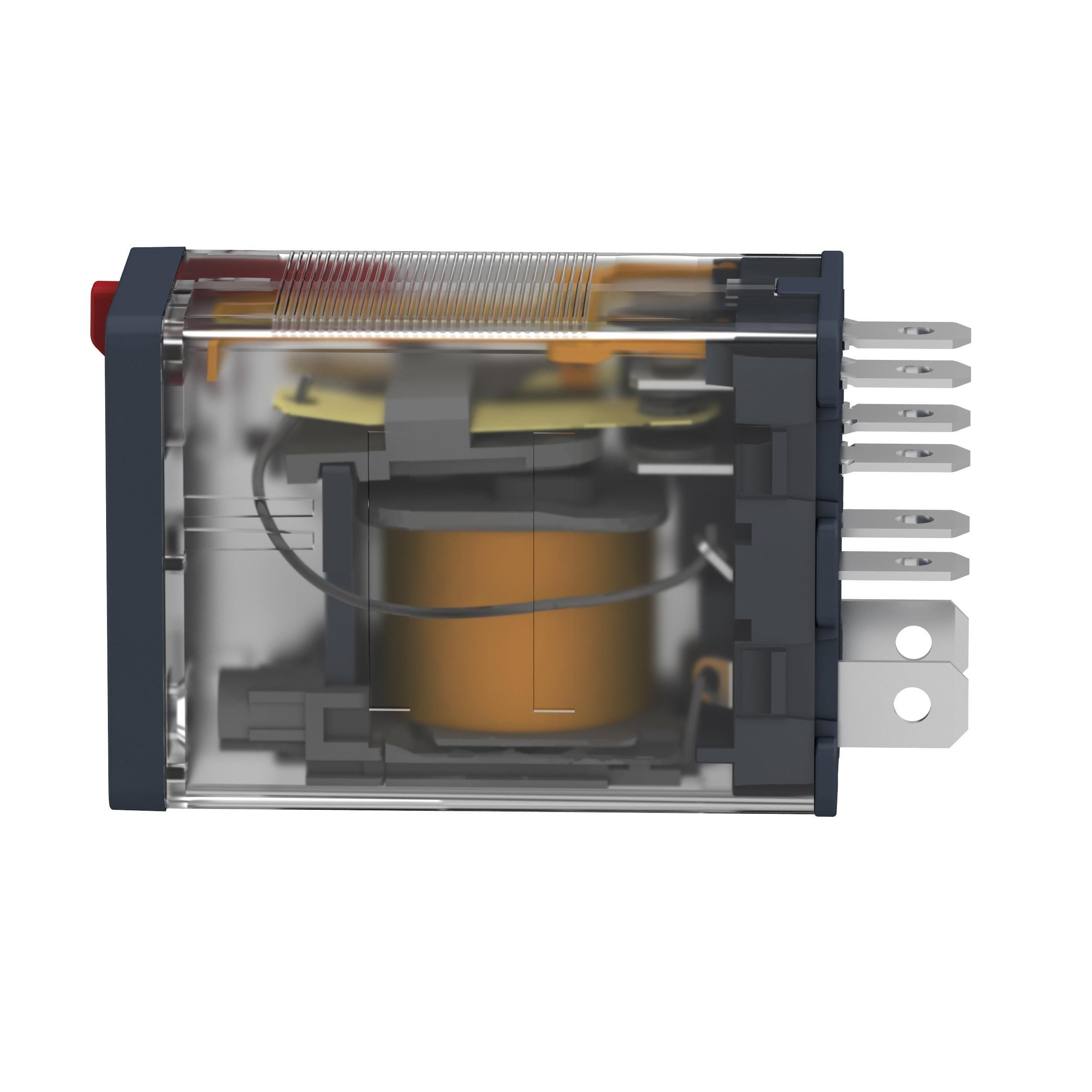

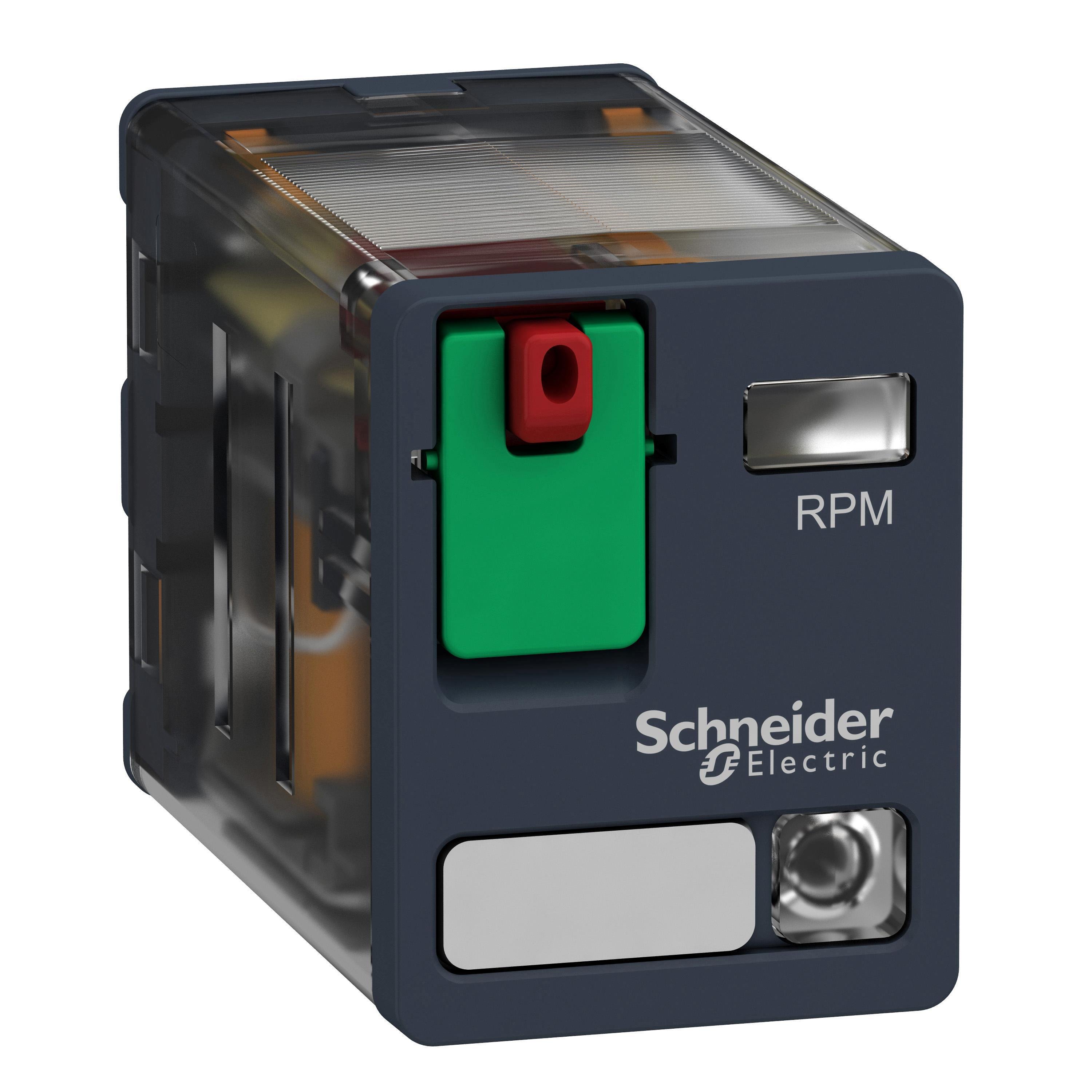

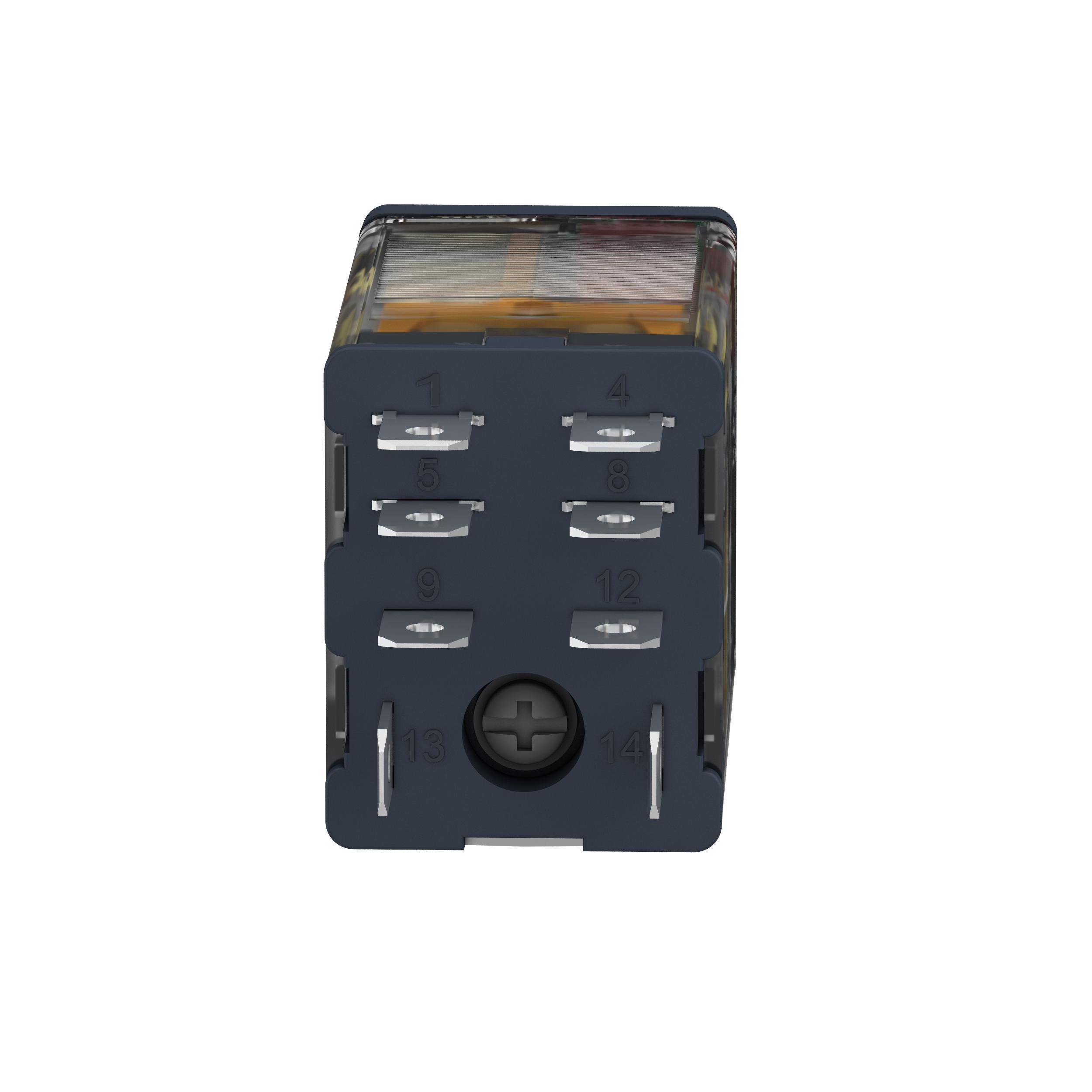

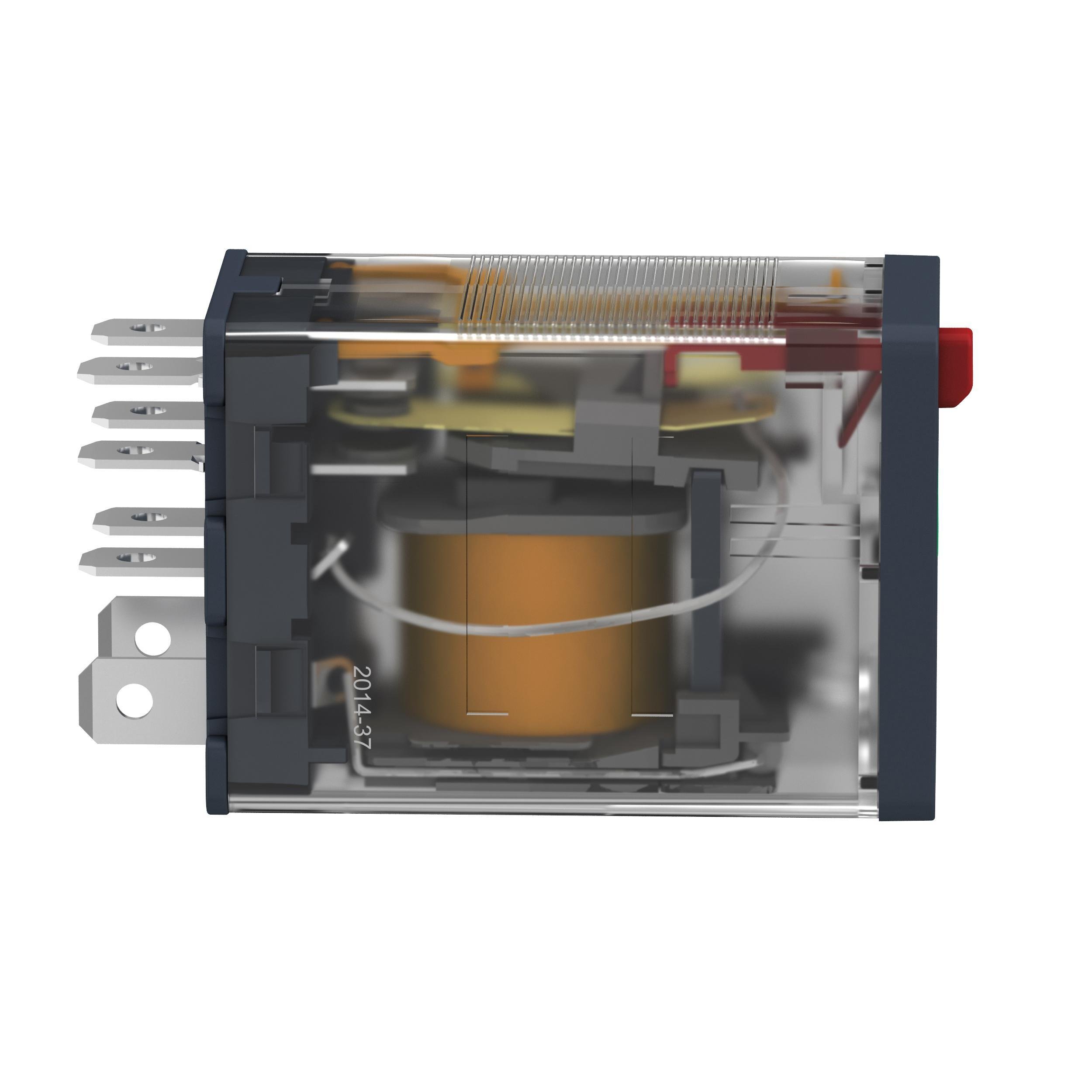

Picture of RPM22B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, lockable test button, 24V AC
Schneider Electric

RPM22B7 - plug-in relay, Harmony electromechanical relays, 15A, 2CO, with LED, lockable test button, 24V AC

Item Code: 613317
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM22B7

RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.08lb

Width

1.17mm

Length

1.95mm

Amperage Rating

15 A

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Coil Voltage

24 V AC

Contact Form

2NO-2NC 2 Form C

Contact Rating

15 A at 277 V AC/15 A at 28 V DC

Dimensions

39 mm W x 21 mm D x 27 mm H

Display Type

Led

Enclosure Type

IP40

Frequency Rating

60 Hz

Mounting Type

Plug-In/Socket

Power Rating

3750 va

Series

RPM

Temperature Rating

-40 to 55 deg C

Terminal Type

Faston/Flat Pin/Spade
