Square D

RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED

Category General Purpose Plug-In Relays & Accessories

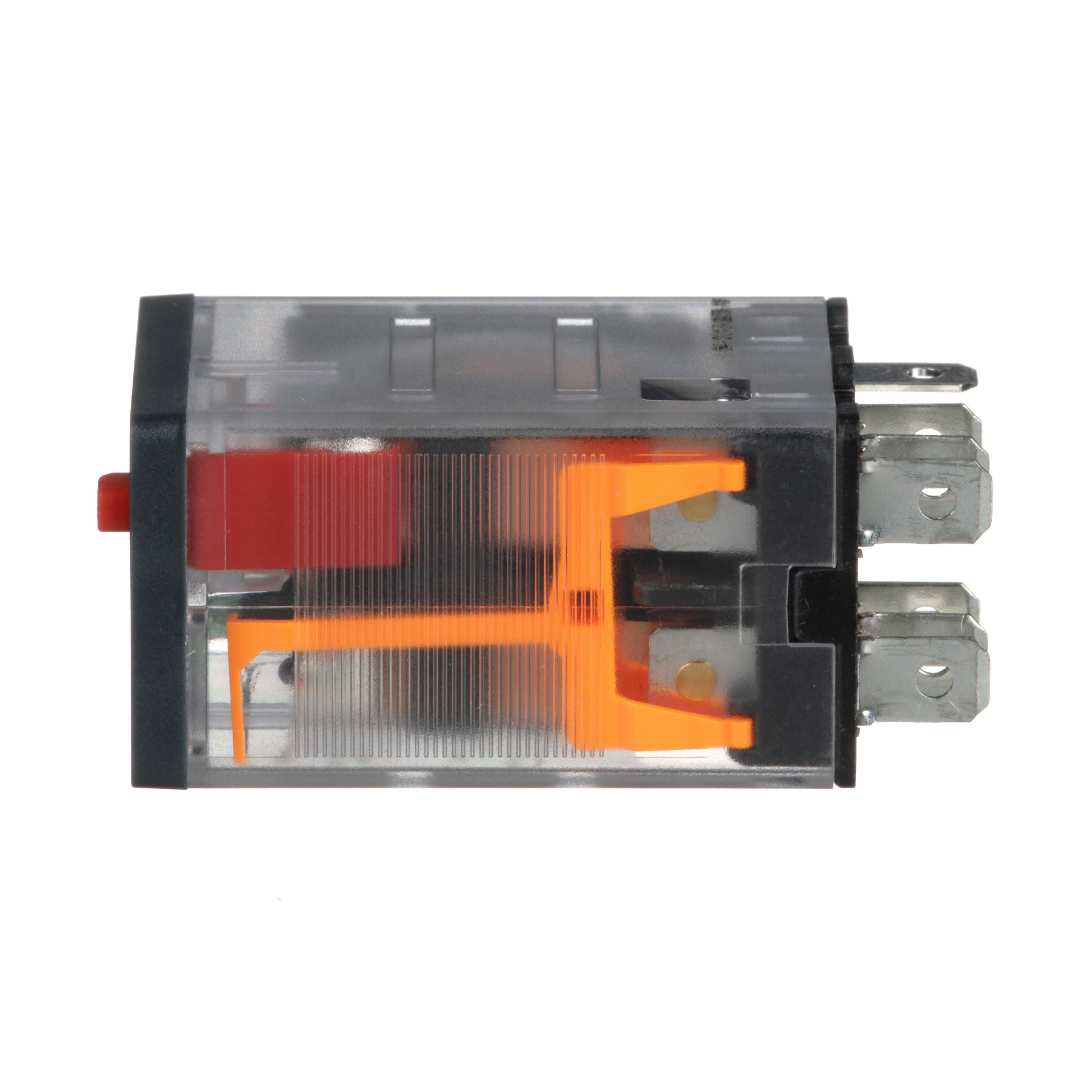

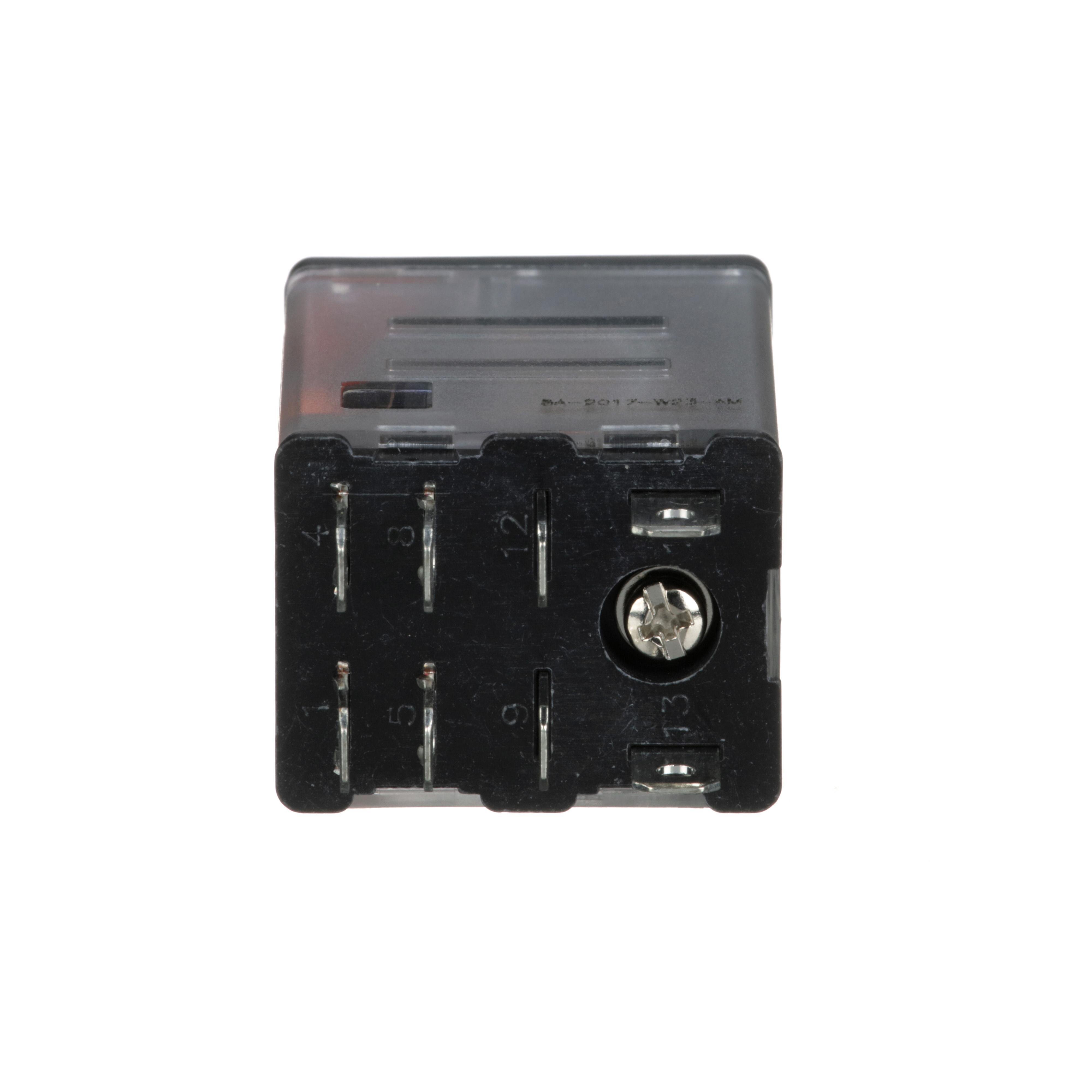

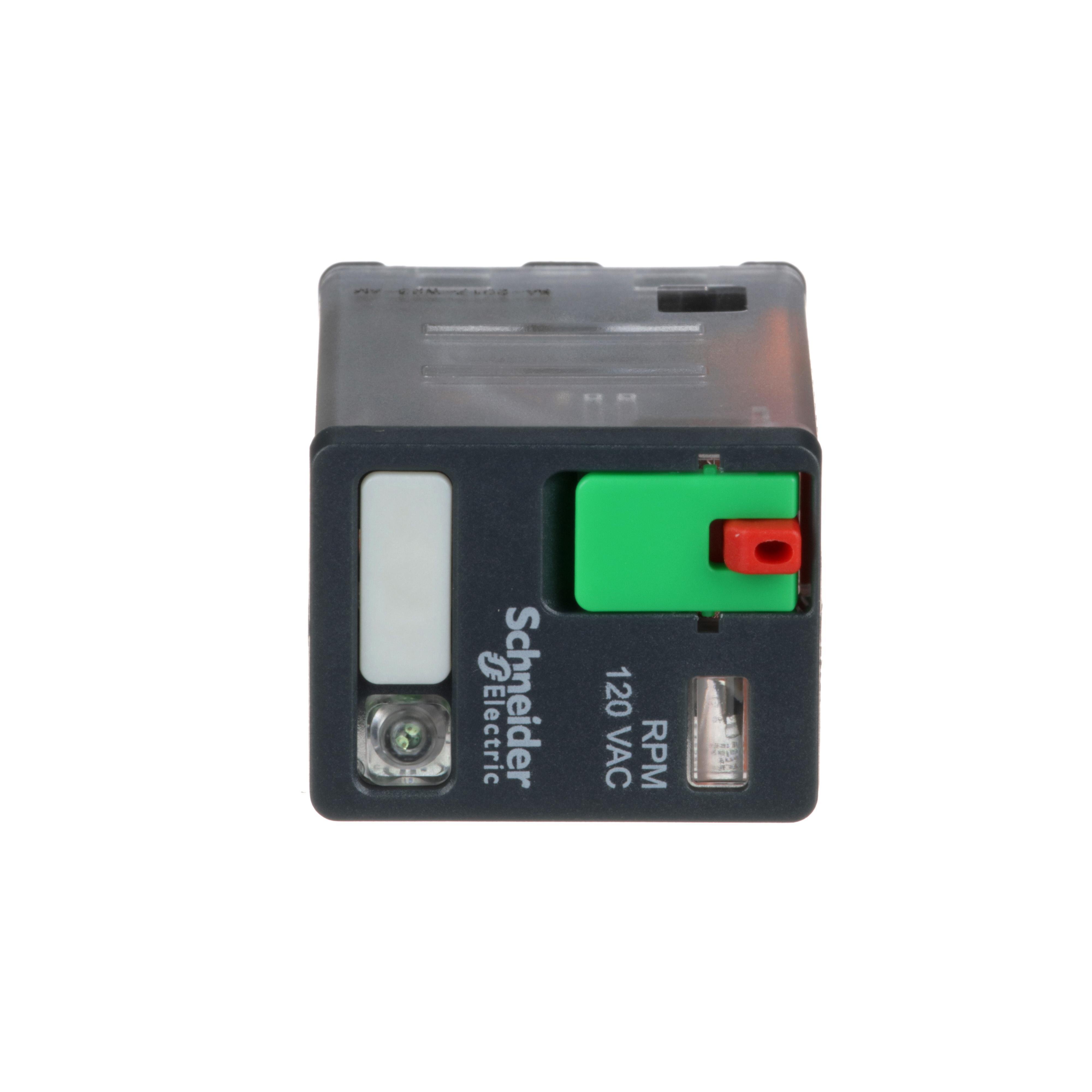

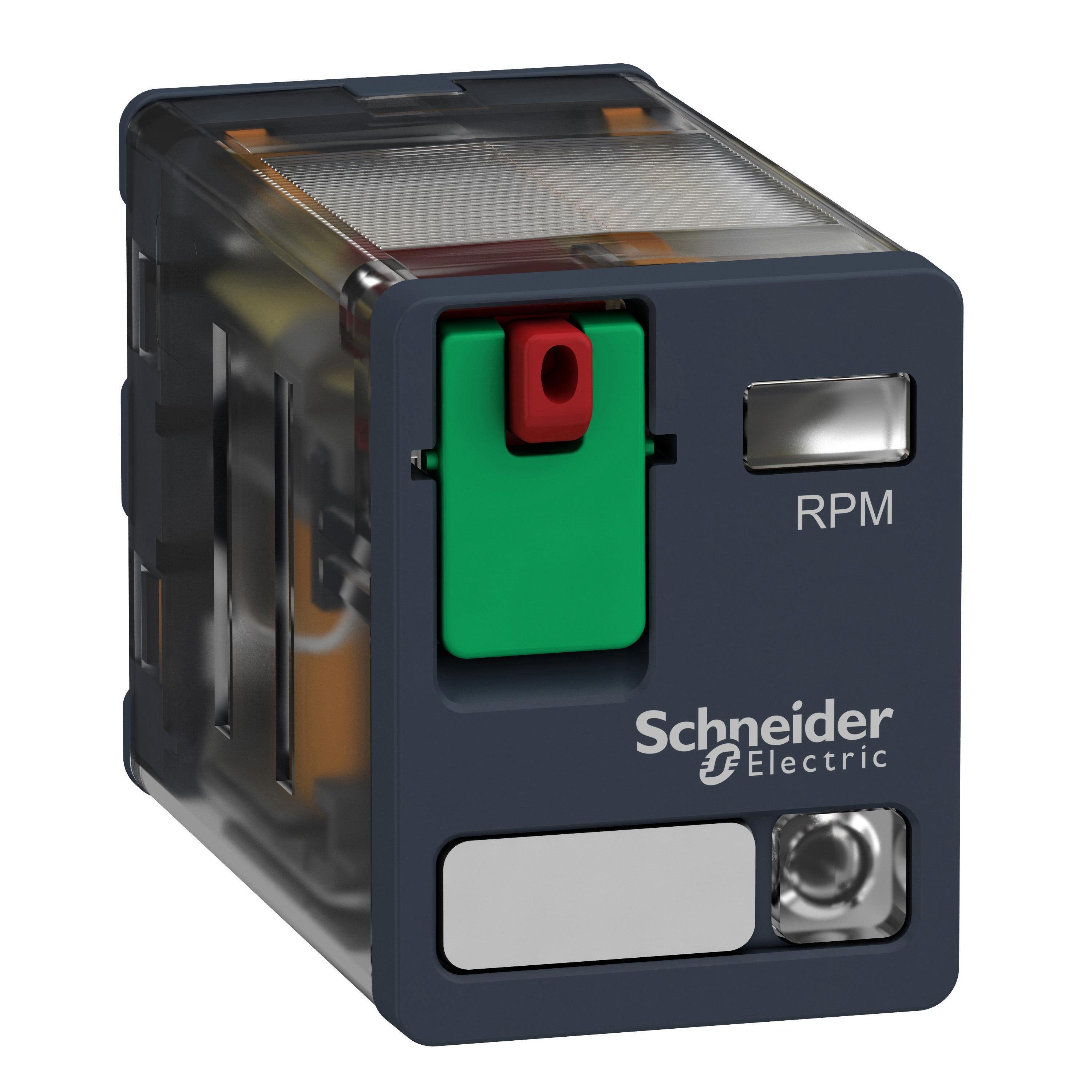

Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED
Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED
Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED
Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED
Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED Picture of RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED
Square D

RPM22F7 - Harmony RPM, power plugin relay, 2 C/O, 120 VAC, 15 A, with LED

Item Code: 643766
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM22F7

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.08lb

Height

1.9mm

Width

1.17mm

Length

1.95mm

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PWR MINTR 15A 8 2NO-2NC 120VAC SQ

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Provides economical solution for the implementation of many switching functions

AD Item Features 03

Flexible design for space-saving

AD Item Features 04

Plug in type is easy installation and maintenance

AD Item Features 05

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

1.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1.6700

AD Package Volume UOM

cu-in

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

1.1700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/W6W-90ovcos

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plug-In/Socket

Spec 11 Attribute

Number of Pins

Spec 11 Attribute Value

8

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

2

Spec 13 Attribute

Power Rating

Spec 13 Attribute UOM

HP

Spec 13 Attribute Value

2-Jan

Spec 14 Attribute

Series

Spec 14 Attribute Value

RPM

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-40 To 131

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Faston/Flat Pin/Screw Clamp

Spec 2 Attribute

Base Type

Spec 2 Attribute Value

Square

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

120

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

2NO-2NC 2 Form C

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

15/7.5 A at 277 V AC/28 V DC

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

1.53 in W x 0.826 in D x 1.0629 in H

Spec 7 Attribute

Display Type

Spec 7 Attribute Value

Led

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

IP40

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

60
