Schneider Electric

RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC

Category Miscellaneous

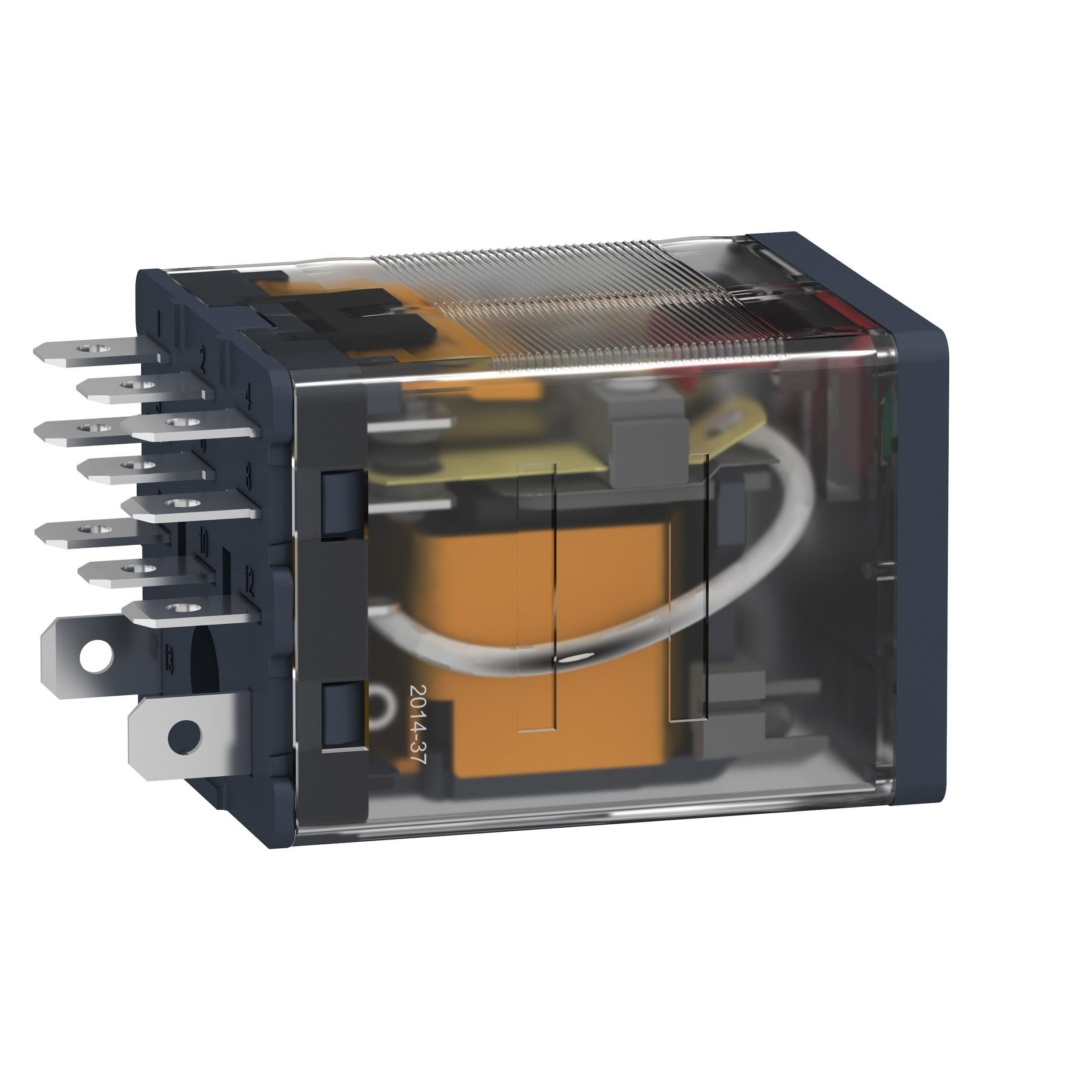

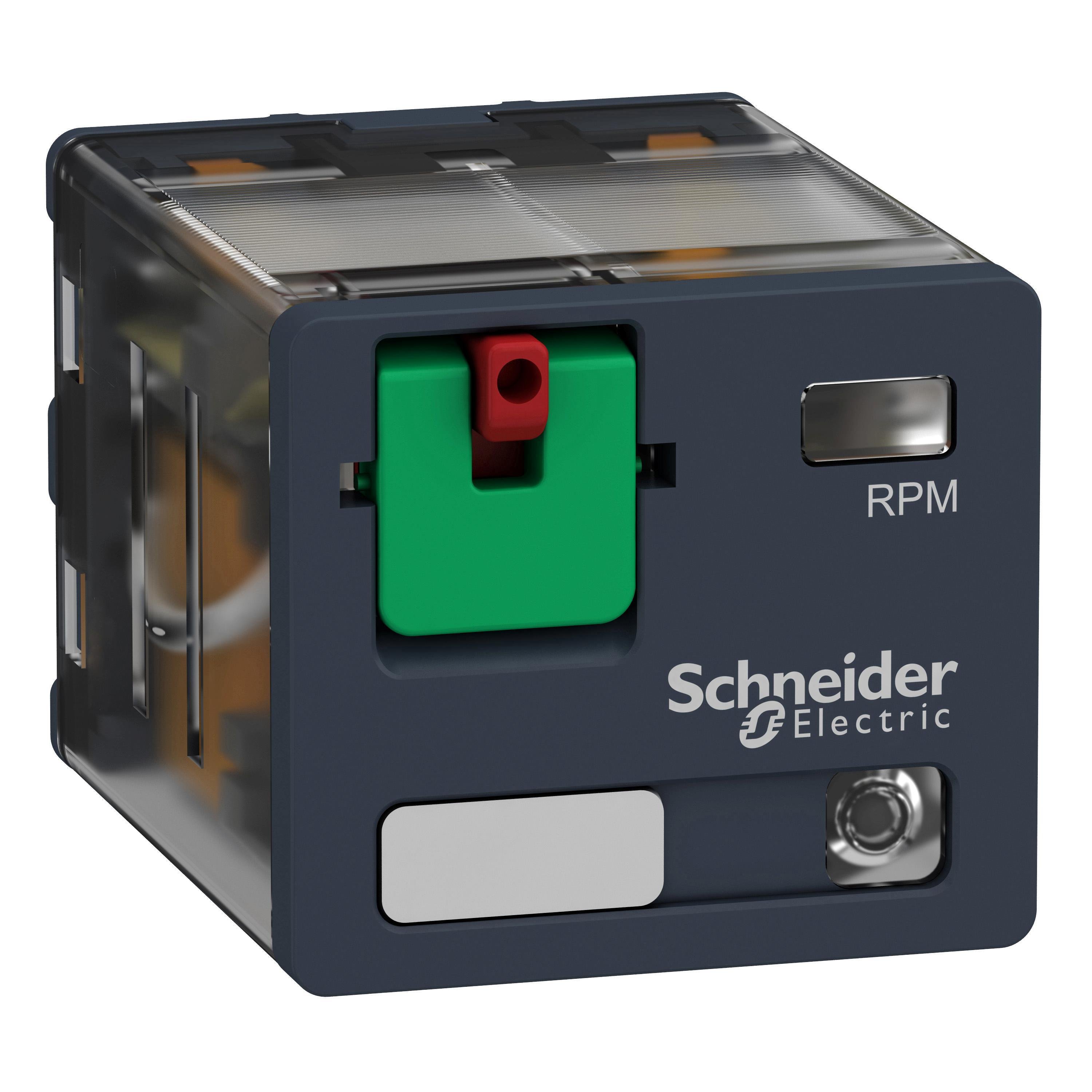

Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC
Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC
Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC
Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC Picture of RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC
Schneider Electric

RPM32B7 - plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC

Item Code: 864280
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM32B7
Minimum order quantity 10

Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicat

Specifications

Weight

0.12

Height

1.1

Width

1.29

Length

1.95

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RPM32B7/RPM32B7.spin

AD All Features

High performance ensuring machine and system availability

AD Alternative Part Number

9583852

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

3389119402040

AD Gtin

03389119402040

AD IDEA Index ID

9583852

AD Invoice Description

RELAY PWR 15A 3NO-3NC 3PDT 24VAC 3750VA

AD Item Features 01

High performance ensuring machine and system availability

AD Item Features 02

Pre-assembled to simplify selection and installation

AD Item Features 03

Simplicity of use with test button and visual indicators

AD Item Features 04

Mechanical durability of 10 million cycles

AD Keywords

RPM32B7 RPM Power Relay, 15 A, 3NO-3NC 3 Form C 3PDT Contact, 24 VAC V Coil ; Schneider Electric ; RPM32B7 ; 9583852 ; 10720506 ; 785901675440 ; Power Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

1.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2.6400

AD Package Volume UOM

cu-in

AD Package Weight

0.1200

AD Package Weight UOM

LB

AD Package Width

1.2900

AD Package Width UOM

IN

AD Part Number Keywords

RPM32B7 ; 9583852 ; 10720506 ; 785901675440 ; 78590167544 ; 03389119402040 ; 3389119402040

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

VA

Spec 10 Attribute Value

3750

Spec 11 Attribute

Series

Spec 11 Attribute Value

RPM

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-40 To 131

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Flat/Spade

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3NO-3NC 3 Form C 3PDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

15 A at 277 V AC/15 A at 28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1.06 in L x 1.54 in W x 0.16 in H

Spec 6 Attribute

Display Type

Spec 6 Attribute Value

Led

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP40

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

60

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Plug-In/Socket
