Schneider Electric

RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC

Category General Purpose Plug-In Relays & Accessories

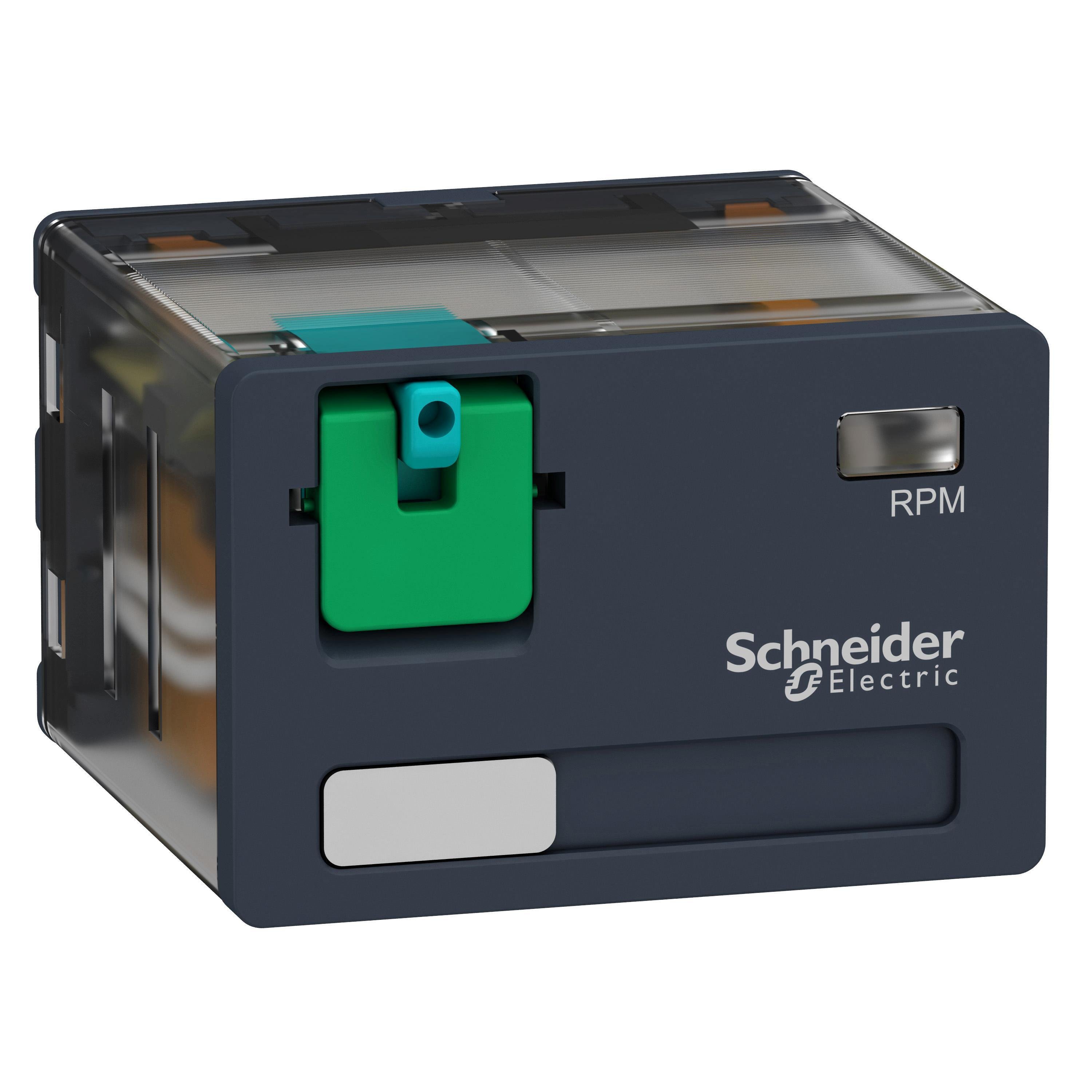

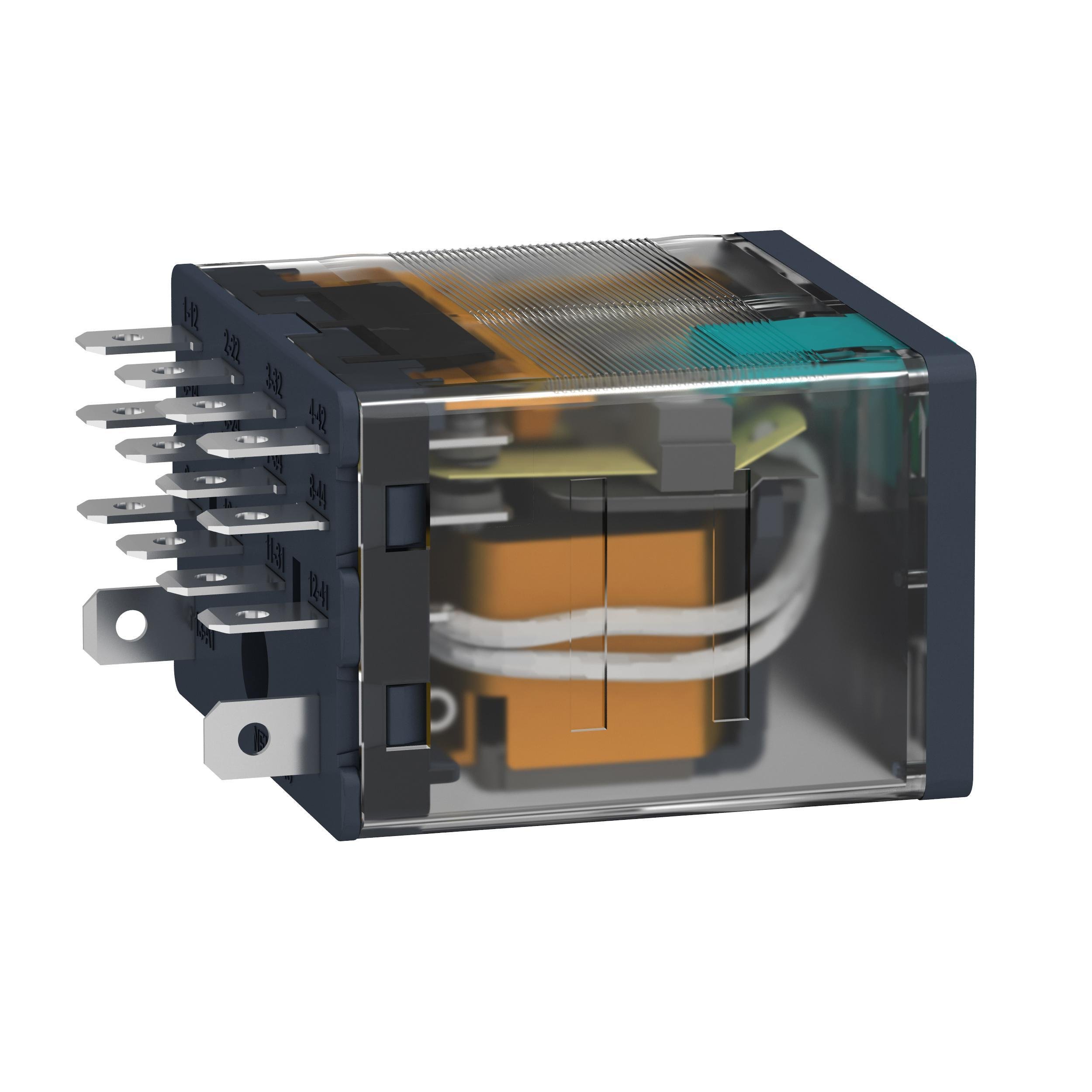

Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC
Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC
Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC
Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC Picture of RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC
Schneider Electric

RPM41BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC

Item Code: 665895
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM41BD

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the

Specifications

Weight

0.16

Width

1.56

Length

1.09

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PWR 15A 4NO-4NC-4PDT 24VDC 3750VA

AD Item Features 01

Provides economical solution for the implementation of many switching functions with large number of contacts

AD Item Features 02

It is flexibility to design with easily gripped for space-saving

AD Item Features 03

Plug in type is easy installation and maintenance

AD Item Features 04

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1600

AD Package Weight UOM

LB

AD Package Width

1.5600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/W6W-90ovcos

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 To 131

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Faston/Flat Pin/Spade

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

4NO-4NC 4 Form C 4PDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

15 A at 277 V AC/15 A at 28 V DC

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP40

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

10 to 150

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-In/Socket

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

3750

Spec 9 Attribute

Series

Spec 9 Attribute Value

RPM
