Schneider Electric

RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC

Category General Purpose Plug-In Relays & Accessories

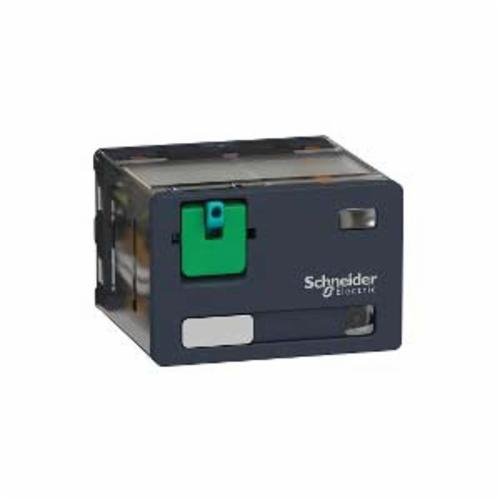

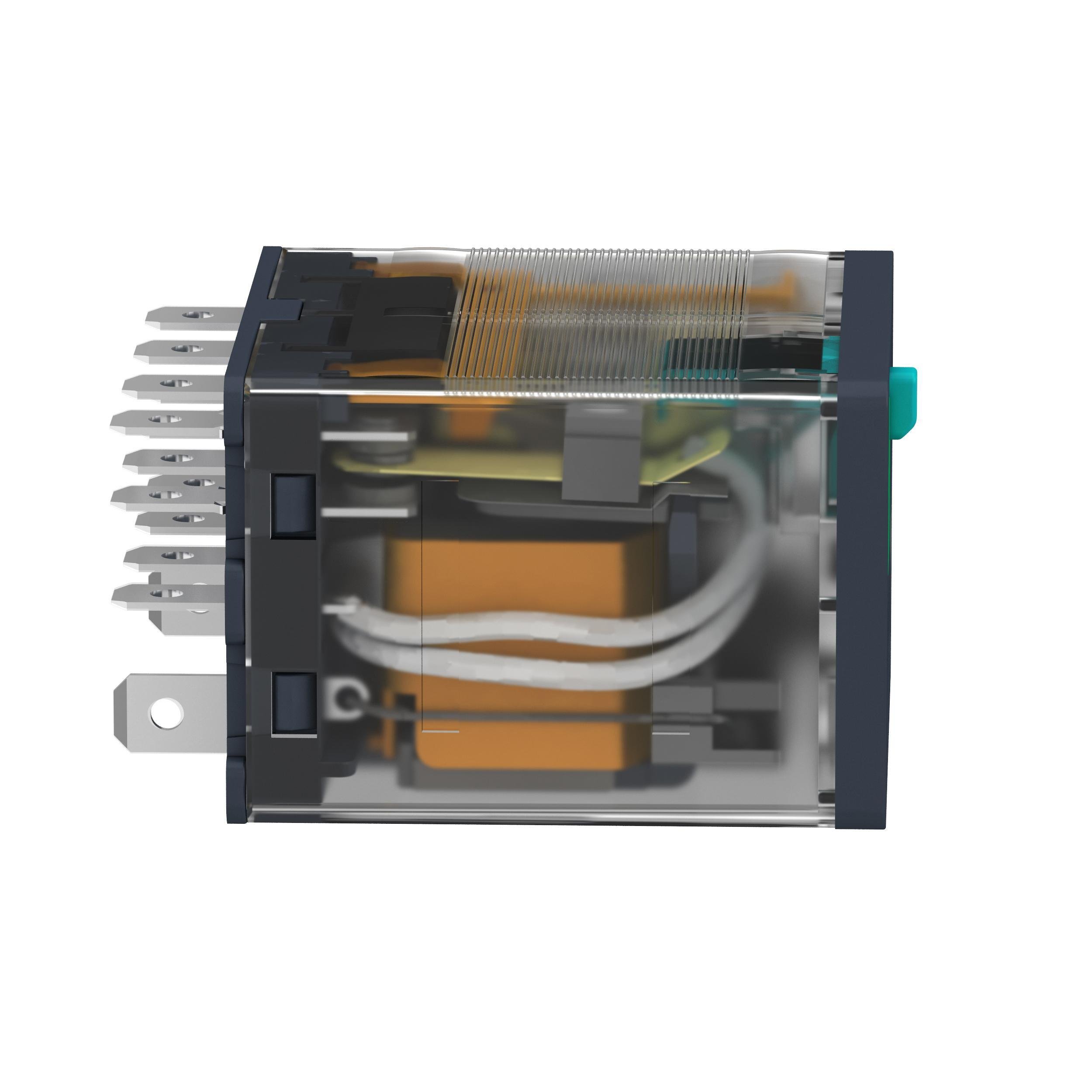

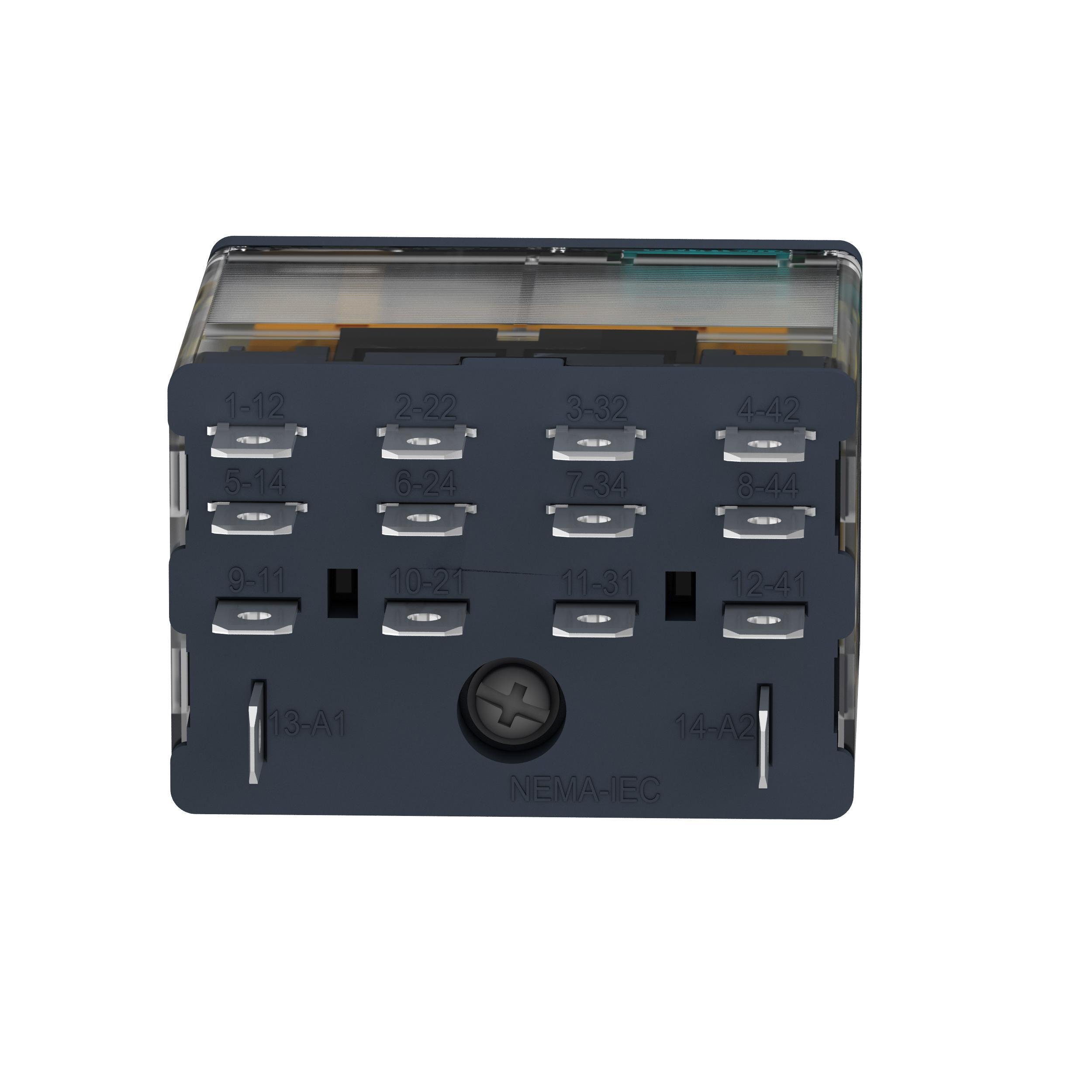

Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC
Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC
Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC
Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC Picture of RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC
Schneider Electric

RPM42BD - plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC

Item Code: 634762
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPM42BD

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.16lb

Height

1.1mm

Width

1.56mm

Length

1.83mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PWR MINTR 15A 14 4NO-4NC 24VDC SQ

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Provides economical solution for the implementation of many switching functions

AD Item Features 03

Flexible design for space-saving

AD Item Features 04

Plug in type is easy installation and maintenance

AD Item Features 05

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

1.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3.1700

AD Package Volume UOM

cu-in

AD Package Weight

0.1600

AD Package Weight UOM

LB

AD Package Width

1.5600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plug-In/Socket

Spec 11 Attribute

Number of Pins

Spec 11 Attribute Value

14

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

4

Spec 13 Attribute

Power Rating

Spec 13 Attribute UOM

HP

Spec 13 Attribute Value

2-Jan

Spec 14 Attribute

Series

Spec 14 Attribute Value

RPM

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg C

Spec 15 Attribute Value

-40 To 55

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Faston/Flat Pin/Spade

Spec 2 Attribute

Base Type

Spec 2 Attribute Value

Square

Spec 3 Attribute

Coil Voltage

Spec 3 Attribute UOM

V DC

Spec 3 Attribute Value

24

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

4NO-4NC 4 Form C

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

15 A at 277 V AC/15 A at 28 V DC

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

39 mm W x 41 mm D x 27 mm H

Spec 7 Attribute

Display Type

Spec 7 Attribute Value

Led

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

IP40

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

10 to 150
