Schneider Electric

RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays

Category General Purpose Plug-In Relays & Accessories

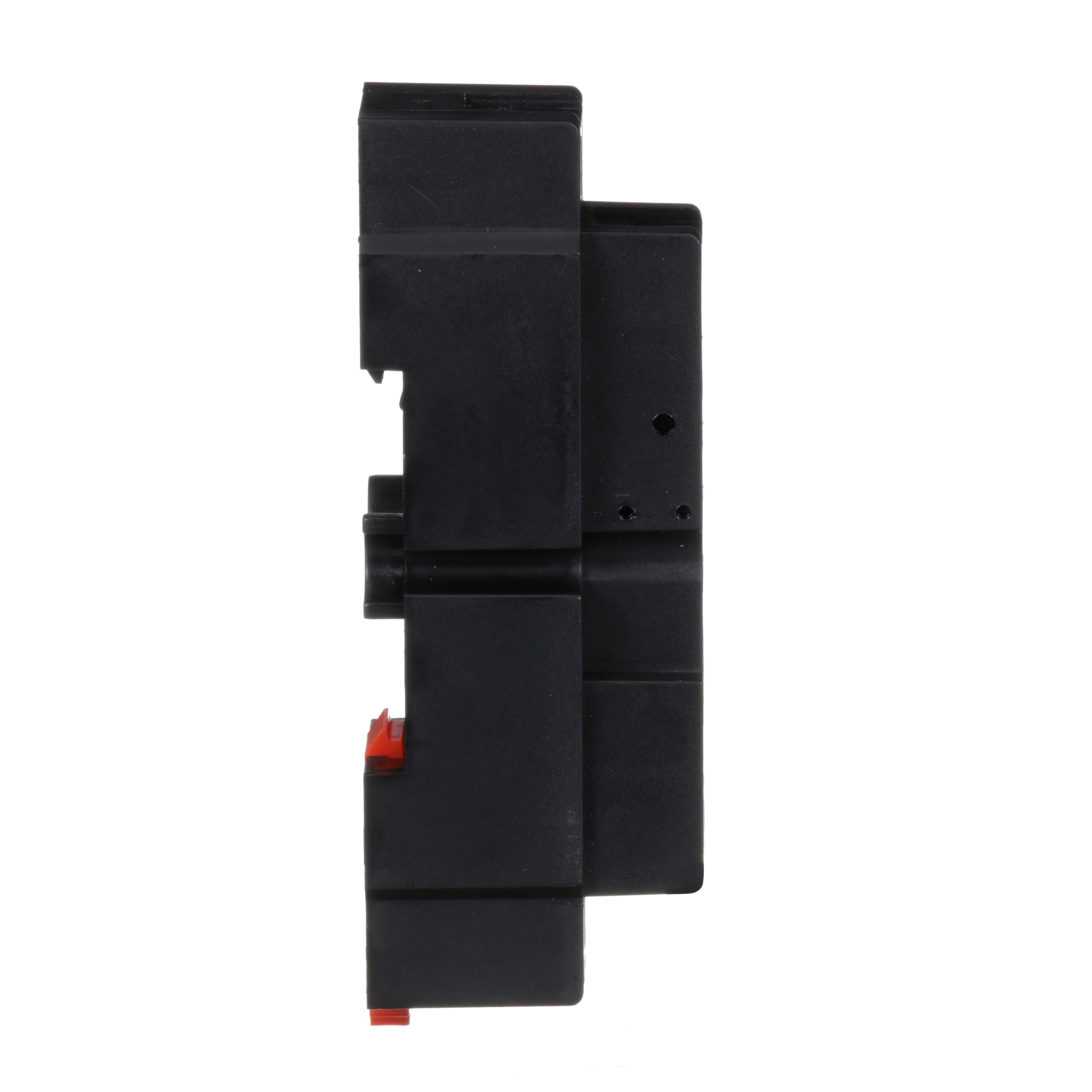

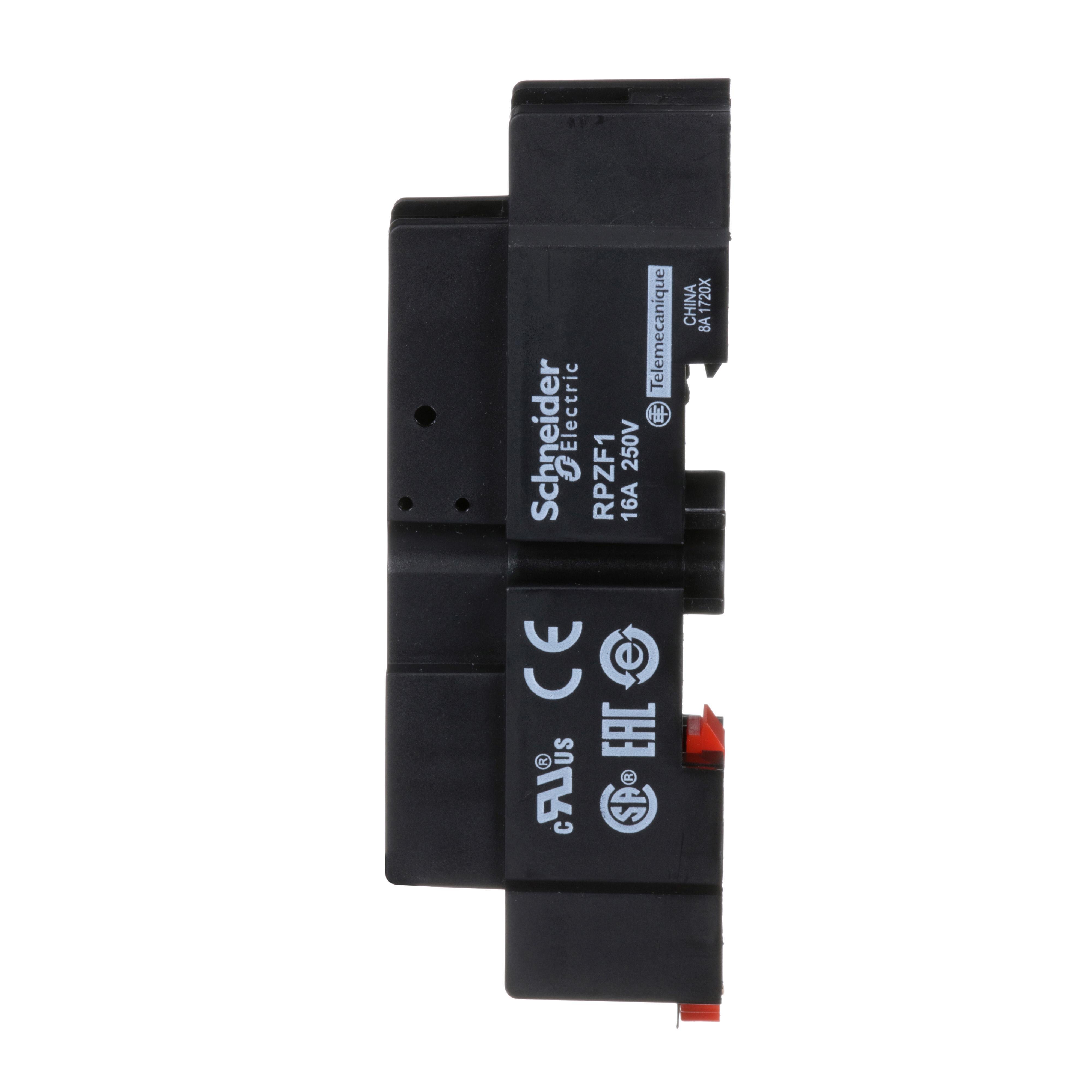

Picture of RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays Picture of RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays
Picture of RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays Picture of RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays
Picture of RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays Picture of RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays
Schneider Electric

RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays

Item Code: 617841
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RPZF1

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.07lb

Width

0.82mm

Length

3.31mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

SOCKET RLY 250VAC 15A 5 -40 TO 55DEG C

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Compatible with a large range of voltages giving flexibility in installation and reduces number of stocked products

AD Item Features 03

It is a flexible design for space-saving

AD Item Features 04

Easy installation and connect to relay from its socket

AD Item Features 05

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.3100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0700

AD Package Weight UOM

LB

AD Package Width

0.8200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

250

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.31 in L x 0.83 in W x 1.22 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

DIN Rail/Panel

Spec 5 Attribute

Number of Pins

Spec 5 Attribute Value

5

Spec 6 Attribute

Series

Spec 6 Attribute Value

RPZ

Spec 7 Attribute

Suitable For Use With

Spec 7 Attribute Value

RSB (1CO) Plug-In Relay

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

-40 To 55

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Screw clamp
