Square D™

RQC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass

Category Miscellaneous

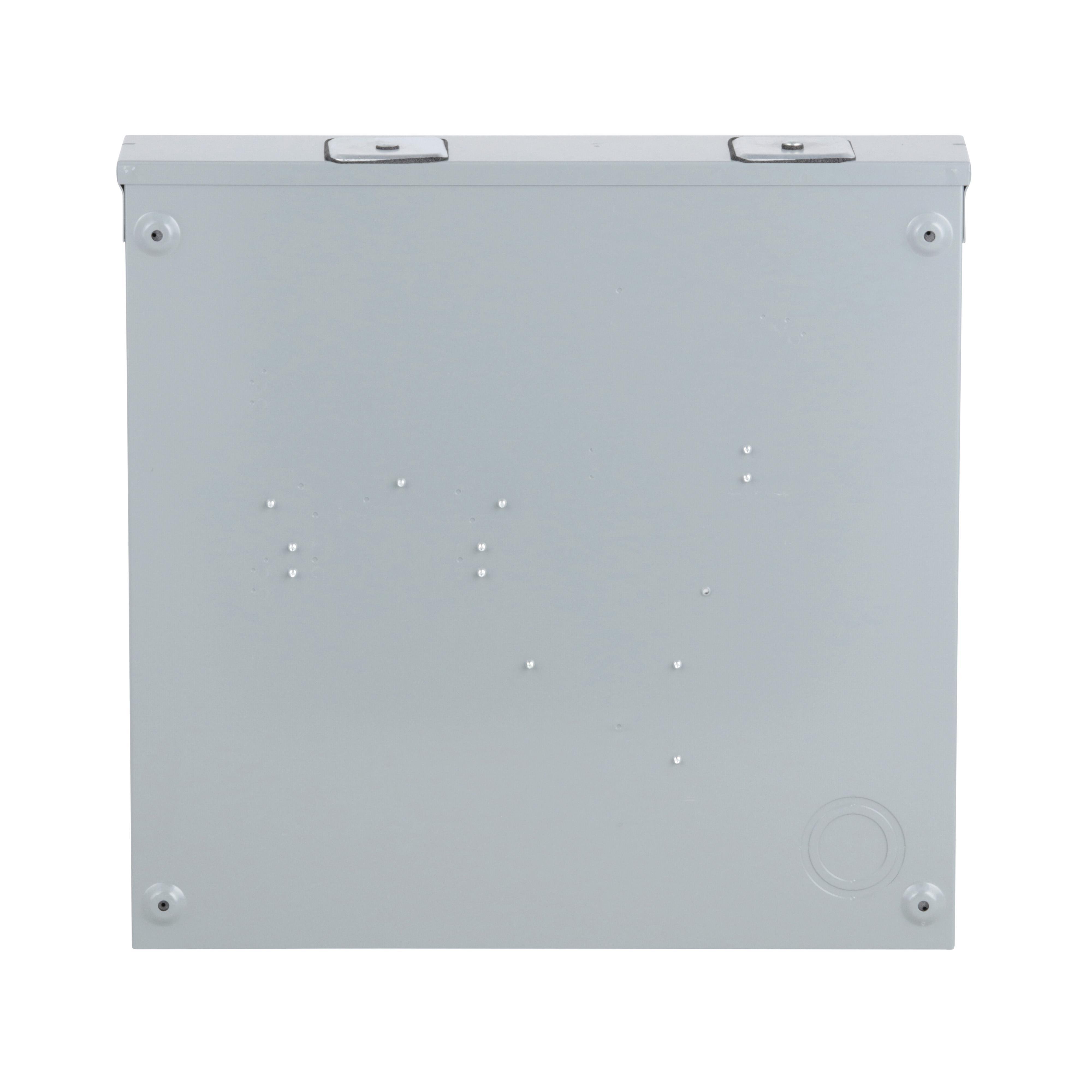

Picture of RQC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass Picture of RQC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass
Picture of RQC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass Picture of RQC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass
Square D™

RQC200SFMG - Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass

Item Code: 1037921
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RQC200SFMG

Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and/or provisions for field installation of service disconnect(s) to feed downstream devices. Meter mains are surface mount and typically used with interior mounted subfeed load centers. This meter main is ringless type at a 200 A Main breaker rating and 200 A line rated current. It has a hub type of A with service disconnect already installed and a short circuit rating of 22 kA. Service feed can be underground or overhead.

Specifications

Weight

31.28

Width

26.65

Length

26.65

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RQC200SFMG/RQC200SFMG.spin

AD All Features

QO meter mains support standard utility meters and a main disconnect breakers

AD Alternative Part Number

14255695

AD Application

Residential, Florida Meter Group and Outdoor Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901186397

AD Gtin

00785901186397

AD IDEA Index ID

14255695

AD Includes

Circuit Breaker

AD Invoice Description

MAIN COMBINATION SVCE ENTR MTR 200A 1 4

AD Item Features 01

QO meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Keywords

HomeLine RQC200SFMG Factory Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; RQC200SFMG ; RQC200SFMG ; 785901186397 ; Meter Socket Meter Main Combinations

AD Manufacturer (Description)

Schneider Electric

AD Package Length

26.6500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

31.2800

AD Package Weight UOM

LB

AD Package Width

26.6500

AD Package Width UOM

IN

AD Part Number Keywords

RQC200SFMG ; 14255695 ; 785901186397 ; 78590118639 ; 00785901186397 ; 0785901186397

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Service Ground Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

Factory Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 350 kcmil Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

24.04 in W x 4.67 in D x 23.03 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

A

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
