Schneider Electric

RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC

Category General Purpose Plug-In Relays & Accessories

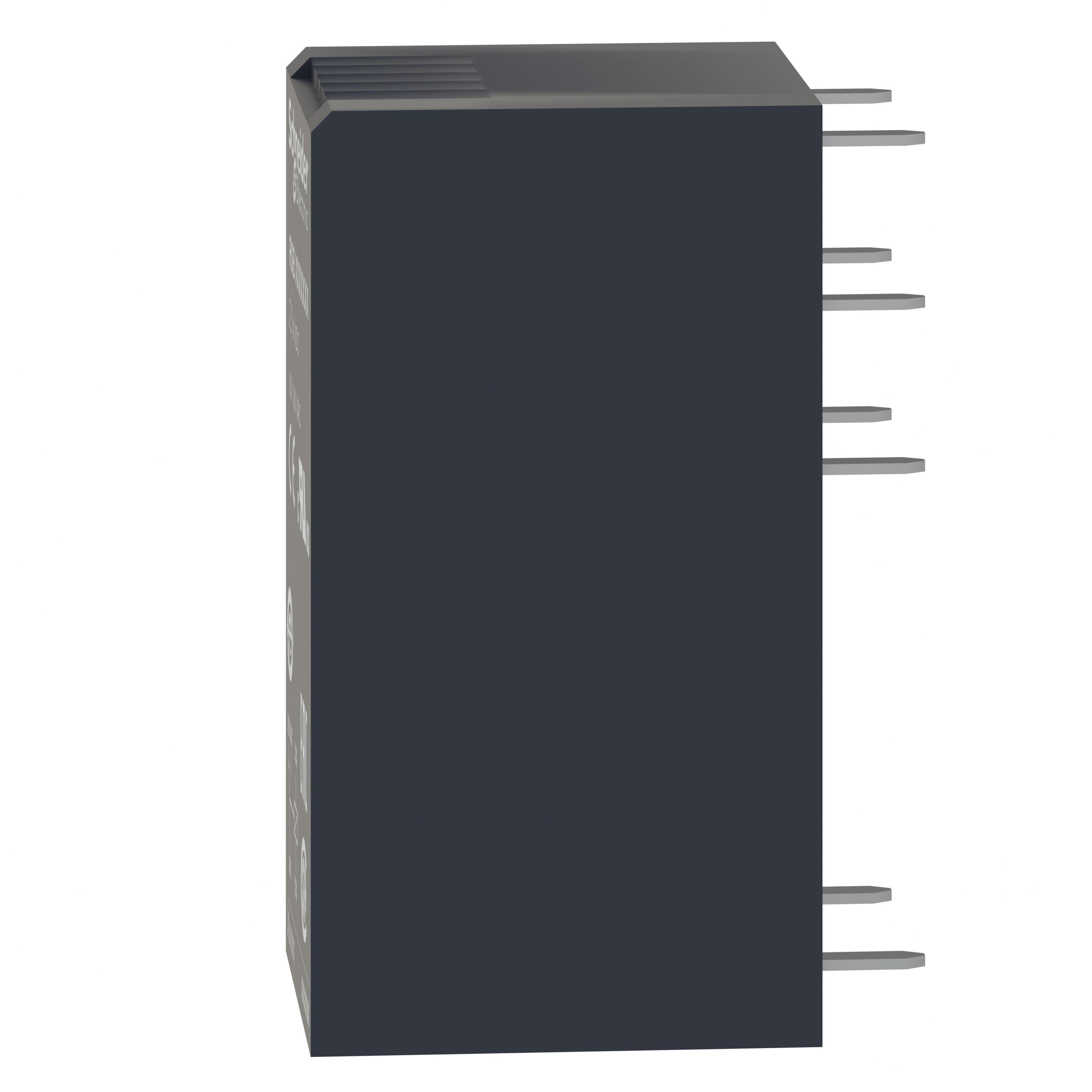

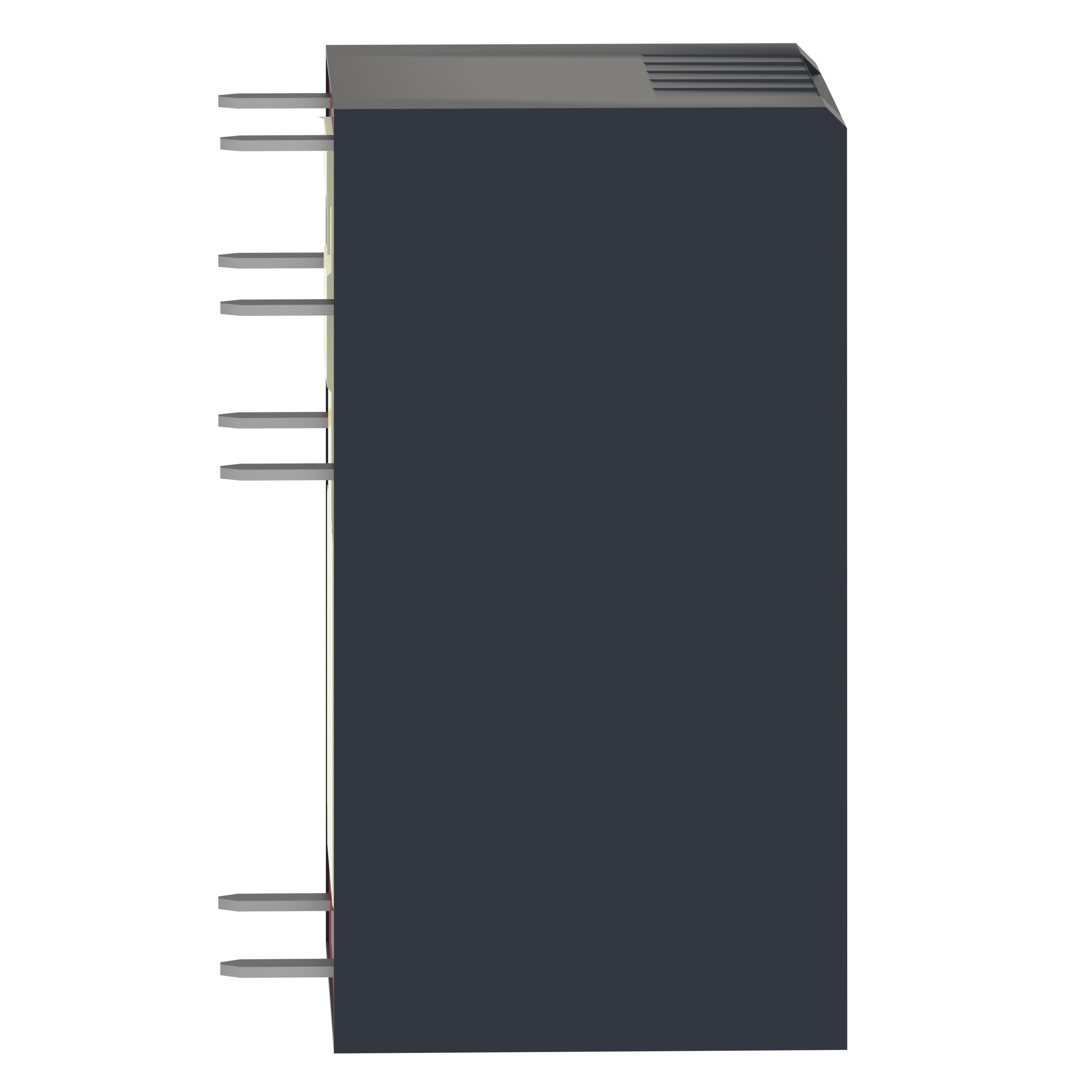

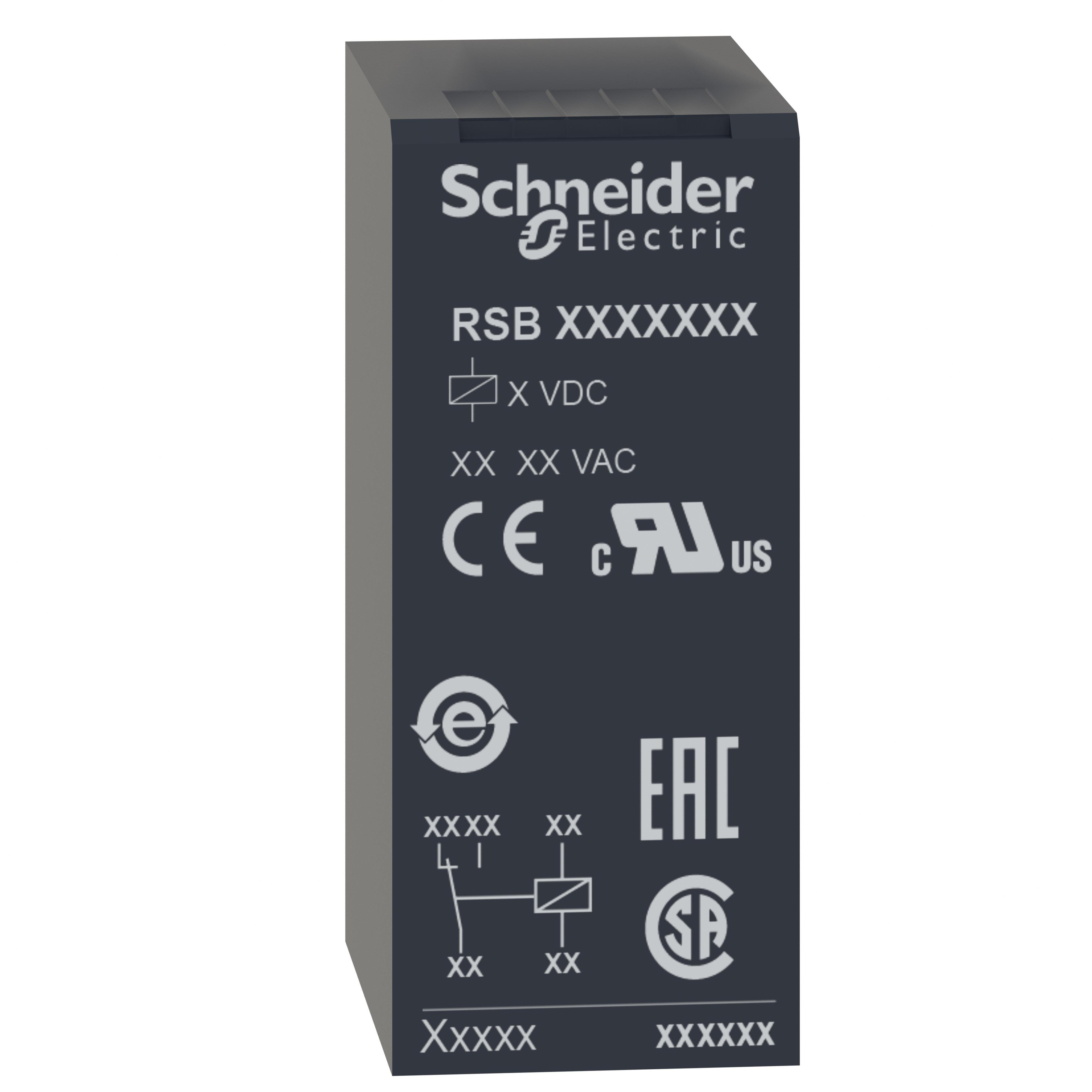

Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC
Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC
Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC
Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC Picture of RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC
Schneider Electric

RSB1A120BD - interface plug-in relay, Harmony electromechanical relays, 12A, 1CO, 24V DC

Item Code: 1058839
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RSB1A120BD

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

PL

AD Invoice Description

RELAY 12A 1NO-1NC-SPDT 24VDC 0.45W 1 RSB

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Provides economical solution for the implementation of many switching functions

AD Item Features 03

It is a flexible design for space-saving

AD Item Features 04

Plug in type allows for easy installation and maintenance

AD Item Features 05

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

12

Spec 10 Attribute

Series

Spec 10 Attribute Value

RSB

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-40 To 85

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Flat Pin/PCB

Spec 13 Attribute

Type

Spec 13 Attribute Value

Interface

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1CO 1 Form C SPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

12 A at 250 V AC/28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

15.7 in W x 1.14 in H x 12.5 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-In/Socket

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

1

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

0.45
