Schneider Electric

RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC

Category General Purpose Plug-In Relays & Accessories

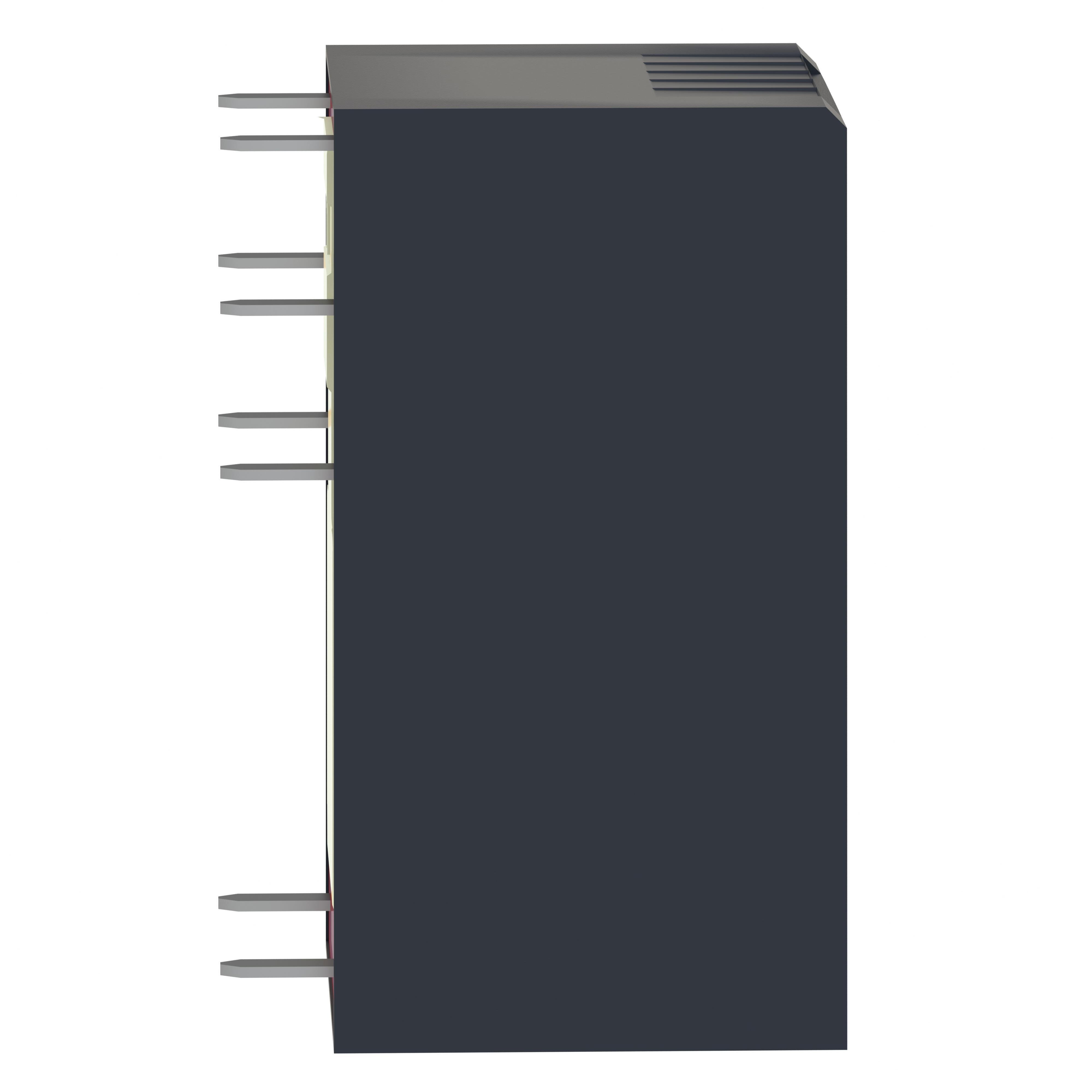

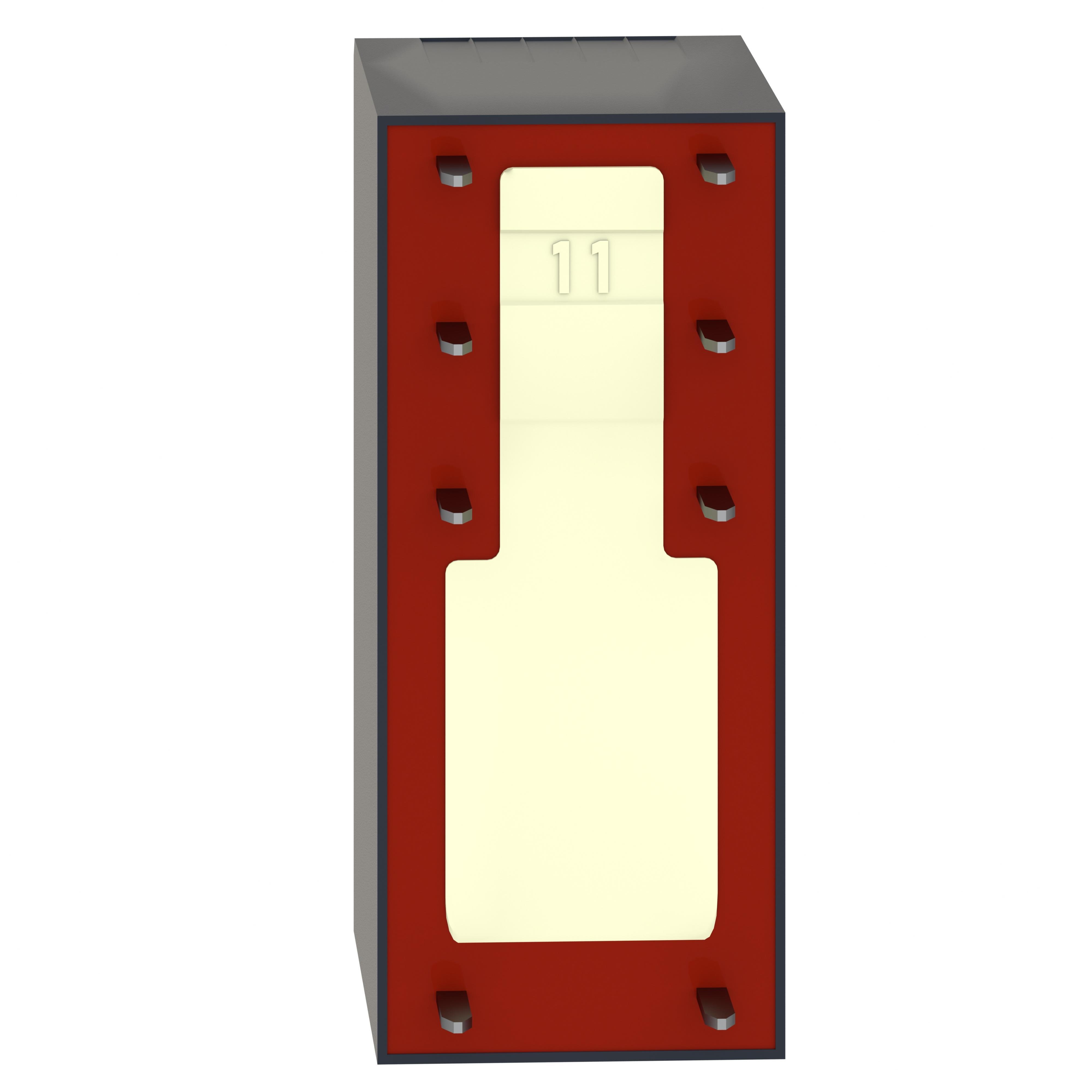

Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC
Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC
Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC
Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC Picture of RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC
Schneider Electric

RSB2A080B7 - interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V AC

Item Code: 981860
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RSB2A080B7
Minimum order quantity 10

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.03lb

Width

0.97mm

Length

12.13mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

AT

AD Invoice Description

RELAY ELMCH 8A 2NO-2NC 24VAC 2000VA IP40

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Provides economical solution for the implementation of many switching functions

AD Item Features 03

It is a flexible design for space-saving

AD Item Features 04

Plug in type allows for easy installation and maintenance

AD Item Features 05

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.1300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0300

AD Package Weight UOM

LB

AD Package Width

0.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

8

Spec 10 Attribute

Series

Spec 10 Attribute Value

RSB

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-40 To 70

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Flat Pin/PCB

Spec 13 Attribute

Type

Spec 13 Attribute Value

Interface

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form A/2 Form B

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

8 A at 250 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

13.2 in L x 1.2 in W x 0.7 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-In/Socket

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

VA

Spec 9 Attribute Value

2000
