Schneider Electric

RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC

Category Miscellaneous

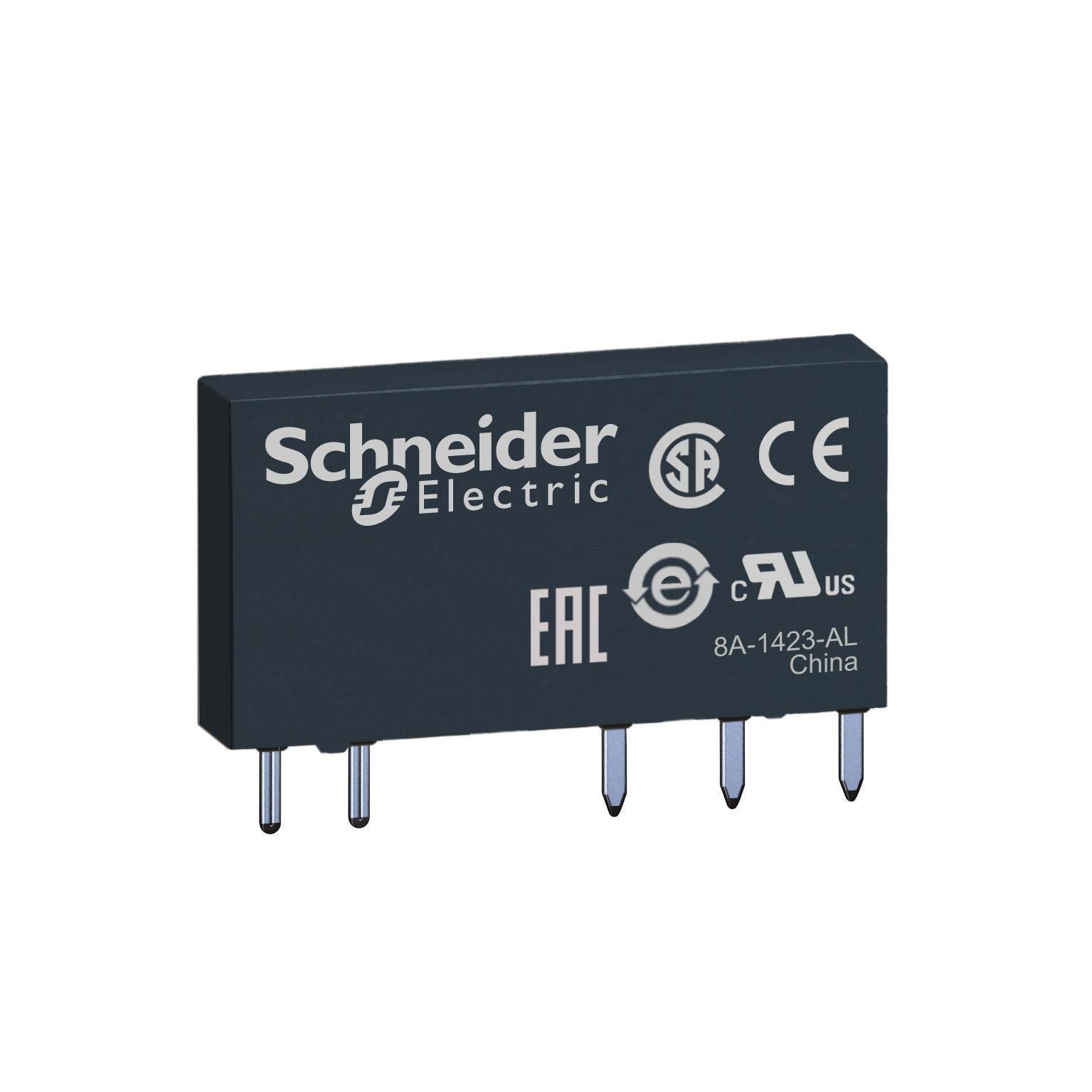

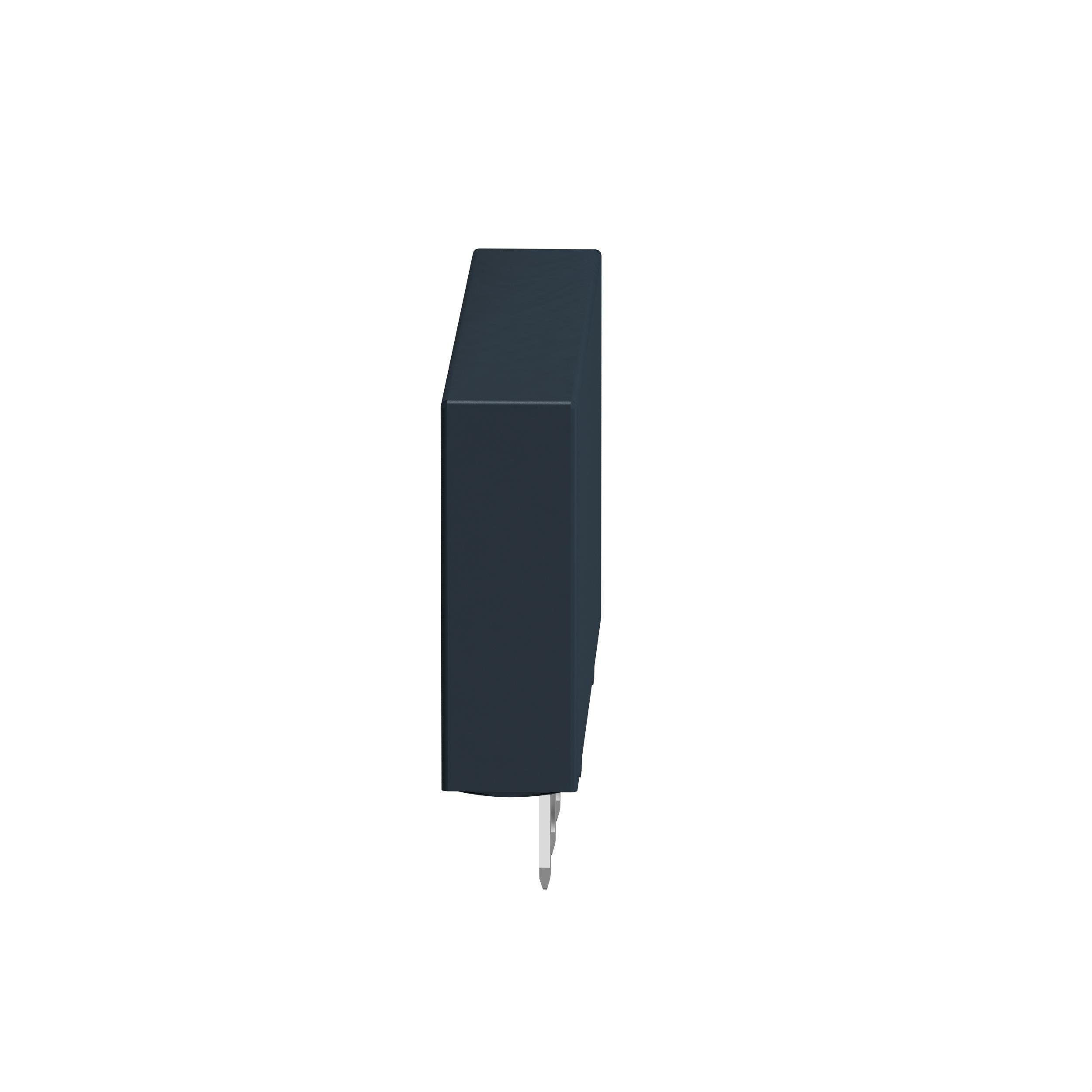

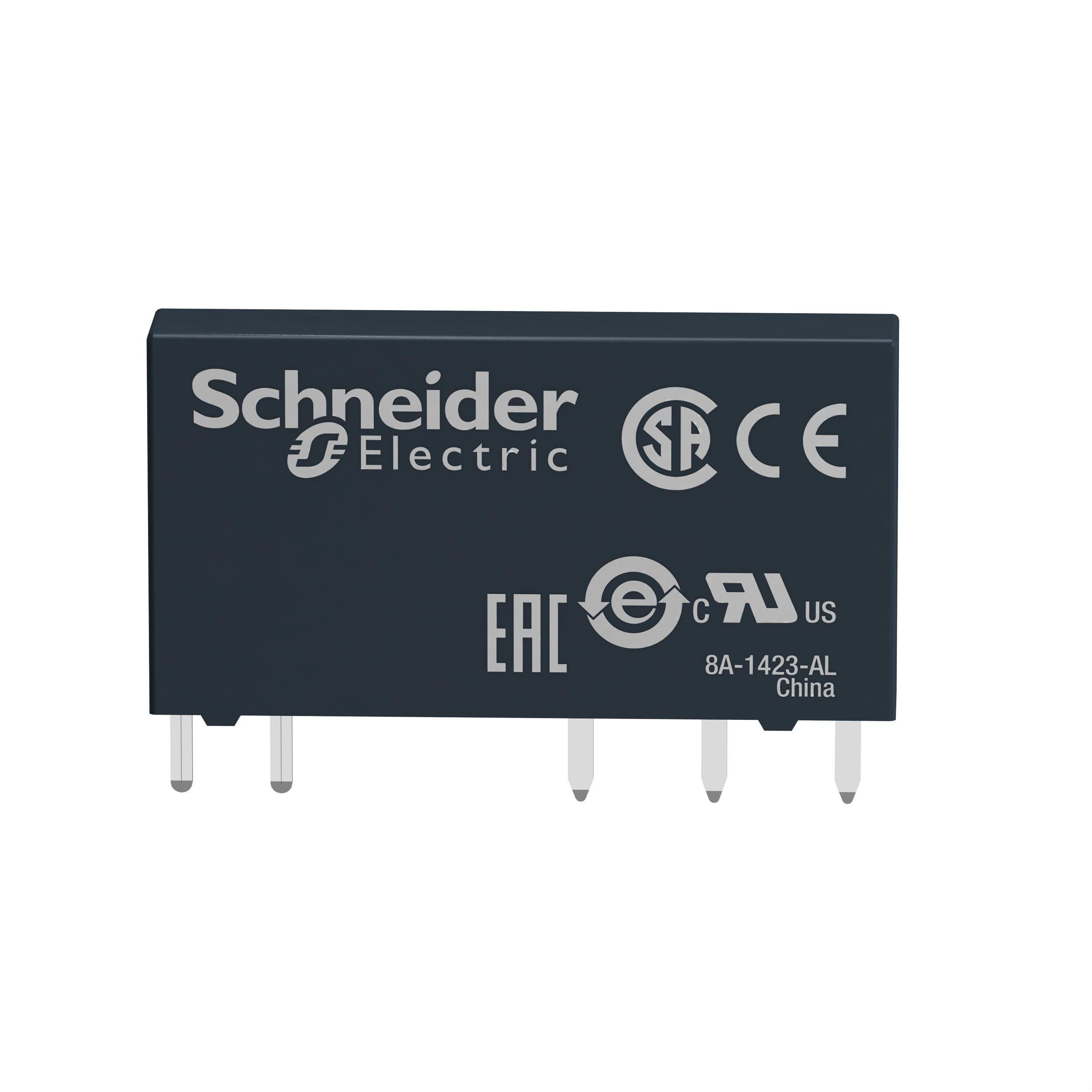

Picture of RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC Picture of RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC
Picture of RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC Picture of RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC
Picture of RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC Picture of RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC
Schneider Electric

RSL1AB4BD - slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 24V DC

Item Code: 882712
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RSL1AB4BD

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. "It has large choice of number of contacts for high rated current use." "It helps to re

Specifications

Weight

0.01

Width

0.58

Length

1.09

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/RSL1AB4BD/RSL1AB4BD.spin

AD Alternative Part Number

11785096

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3606480077975

AD Gtin

03606480077975

AD IDEA Index ID

11785096

AD Invoice Description

RELAY ELMCH 6A 1NO-1NC-SPDT 24VDC 1500VA

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Provides economical solution for the implementation of many switching functions

AD Item Features 03

One of the slimmest interface relays on the market, with 0.24in width

AD Item Features 04

Easy installation and withdrawal the relay from its socket

AD Item Features 05

Available as a single-referenced complete product (relay and socket)

AD Item Features 06

Compatible with high breaking capacity or low-level current application requirements

AD Keywords

Square D Zelio RSL1AB4BD Slim Interface Electromechanical Relay, 6 A, 1CO 1 Form C SPDT Contact, 24 VDC V Coil ; Schneider Electric ; Schneider Electric ; RSL1AB4BD ; 785901695226 ; General Purpose Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0100

AD Package Weight UOM

LB

AD Package Width

0.5800

AD Package Width UOM

IN

AD Part Number Keywords

RSL1AB4BD ; 11785096 ; 785901695226 ; 78590169522 ; 03606480077975 ; 3606480077975

AD Video Links

https://www.youtube.com/embed/W6W-90ovcos

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

6

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 To 131

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Flat Pin/Screw

Spec 12 Attribute

Type

Spec 12 Attribute Value

Slim Interface

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1CO 1 Form C SPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

6 A at 24 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

0.2 in W x 0.73 in D x 1.1 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-In

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

1500

Spec 9 Attribute

Series

Spec 9 Attribute Value

RSL
