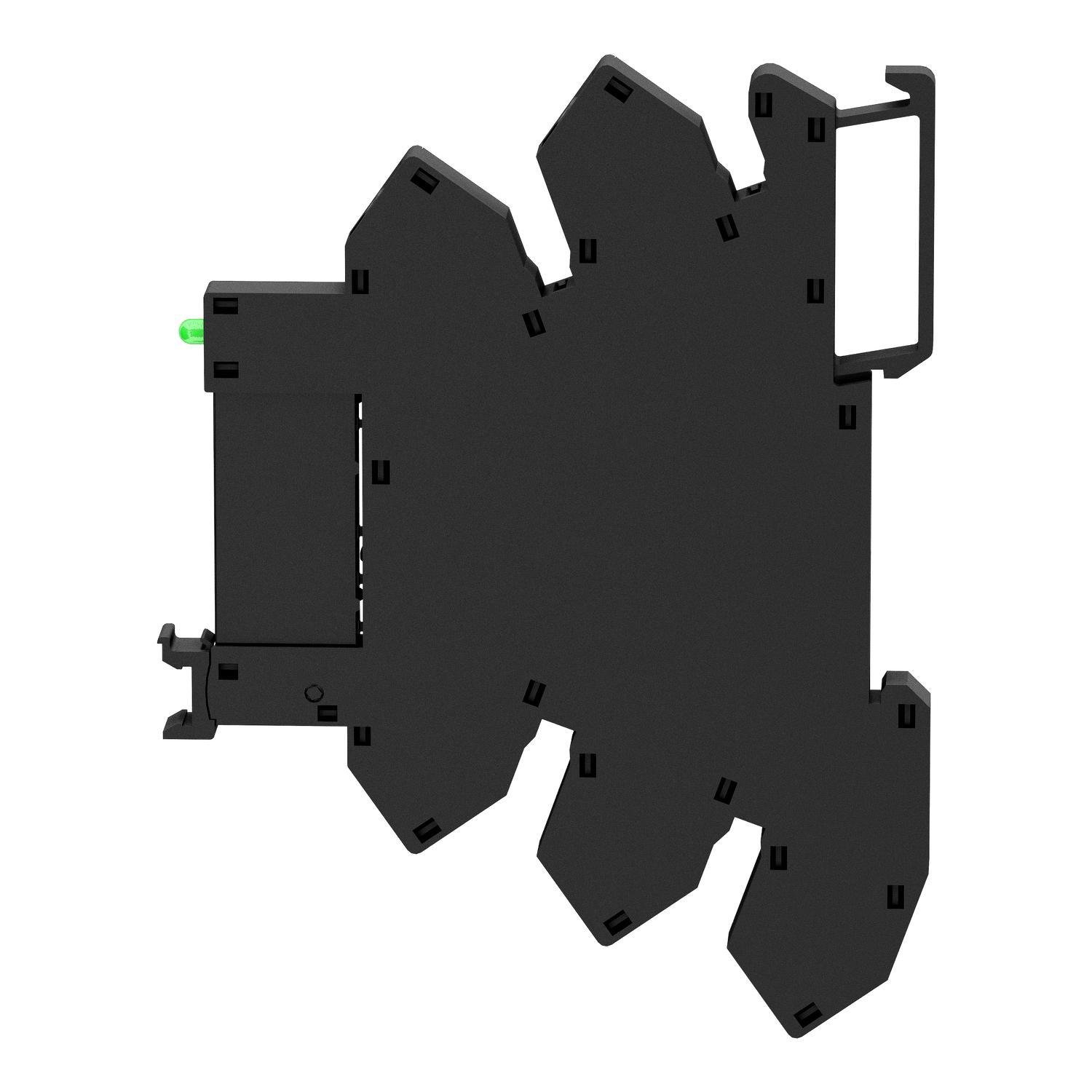

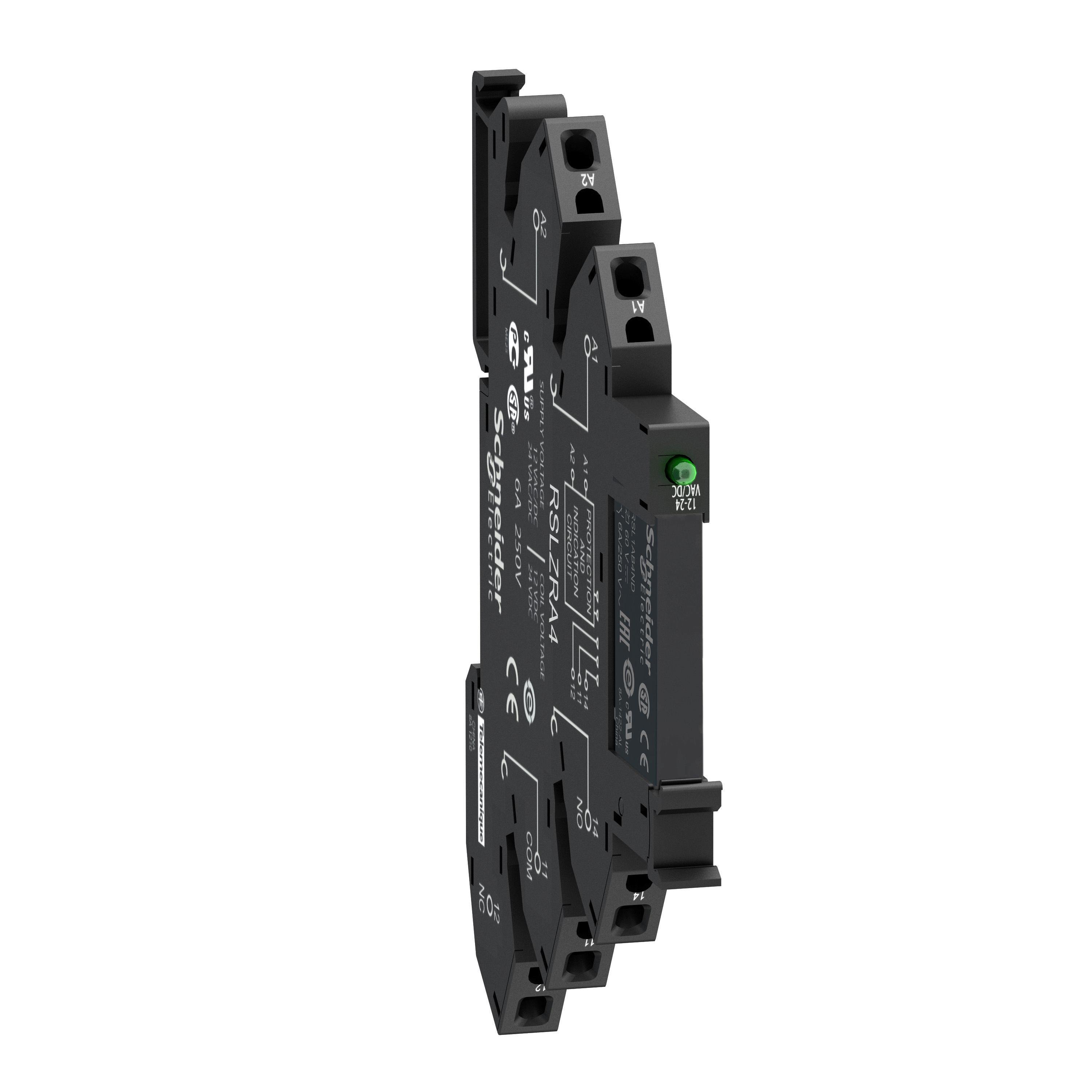

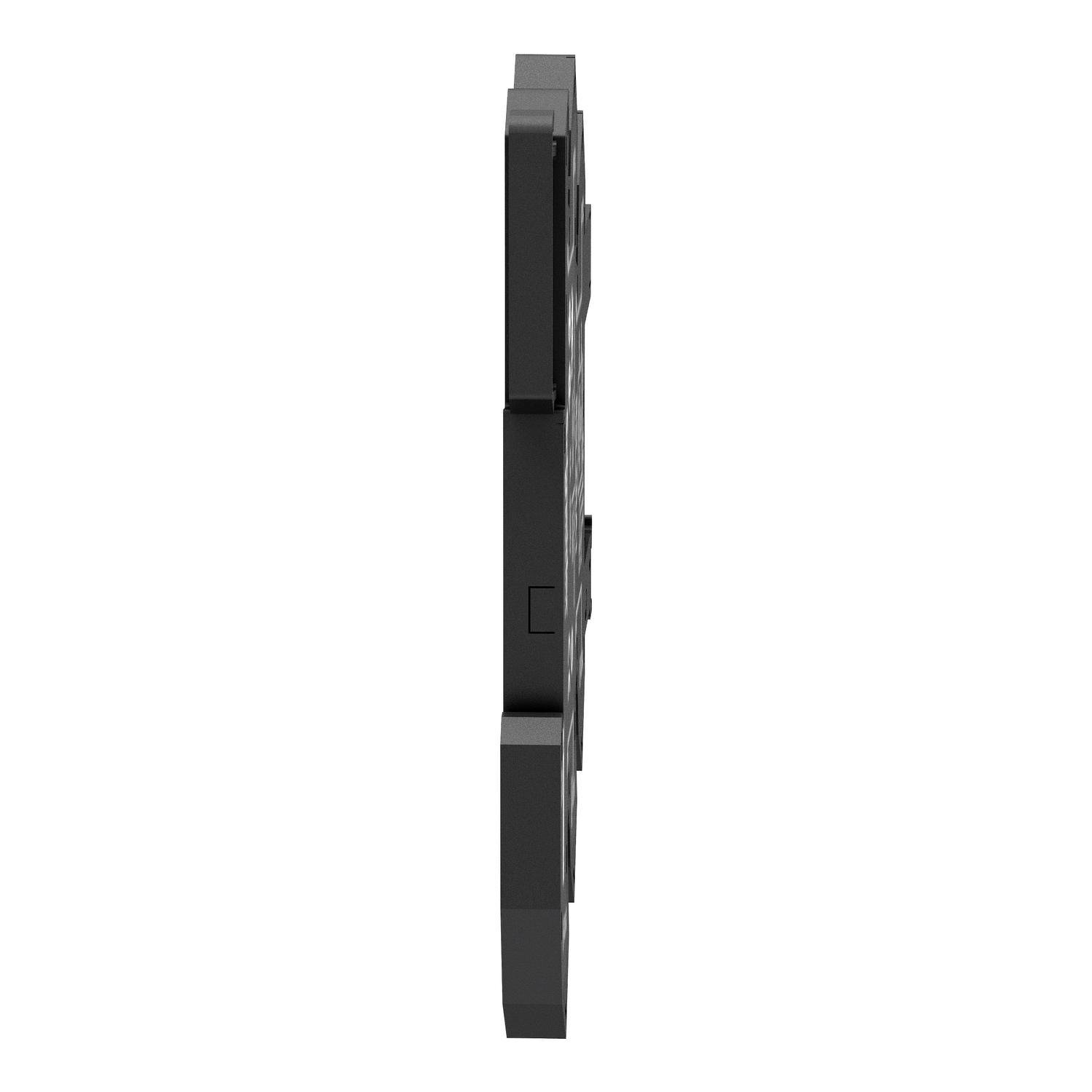

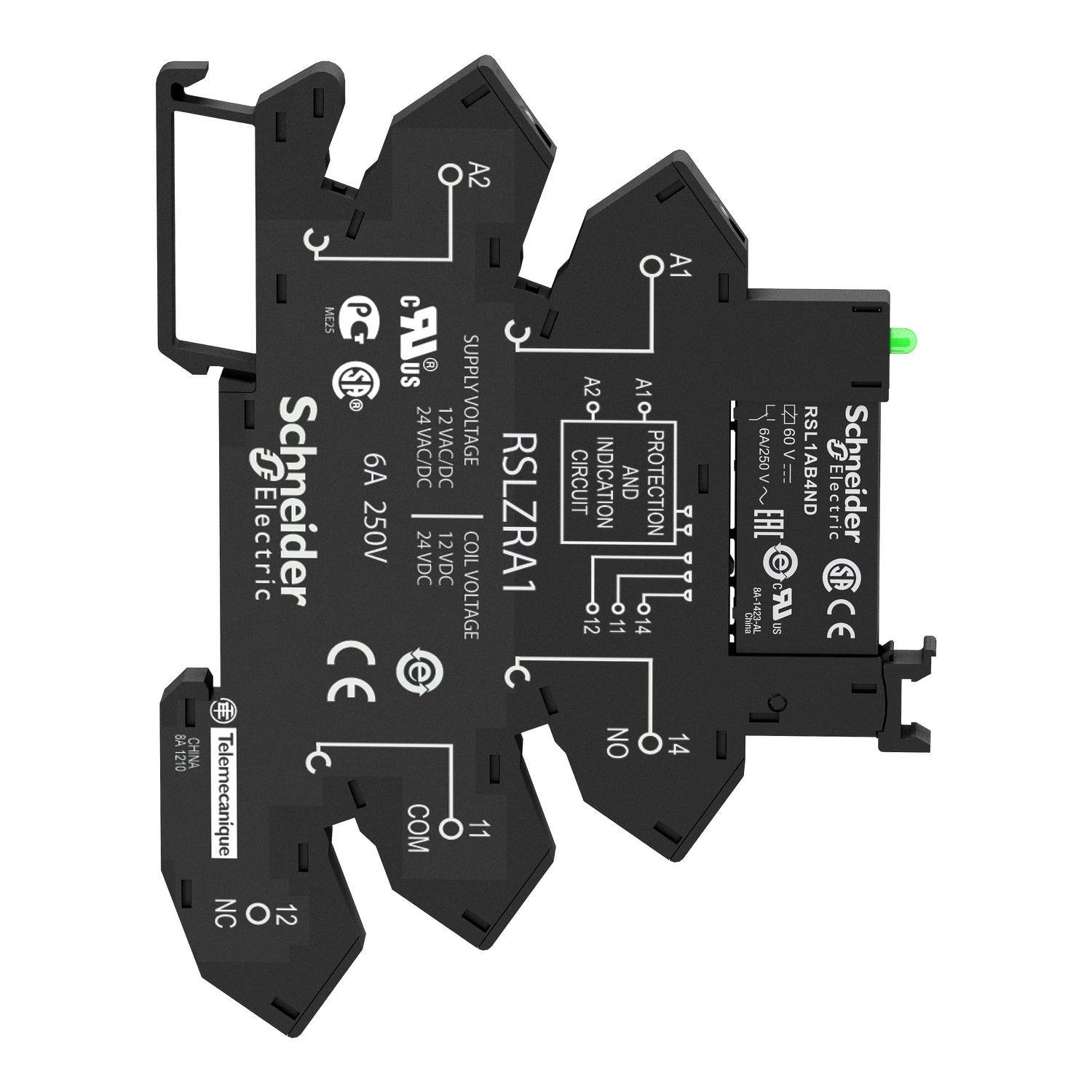

RSL1PRBU - slim interface relay, Harmony Electromechanical Relays, pre assembled, 6A, 1CO, with LED, spring terminals, 24V AC/DC
Description
Specifications
0.06
3.12
4.09
Schneider Electric
USA
CN
RELAY 6A 1NO-1NC 24VDC 0.17W 1 SPR IP40
Help to reduce the size of enclosures
Provides economical solution for the implementation of many switching functions
One of the slimmest interface relays on the market, with 0.24in width
Easy installation and withdrawal the relay from its socket
Available as a single-referenced complete product (relay and socket)
Compatible with high breaking capacity or low-level current application requirements
Schneider Electric
IN
4.0900
IN
1
0.0600
LB
3.1200
IN
https://www.youtube.com/embed/R9__kuMEA5U
Square D
GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES
Amperage Rating
A
6
Series
RSL
Temperature Rating
deg C
-40 To 55
Terminal Type
Spring
Type
Slim Interface
Coil Voltage
V DC
24
Contact Form
1NO-1NC 1 Form A/1 Form B
Contact Rating
6 A at 250 V AC
Dimensions
0.24 in W x 3.09 in H x 3.98 in D
Enclosure Type
IP40
Mounting Type
Plug-In/Socket
Number Of Poles
1
Power Rating
W
0.17
