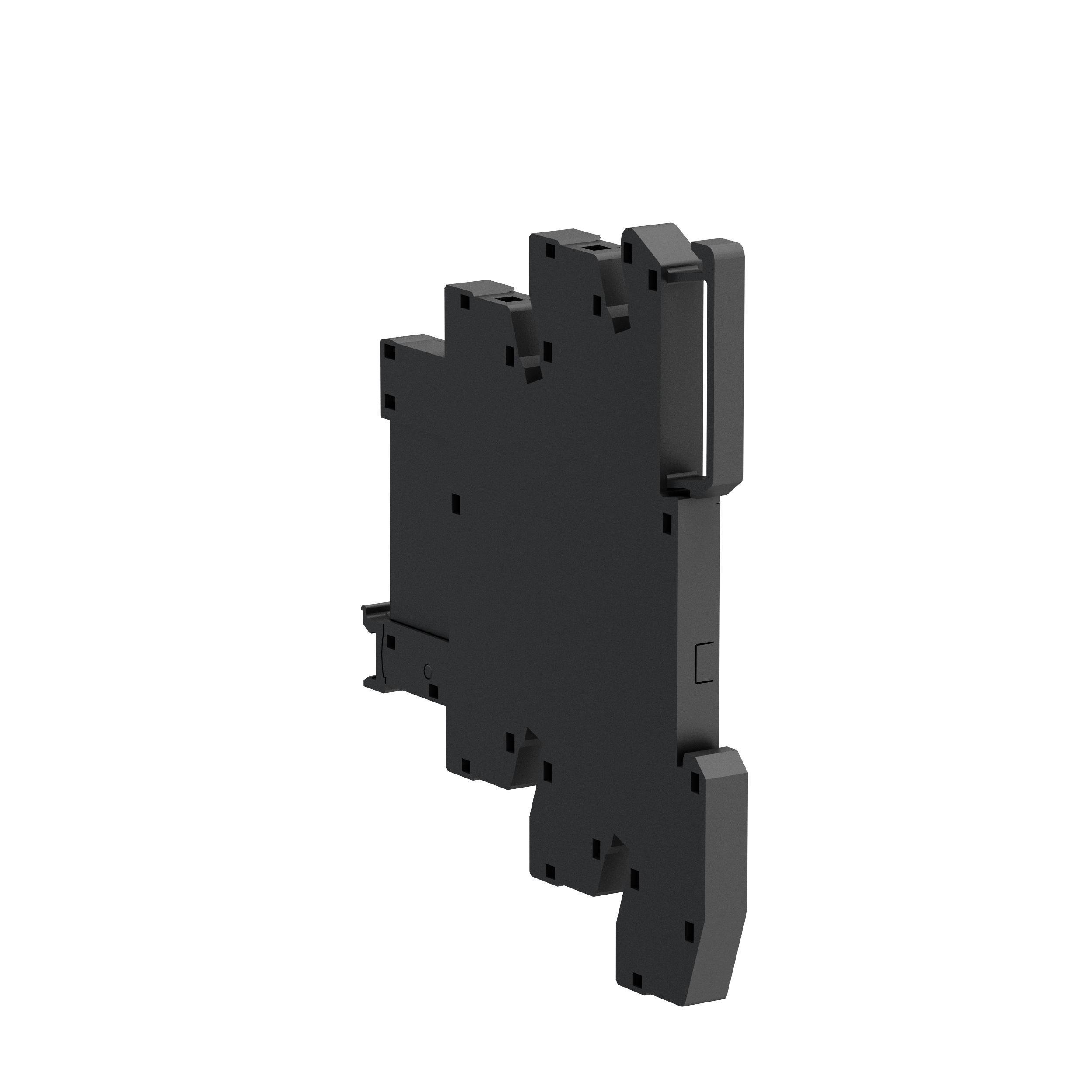

RSL1PVJU - slim interface relay, Harmony Electromechanical Relays, pre assembled, 6A, 1CO, with LED, screw connec to rs, 12V AC/DC
Description
Specifications
0.06
3.12
3.78
Schneider Electric
USA
CN
RELAY PLUG-IN INTFC SLIM 6A 1CO 12VDC
Help to reduce the size of enclosures
Provides economical solution for the implementation of many switching functions
One of the slimmest interface relays on the market, with 0.24in width
Easy installation and withdrawal the relay from its socket
Available as a single-referenced complete product (relay and socket)
Compatible with high breaking capacity or low-level current application requirements
Schneider Electric
IN
3.7800
IN
1
0.0600
LB
3.1200
IN
https://www.youtube.com/embed/W6W-90ovcos
Square D
GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES
Amperage Rating
A
6
Temperature Rating
deg C
-40 To 55
Terminal Type
Screw
Coil Voltage
V DC
12
Contact Form
1CO 1 Form C
Dimensions
3.09 in H x 0.24 in W x 3.74 in D
Enclosure Type
IP40
Mounting Type
Plug-In/Socket
Number Of Poles
1
Power Rating
W
0.17
Series
RSL
