Schneider Electric

RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC

Category General Purpose Plug-In Relays & Accessories

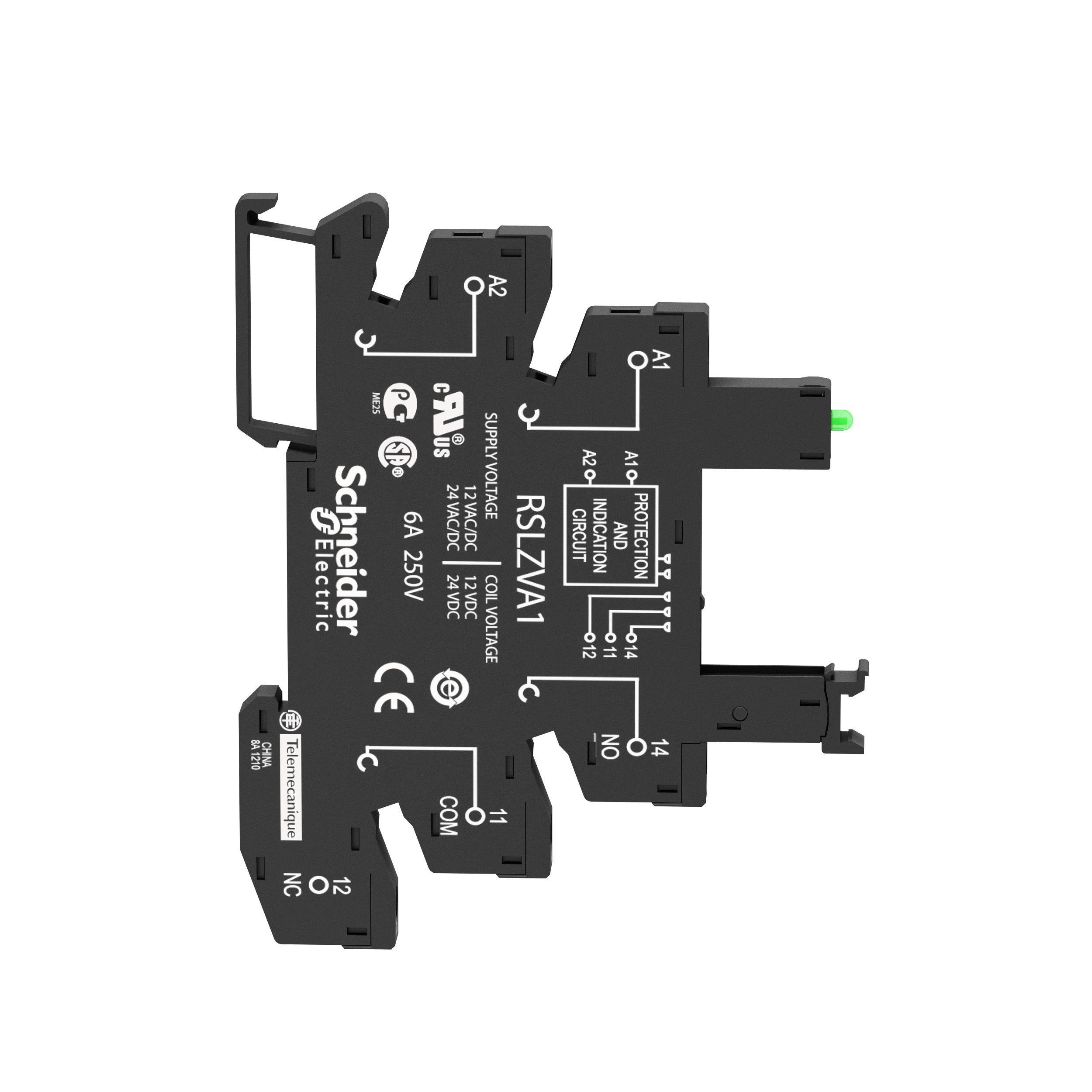

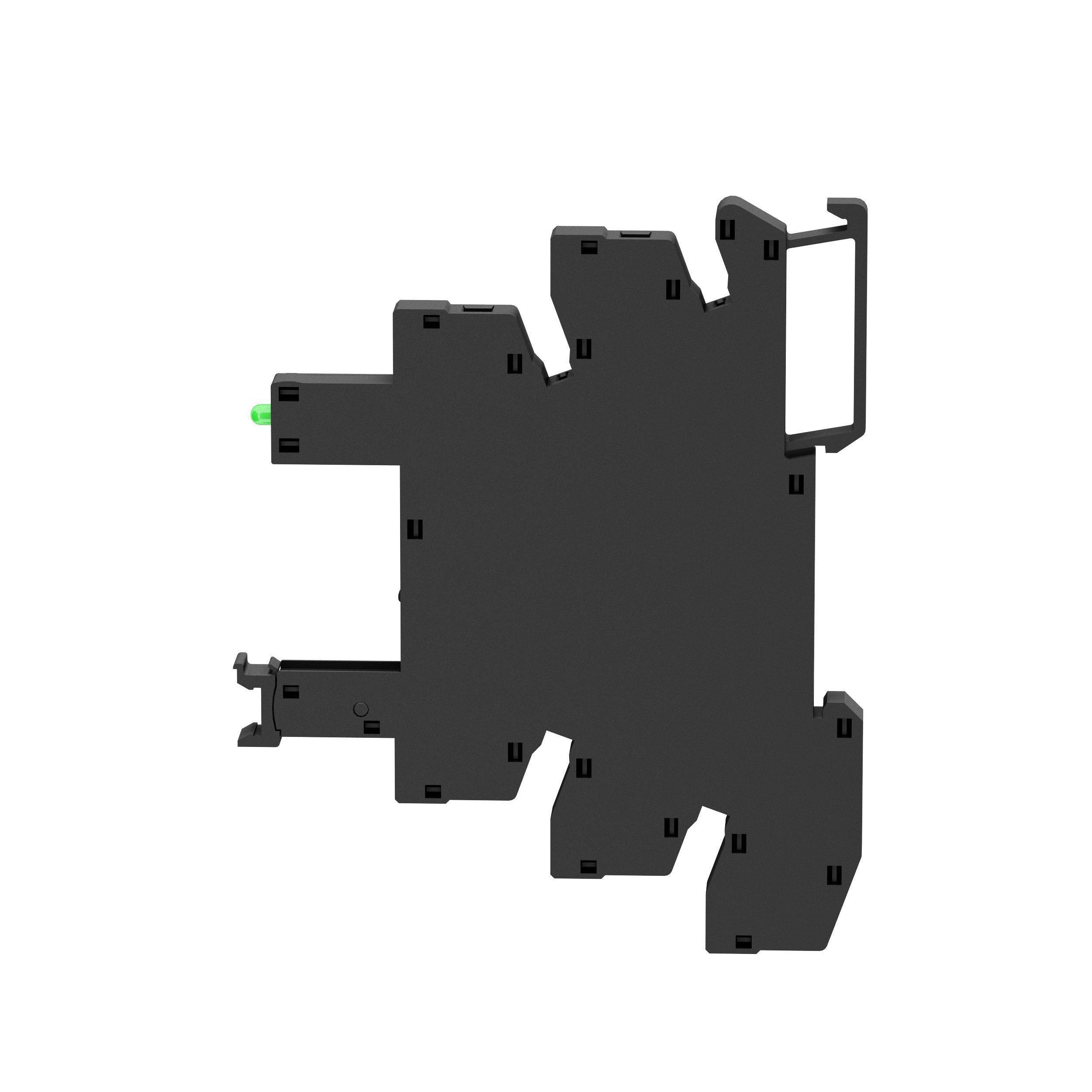

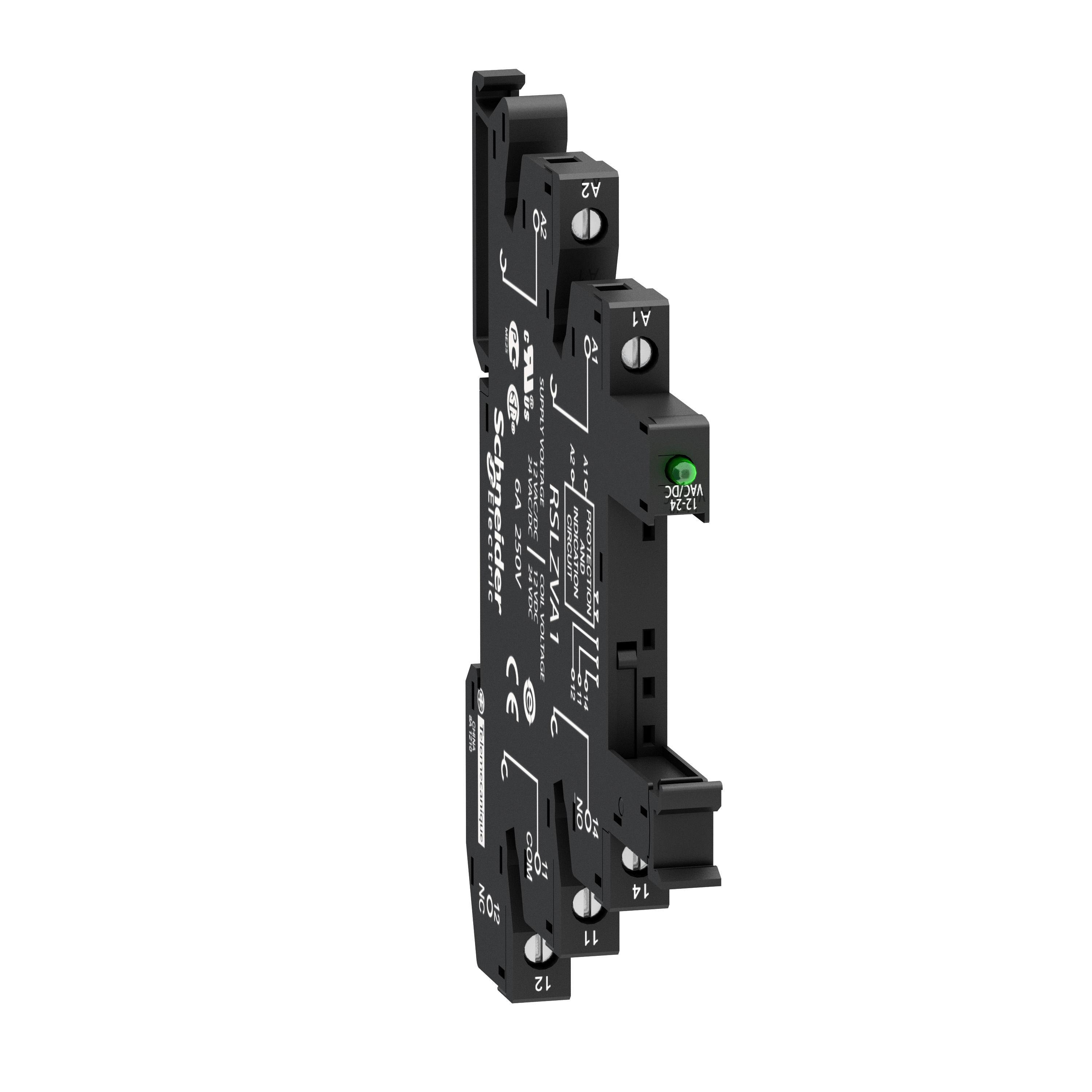

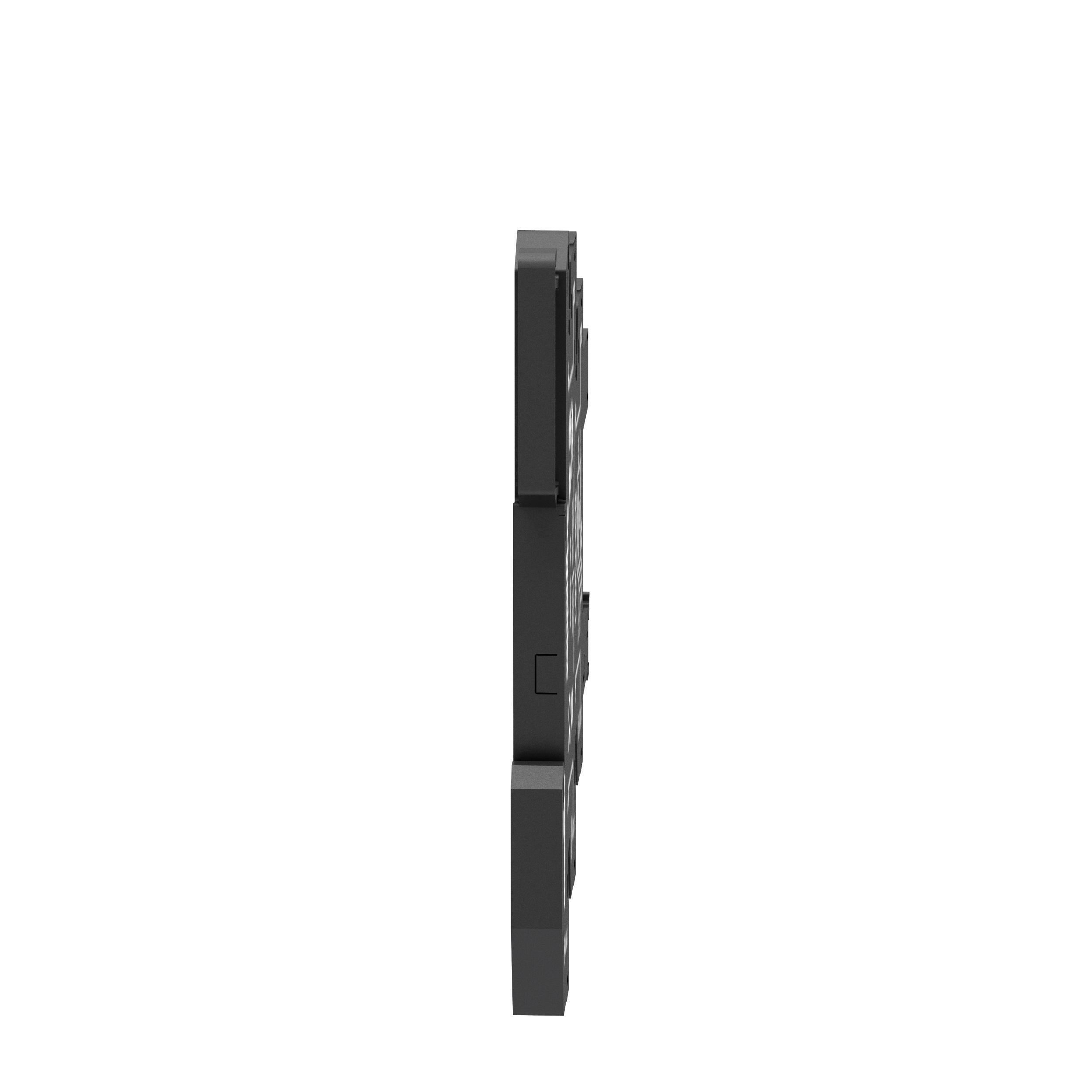

Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC
Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC
Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC
Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC
Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC Picture of RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC
Schneider Electric

RSLZVA1 - socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC

Item Code: 900227
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RSLZVA1

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

"This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.05

Width

2.81

Length

4.21

AD All Features

Help to reduce the size of enclosures

AD Application

Industrial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Includes

Isolator, ID Tag and Bus Jumper

AD Invoice Description

SOCKET RLY 12 TO 24VAC/VDC 6A SCR IP20

AD Item Features 01

Help to reduce the size of enclosures

AD Item Features 02

Provides economical solution for the implementation of many switching functions

AD Item Features 03

One of the slimmest sockets on the market, with 0.24in width

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.2100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0500

AD Package Weight UOM

LB

AD Package Width

2.8100

AD Package Width UOM

IN

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

6

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC/DC

Spec 10 Attribute Value

12 to 24

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

0.24 in W x 3.74 in D x 3.09 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

DIN Rail/Panel

Spec 5 Attribute

Series

Spec 5 Attribute Value

RSL

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

RSB (1CO) Plug-In Relay

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

-40 To 70

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Screw

Spec 9 Attribute

Type

Spec 9 Attribute Value

Flat
