Square D

RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass

Category Residential Meter Mains

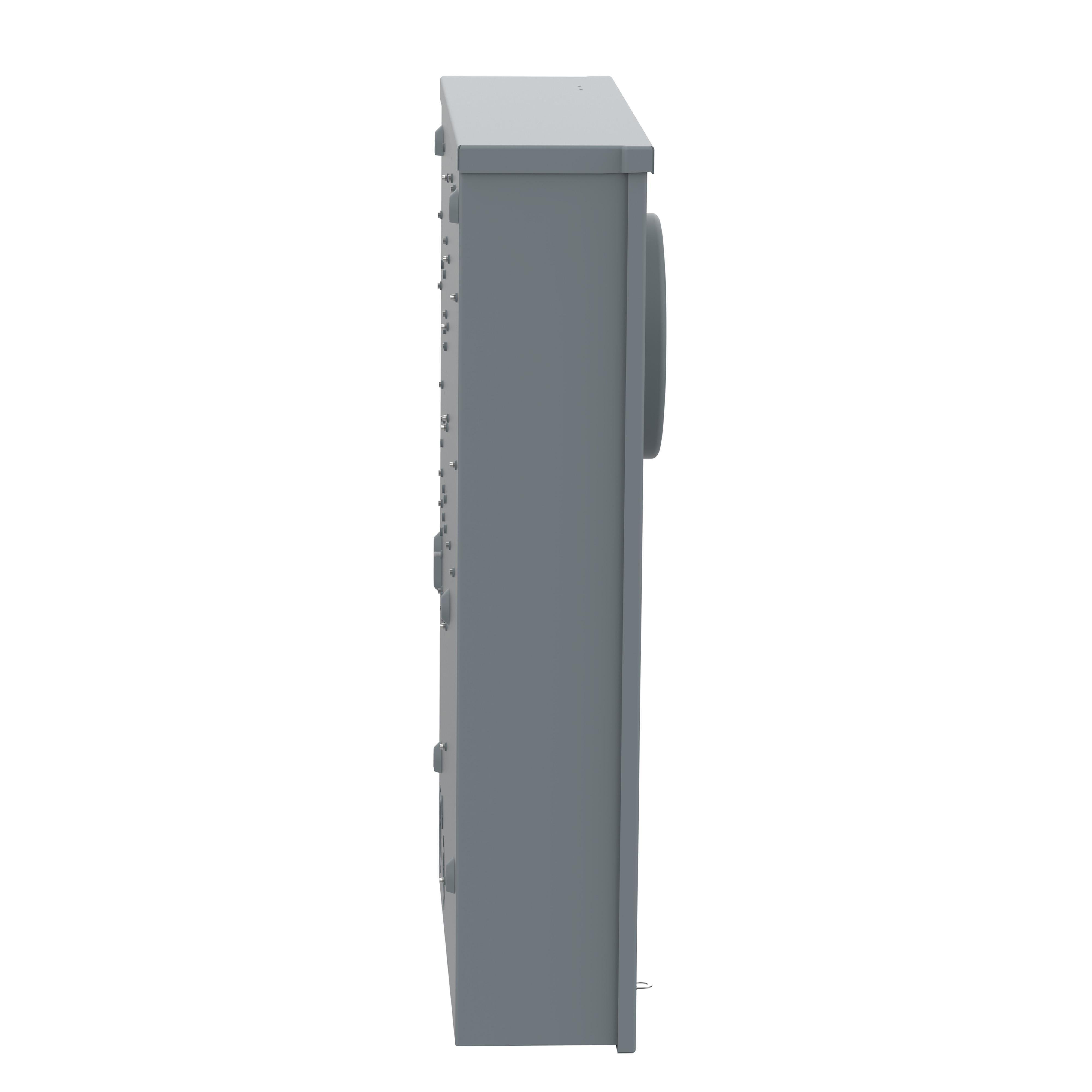

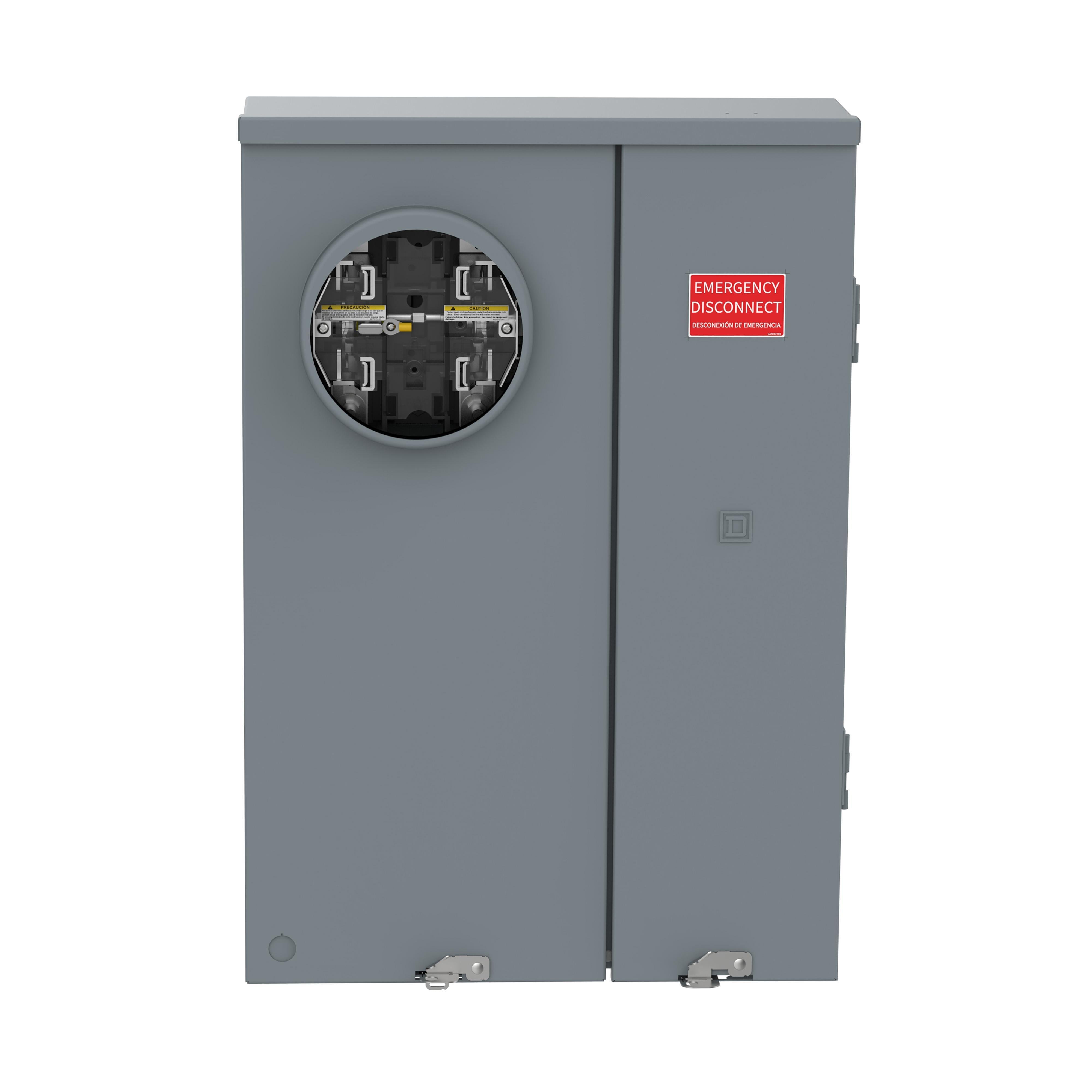

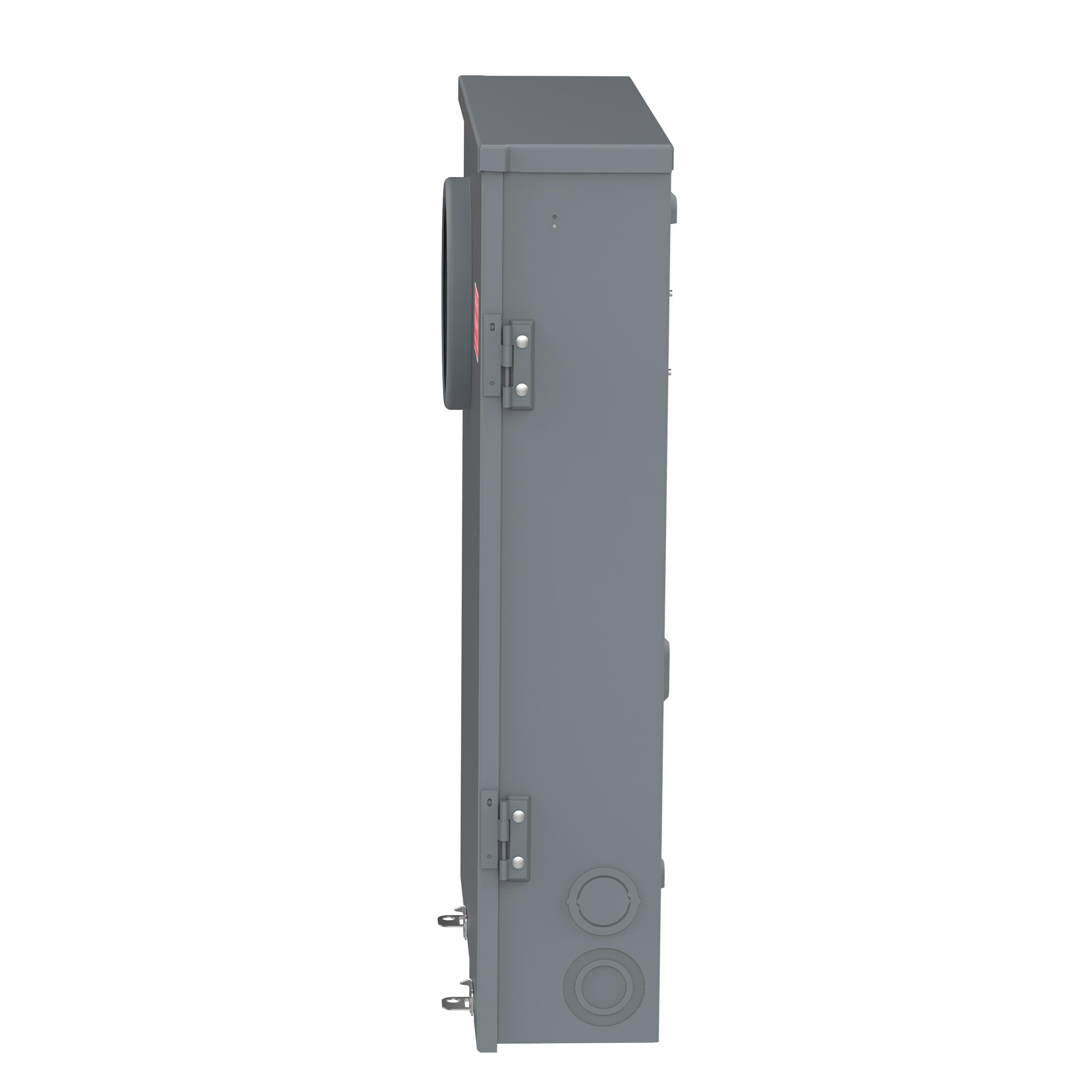

Picture of RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass Picture of RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass
Picture of RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass Picture of RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass
Picture of RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass Picture of RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass
Square D

RU816F200PSL - Meter main, Homeline, CSED, ringless, underground, 8 space, 16 circuit, 200A, surface, solar ready, lever bypass

Item Code: 1205344
Category Residential Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RU816F200PSL

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Solar ready combination service entrance devices are available with ring or ringless type meter socket designs. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These solar ready combination service entrance devices meet the California Title 24 requirements and are suitable for use with Photovoltaic system applications. This Homeline combination service entrance meter main unit has a ringless meter socket with a lever bypass. The main service disconnect is rated at 200 A and has a short circuit rating 22 kA. It has a Homeline plug on neutral load center that has 8 spaces and 16 circuits. This unit has a NEMA 3R enclosure that is surface mounted and underground service feed only. The line side lugs will accept 4 AWG to 300 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This QO combination service entrance meter main unit is UL Listed and meets EUSERC standards.

Specifications

Weight

37.4

Height

27.8

Width

6.63

Length

19.32

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MTR - MAINS SOLAR RDY 200A 8 16 RINGLESS

AD Item Features 01

It has a NEMA 3R enclosure that is surface mounted, has lever bypass and has underground service feed only

AD Item Features 02

CSED are the ideal power distribution panels where local codes allow main breaker load centers to be mounted outdoors

AD Item Features 03

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 04

CSED use PON load centers which makes them faster and simpler since they require fewer connections

AD Manufacturer (Description)

Schneider Electric

AD Package Height

27.8000

AD Package Height UOM

IN

AD Package Length

19.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

37.4000

AD Package Weight UOM

LB

AD Package Width

6.6300

AD Package Width UOM

IN

Brand

Square D

Category

RESIDENTIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 2 Attribute

Mounting Type

Spec 2 Attribute Value

Surface

Spec 3 Attribute

Number of Circuits

Spec 3 Attribute Value

16

Spec 4 Attribute

Number of Spaces

Spec 4 Attribute Value

8

Spec 5 Attribute

Short Circuit Current Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

22

Spec 6 Attribute

Sockets

Spec 6 Attribute Value

Ringless

Spec 7 Attribute

Type

Spec 7 Attribute Value

Underground
