Schneider Electric

RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC

Category General Purpose Plug-In Relays & Accessories

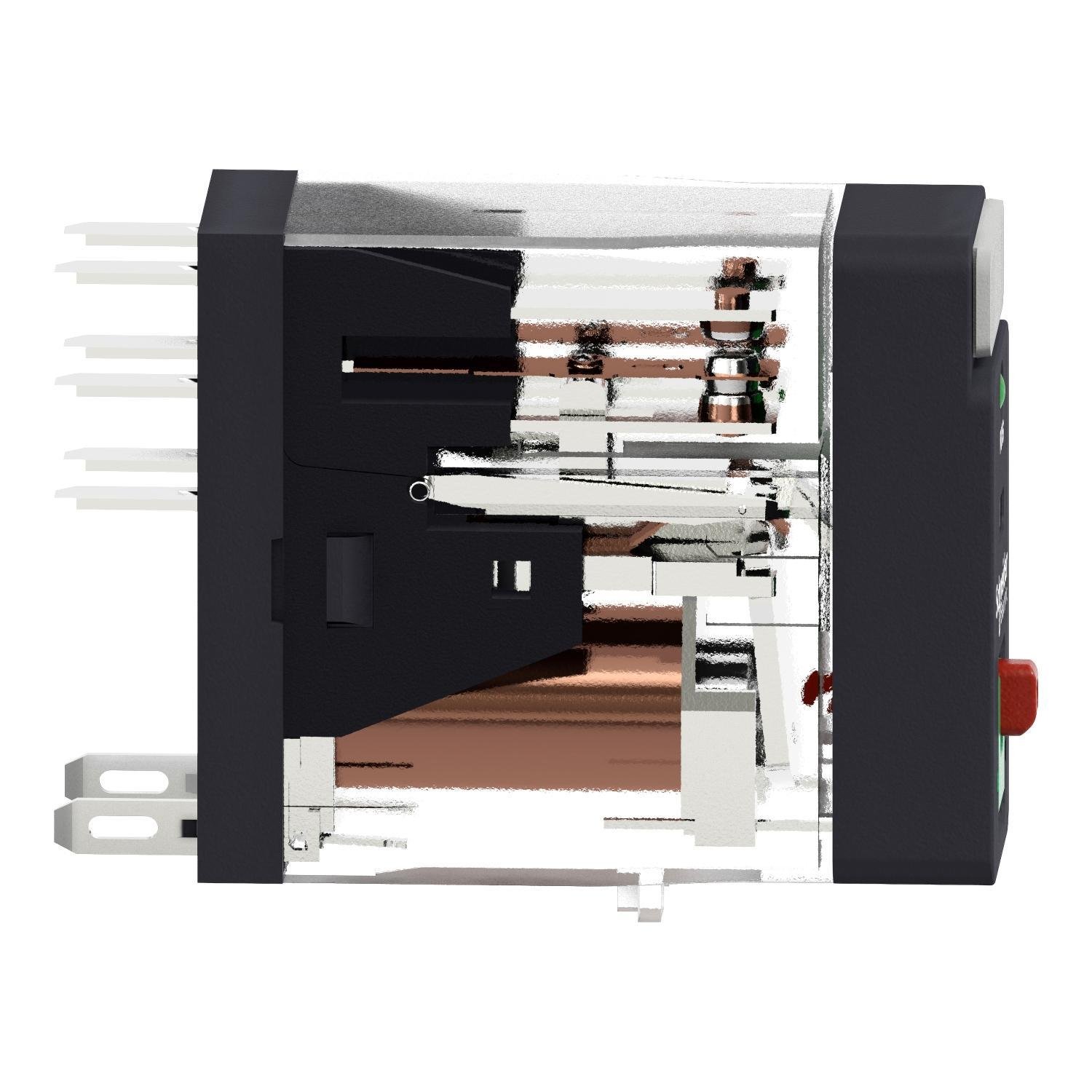

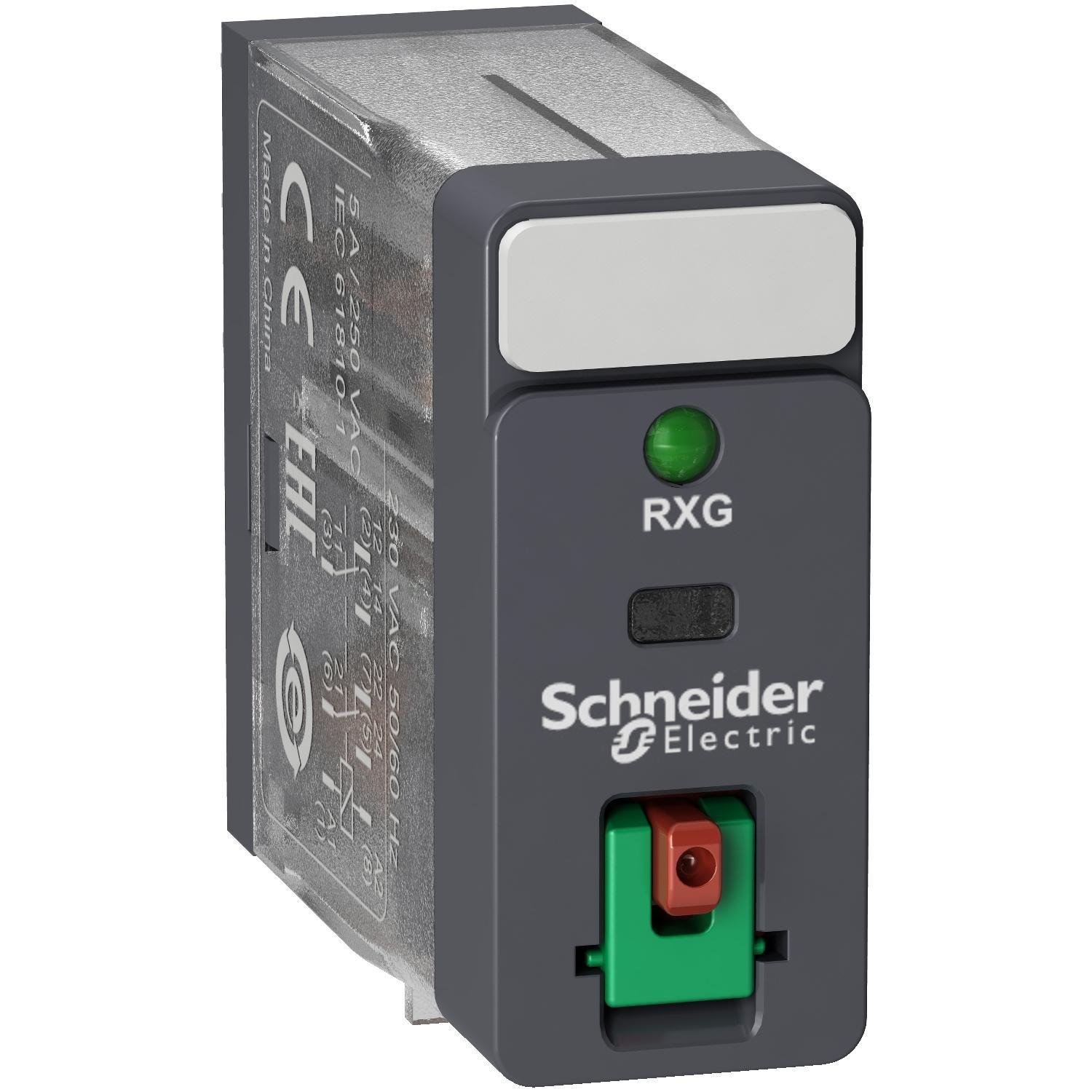

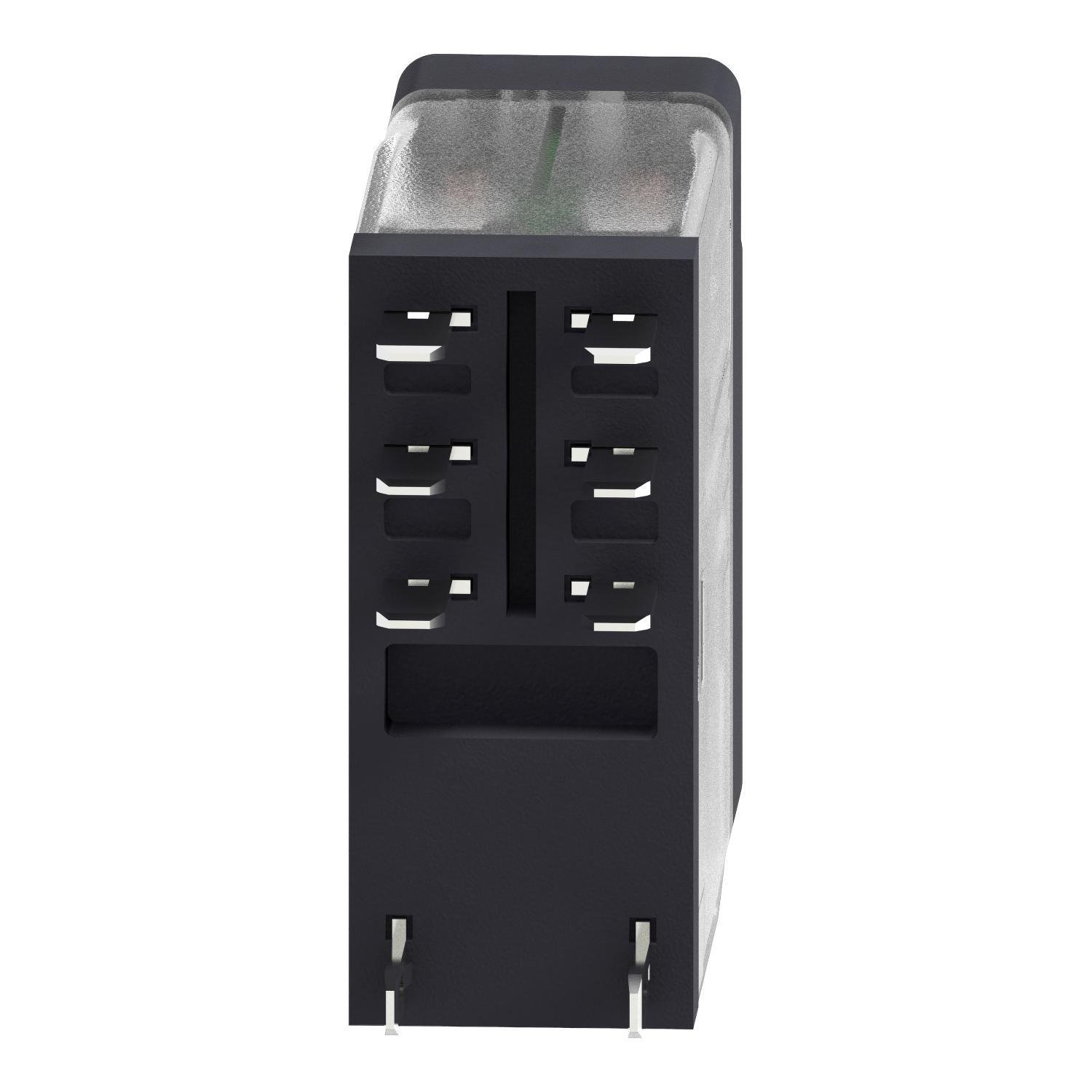

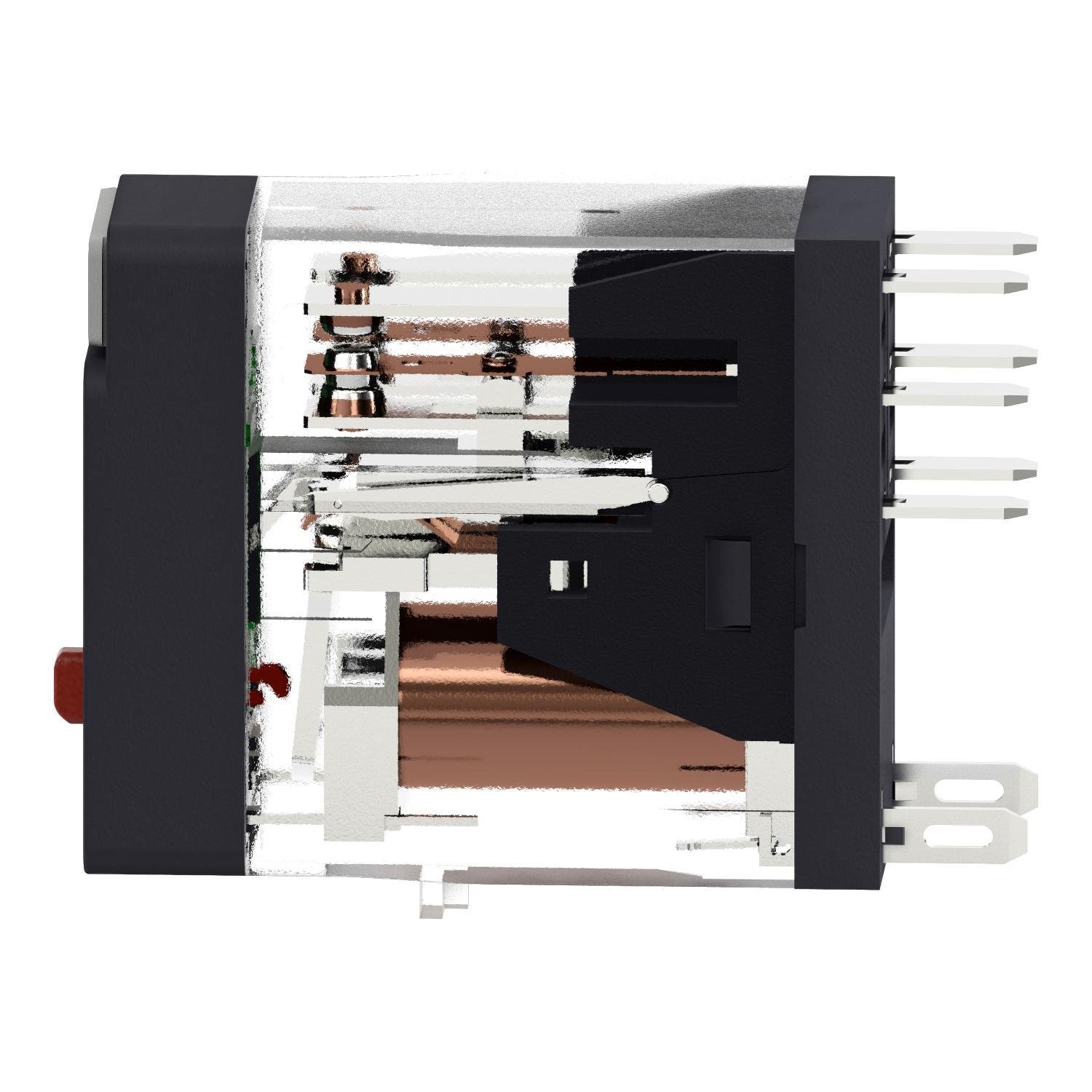

Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC
Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC
Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC
Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC
Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC Picture of RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC
Schneider Electric

RXG22F7 - interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 120V AC

Item Code: 1018612
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RXG22F7
Minimum order quantity 10

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

"This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Specifications

Weight

0.48lb

Width

3.61mm

Length

3.35mm

AD All Features

Flexibility design for space saving with 16mm width

AD Application

General Purpose

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY PLUG-IN INTFC 5A 2CO-DPDT 120VAC 2

AD Item Features 01

Flexibility design for space saving with 16mm width

AD Item Features 02

Single step lockable testing function

AD Item Features 03

Easy to Use

AD Item Features 04

High performance ensuring machine and system availability

AD Item Features 05

Mechanical durability of 10 million cycles

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4800

AD Package Weight UOM

LB

AD Package Width

3.6100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

VA

Spec 10 Attribute Value

0.82

Spec 11 Attribute

Series

Spec 11 Attribute Value

RXG Series

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-40 To 70

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2CO 2 Form C DPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 250 V AC/10 A at 30 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

13 mm W

Spec 6 Attribute

Display Type

Spec 6 Attribute Value

Led

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP40

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail/Panel

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
