Schneider Electric

RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC

Category General Purpose Plug-In Relays & Accessories

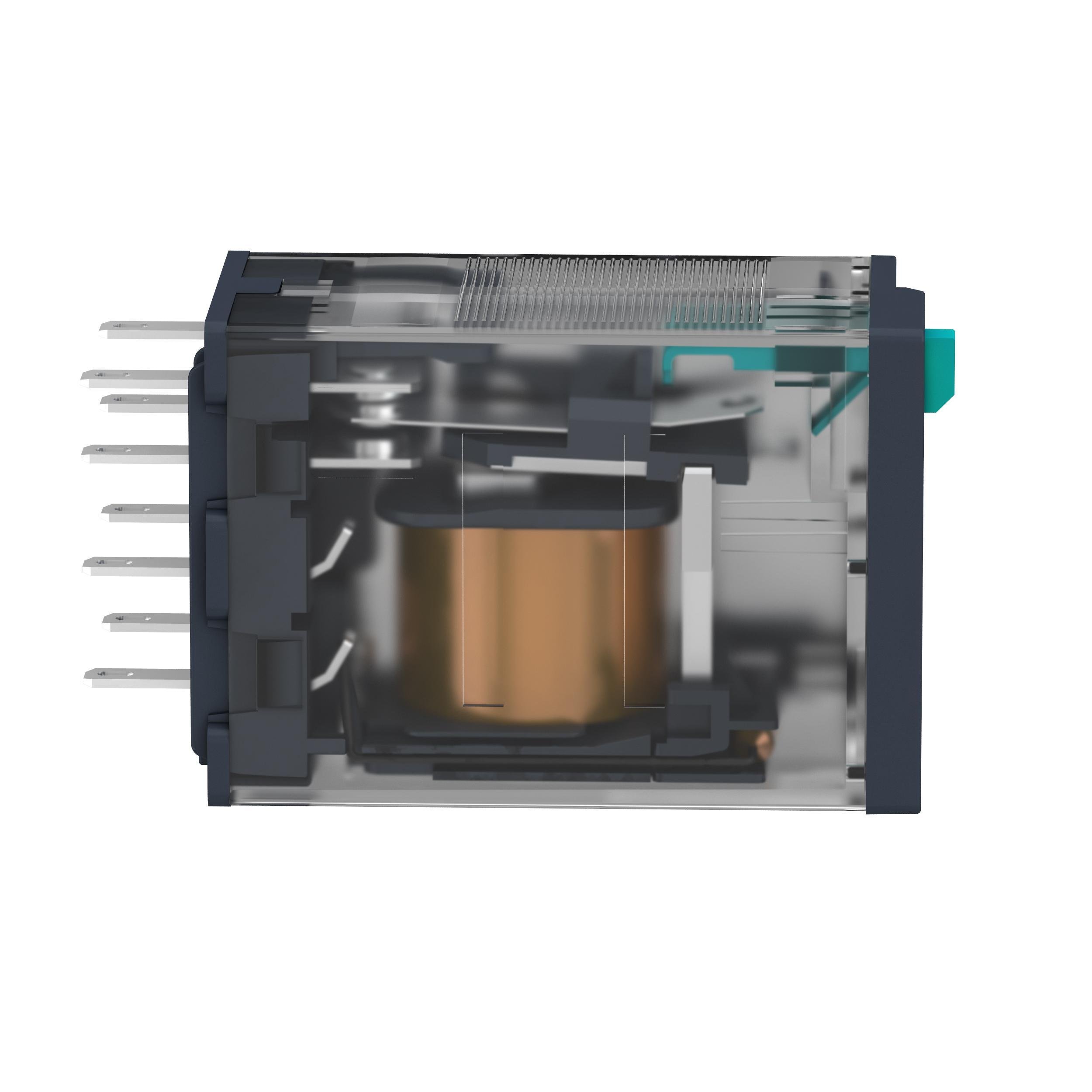

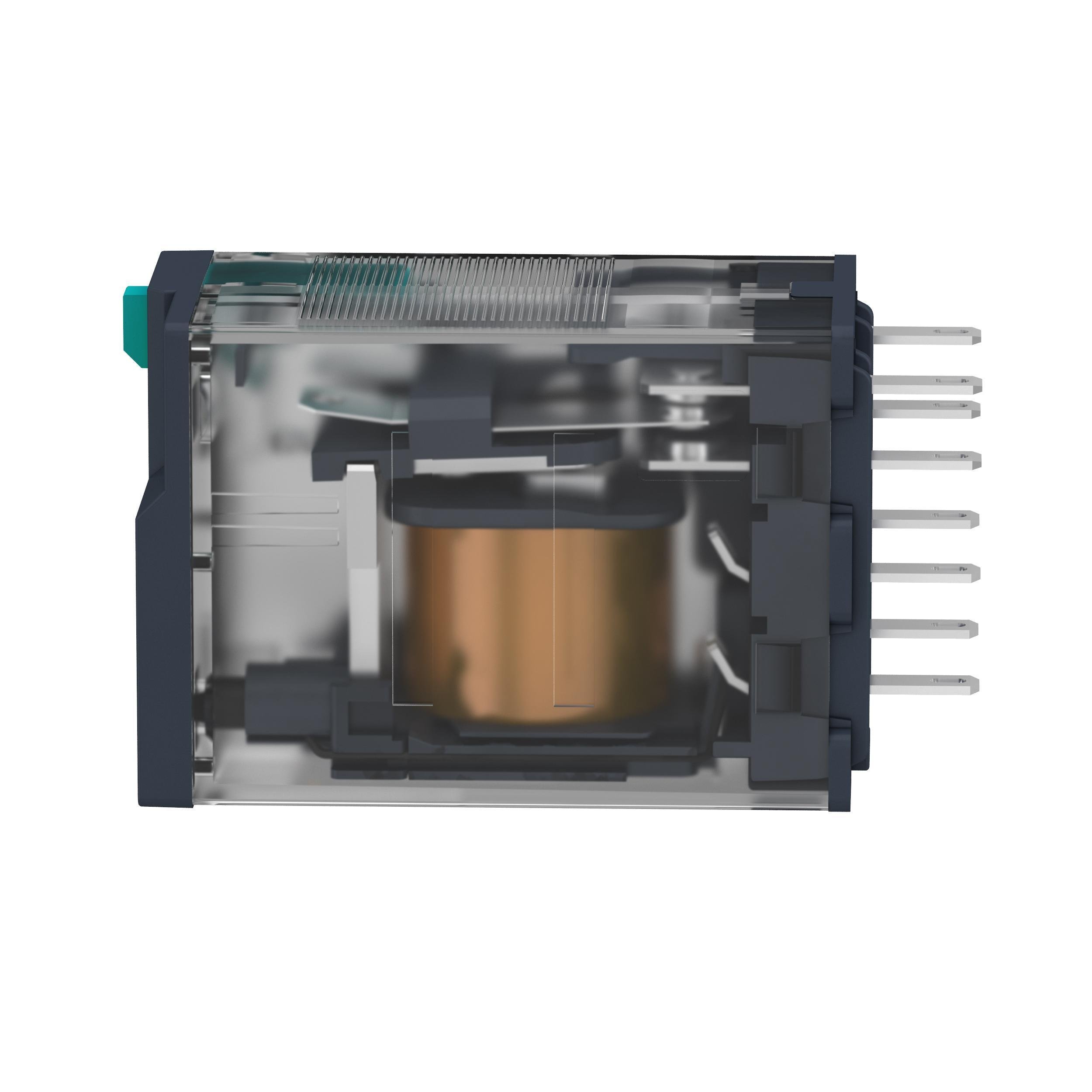

Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC
Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC
Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC
Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC Picture of RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC
Schneider Electric

RXM2AB1JD - miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, lockable test but to n, 12V DC

Item Code: 1210626
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RXM2AB1JD
Minimum order quantity 10

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony RXM miniature plug-in relay has a coil control voltage of 12V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A. "It has large choice of number of contacts for high rated current use with space-saving desi

Specifications

Weight

0.08

Width

1.09

Length

1.95

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

RELAY PLUG-IN MINTR 12A 2NO-2NC/DPDT 4

AD Item Features 01

Fit to customer needs, coverage of most general control panel applications

AD Item Features 02

Easy to select, simple selection and wide availability

AD Item Features 03

Convenient to use, easy status readiness with mechanical indicator and LED, one-step lockable test button

AD Item Features 04

High performance ensuring machine and system availability

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

1.0900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/W6W-90ovcos

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

12

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-40 To 131

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Faston/Flat Pin

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

12

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.06 in H x 1.57 in W x 0.82 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP40

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

DIN Rail/Flange

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

4

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

W

Spec 8 Attribute Value

0.9

Spec 9 Attribute

Series

Spec 9 Attribute Value

RXM
