Schneider Electric

RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC

Category General Purpose Plug-In Relays & Accessories

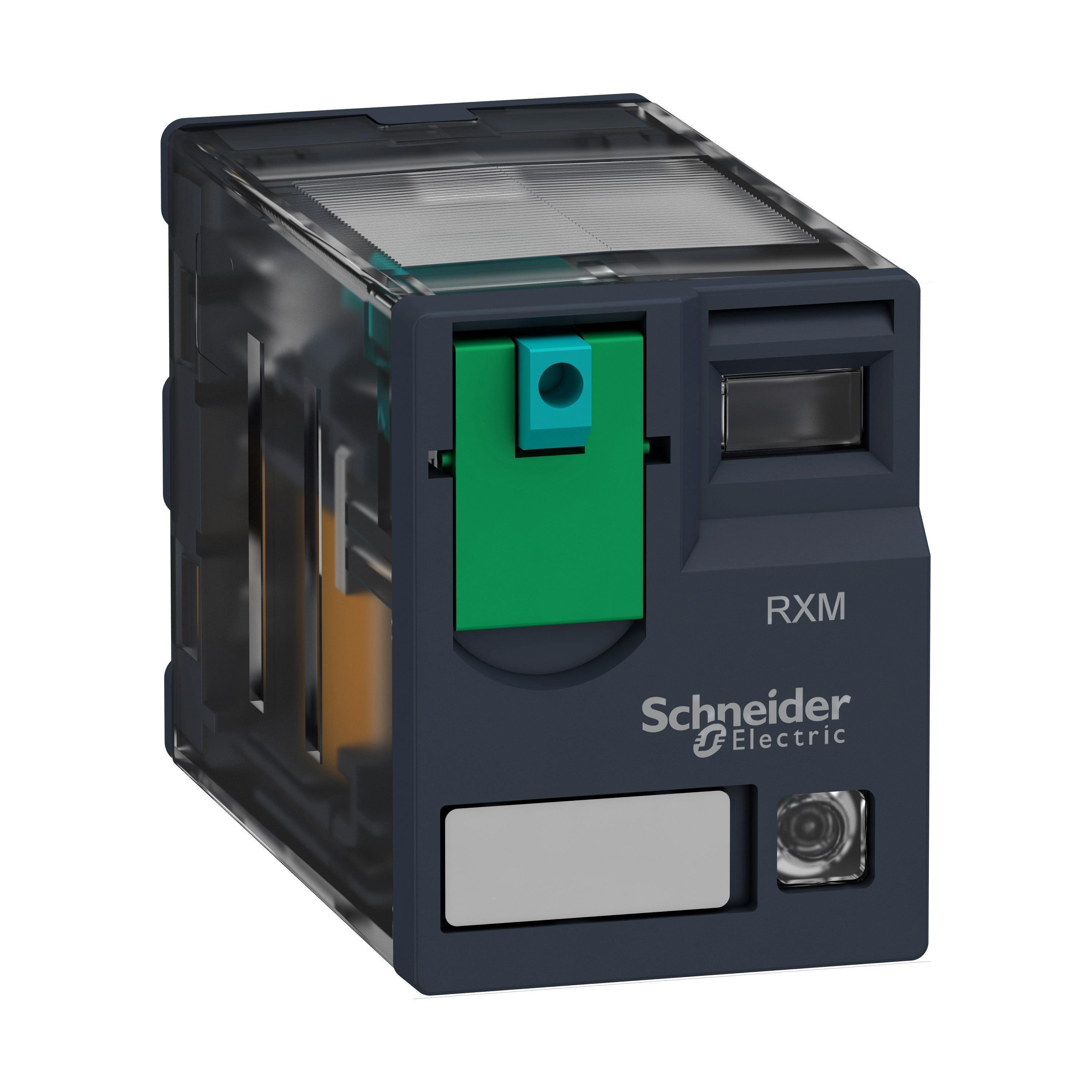

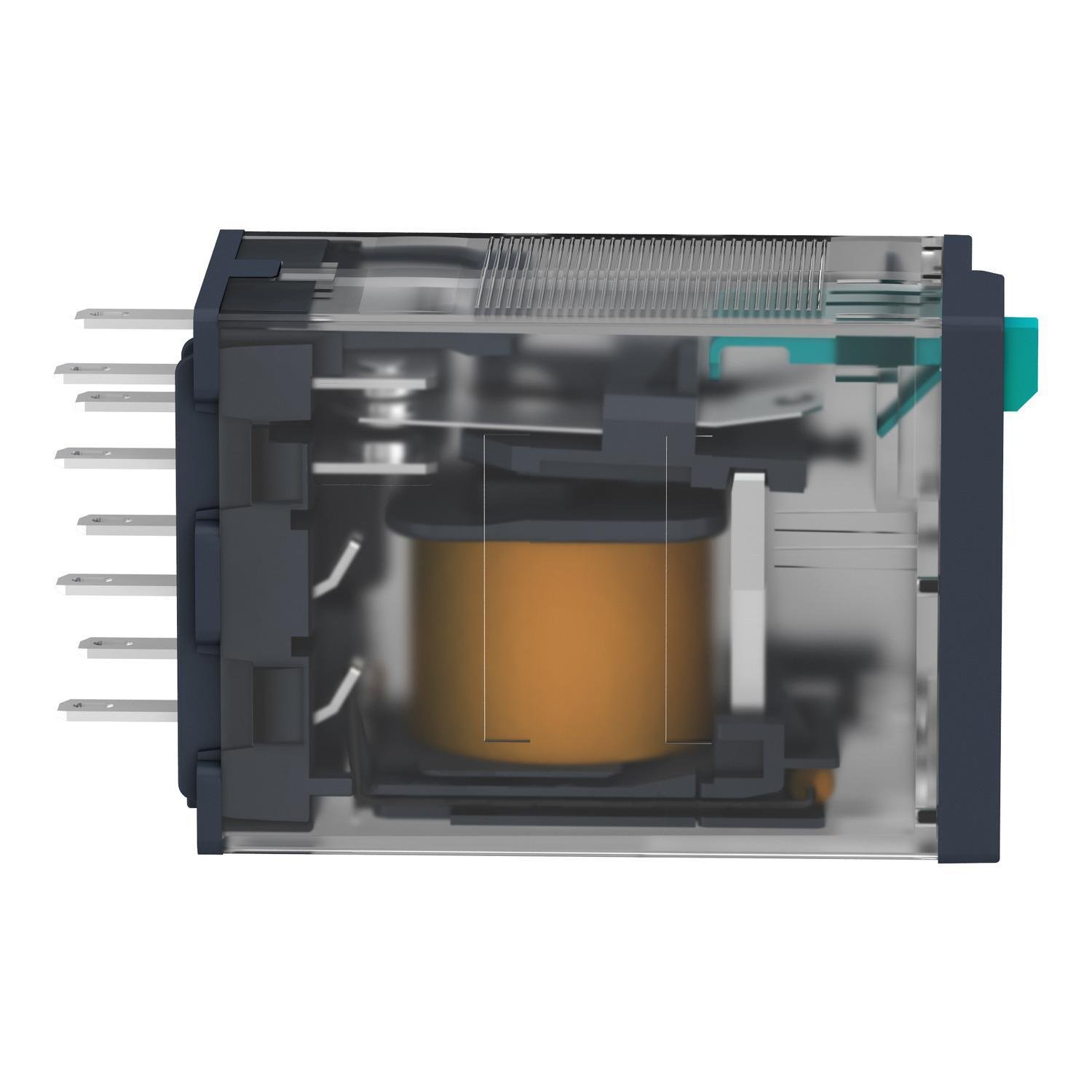

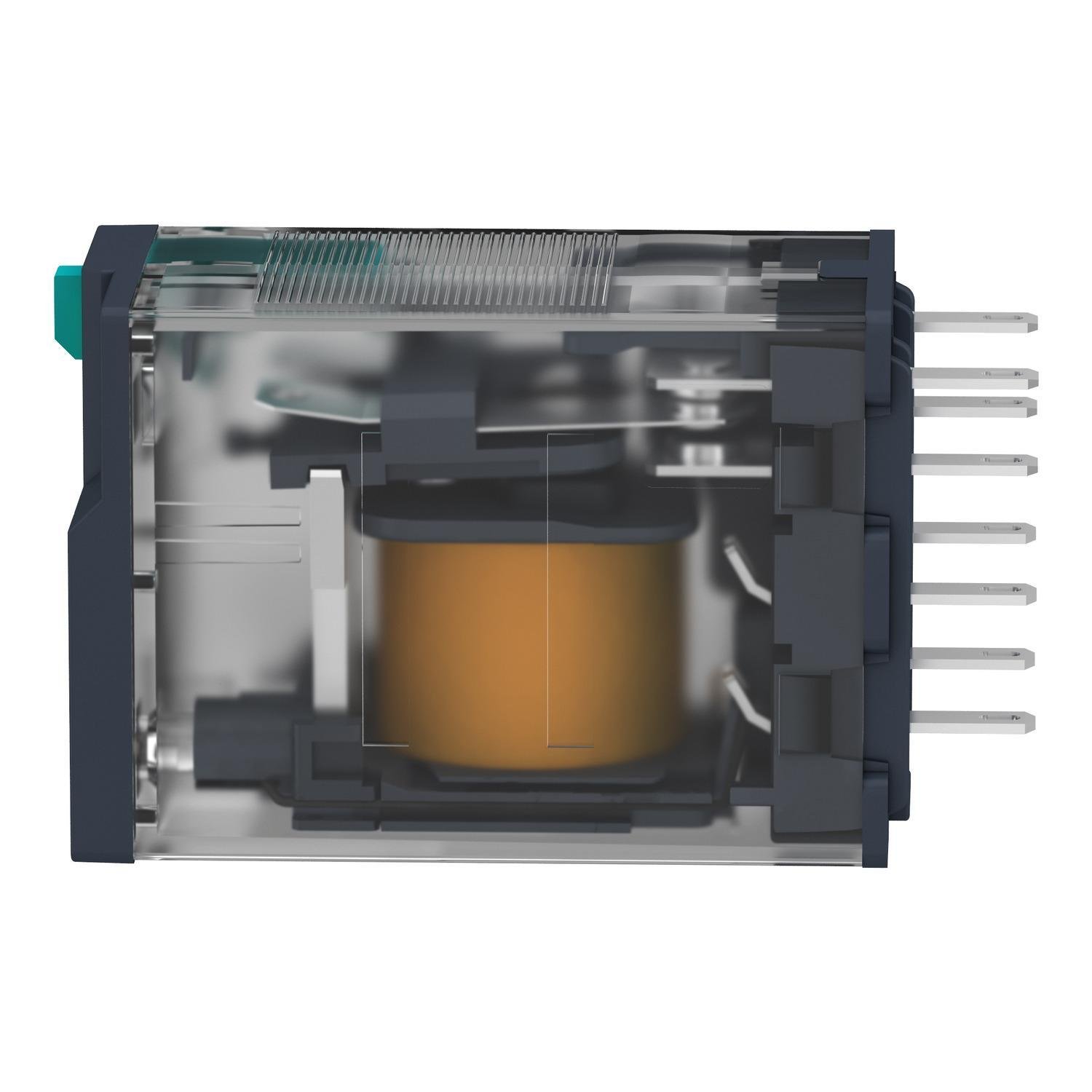

Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC
Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC
Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC
Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC Picture of RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC
Schneider Electric

RXM3AB2BD - miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 24V DC

Item Code: 810925
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RXM3AB2BD

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V DC. It also offers one-step loackable test button a

Specifications

Weight

0.08

Width

4.02

Length

4.88

AD All Features

Fit to customer needs, coverage of most general control panel applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Includes

Lockable Test Button

AD Invoice Description

RELAY MINTR 10A 3NO-3NC-3PDT 24VDC 0.9W

AD Item Features 01

Fit to customer needs, coverage of most general control panel applications

AD Item Features 02

Easy to select, simple selection and wide availability

AD Item Features 03

Flexible options of sockets and accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.8800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

4.0200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Series

Spec 10 Attribute Value

RXM

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-40 To 55

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Faston/Flat Pin

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3NO-3NC 3 Form C 3PDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 250 V AC/28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1.57 in W x 1.06 in H x 0.82 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

DIN Rail/Plug-In/Flange

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

0.9
