Schneider Electric

RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC

Category General Purpose Plug-In Relays & Accessories

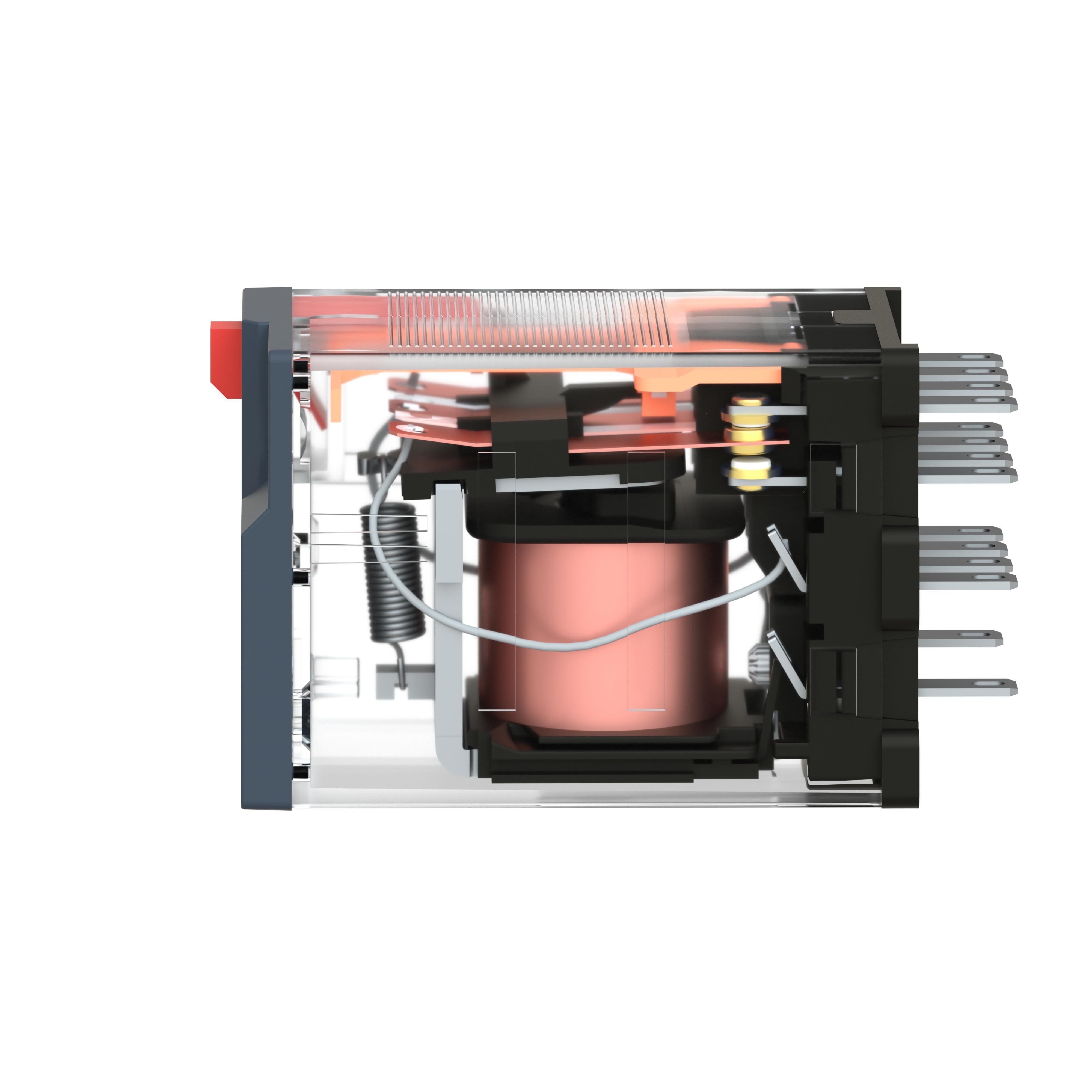

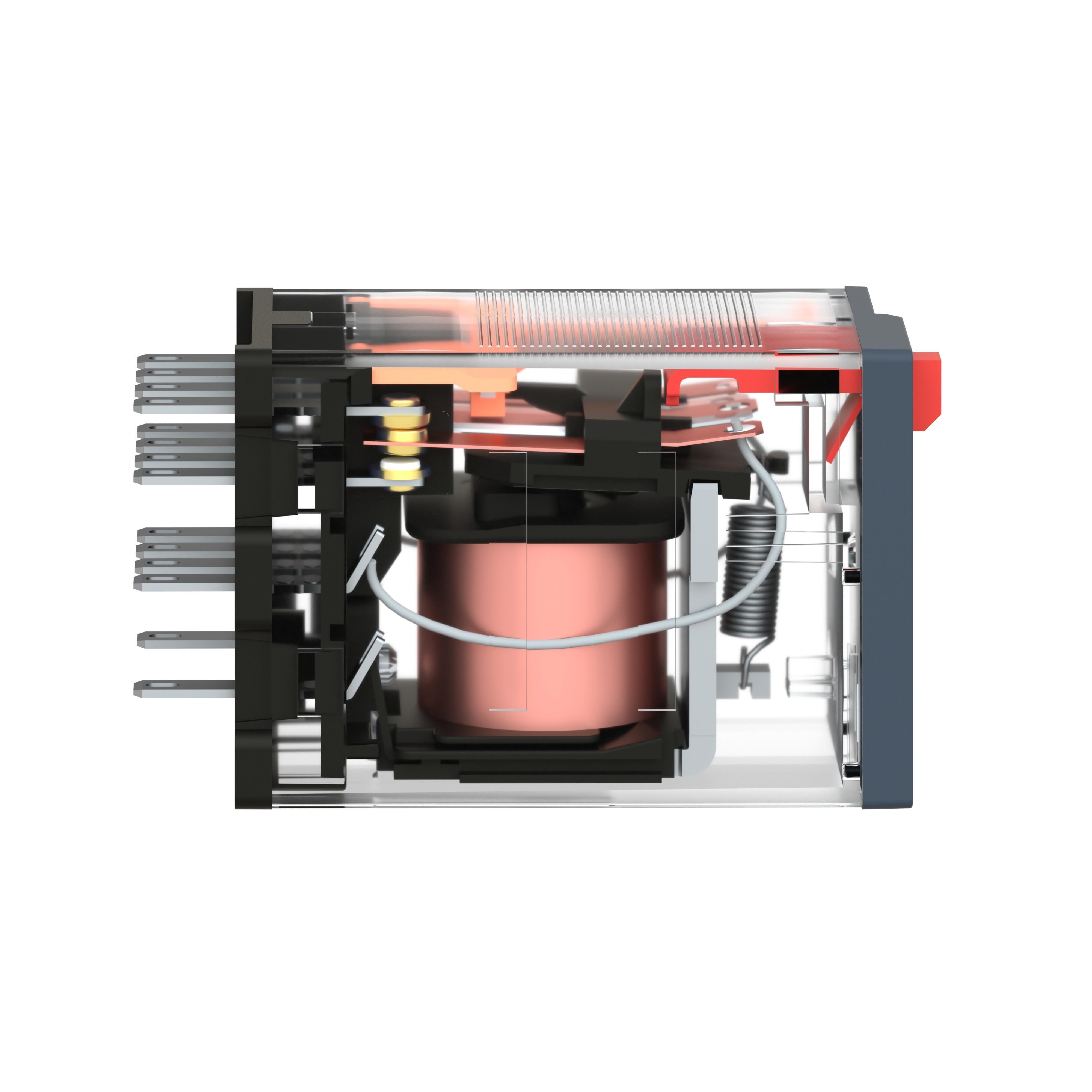

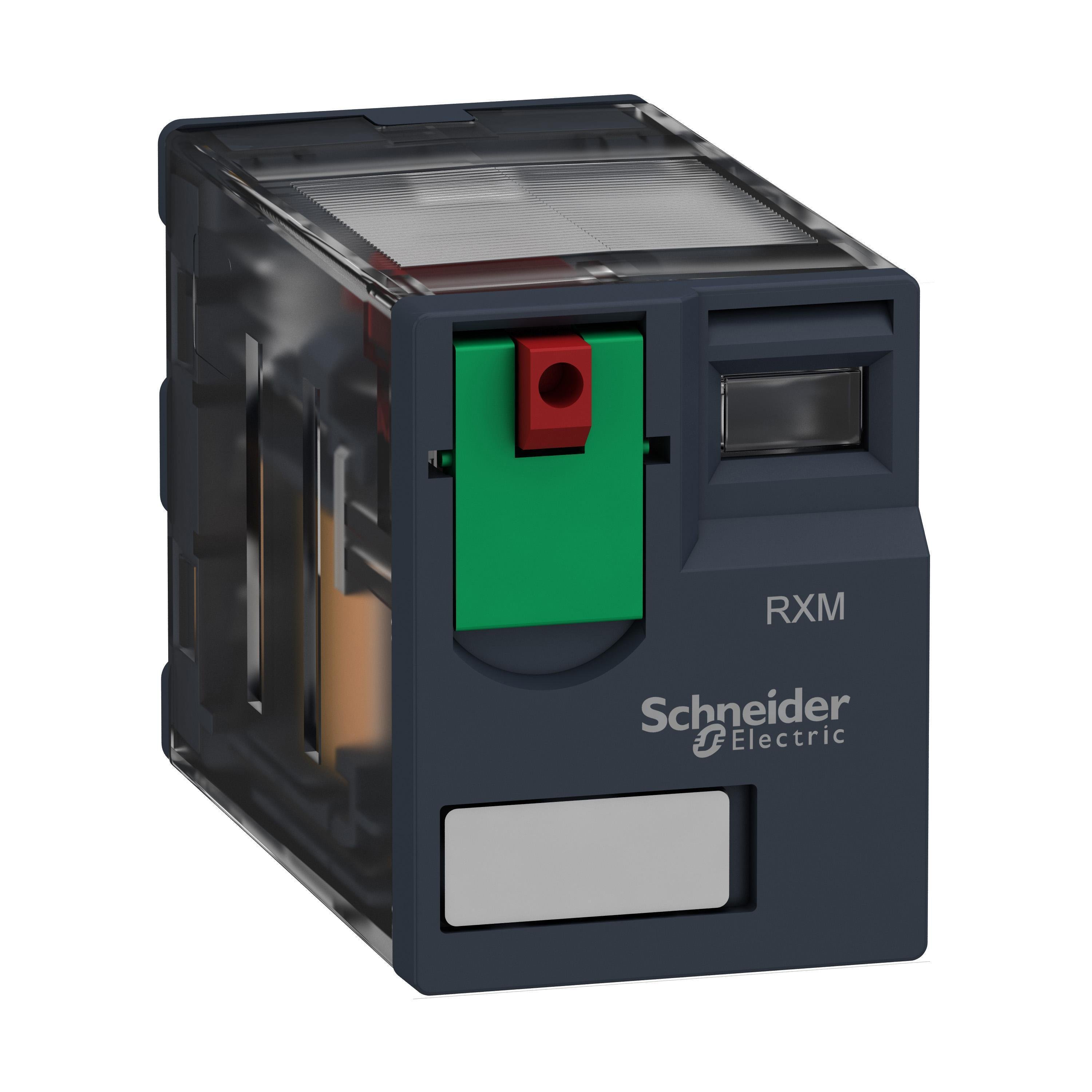

Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC
Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC
Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC
Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC Picture of RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC
Schneider Electric

RXM4AB1F7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 120V AC

Item Code: 850469
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RXM4AB1F7

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
