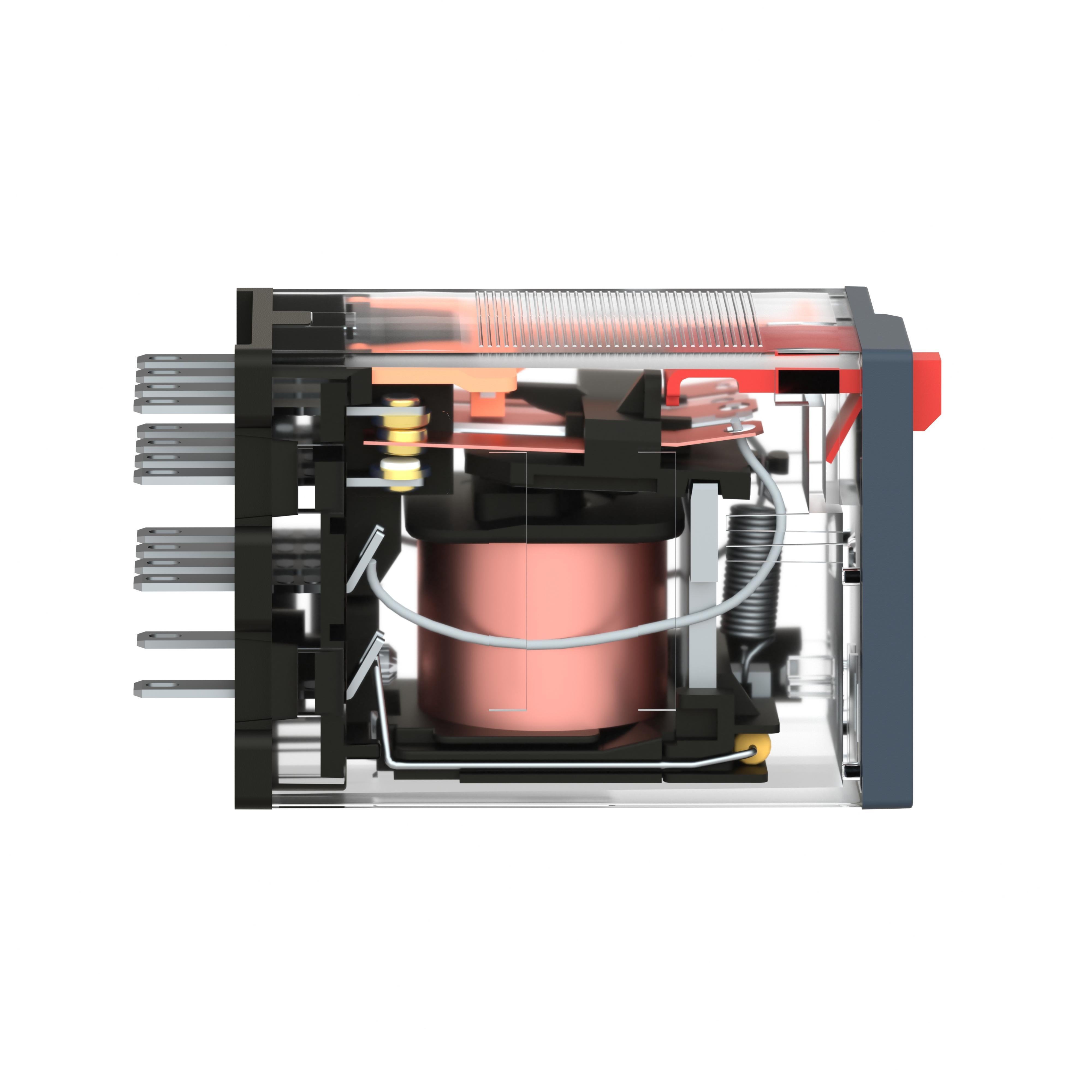

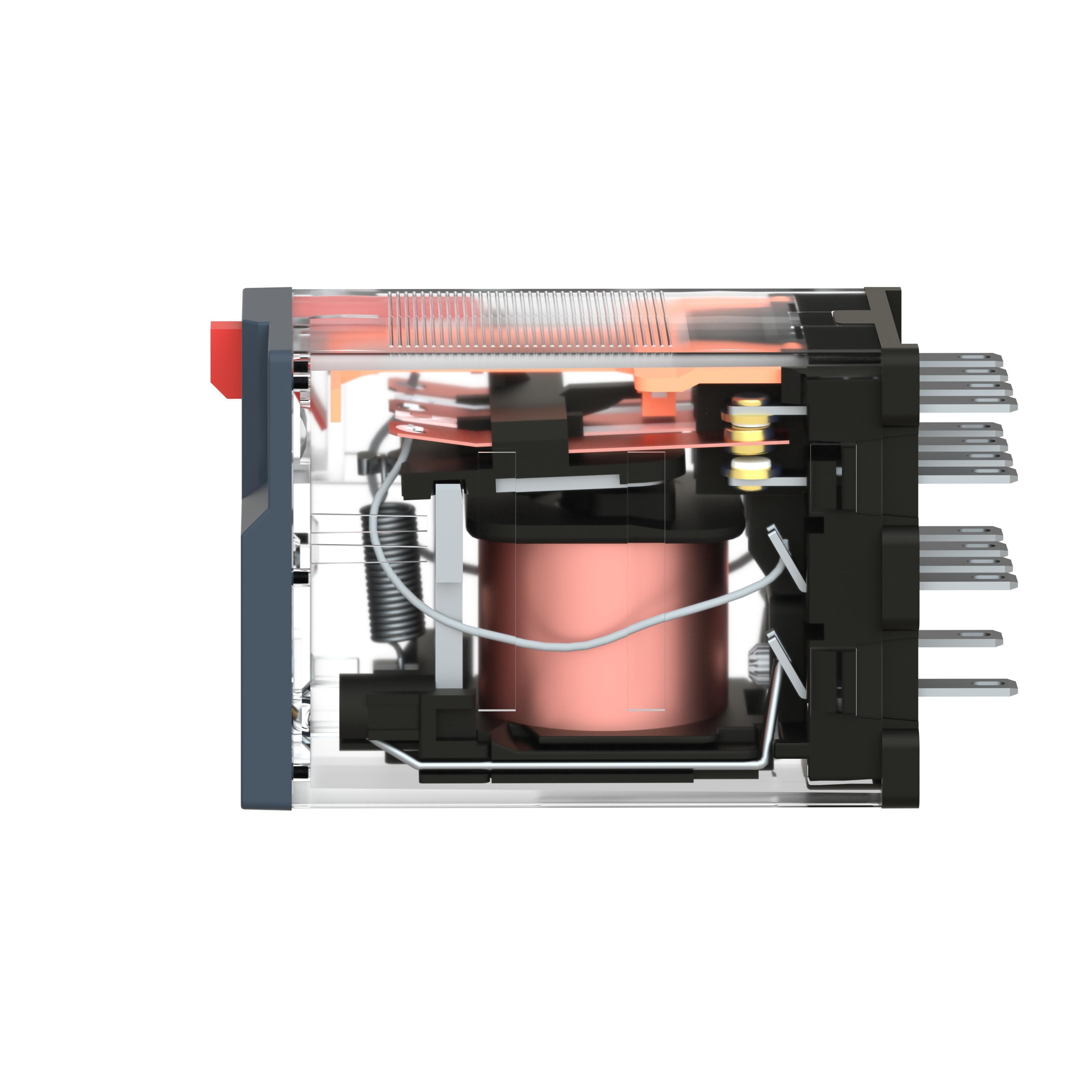

RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC

Category General Purpose Plug-In Relays & Accessories
Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC
Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC
Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC
Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC Picture of RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC
Schneider Electric

RXM4AB2B7 - miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 24V AC

Item Code: 819293
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref RXM4AB2B7

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Specifications

Weight

0.08lb

Width

1.05mm

Length

1.87mm

AD All Features

Fit to customer needs, coverage of most general control panel applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Includes

Lockable Test Button

AD Invoice Description

RELAY MINTR 6A 4NO-4NC-4PDT 24VAC 1.2VA

AD Item Features 01

Fit to customer needs, coverage of most general control panel applications

AD Item Features 02

Modular design supporting customization up to 5 light units

AD Item Features 03

Simplified installation, easy maintenance, and direct connection to PLC

AD Item Features 04

Flexible options of sockets and accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.8700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

1.0500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/R9__kuMEA5U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

6

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

VA

Spec 10 Attribute Value

1.2

Spec 11 Attribute

Series

Spec 11 Attribute Value

RXM

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-40 To 55

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Faston/Flat Pin

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

4NO-4NC 4 Form C 4PDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

6 A at 277 V AC/8 A at 28 V DC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1.57 in W x 1.06 in H x 0.82 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail/Plug-In/Flange

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

4
