Square D

SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass

Category Main Circuit Breaker Modules

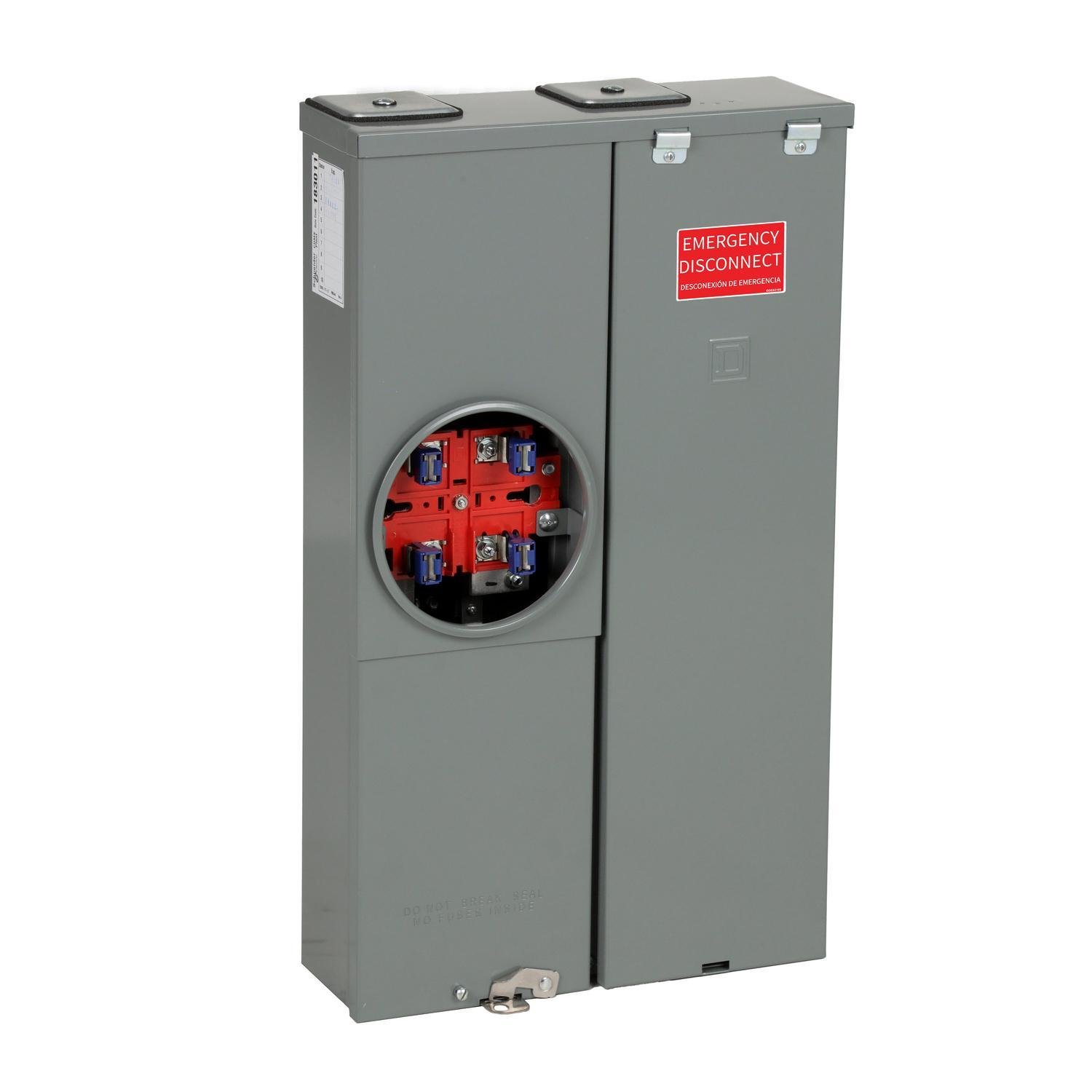

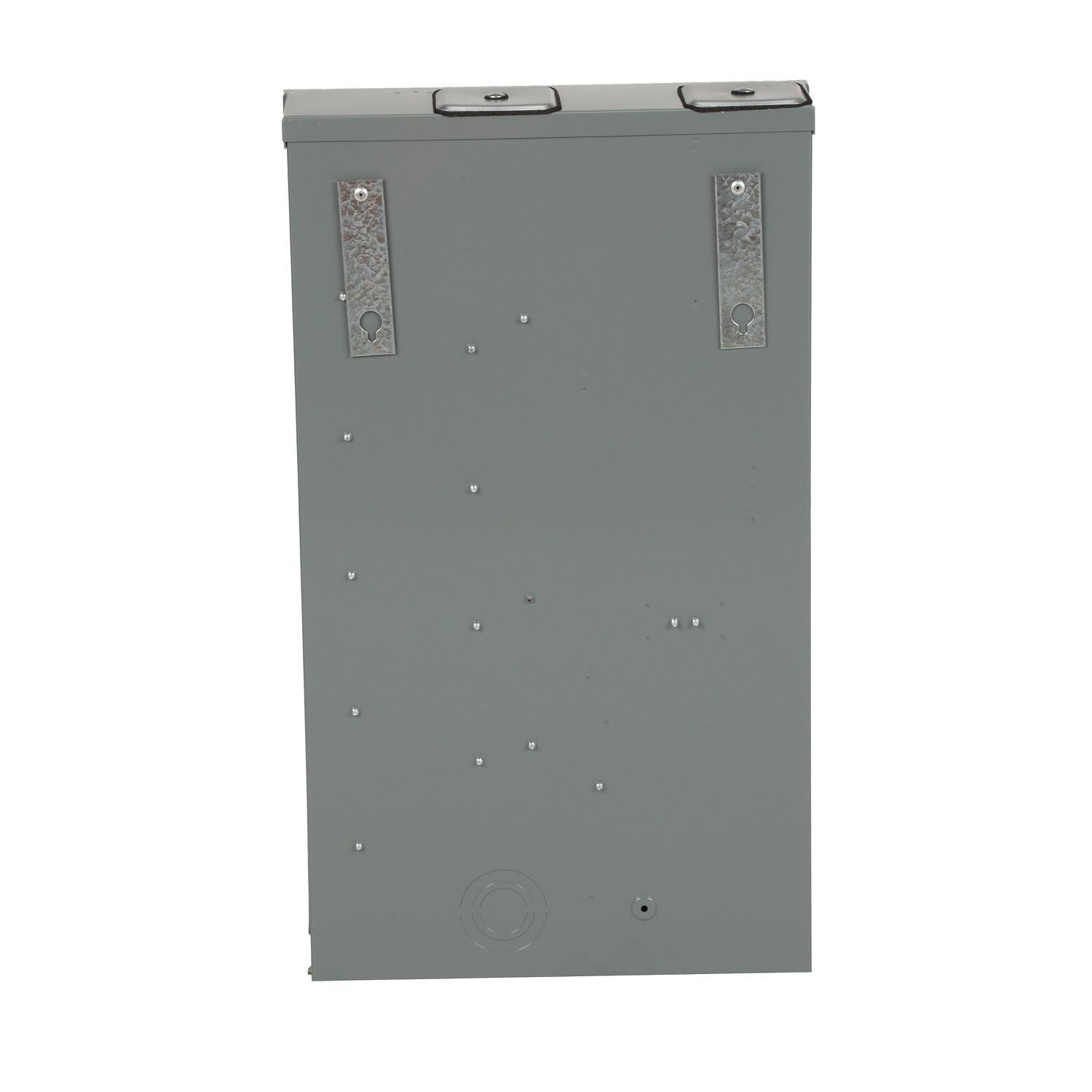

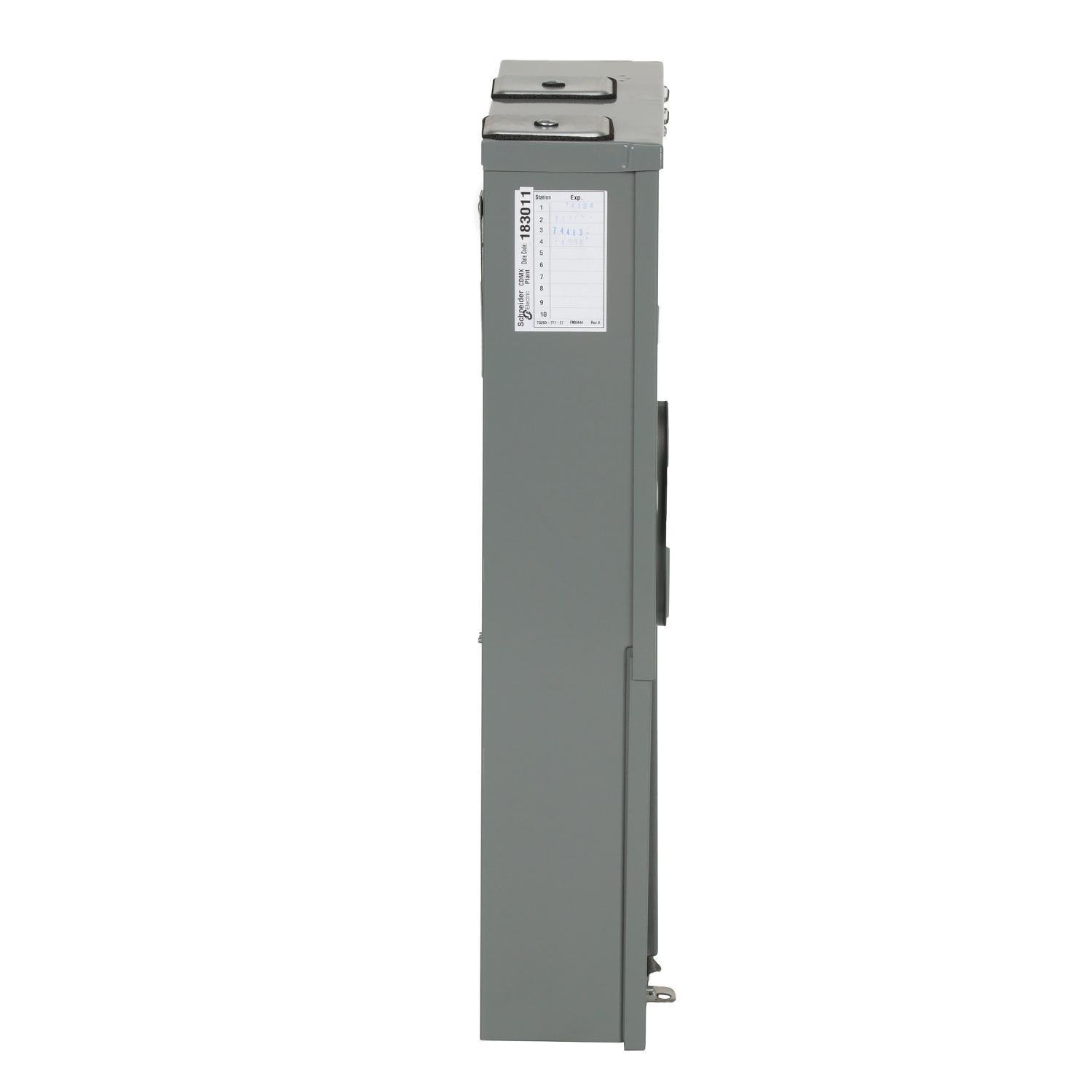

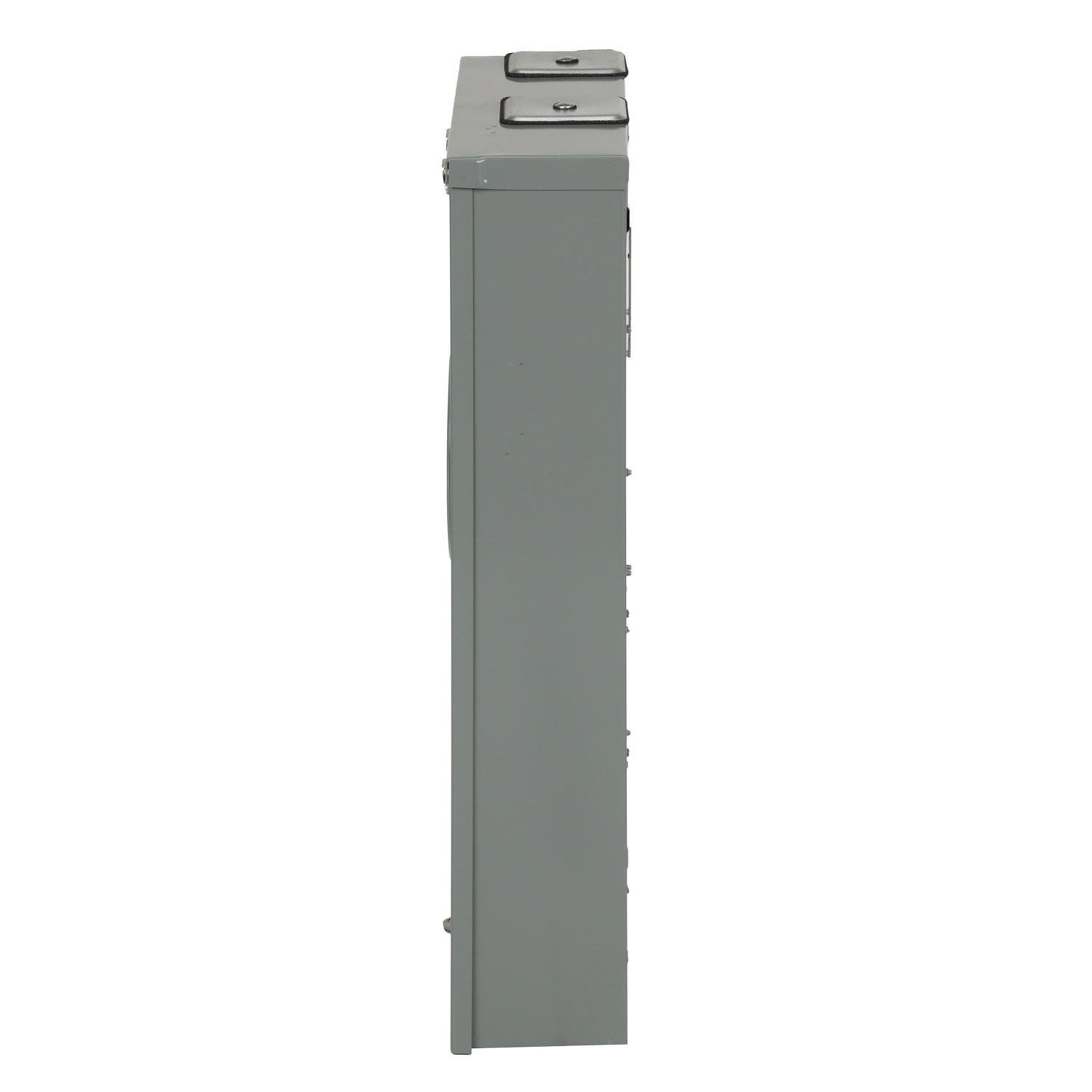

Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass
Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass
Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass
Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass
Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass Picture of SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass
Square D

SC1624M125S - All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass

Item Code: 1011599
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SC1624M125S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D® Homeline® Load Centers Surface Mount CSED, SC1624M125S, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.

Specifications

Weight

31.43

Height

6.2

Width

14.96

Length

26.15

AD Application

For combination service entrance devices

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 125A A

AD Item Features 01

Compatible with Homeline plug-in mount breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

CSED allows for the meter socket to integrate with the load center into one compact design

AD Item Features 04

Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

AD Item Features 05

NEMA type 3R enclosure for outdoor use

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.2000

AD Package Height UOM

IN

AD Package Length

26.1500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2471.5700

AD Package Volume UOM

cu-in

AD Package Weight

31.4300

AD Package Weight UOM

LB

AD Package Width

14.9600

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Feed Type

Spec 3 Attribute Value

Overhead/Underground

Spec 4 Attribute

Hub Size

Spec 4 Attribute Value

A

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Terminal Type

Spec 6 Attribute Value

Line/Lug

Spec 7 Attribute

Type

Spec 7 Attribute Value

16-Space 24-Circuit All-In-One Field Installed Rainproof

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute UOM

AWG

Spec 9 Attribute Value

6 To 2/0
