Square D™

SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

Category Miscellaneous

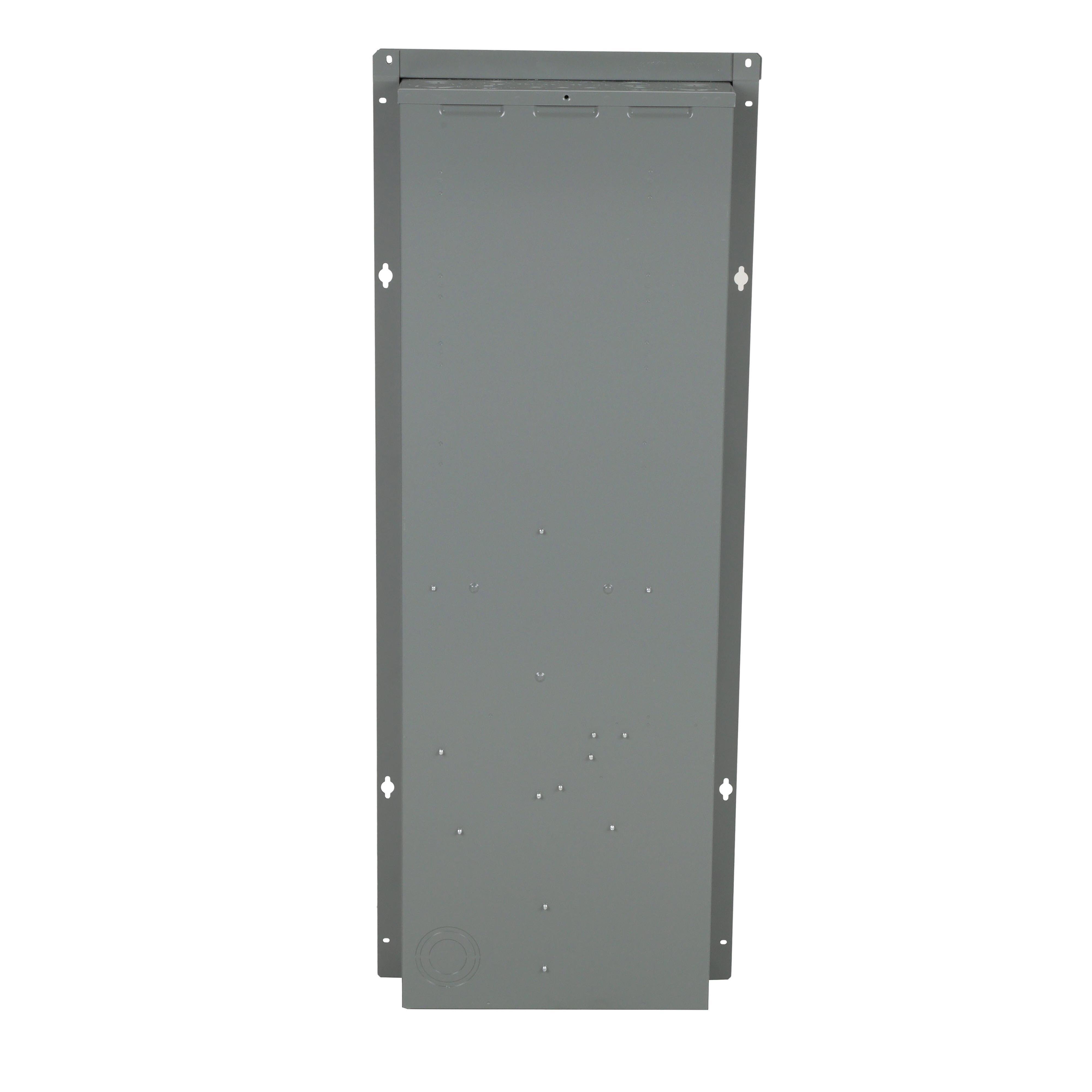

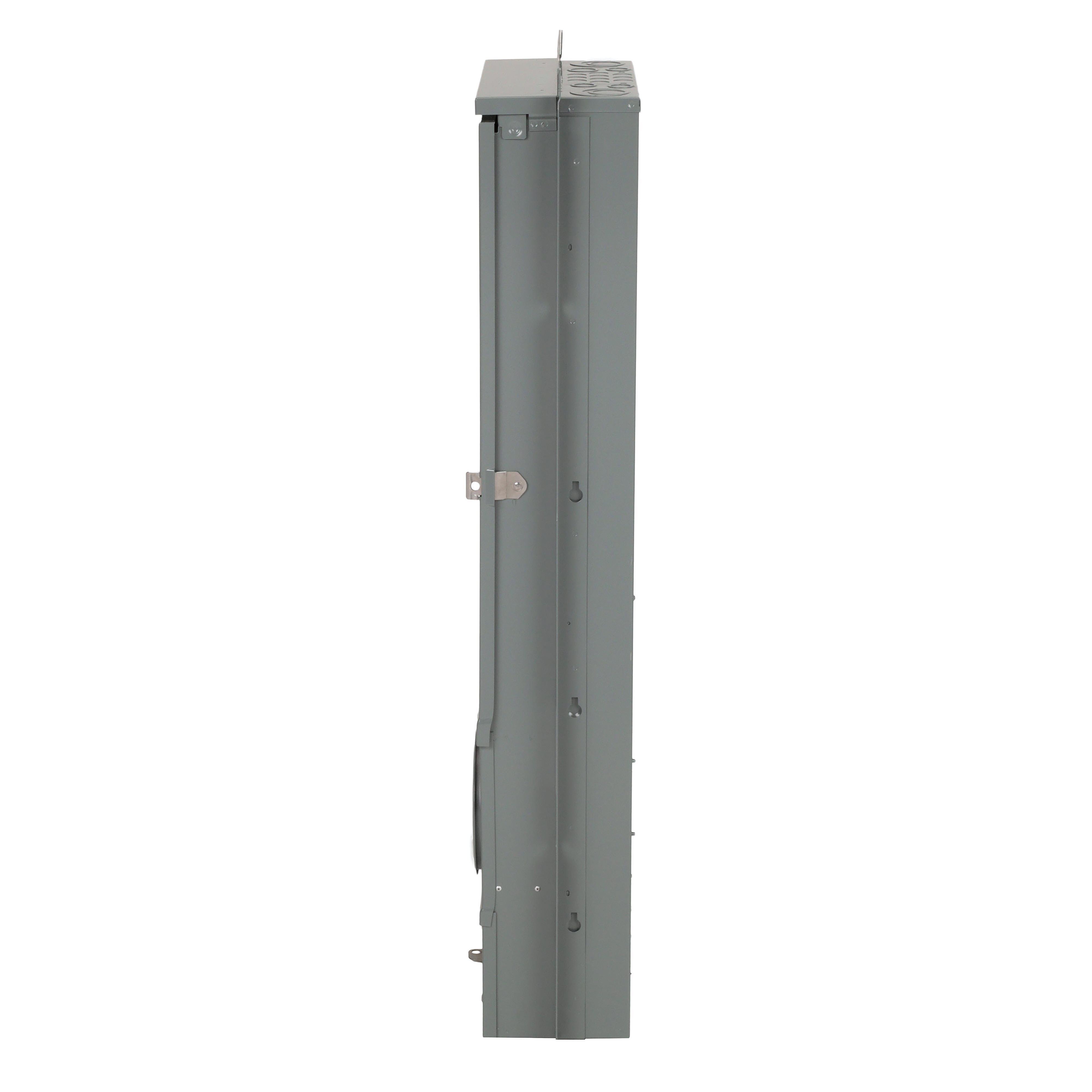

Picture of SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready Picture of SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
Picture of SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready Picture of SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
Picture of SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready Picture of SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
Square D™

SC3042M200PF - All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

Item Code: 1012667
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SC3042M200PF

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D® Homeline® Load Centers and Homeline®Solar Ready PoN CSEDs, SC3042M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20).

Specifications

Weight

59.57

Width

17.03

Length

43.89

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/SC3042M200PF/SC3042M200PF.spin

AD Alternative Part Number

13948713

AD Application

Residential Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901956846

AD Gtin

00785901956846

AD IDEA Index ID

13948713

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A

AD Item Features 01

Compatible with Homeline plug-in mount breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Item Features 05

Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

43.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

59.5700

AD Package Weight UOM

LB

AD Package Width

17.0300

AD Package Width UOM

IN

AD Part Number Keywords

SC3042M200PF ; 13948713 ; 785901956846 ; 78590195684 ; 00785901956846 ; 0785901956846

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

30-Space 42-Circuit All-In-One Field Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

12 to 2/0 AWG, 4 AWG to 250 kcmil, 14 to 2/0 AWG

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.85 in W x 3.4 in D x 38.4 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

A-L

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Flush

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
