Square D

SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

Category Commercial Meter Mains

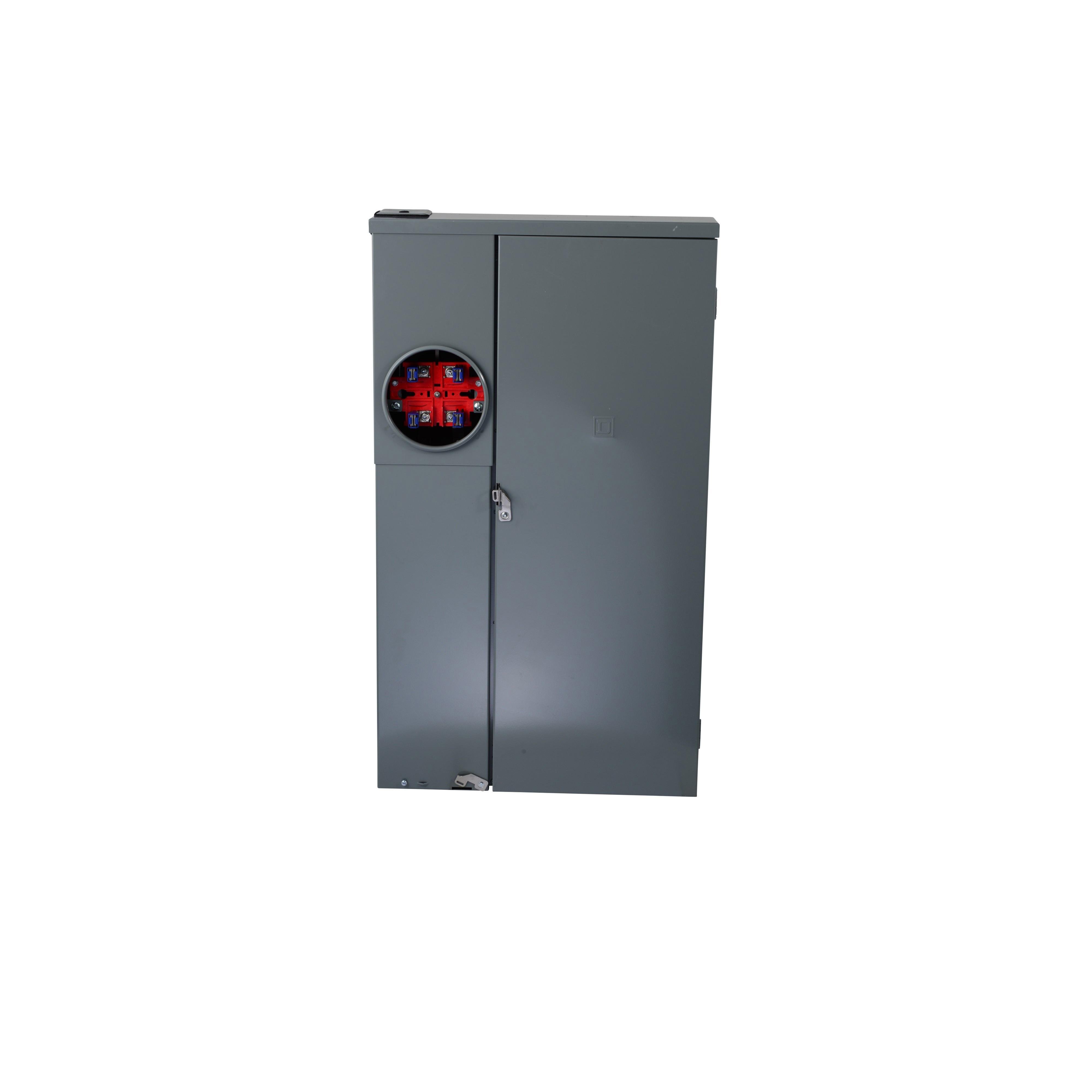

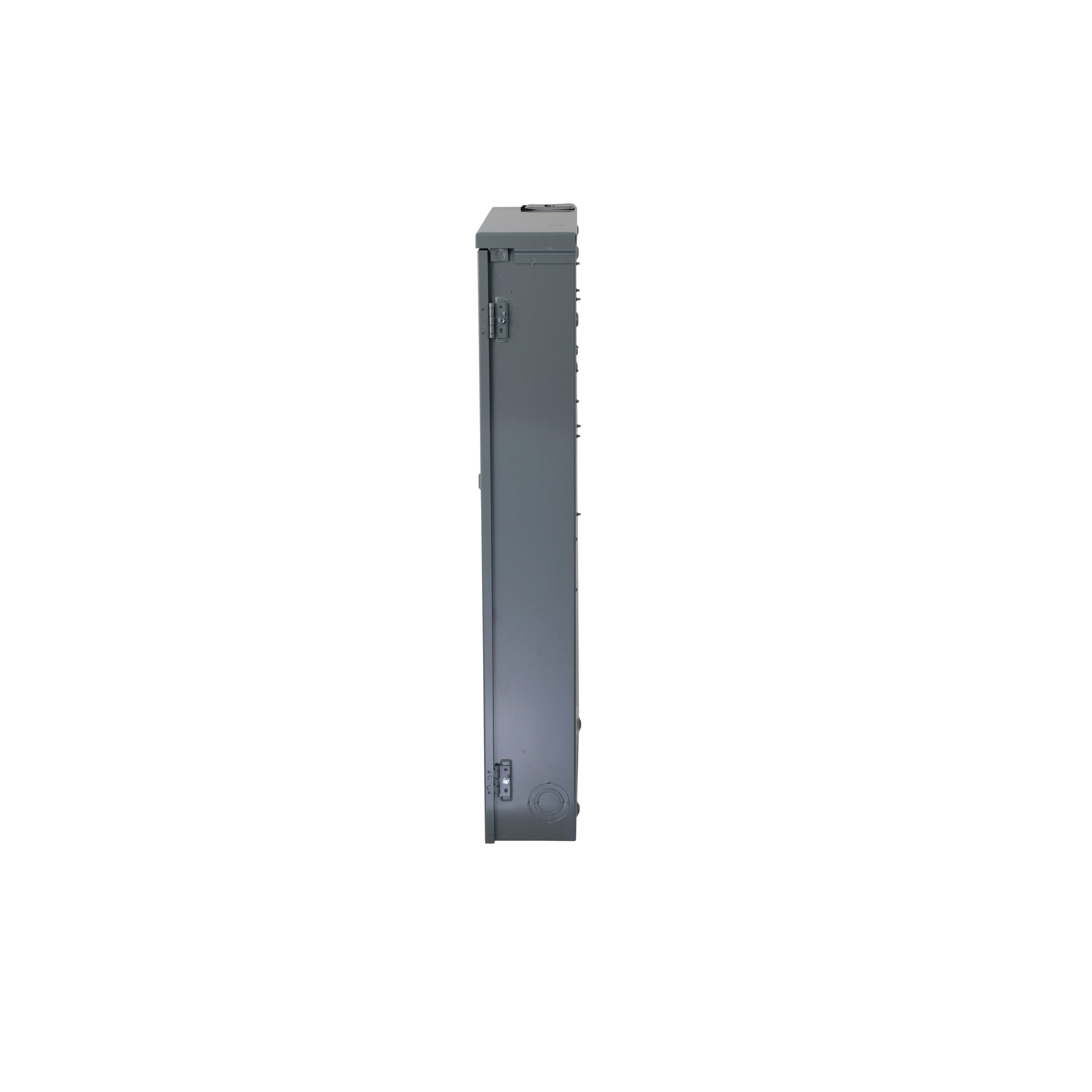

Picture of SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready Picture of SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
Picture of SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready Picture of SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
Picture of SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready Picture of SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
Square D

SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

Item Code: 942166
Category Commercial Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SC42M200PS

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC42M200PS, provides metered service and a main circuit breaker and 42 circuits. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20). This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. CHOM Homeline load centers are CSA certified.

Specifications

Weight

63.32

Width

22.09

Length

38.34

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MAIN COMBINATION SVCE ENTR MTR 200A A

AD Item Features 01

Homeline All in ones CSEDs support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

38.3400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

63.3200

AD Package Weight UOM

LB

AD Package Width

22.0900

AD Package Width UOM

IN

Brand

Square D

Category

COMMERCIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Wire Size

Spec 11 Attribute Value

4 AWG to 250 kcmil/14 to 2/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

21.5 in W x 5.8 in D x 37.3 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

A

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Line/Service Ground Lug

Spec 9 Attribute

Type

Spec 9 Attribute Value

42-Circuit All-In-One Field Installed Rainproof
