Square D

SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready

Category Commercial Meter Mains

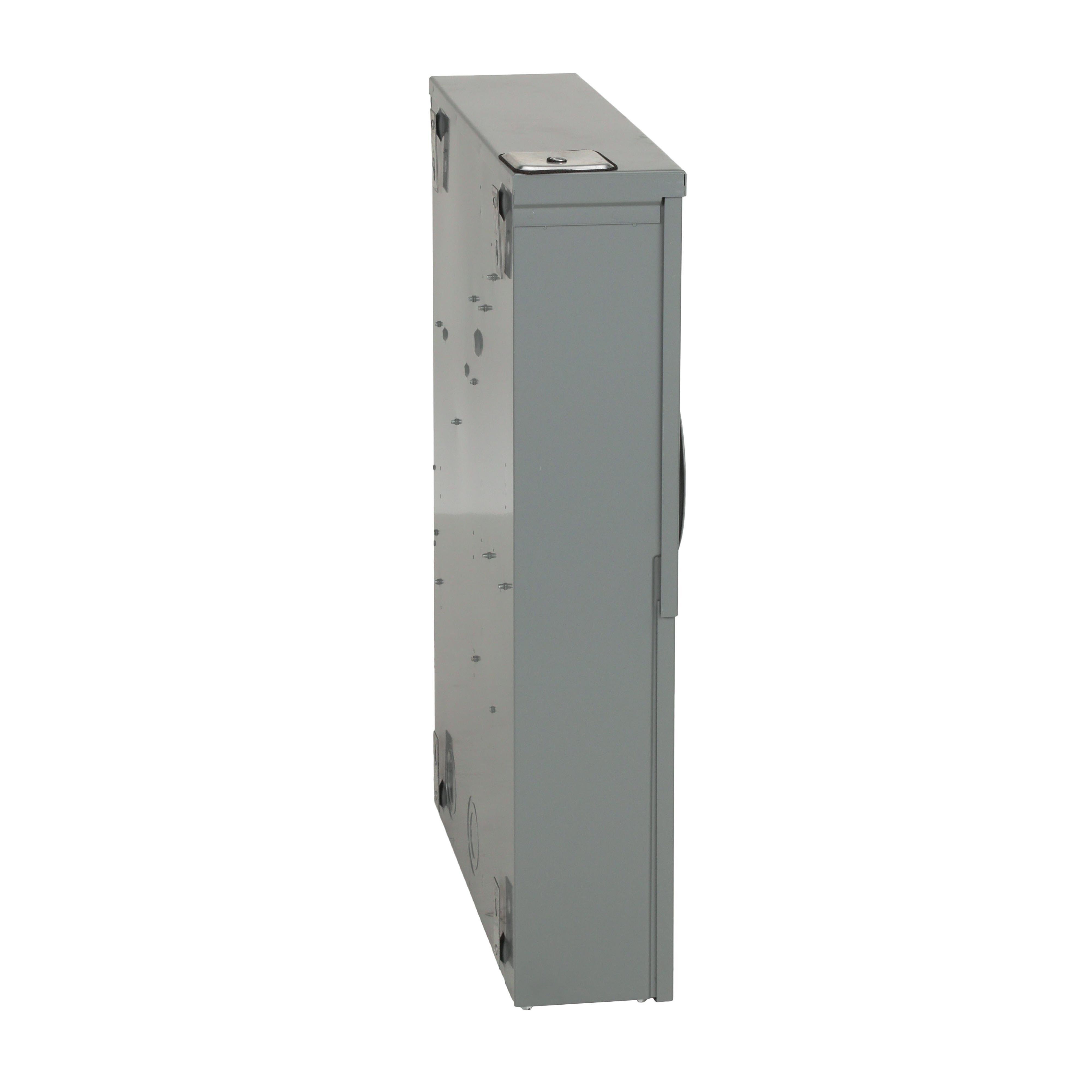

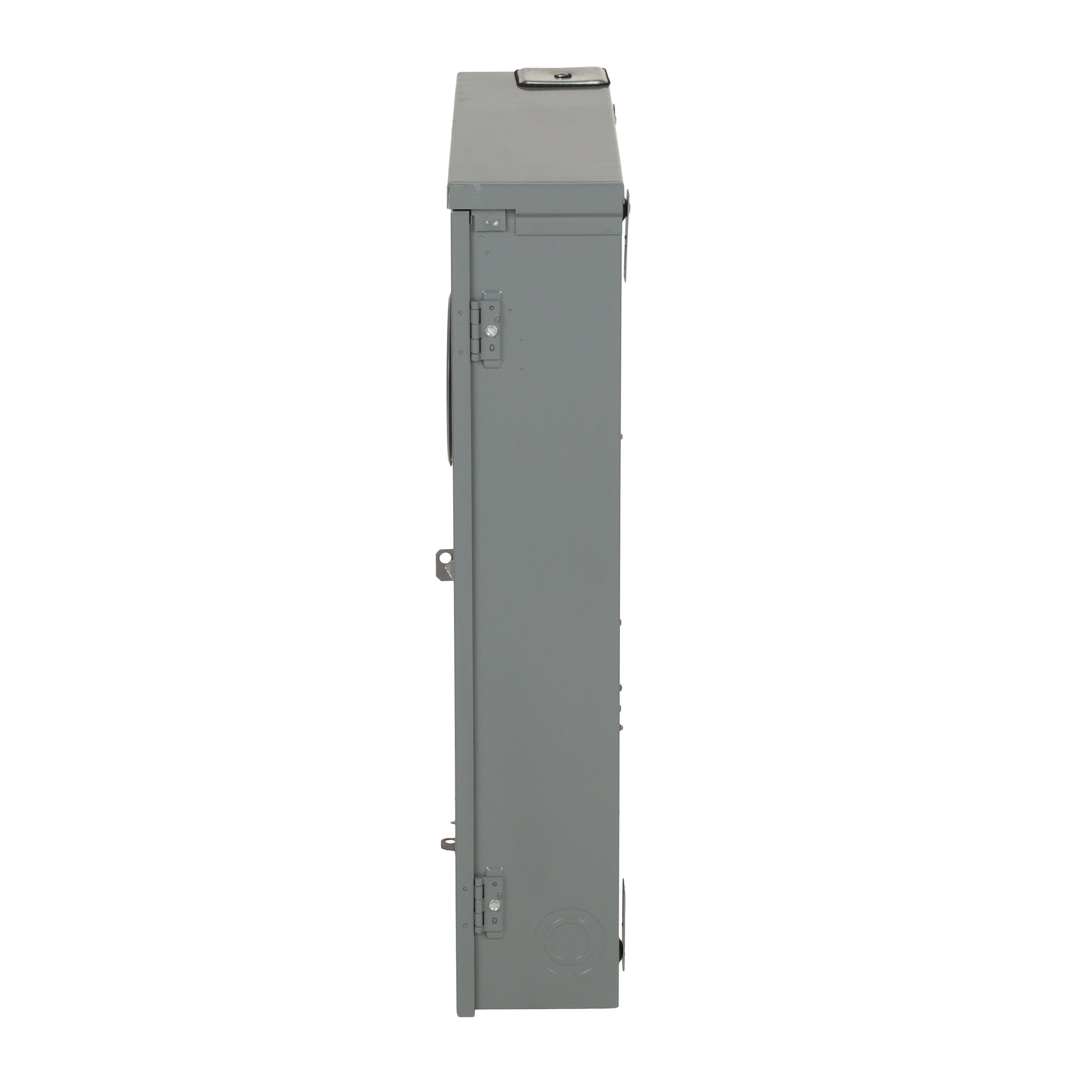

Picture of SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready Picture of SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready
Picture of SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready Picture of SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready
Picture of SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready Picture of SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready
Square D

SC816F200PS - Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready

Item Code: 994447
Category Commercial Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SC816F200PS

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816F200PS. Enclosure mounting style performed as Home PoN surface mount device.This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.

Specifications

Weight

52.76

Width

22.09

Length

30.41

AD Application

Residential, Outdoor and Solar Ready Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Circuit Breaker, Load Side Feed Through Lugs

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A 1

AD Item Features 01

Homeline ringed meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED integrate meter socket that, a main disconnect and load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

30.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

52.7600

AD Package Weight UOM

LB

AD Package Width

22.0900

AD Package Width UOM

IN

Brand

Square D

Category

COMMERCIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Type

Spec 10 Attribute Value

2-Pole 3-Wire 8-Circuit 16-Space Field Installed Rainproof

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

4 AWG to 250 kcmil/6 AWG to 250 kcmil/14 to 2/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.85 in W x 3.4 in D x 42.6 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

A-L

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Line/Load/Service Ground/Feed-Through Lug
