Schneider Electric

SD328AU25S2 - motion control stepper motor drive - SD328 - <= 2.5 A

Category Miscellaneous

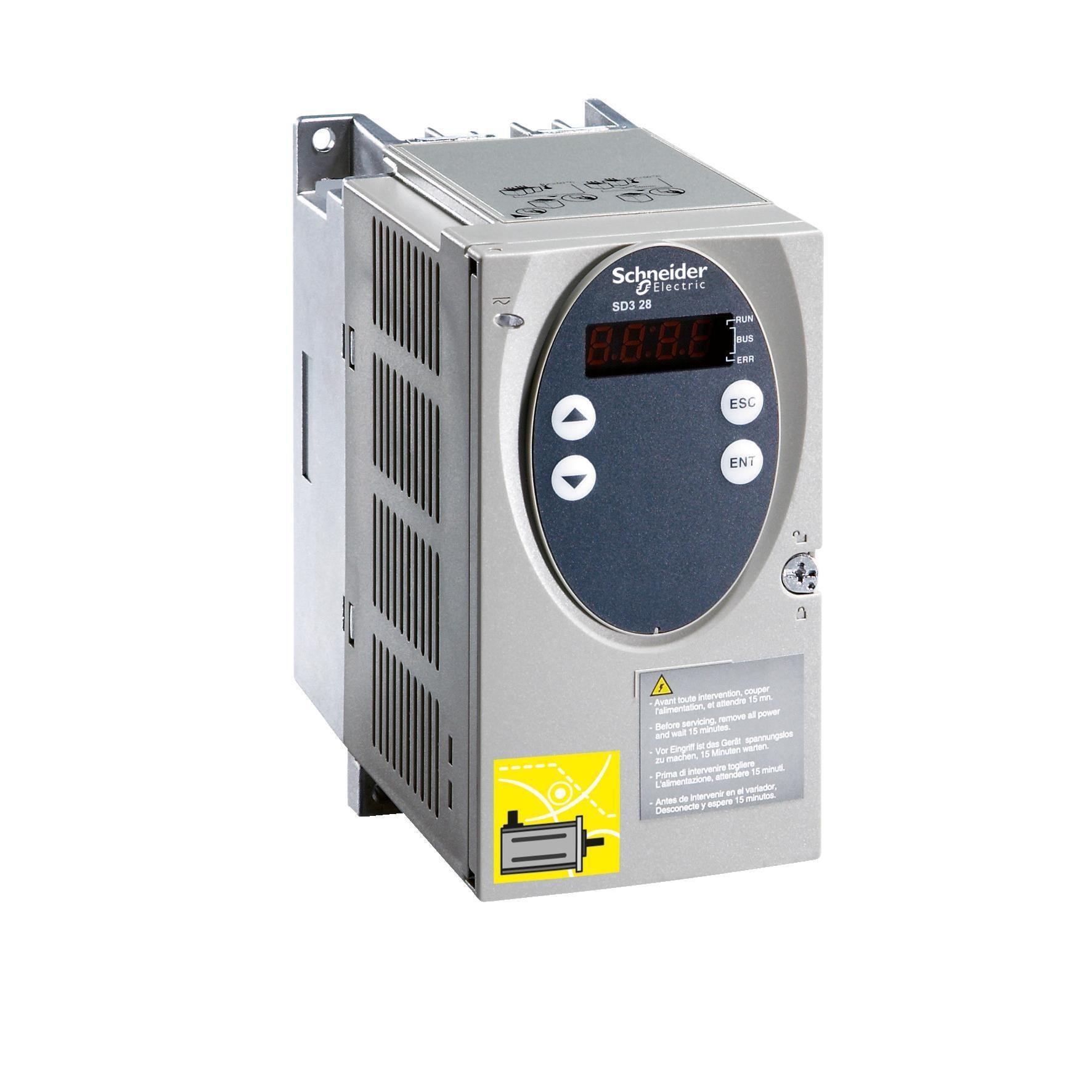

Picture of SD328AU25S2 - motion control stepper motor drive - SD328 -
Schneider Electric

SD328AU25S2 - motion control stepper motor drive - SD328 - <= 2.5 A

Item Code: 883610
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SD328AU25S2

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated CANopen and analogue input Modbus communication interface. High torque is available even at low sp

Specifications

Weight

2.77

Width

6.43

Length

7.41

AD All Features

Extremely compact

AD Alternative Part Number

12029359

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

DE

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389119224369

AD Gtin

03389119224369

AD IDEA Index ID

12029359

AD Invoice Description

DRIVE MTN CTRL STPR MOT 50/60HZ 3000RPM

AD Item Features 01

Extremely compact

AD Item Features 02

High Flexibility

AD Item Features 03

Integrated safety function

AD Item Features 04

Plug and play for easy automation

AD Item Features 05

Universally applicable

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.7700

AD Package Weight UOM

LB

AD Package Width

6.4300

AD Package Width UOM

IN

AD Part Number Keywords

SD328AU25S2 ; 12029359 ; 785901979159 ; 78590197915 ; 03389119224369 ; 3389119224369

Brand

Square D

Spec 1 Attribute

Control

Spec 1 Attribute Value

Register

Spec 10 Attribute

Type

Spec 10 Attribute Value

1-Phase Standard

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute Value

100 to 120 V AC/DC, 200 to 230 V AC/DC

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

140 mm L x 72 mm W x 145 mm H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20/IP40

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Input Rating

Spec 5 Attribute Value

10 mA at 24 V DC

Spec 6 Attribute

Output Rate

Spec 6 Attribute Value

125, 250, 500 kbps, 1 Mbps CANopen, 9600, 19200, 38400 bps Modbus

Spec 7 Attribute

Series

Spec 7 Attribute Value

SD3

Spec 8 Attribute

Speed Rating

Spec 8 Attribute UOM

RPM

Spec 8 Attribute Value

3000

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

32 To 104
