Square D

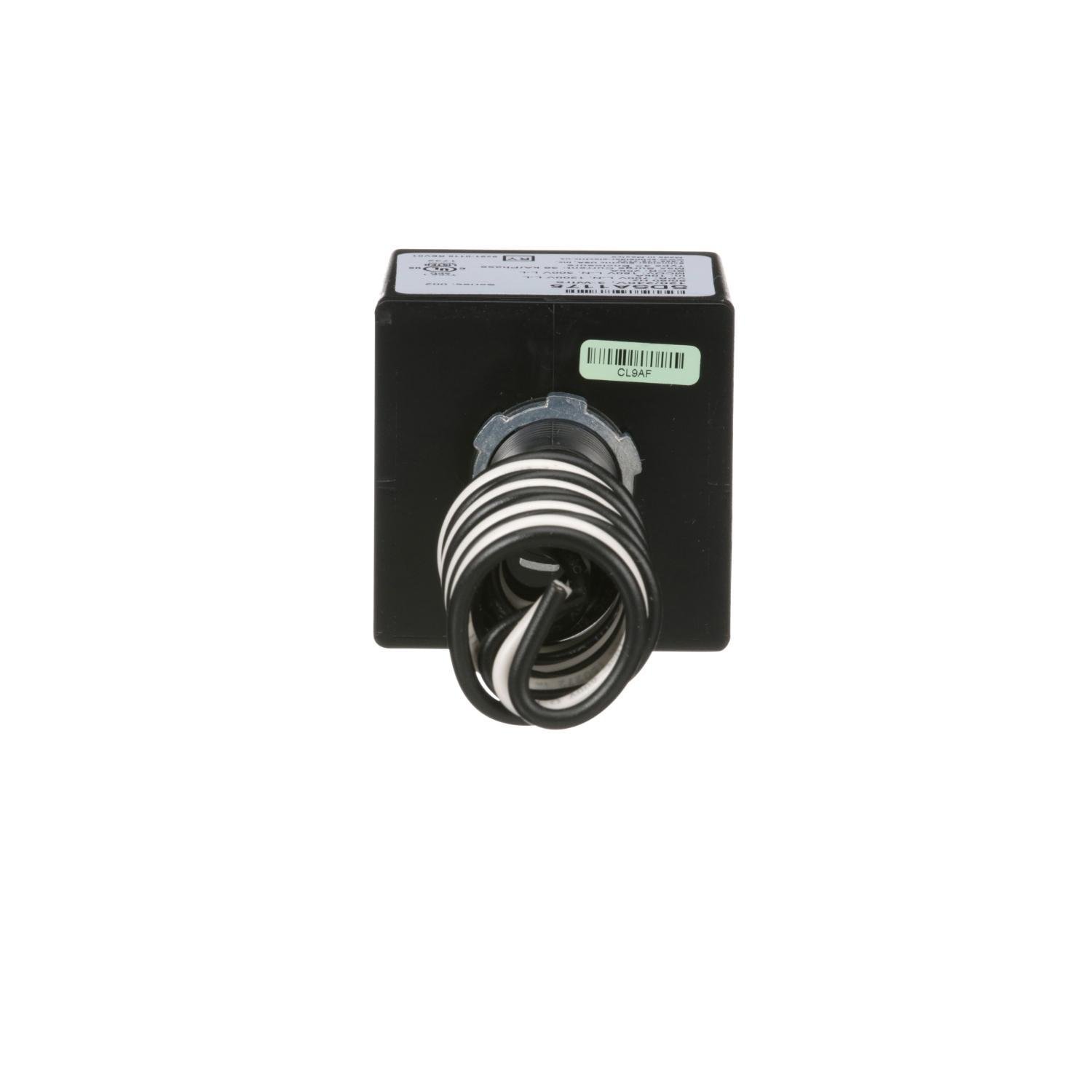

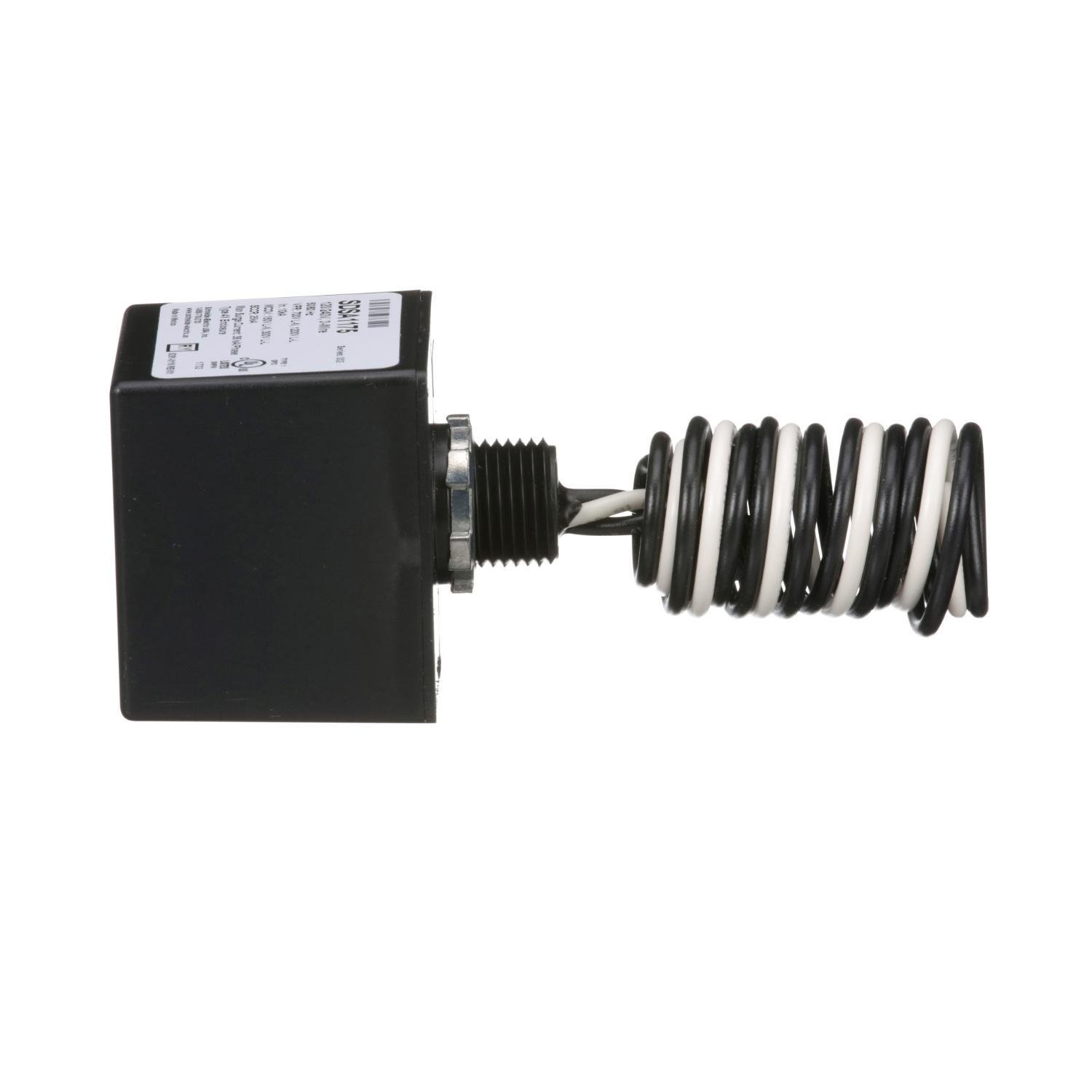

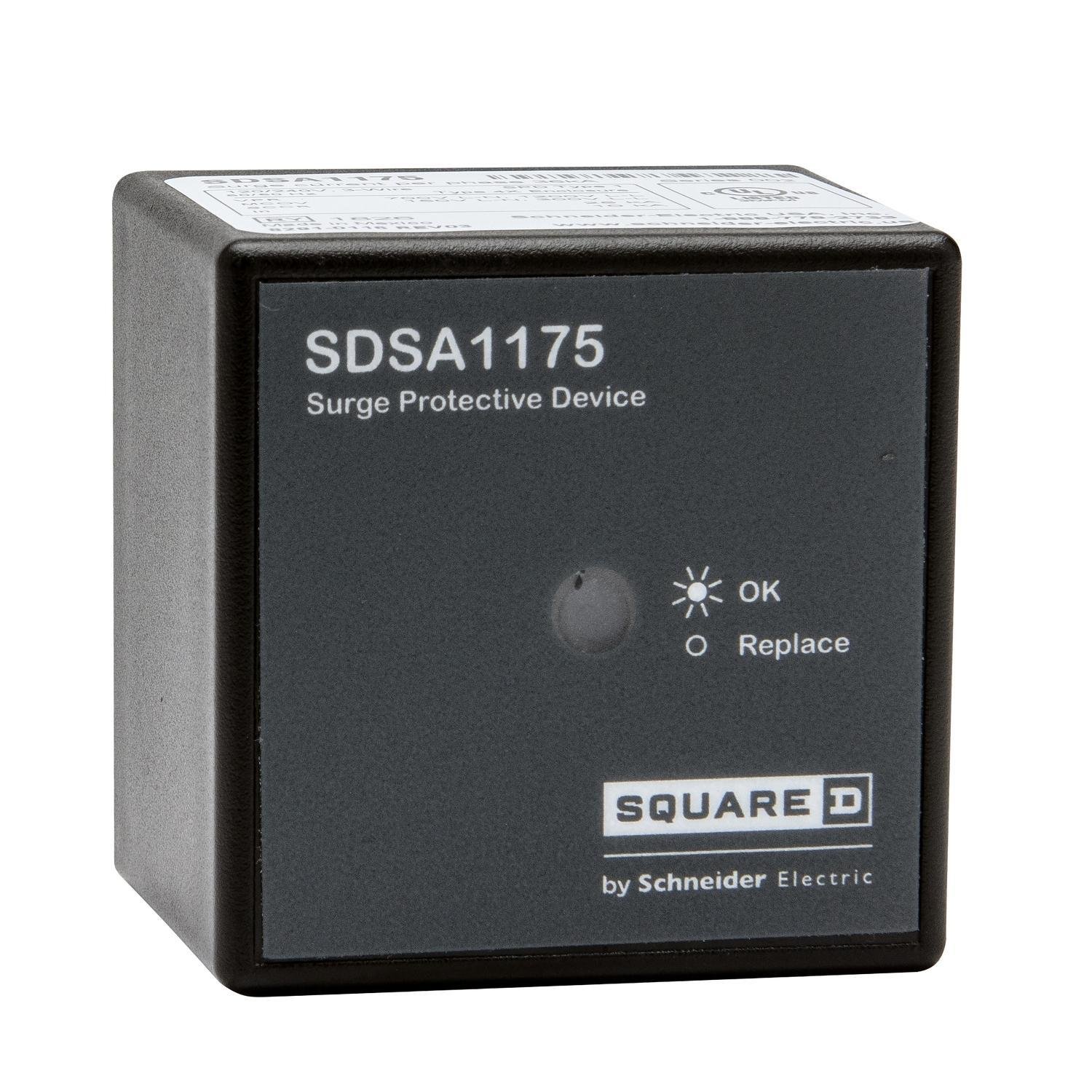

SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

Category Receptacles & Surge Protectors
Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X
Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X
Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X
Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X Picture of SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X
Square D

SDSA1175 - Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

Item Code: 18741
Category Receptacles & Surge Protectors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SDSA1175

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This surge protection device from Square D is a type 1 device that can be used with or without an over current protection device. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. With a short circuit current rating 25 kA, back nipple mounting, and NEMA 4X rating, this compact design can be placed adjacent to power panels. The unit is set for NEC, CSA, and UL standards.

Specifications

Weight

0.7lb

Height

2.25mm

Width

2.67mm

Length

6.74mm

Depth

2.7mm

AD All Features

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Application

For pumping applications and motor control feeder

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

ARRESTER SRG 50/60HZ 25KA 1 36KA 3 LED

AD Item Features 01

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Item Features 02

Protects against accidental shocks through the use of touch-safe terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7000

AD Package Weight UOM

LB

AD Package Width

2.6700

AD Package Width UOM

IN

Brand

Square D

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Clamping Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

120/240

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

25

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

2.6 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 4

Spec 4 Attribute

Environmental Conditions

Spec 4 Attribute UOM

deg F

Spec 4 Attribute Value

-40 To 149

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Indicator Type

Spec 6 Attribute Value

Led

Spec 7 Attribute

Modes of Protection

Spec 7 Attribute Value

3

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Nipple

Spec 9 Attribute

Peak Surge Current

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

36
