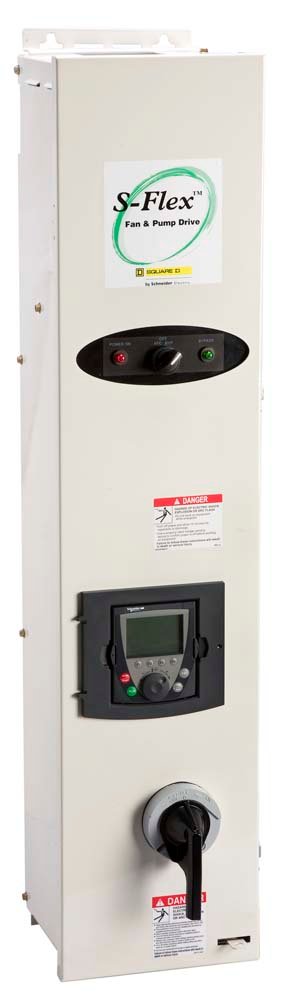

SFD212RG4YB07D07 - variable speed drive, Sflex Altivar 212, 460V AC, 3 phase, 75hp, enclosed drive, bypass, LINECONT, L
Description
Specifications
333.3
27.8
35.18
70.32
For commercial pump and fan
Schneider Electric
USA
US
Specification Sheet
Owners/User Manual
00785901455561
DRIVE ENCLOSED 480V 96A 75HP NEMA 1 3-PH
ALTIVAR® 212 power converter
Square D™ circuit breaker disconnect (power fuses for 460 V version only)
Coordinated short circuit rating for 100000 A
Adjustable frequency controller-off-bypass selector switch
Local/remote configurable on controller
Power ON red LED
Bypass run green led
Fire/freezestat interlock for adjustable frequency drive and bypass mode
Form C adjustable frequency controller fault auxiliary contact
Modbus RJ-45 communication port
Smoke purge Function
Bypass run auxiliary contact
Drive run auxiliary contact
Full voltage bypass power circuit with overload relay
Square D SFD212RG4YB07D07 3-Phase Enclosed Drive, 480 V, 96 A, 75 hp ; Schneider Electric ; SFD212RG4YB07D07 ; 785901455561 ; AC Variable Frequency Drives
Schneider Electric
27.8000
IN
70.3200
IN
1
70069.9000
cu-in
333.3000
LB
35.1800
IN
SFD212RG4YB07D07 ; 785901455561 ; 78590145556 ; 00785901455561
Square D
Amperage Rating
A
96
Display Type
LCD Keypad
Enclosure Type
NEMA 1
HORSEPOWER
HP
75
Type
3-Phase
Voltage Rating
V
480
