Square D

SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A

Category Safety Switch Accessories

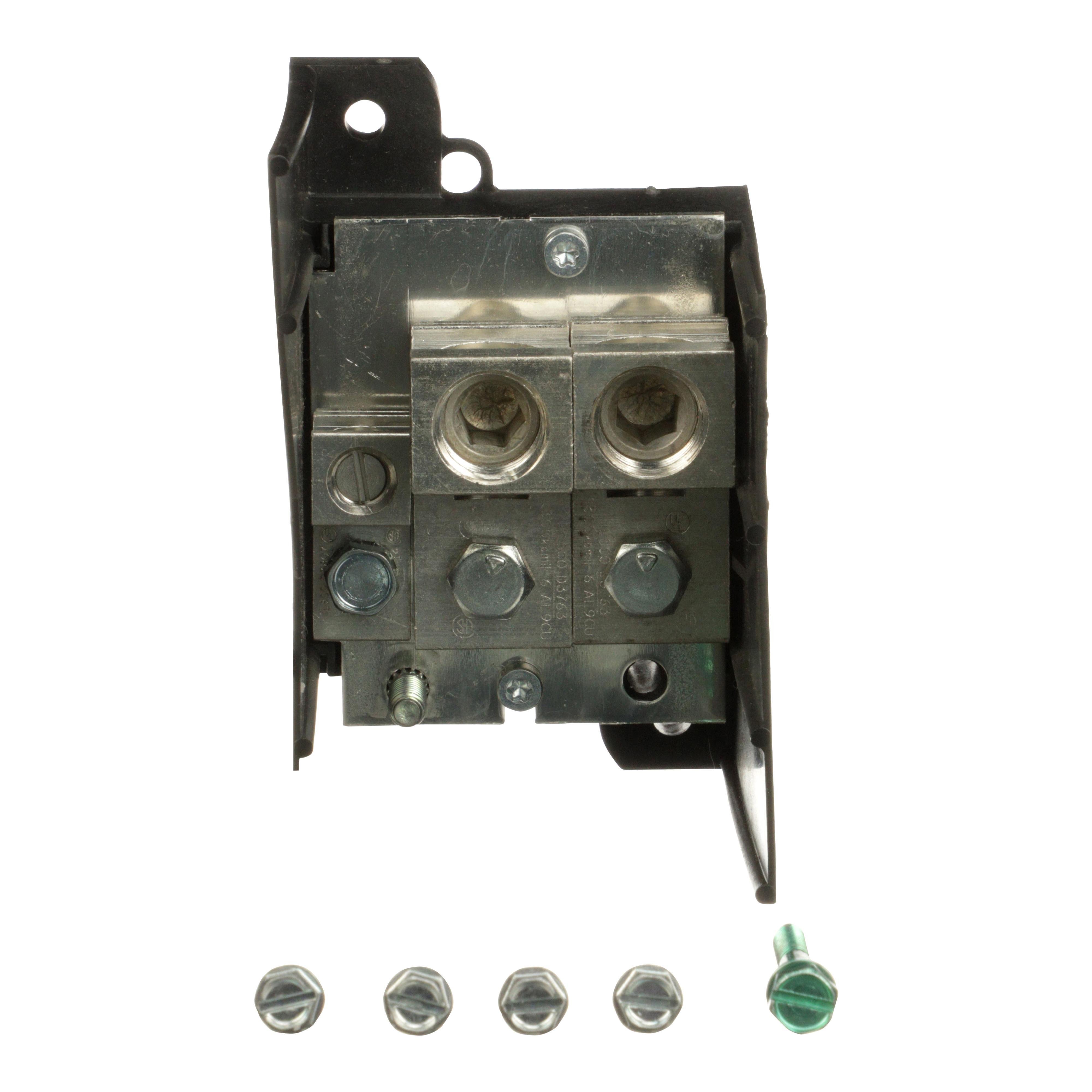

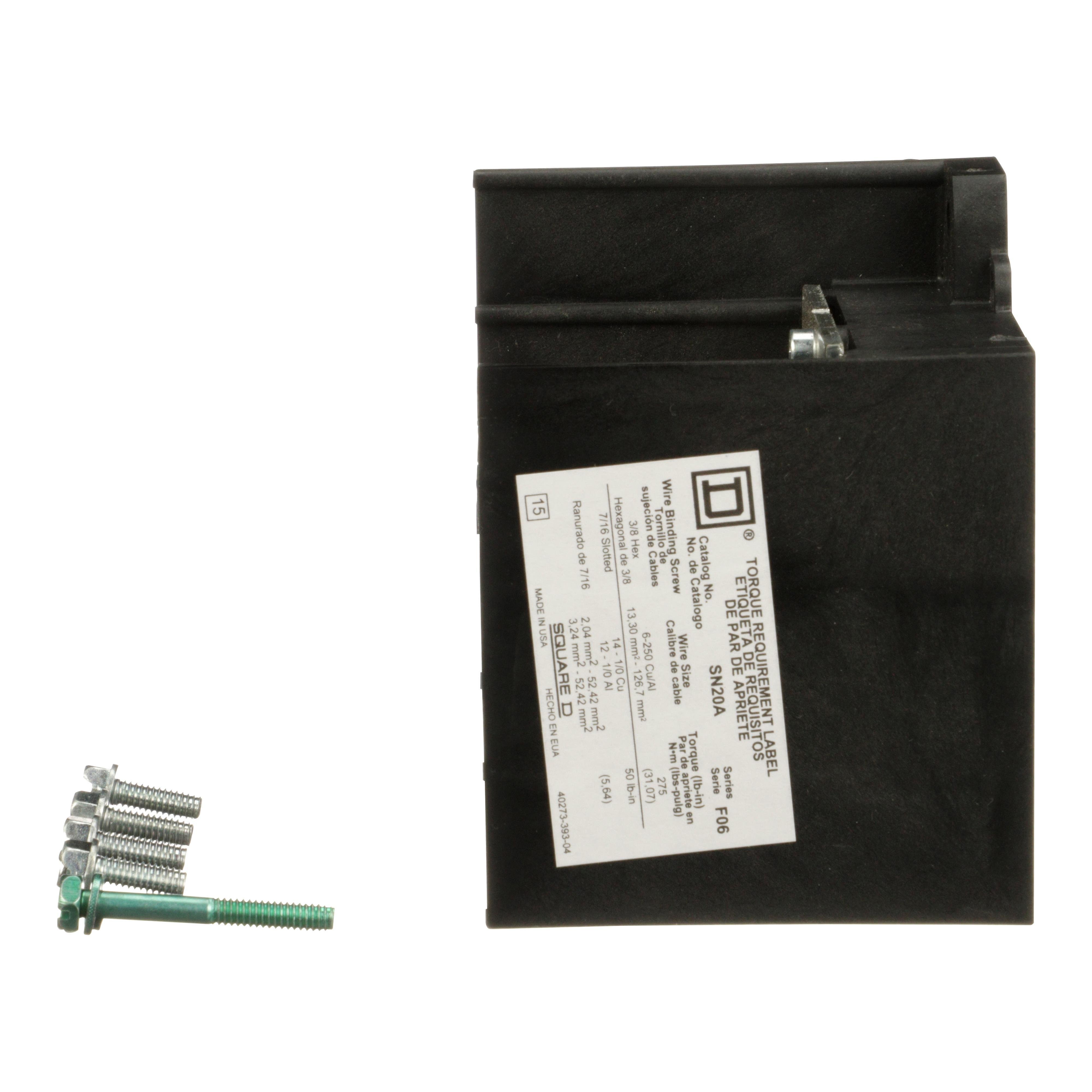

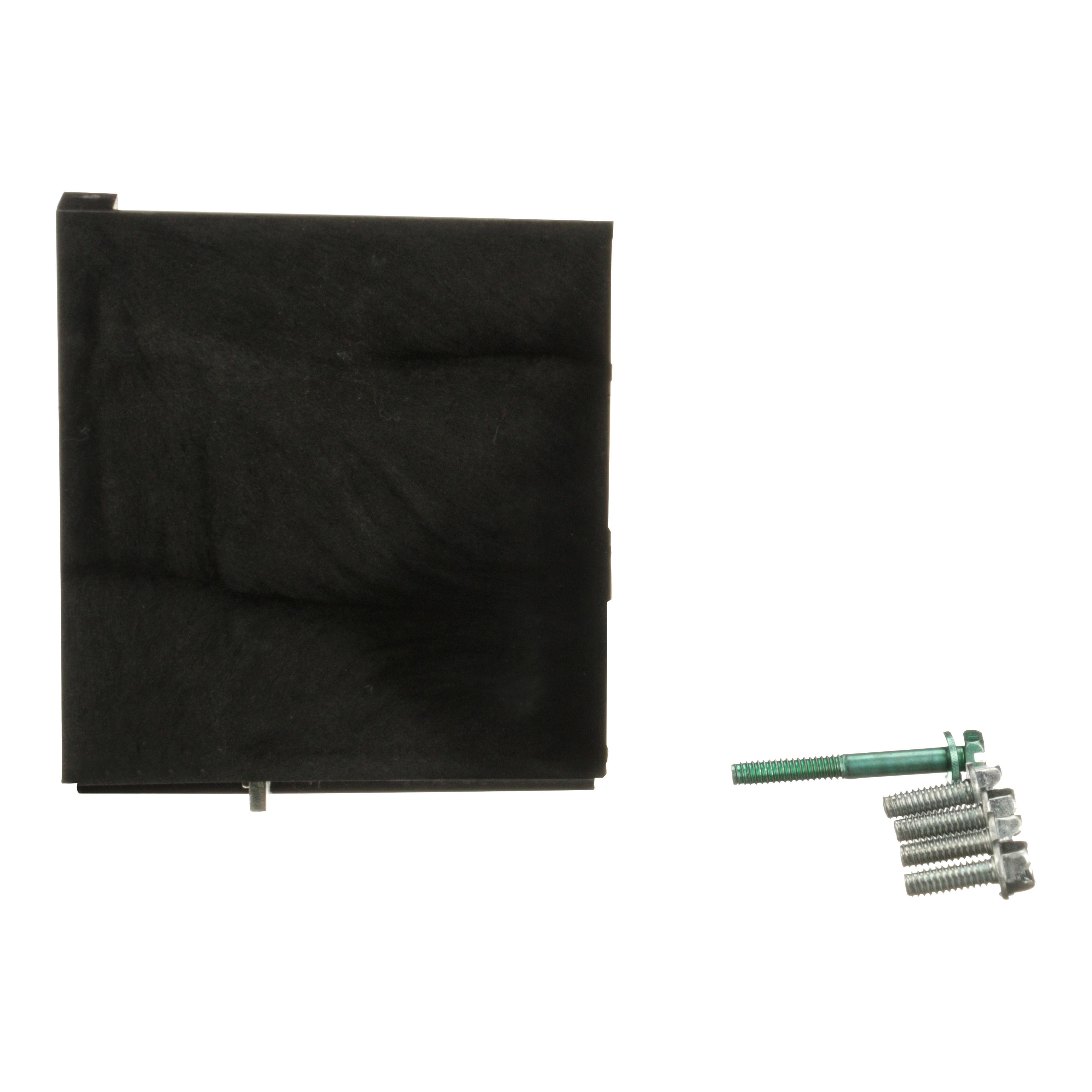

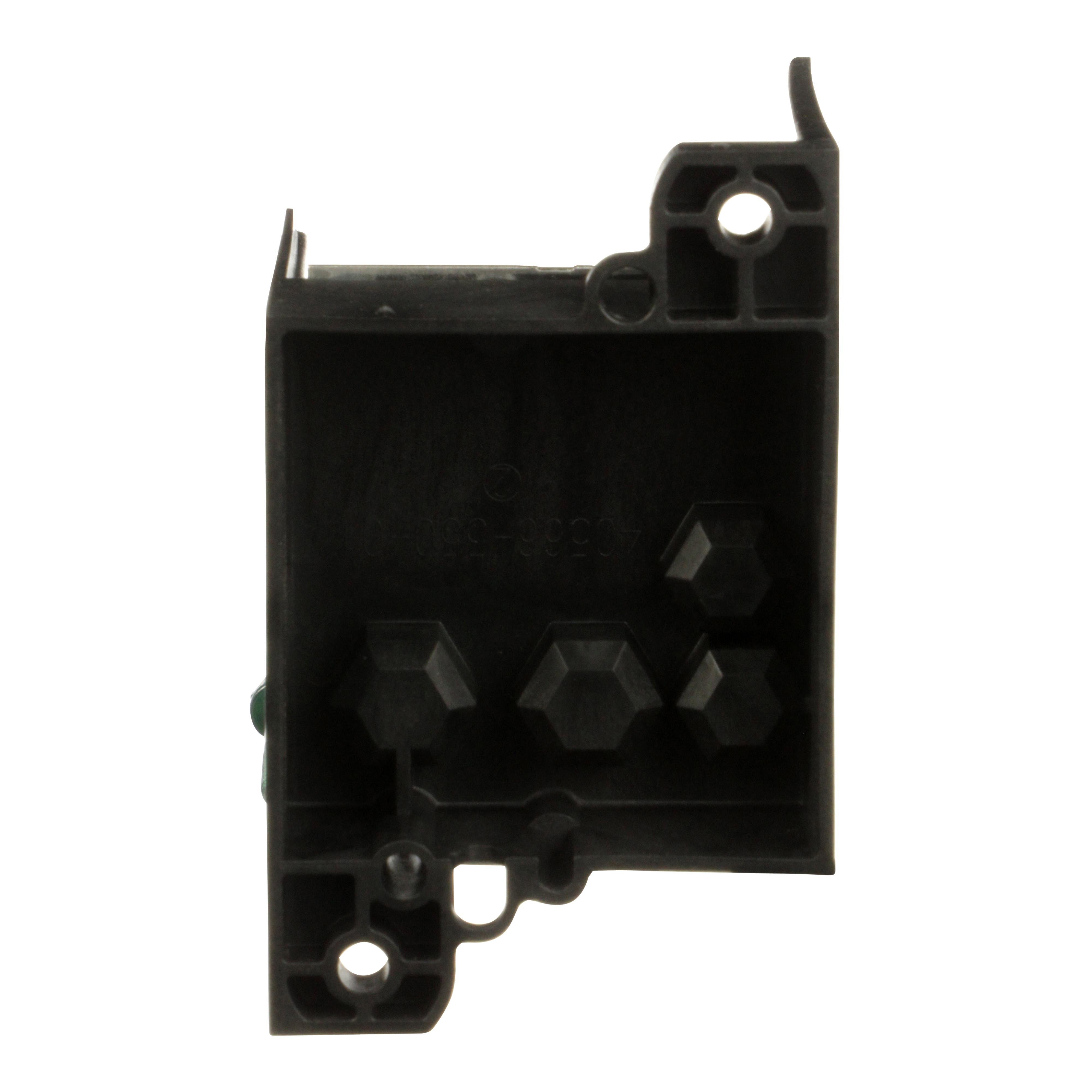

Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A
Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A
Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A
Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A
Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A Picture of SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A
Square D

SN20A - Solid neutral assembly, safety switch, 1 x aluminium/copper AWG 1/0, series F5/F6 200A

Item Code: 18750
Category Safety Switch Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SN20A

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. The design life of a F-Series switch is a minimum of three times the NEMA requirement. This solid neutral assembly is insulated and groundable. It has one terminal in and one terminal out, with an additional grounding terminal. Each main terminal accepts 6 AWG to 250kcmil, and the ground terminal accepts 14 AWG to 10 AWG. This accessory complies with UL and CSA standards.

Specifications

Weight

0.97lb

Width

6.34mm

Length

6.74mm

AD All Features

Available for factory or field installation

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

ASSEMBLY SN HD SAF SW 240/600 VAC 200 A

AD Item Features 01

Available for factory or field installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.9700

AD Package Weight UOM

LB

AD Package Width

6.3400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/5oM8IMwBJns

Brand

Square D

Category

SAFETY SWITCH ACCESSORIES

Spec 1 Attribute

Specifications

Spec 1 Attribute Value

240/600 V AC, 200 A, 1/0 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Suitable For Use With

Spec 2 Attribute Value

Heavy Duty Safety Switch

Spec 3 Attribute

Type

Spec 3 Attribute Value

Groundable Insulated
