Square D

SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass

Category Miscellaneous

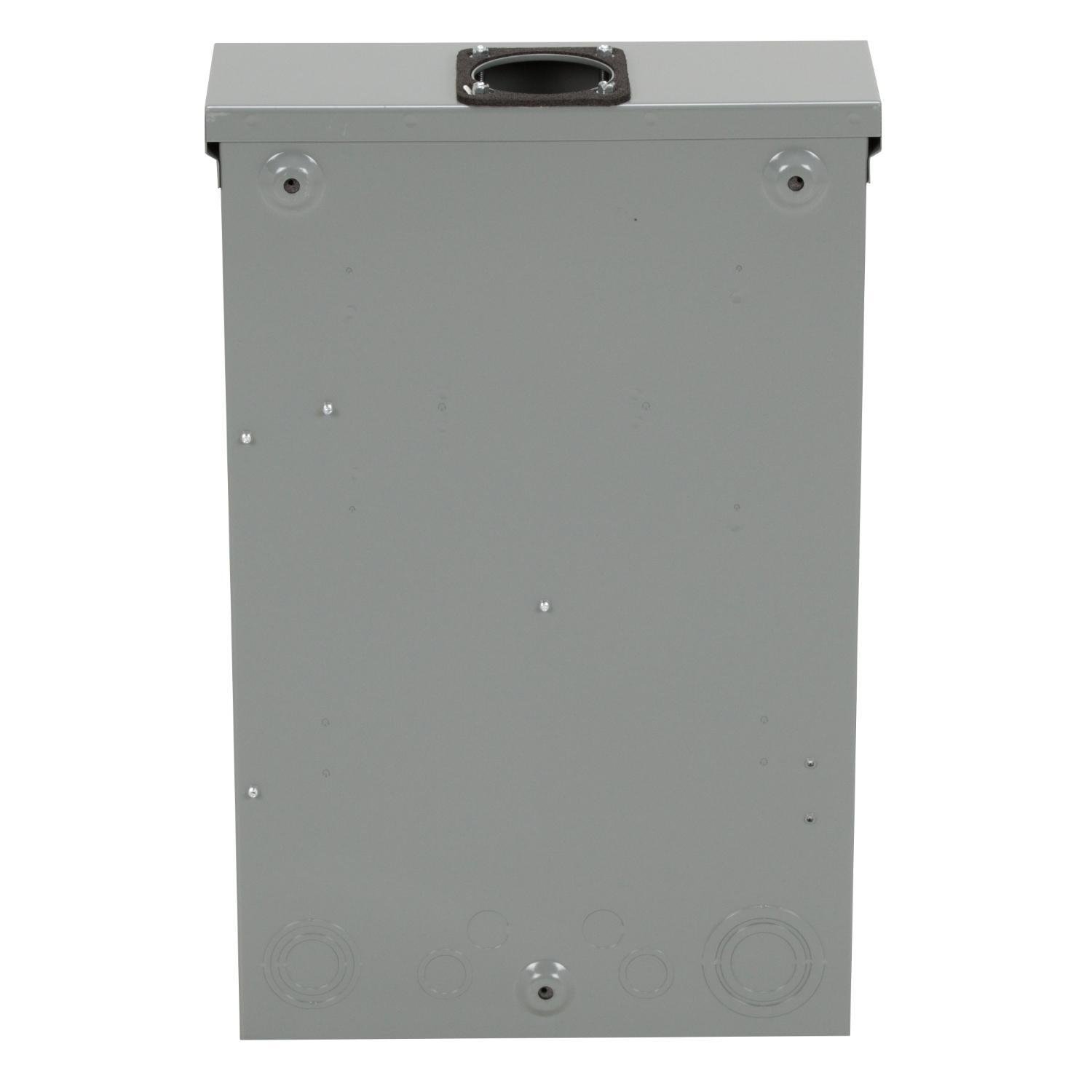

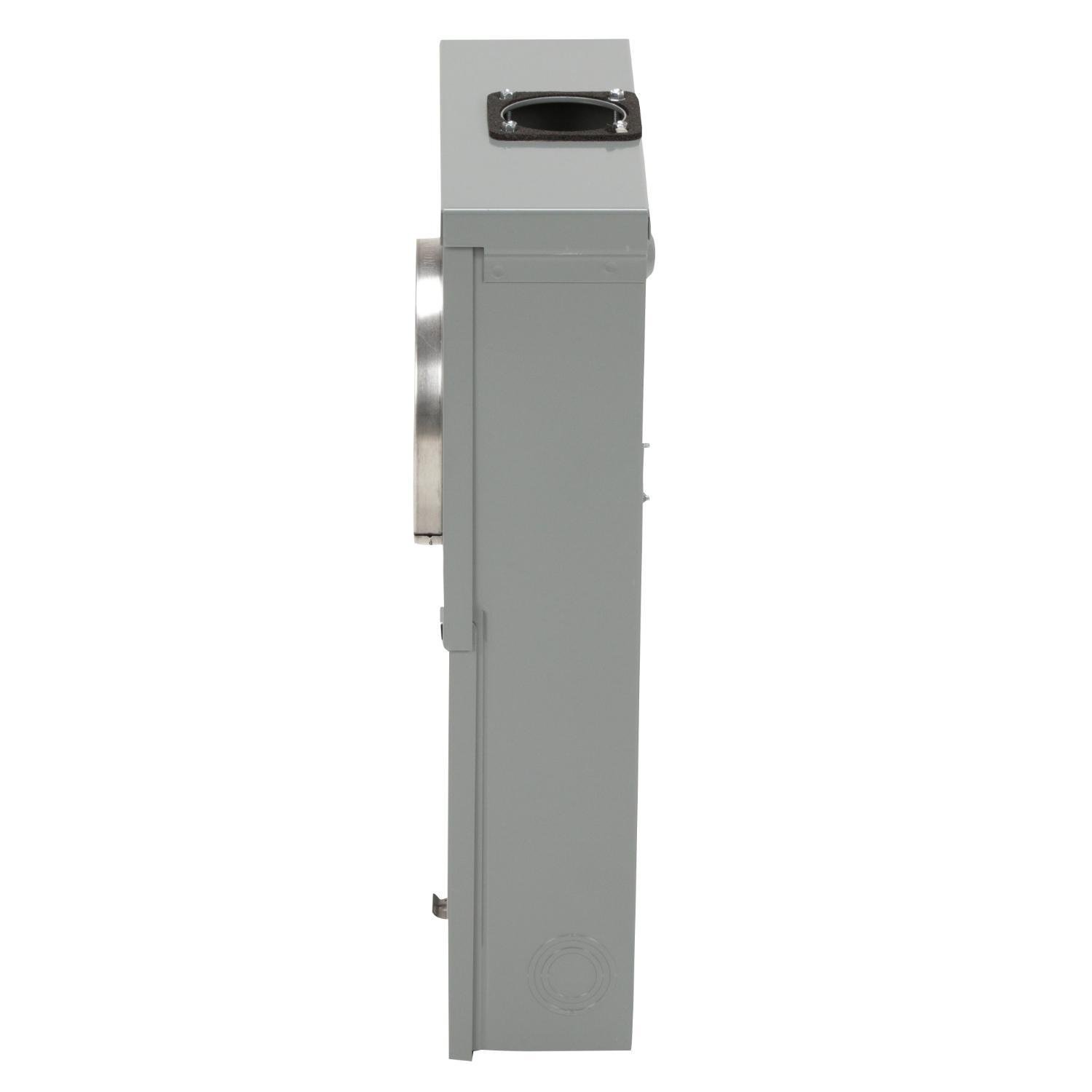

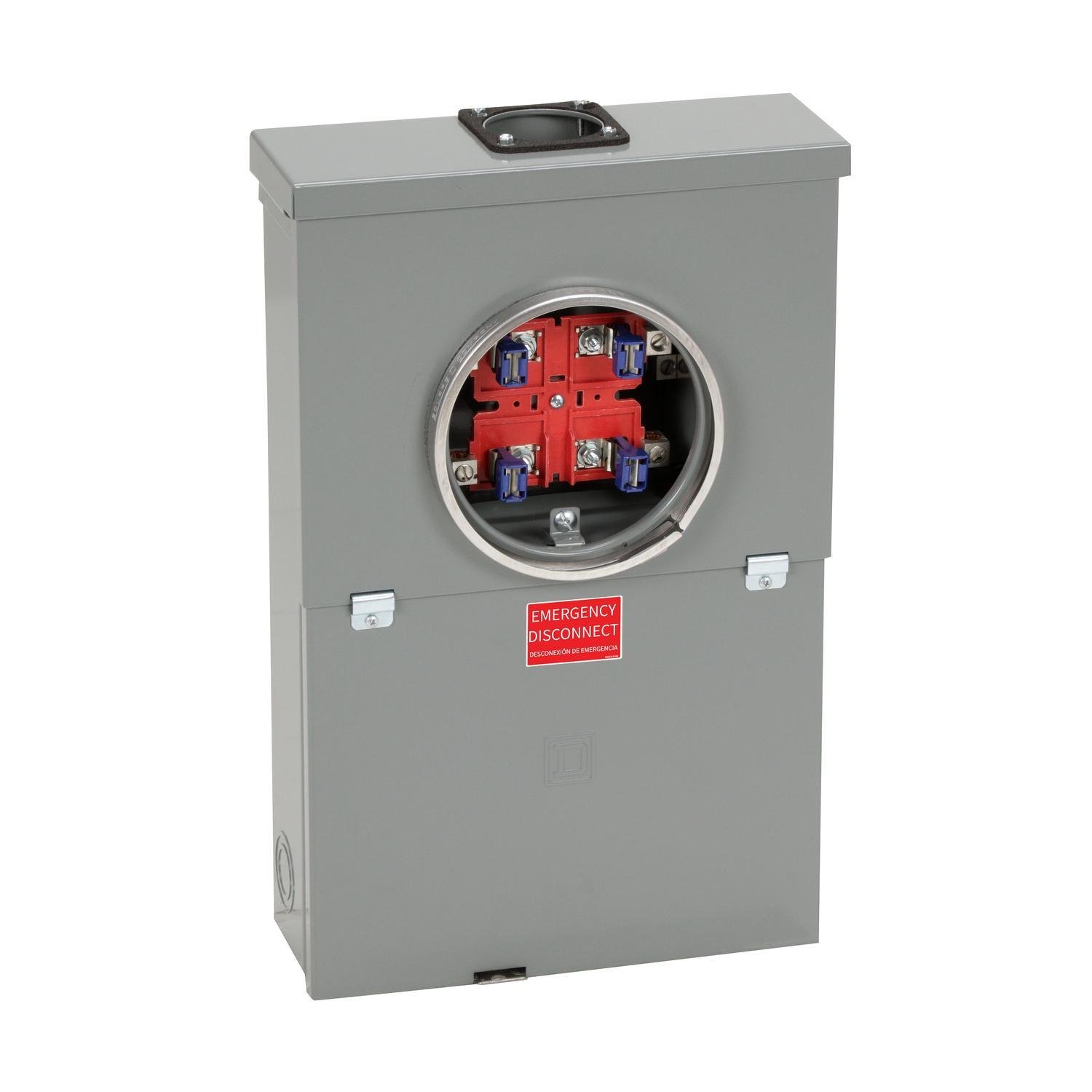

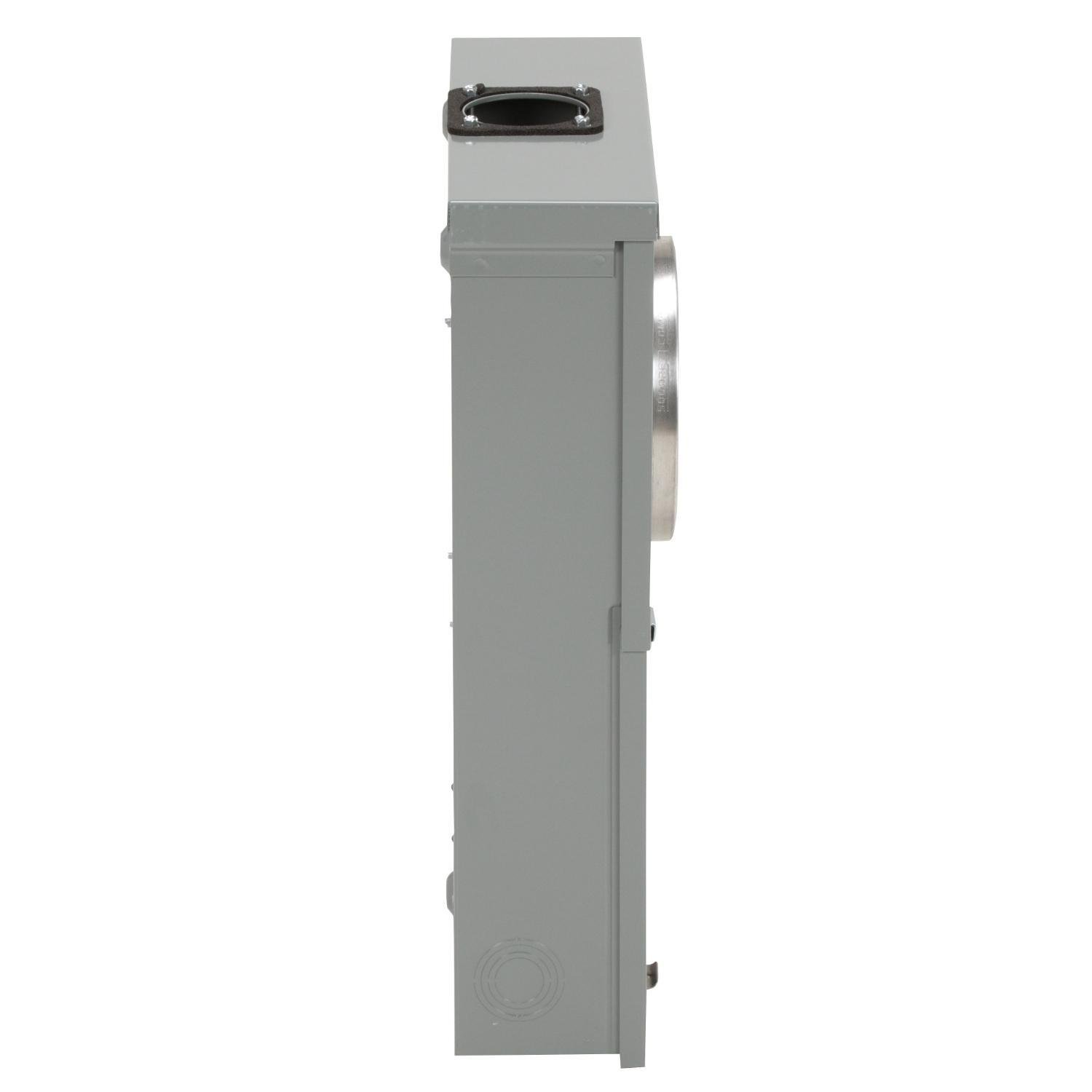

Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass
Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass
Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass
Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass
Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass Picture of SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass
Square D

SO1020M100S - All in one, Homeline, combination service entrance, ringed socket, 100A, surface, 10 spaces, 20 circuits, 10kA SSCR, OH, no bypass

Item Code: 555170
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SO1020M100S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service. The service disconnect has a HOM2100 with a maximum rating of 100 A. Device has a 10 kA short circuit current rating. Load center has 10 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 20.79 inches tall, 13.46 inches wide and 4.56 inches deep. The line side lugs will accept 6 AWG to 1 AWG copper or aluminum wire. The service ground lug will accept 8 AWG to 4 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed.

Specifications

Weight

22.05

Width

13.57

Length

21.59

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/SO1020M100S/SO1020M100S.spin

AD Alternative Part Number

8143240

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901328049

AD Gtin

00785901328049

AD IDEA Index ID

8143240

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 100A

AD Item Features 01

Homeline All in ones CSEDs support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Keywords

HomeLine SO1020M100S 10-Space 20-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 V AC, 100 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; SO1020M100S ; SO1020M100S ; 785901328049 ; Meter Mains

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

21.5900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

22.0500

AD Package Weight UOM

LB

AD Package Width

13.5700

AD Package Width UOM

IN

AD Part Number Keywords

SO1020M100S ; 8143240 ; 785901328049 ; 78590132804 ; 00785901328049 ; 0785901328049

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

10-Space 20-Circuit All-In-One Field Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

6 to 1/8 to 4

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

20.79 in H x 13.46 in W x 4.56 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead

Spec 6 Attribute

Hub Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

2/1/2002

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

A-L

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
