Square D™

SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces

Category Miscellaneous

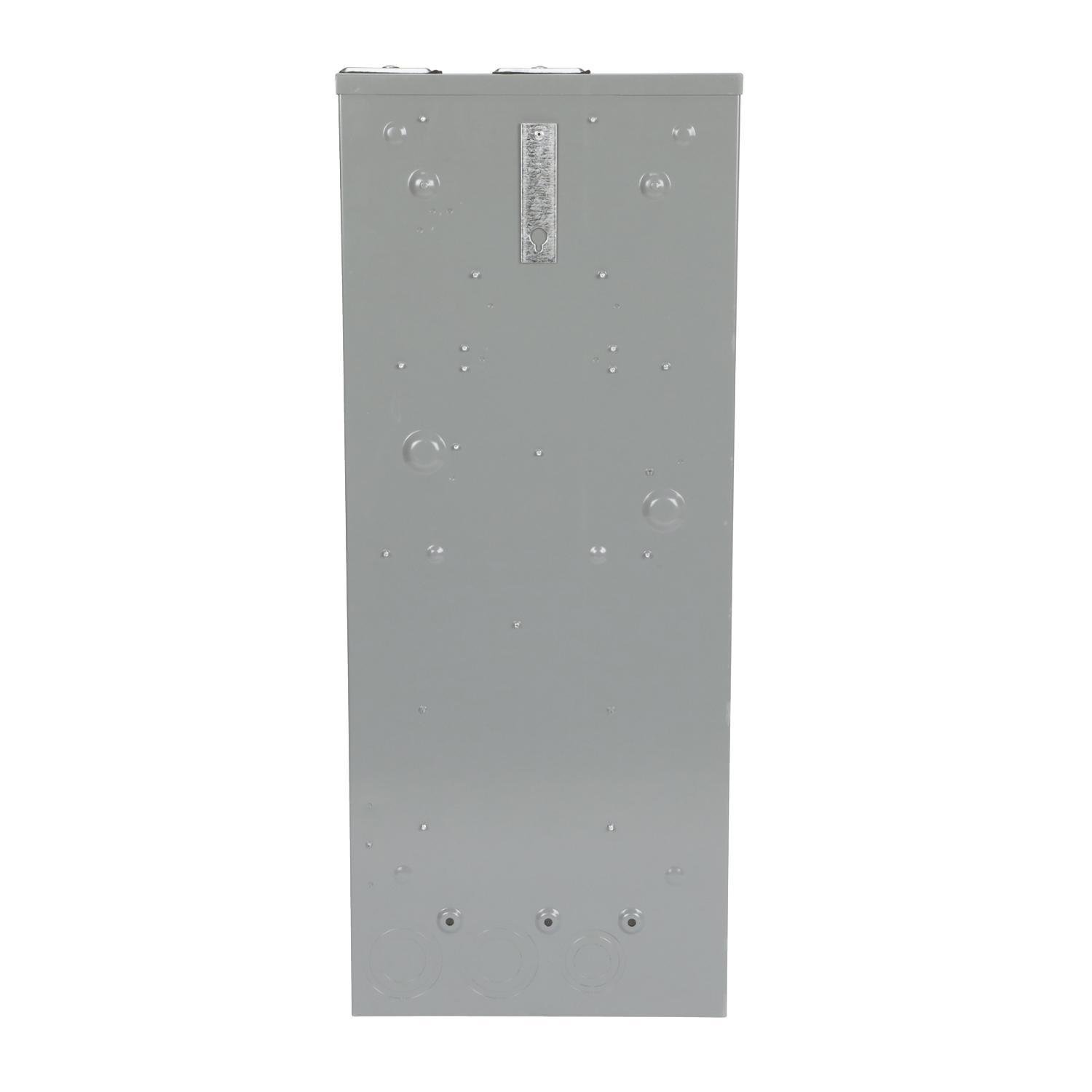

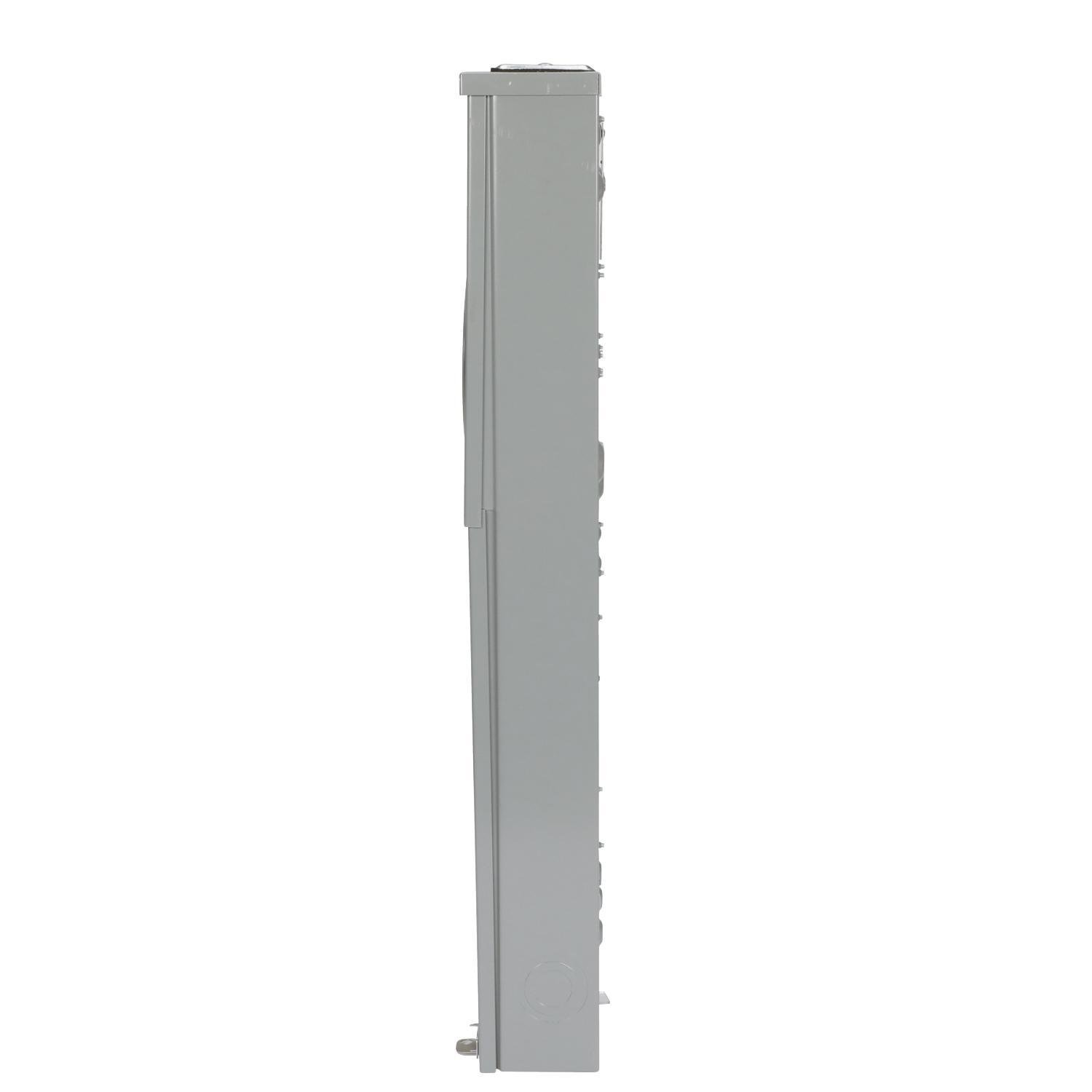

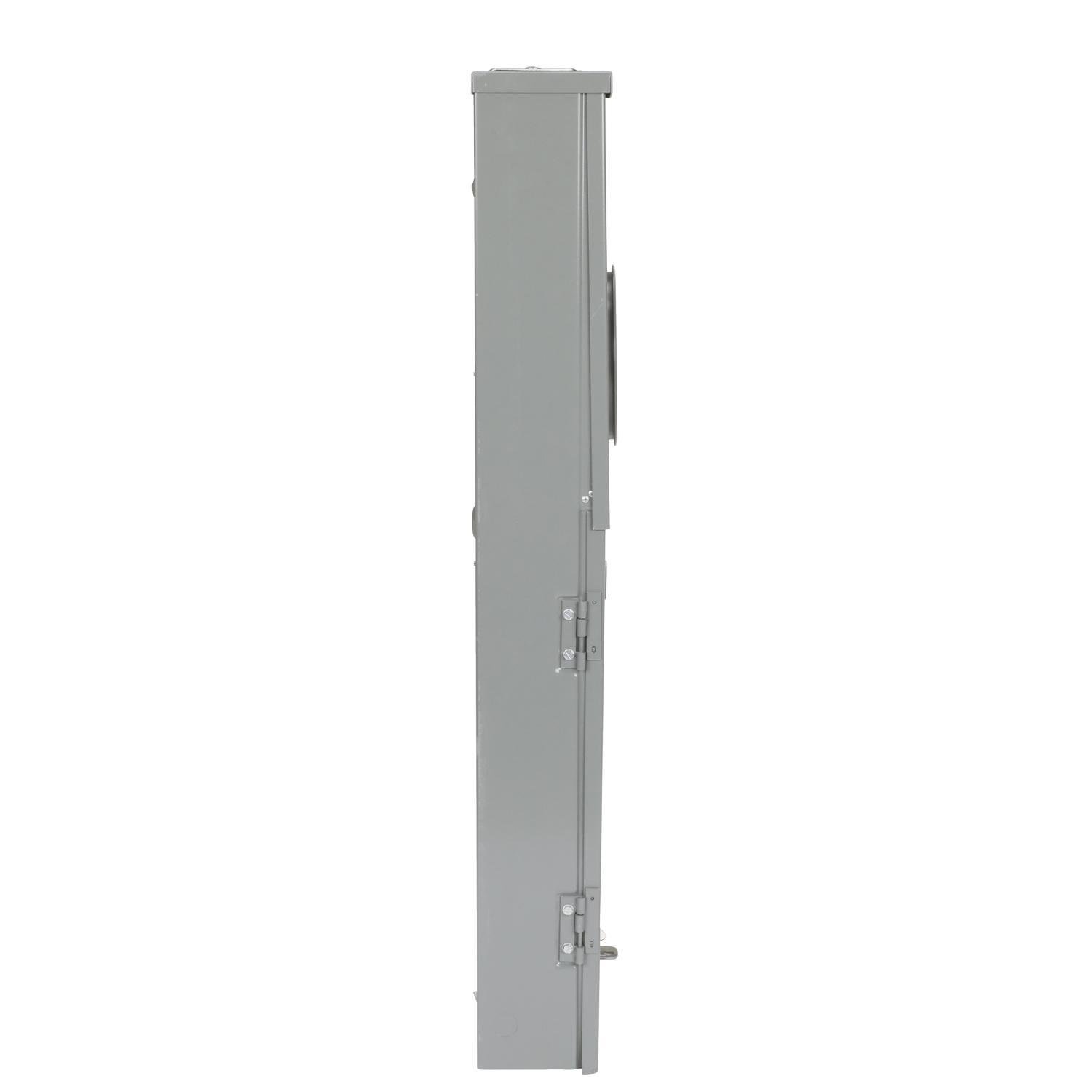

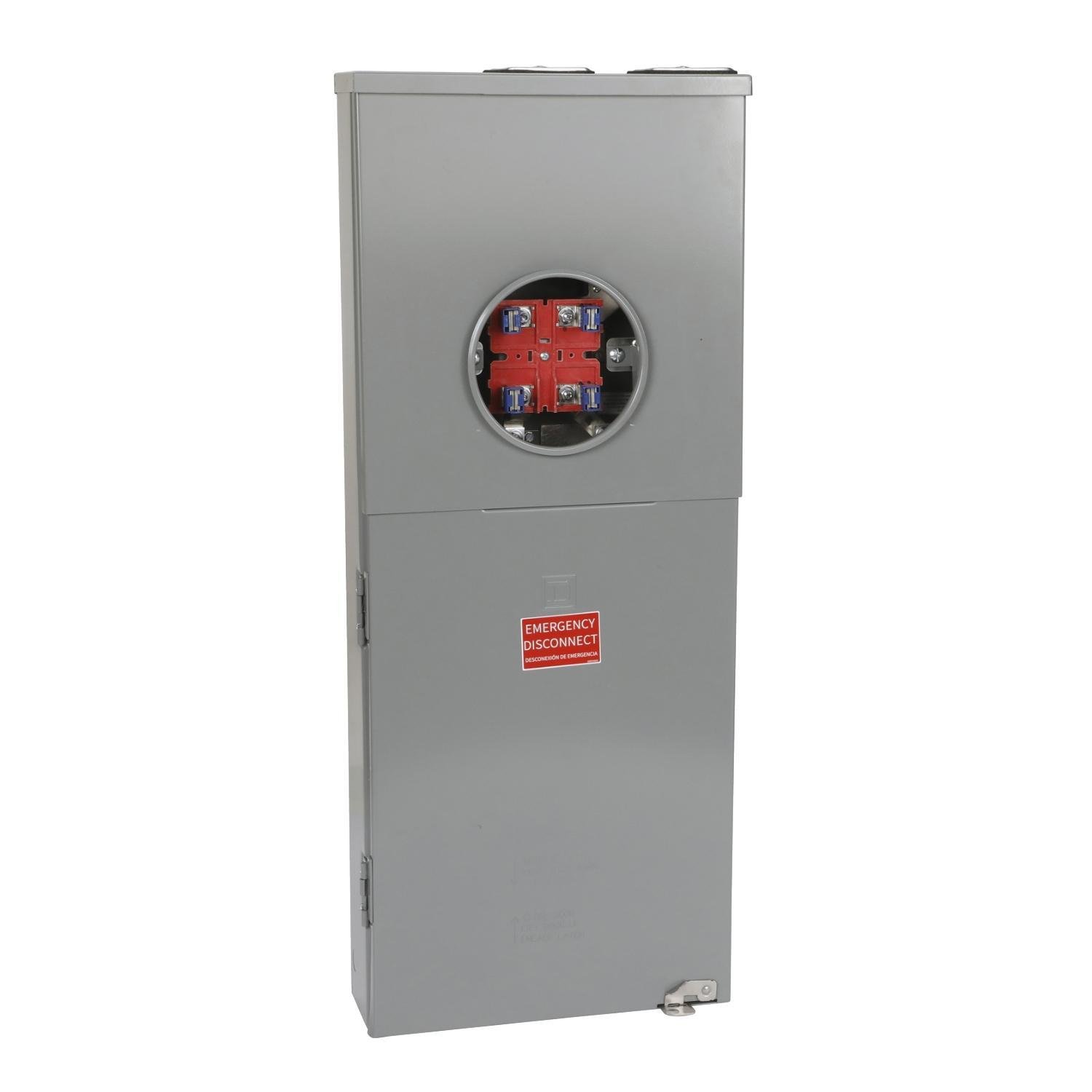

Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces
Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces
Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces
Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces
Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces Picture of SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces
Square D™

SO2040M200S - Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces

Item Code: 1011621
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SO2040M200S

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service. The service disconnect has a QOM2200VH with a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 40.93 inches tall, 18.35 inches wide and 5.32 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.

Specifications

Weight

41.41

Width

14.96

Length

36.16

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/SO2040M200S/SO2040M200S.spin

AD Alternative Part Number

8143228

AD Application

Residential Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901328032

AD Gtin

00785901328032

AD IDEA Index ID

8143228

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 200A 1A

AD Item Features 01

Compatible with Homeline plug-in mount breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Item Features 05

Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

36.1600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

41.4100

AD Package Weight UOM

LB

AD Package Width

14.9600

AD Package Width UOM

IN

AD Part Number Keywords

SO2040M200S ; 8143228 ; 785901328032 ; 78590132803 ; 00785901328032 ; 0785901328032

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Service Ground Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

20-Circuit 40-Space All-In-One Field Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 350 kcmil, 8 to 2/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

48.62 in H x 18.35 in W x 5.32 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead

Spec 6 Attribute

Hub Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

2/1/2002

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

A

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
