Schneider Electric

SQR14131XX - Switch module, X Series, 15A, single pole, 3 way

Category NEMA Combination Starters

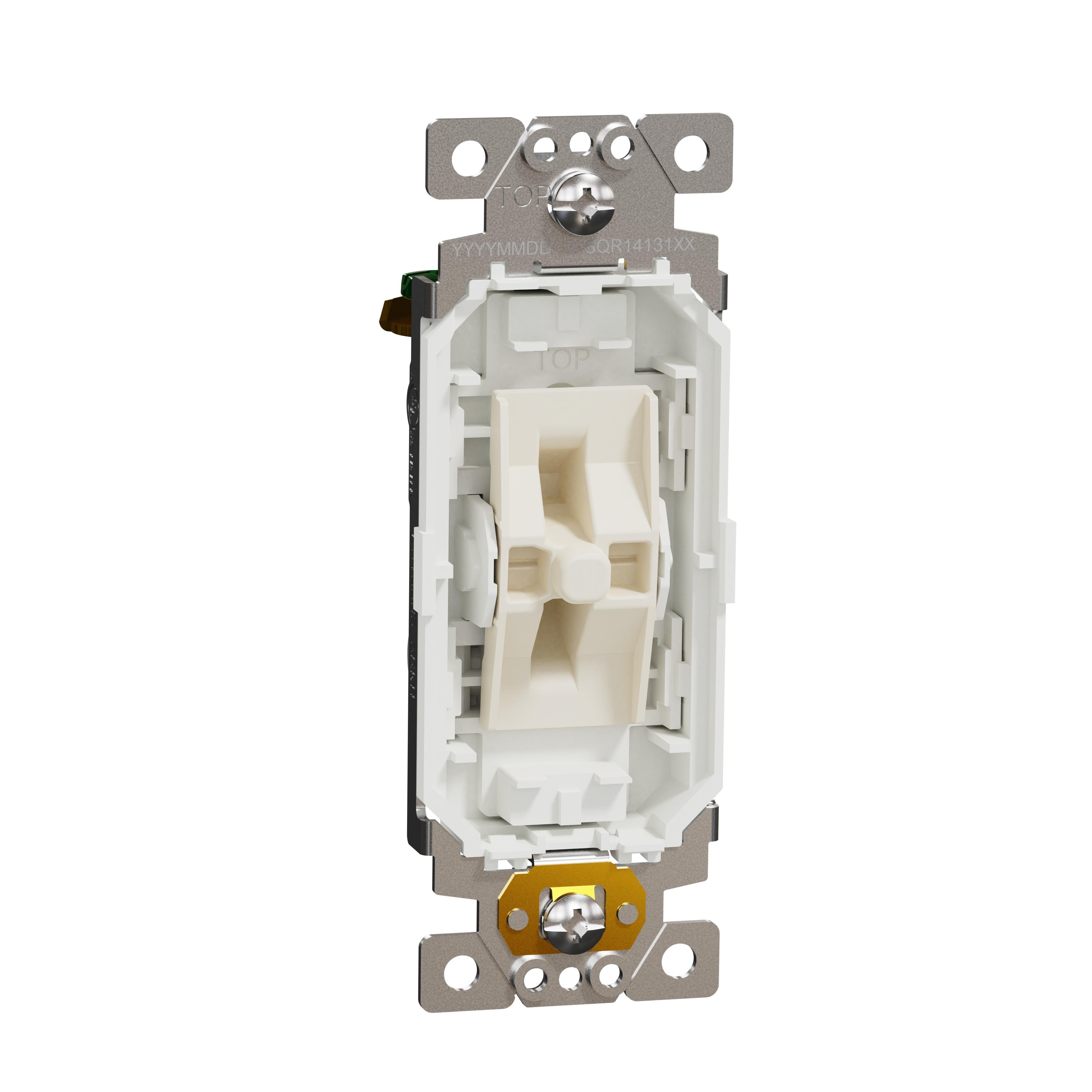

Picture of SQR14131XX - Switch module, X Series, 15A, single pole, 3 way Picture of SQR14131XX - Switch module, X Series, 15A, single pole, 3 way
Picture of SQR14131XX - Switch module, X Series, 15A, single pole, 3 way Picture of SQR14131XX - Switch module, X Series, 15A, single pole, 3 way
Picture of SQR14131XX - Switch module, X Series, 15A, single pole, 3 way Picture of SQR14131XX - Switch module, X Series, 15A, single pole, 3 way
Schneider Electric

SQR14131XX - Switch module, X Series, 15A, single pole, 3 way

Item Code: 1133523
Category NEMA Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SQR14131XX

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D X Series 15A 3-way Switch Module with Side Wire Clamps allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented 3-way switch module is designed to support the swap out of color rocker plate cover plate (not provided) that easily snaps into place for a modern, flush-facing finish. Sold in 1 piece, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of décor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By satisfying the UL 20 standard, this switch is cUlus certified. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This product comes with 1 piece per pack. This device is compliant with UL 20 standard and cULus certification.

Specifications

Weight

0.17lb

Width

1.48mm

Length

1.75mm

AD Application

Control

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

SW CC 4.06IN PLSTC STRAP MET FIXING FR

AD Item Features 01

Flush facing decorator design with matte finishes, and multiple color choices

AD Item Features 02

Side pressure plates, quick wire ground screw, large rear cutout for wire snips on receptacle, and self-grounding clip

AD Item Features 03

Energy monitoring on all Wi-Fi and Z-Wave connected devices

AD Item Features 04

Quick changing device design

AD Item Features 05

Upgraded yet familiar aesthetics

AD Item Features 06

Designed to reduce installation time

AD Item Features 07

Connected options allow for intelligent home energy management

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1700

AD Package Weight UOM

LB

AD Package Width

1.4800

AD Package Width UOM

IN

Brand

Schneider Electric

Category

NEMA COMBINATION STARTERS

Spec 1 Attribute

Finish

Spec 1 Attribute Value

Matt

Spec 2 Attribute

Height

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

4.06

Spec 3 Attribute

Material

Spec 3 Attribute Value

Plastic strap, Metal fixing frame

Spec 4 Attribute

Series

Spec 4 Attribute Value

Square D X Series

Spec 5 Attribute

Type

Spec 5 Attribute Value

Switch
