Schneider Electric

SQR44101WH - Socket-outlet, X Series, 15A, decorator, tamper resistant, residential, white, matte finish

Category Miscellaneous

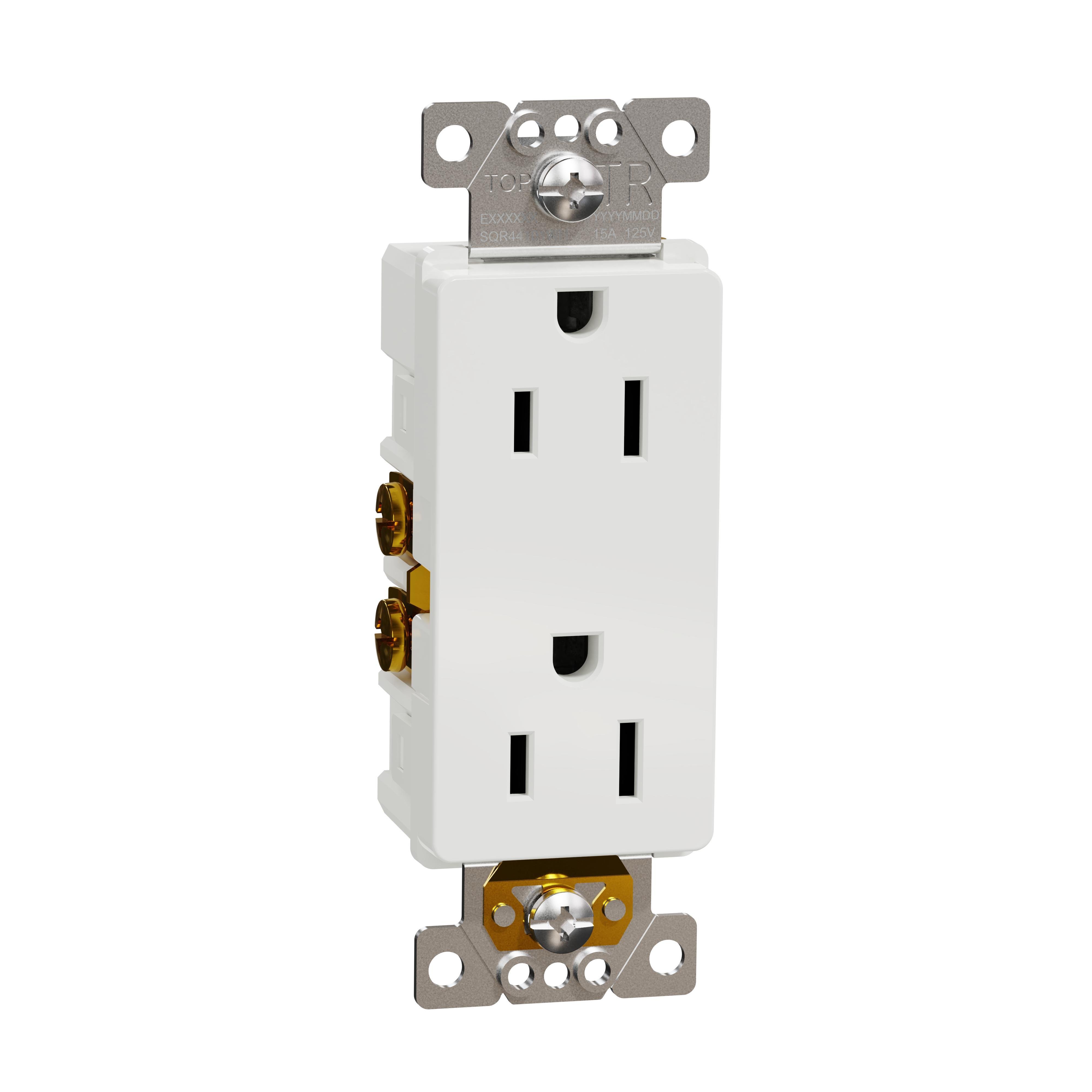

Picture of SQR44101WH - Socket-outlet, X Series, 15A, decorator, tamper resistant, residential, white, matte finish Picture of SQR44101WH - Socket-outlet, X Series, 15A, decorator, tamper resistant, residential, white, matte finish
Picture of SQR44101WH - Socket-outlet, X Series, 15A, decorator, tamper resistant, residential, white, matte finish Picture of SQR44101WH - Socket-outlet, X Series, 15A, decorator, tamper resistant, residential, white, matte finish
Schneider Electric

SQR44101WH - Socket-outlet, X Series, 15A, decorator, tamper resistant, residential, white, matte finish

Item Code: 1148628
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SQR44101WH

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D X Series 15A 125V Tamper Resistant Duplex Decorator Receptacle with side wire clamps provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Enjoy fast wiring with “no-wrapping” screw installation and a self-grounding clip. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. The connection terminals of this outlet socket are push-in termination and screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This receptacle is tamper resistant with discrete black shutters. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. This socket has a width of 1.42 in (36 mm), a height of 4.06 in (103 mm) and a depth of 1.06 (27 mm). By satisfying the NEMA 5-15R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices.

Specifications

Weight

0.21

Width

1.21

Length

1.64

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/sqr44101wh/sqr44101wh.spin

AD Application

Power supply

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901538134

AD Gtin

00785901538134

AD Invoice Description

STR BL RCPT 125V 15A WHT 60HZ

AD Item Features 01

Flush facing decorator design with matte finishes, and multiple color choices

AD Item Features 02

Energy monitoring on all Wi-Fi and Z-Wave connected devices

AD Item Features 03

Quick changing device design

AD Item Features 04

Upgraded yet familiar aesthetics

AD Item Features 05

Designed to reduce installation time

AD Item Features 06

Connected options allow for intelligent home energy management

AD Item Features 07

Side pressure plates, quick wire ground screw, large rear cutout for wire snips on receptacle, and self-grounding clip

AD Keywords

SQR44101WH X Series, 125 V, 15 A, 2 Poles, White ; Square D ; SQR44101WH ; 785901538134 ; Straight Blade Receptacles

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.6400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2100

AD Package Weight UOM

LB

AD Package Width

1.2100

AD Package Width UOM

IN

AD Part Number Keywords

SQR44101WH ; 785901538134 ; 78590153813 ; 00785901538134 ; 0785901538134

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V

Spec 10 Attribute Value

125

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.42 in W x 4.06 in H x 1.06 in D

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Material

Spec 5 Attribute Value

Plastic strap, Metal fixing frame

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

2

Spec 7 Attribute

Series

Spec 7 Attribute Value

X Series

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Push-In/Screw

Spec 9 Attribute

Type

Spec 9 Attribute Value

Socket-outlet
