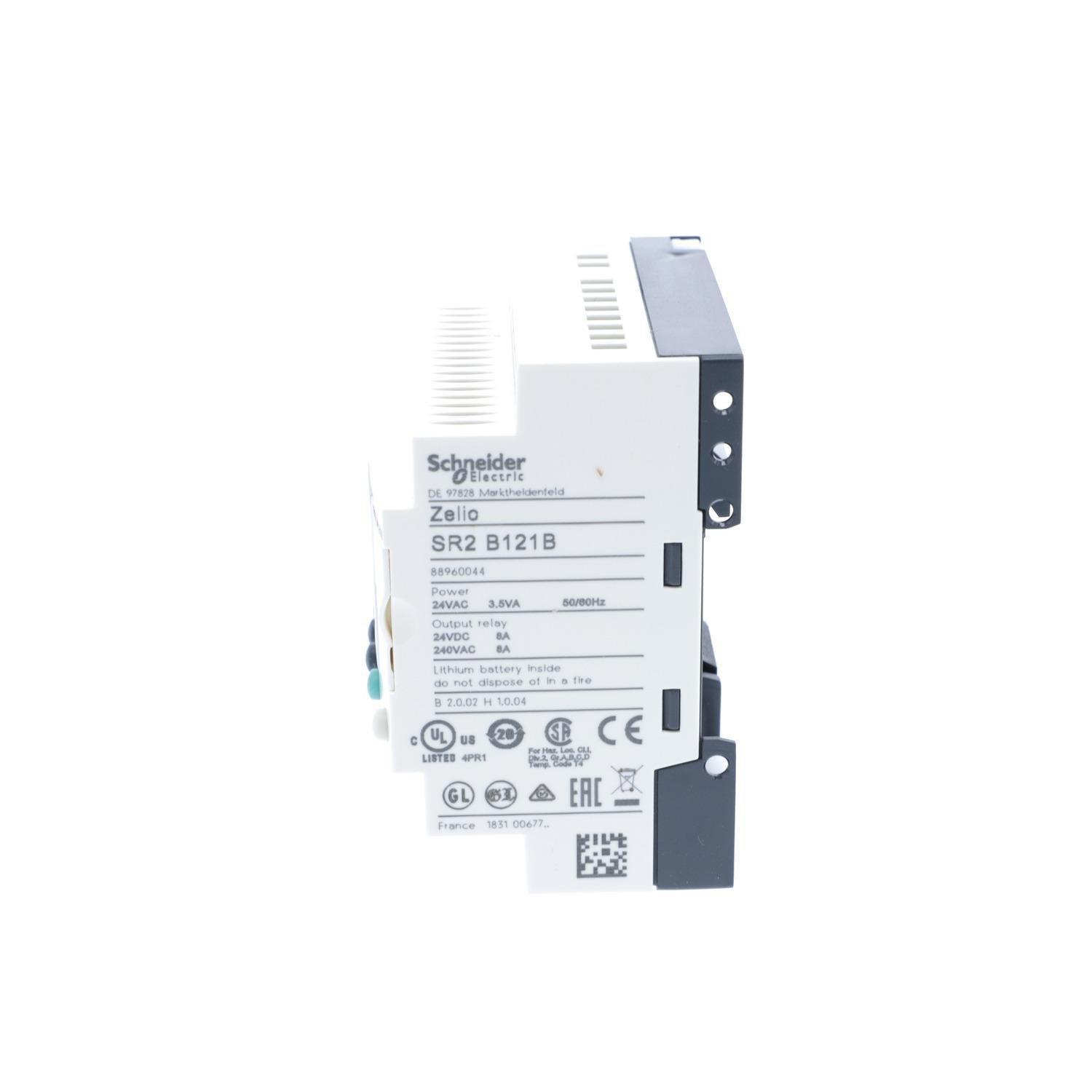

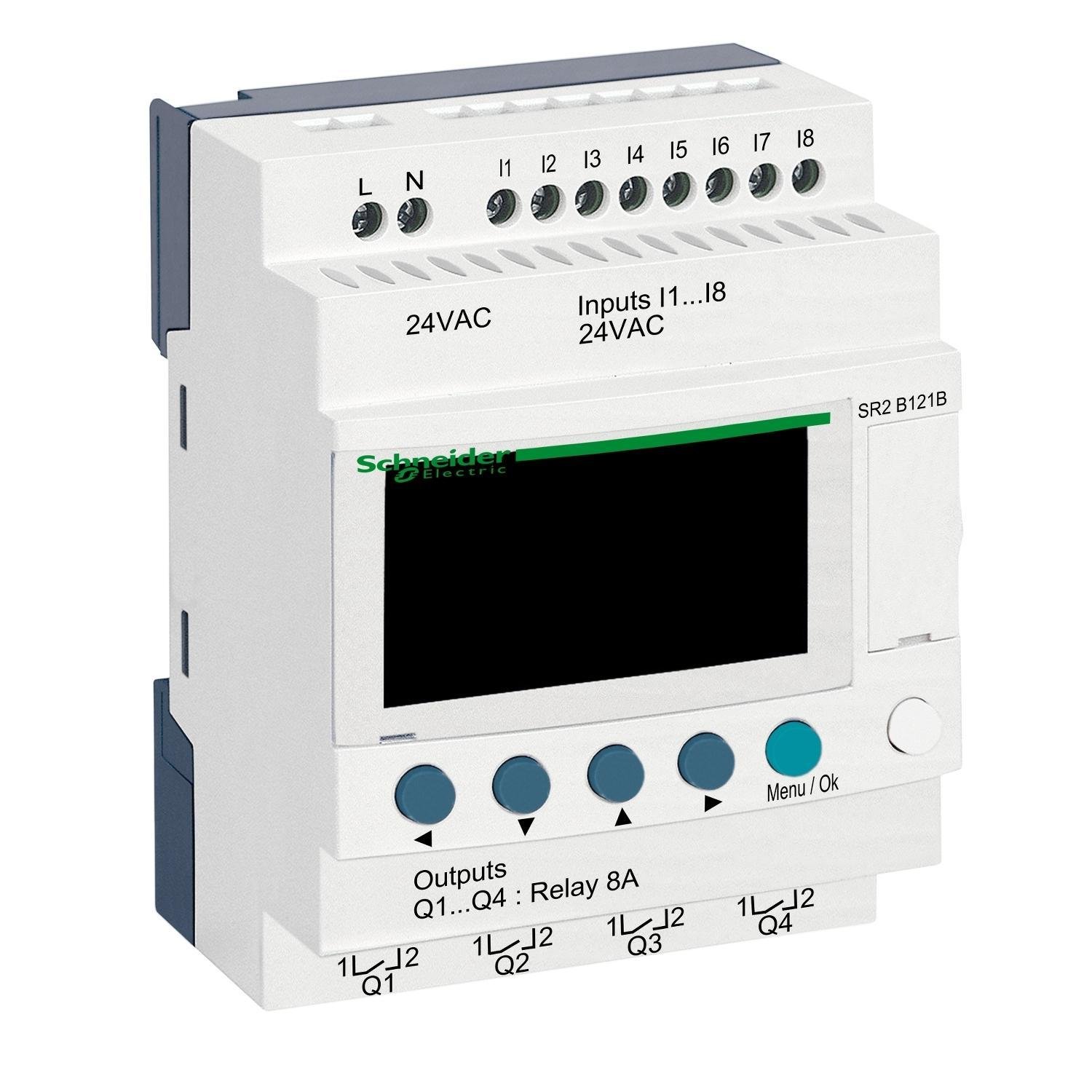

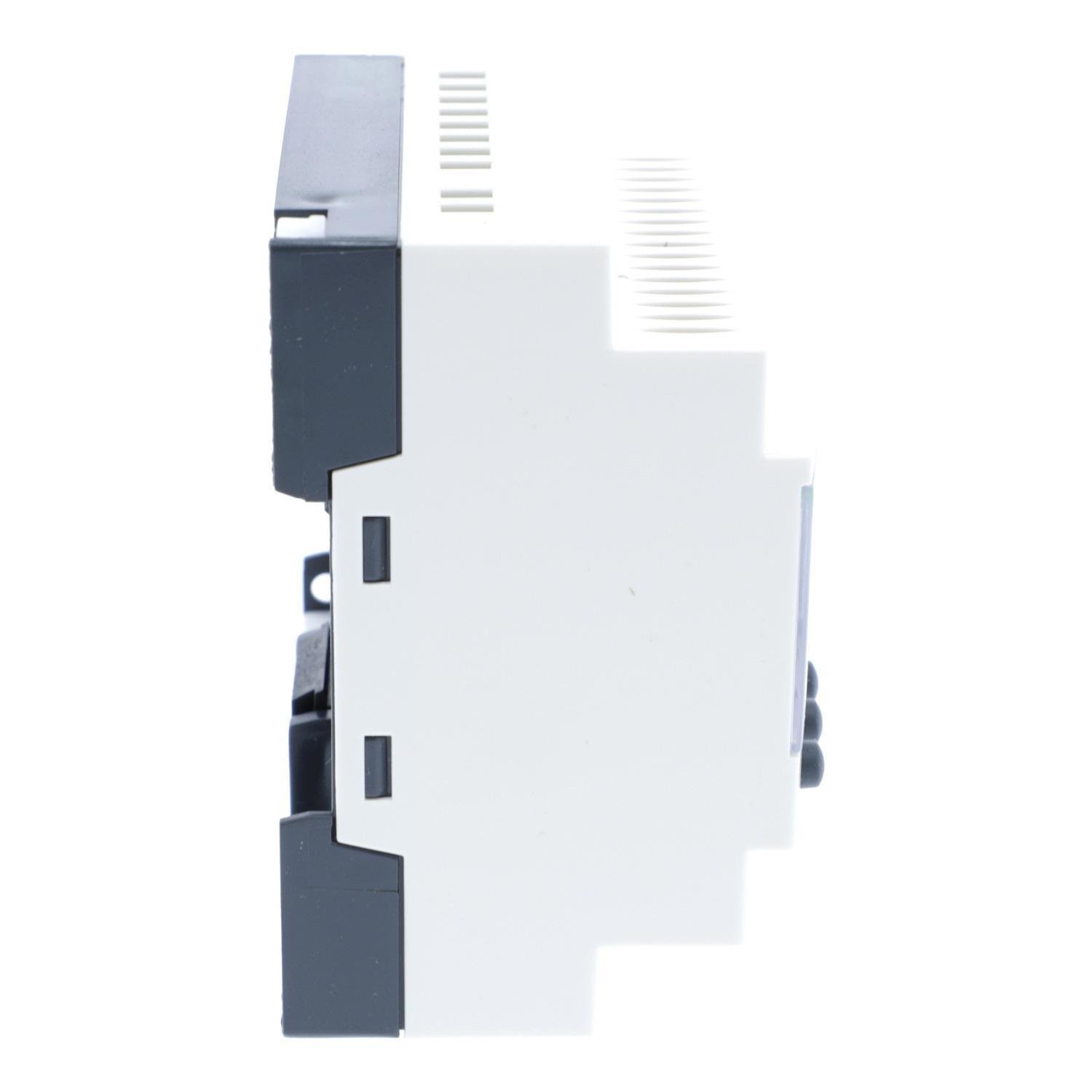

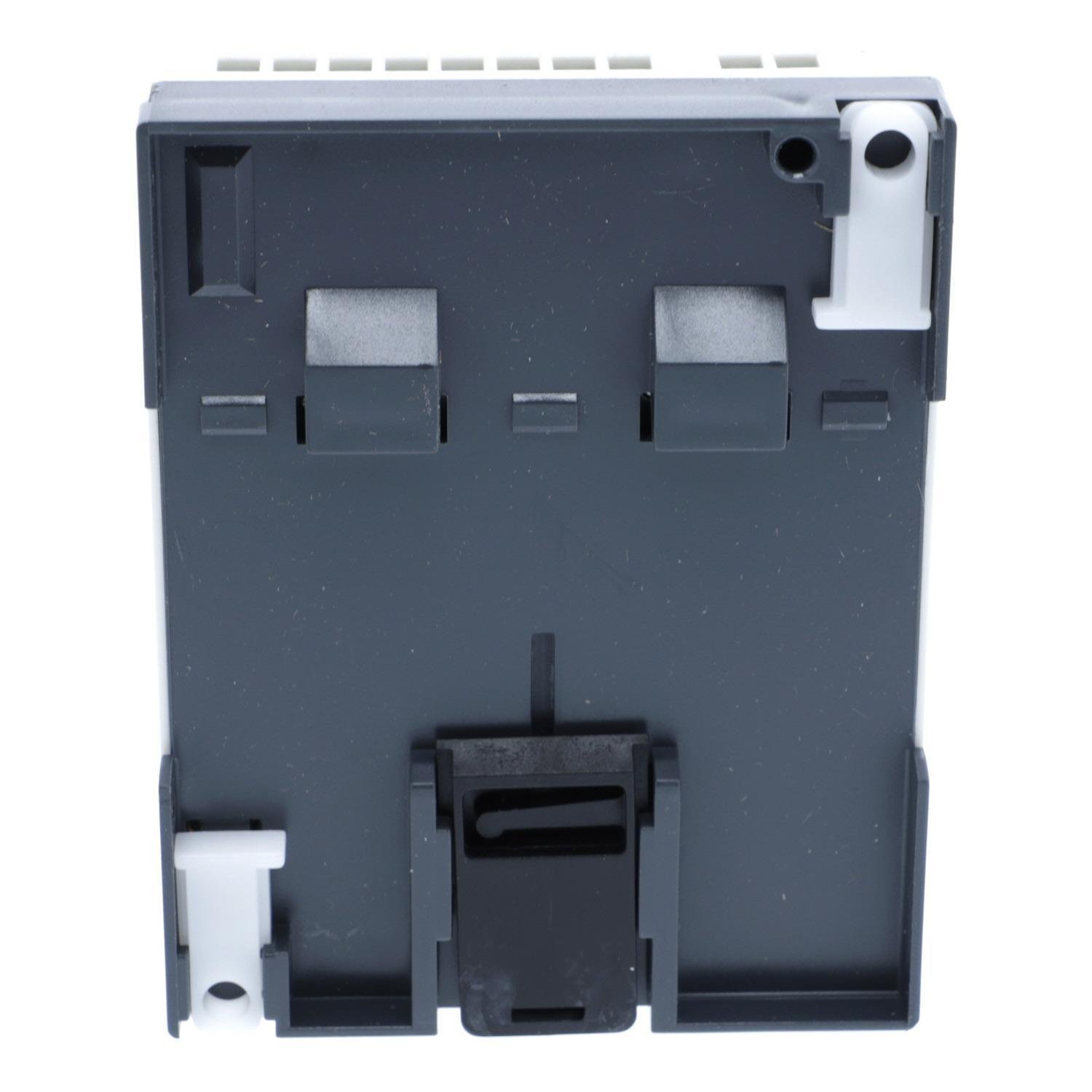

SR2B121B - compact smart relay, Zelio Logic SR2 SR3, 12 IO, 24V AC, clock, display
Item Code: 1004567
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SR2B121B
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.54
Width
3.51
Length
3.9
AD Brand (Description)
Schneider Electric
AD Country
USA
AD Country Of Origin
FR
AD Invoice Description
RELAY SMART COMPACT 24VAC 8 4 DISCRETE
AD Item Features 01
Simple ladder programming, adapted for non-specialists
AD Item Features 02
Discovery package, coming with Zelio Soft programming software - the simplest way to learn and use this relay
AD Item Features 03
Built-in EEPROM flash memory for data backup up to 10 years - easy-to-recover after a power shortage or incident
AD Manufacturer (Description)
Schneider Electric
AD Package Height UOM
IN
AD Package Length
3.9000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.5400
AD Package Weight UOM
LB
AD Package Width
3.5100
AD Package Width UOM
IN
Brand
Square D
Category
PROGRAMMABLE LOGIC & AUTOMATION BASE CPU'S & CONTROLLERS
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
MA
Spec 1 Attribute Value
145
Spec 10 Attribute
Temperature Rating
Spec 10 Attribute UOM
deg C
Spec 10 Attribute Value
-20 To 55
Spec 2 Attribute
Dimensions
Spec 2 Attribute Value
71.2 mm L x 107.6 mm W x 59.5 mm D
Spec 3 Attribute
Display Type
Spec 3 Attribute Value
LCD Backlit
Spec 4 Attribute
Input Type
Spec 4 Attribute Value
Discrete
Spec 5 Attribute
Mounting Type
Spec 5 Attribute Value
DIN Rail
Spec 6 Attribute
Number of Inputs
Spec 6 Attribute Value
8
Spec 7 Attribute
Number of Outputs
Spec 7 Attribute Value
4
Spec 8 Attribute
Output Type
Spec 8 Attribute Value
Relay
Spec 9 Attribute
Supply Voltage
Spec 9 Attribute UOM
V AC
Spec 9 Attribute Value
24
