Square D

SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC

Category Programmable Logic & Automation Expansion Modules

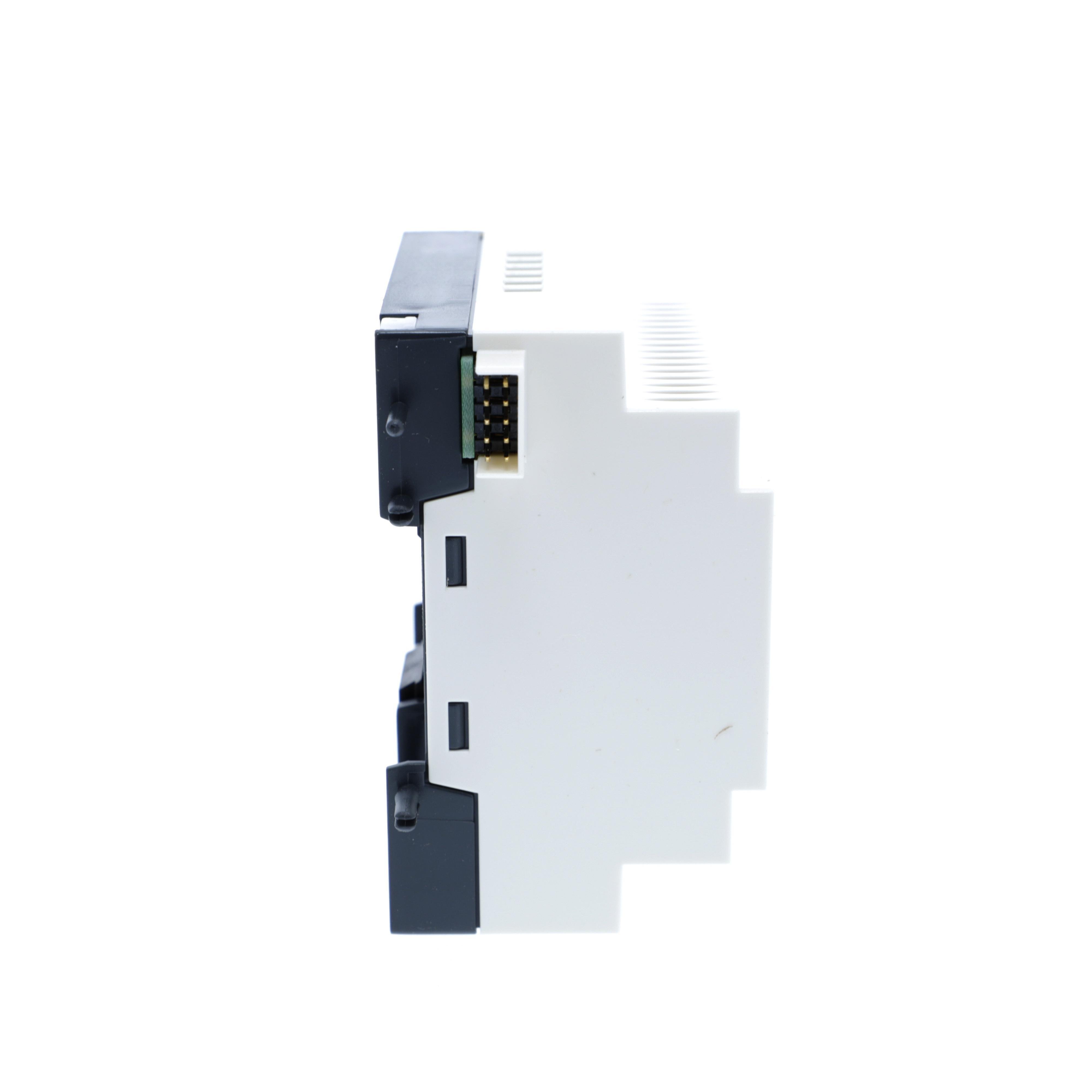

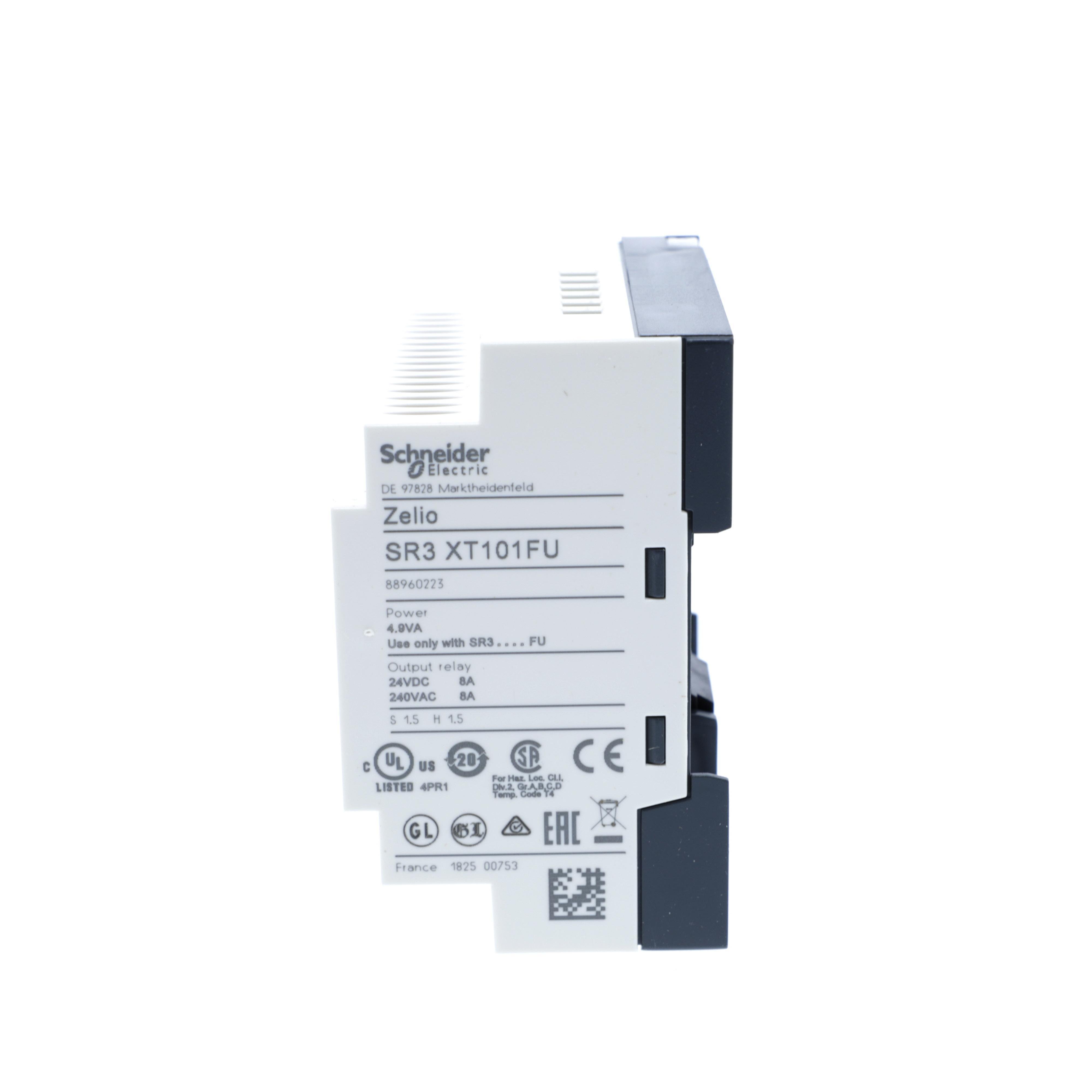

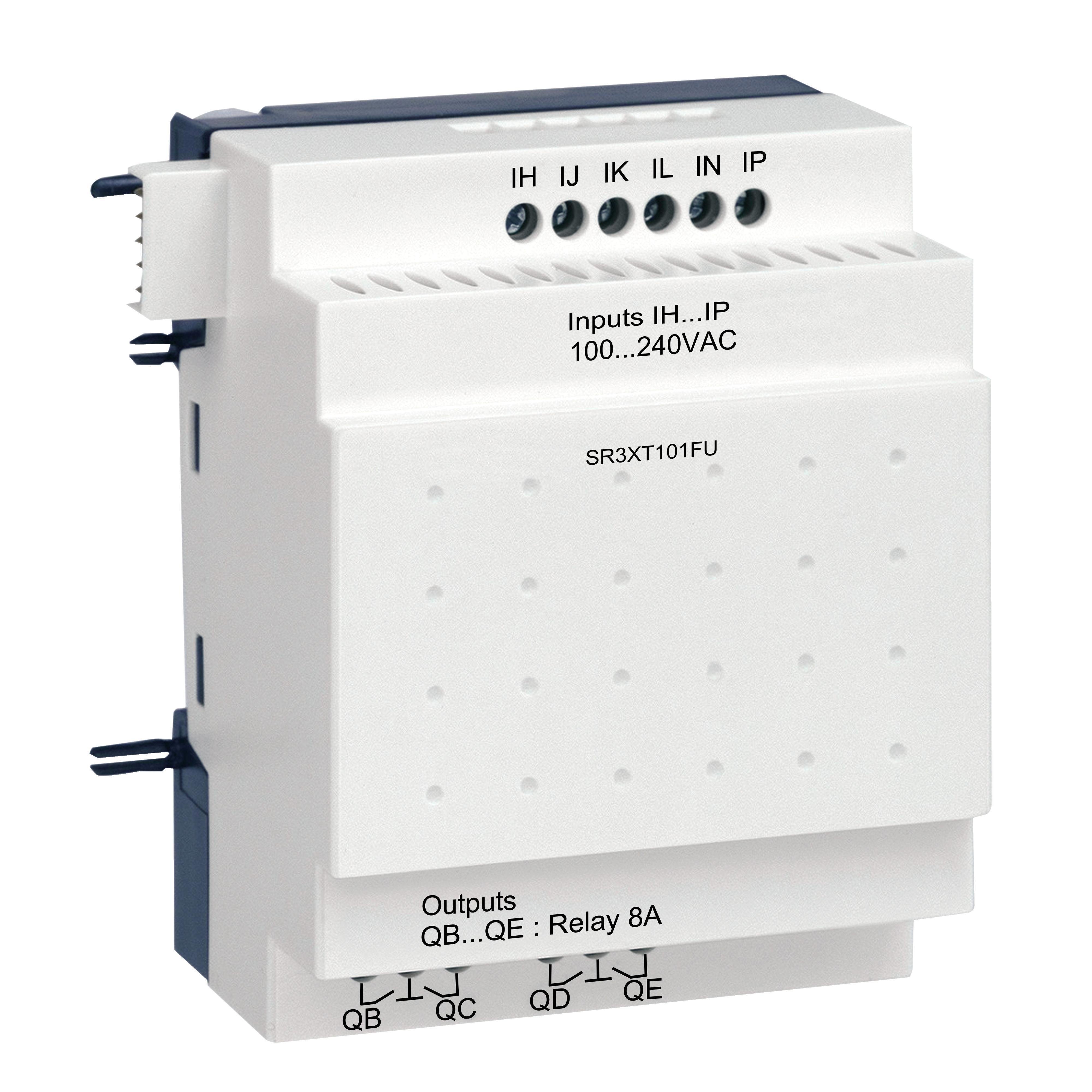

Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC
Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC
Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC
Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC Picture of SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC
Square D

SR3XT101FU - discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC

Item Code: 1058860
Category Programmable Logic & Automation Expansion Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SR3XT101FU

Document
Call for Availability
Add to Favorites
Compare

Description

This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 100-240 volts alternating current, has 10 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. This product meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 61000-4-4 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Specifications

Weight

0.4lb

Width

3.51mm

Length

3.9mm

AD Application

Control Systems for Small Machines, Lighting Management, Access Control, Control and Monitoring, Heating and Air Conditioning Control

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

MODULE EXT I/O DISCRETE 2 LGC 0.6MA 6 4

AD Item Features 01

Simple ladder programming, adapted for non-specialists

AD Item Features 02

Discovery package, coming with Zelio Soft programming software - the simplest way to learn and use this relay

AD Item Features 03

Built-in EEPROM flash memory for data backup up to 10 years - easy-to-recover after a power shortage or incident

AD Item Features 04

More I/O than SR2 model, for larger applications

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.9000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4000

AD Package Weight UOM

LB

AD Package Width

3.5100

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION EXPANSION MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

0.6

Spec 2 Attribute

Impedance

Spec 2 Attribute UOM

kOhm

Spec 2 Attribute Value

350

Spec 3 Attribute

Number of Inputs

Spec 3 Attribute Value

6

Spec 4 Attribute

Number of Outputs

Spec 4 Attribute Value

4

Spec 5 Attribute

Temperature Rating

Spec 5 Attribute UOM

deg F

Spec 5 Attribute Value

-4 To 131

Spec 6 Attribute

Terminal Type

Spec 6 Attribute Value

Screw clamp

Spec 7 Attribute

Type

Spec 7 Attribute Value

Smart Relay

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

100 to 240
