Schneider Electric

SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC

Category Relays & Accessories

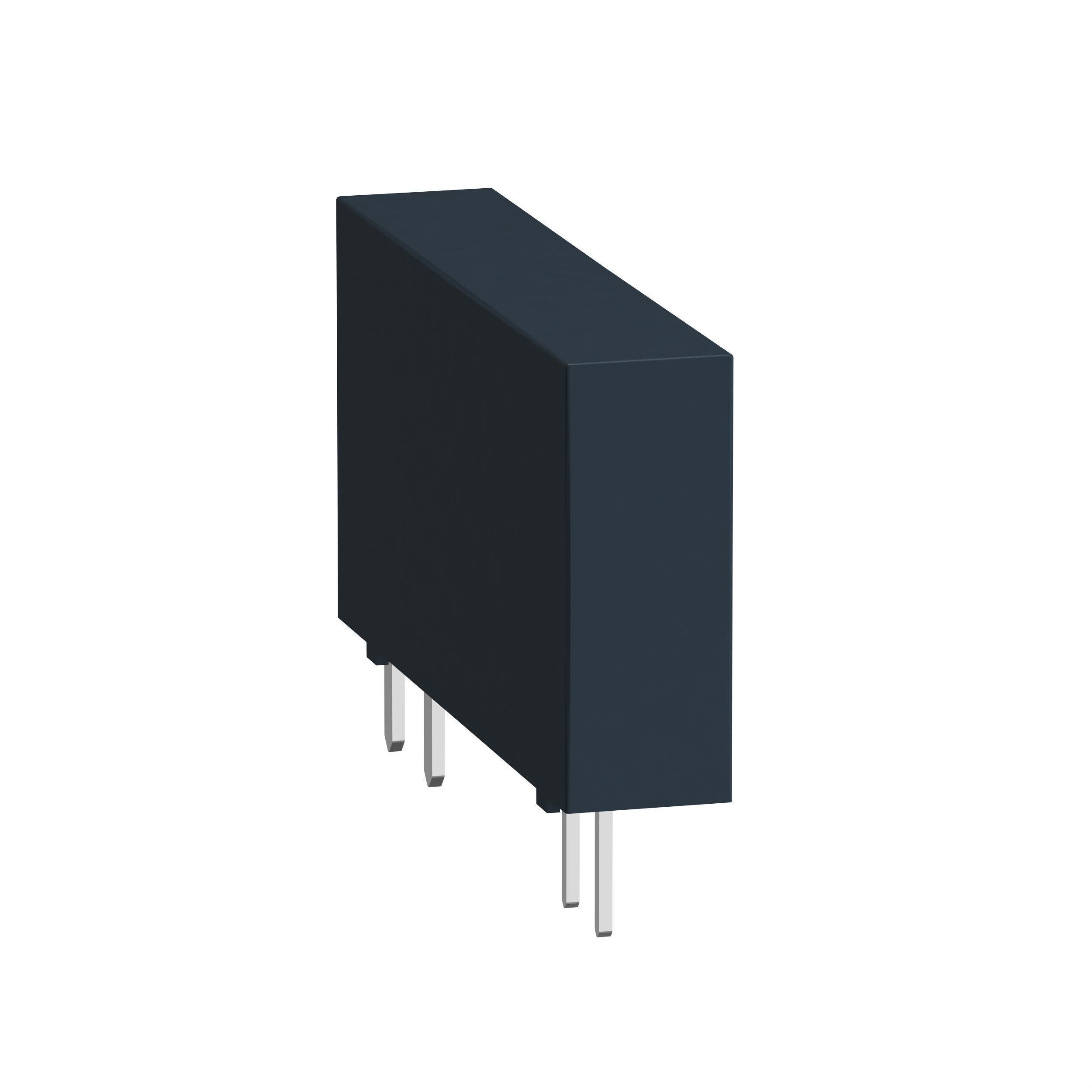

Picture of SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC Picture of SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC
Picture of SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC Picture of SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC
Picture of SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC Picture of SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC
Schneider Electric

SSL1D03BD - plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC

Item Code: 1169368
Category Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SSL1D03BD

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 15V to 30V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It

Specifications

Weight

0.01

Width

0.2

Length

1.09

AD Application

Packaging Machines, Heating Control, Injection Molding, HVAC, Textile Machines and Medical Equipment Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RELAY STATE SOL 3.5A 1NO-SPST 500HZ 1

AD Item Features 01

Space saving in control cabinets due to 0.24in width including socket

AD Item Features 02

Silent and reliable due to the absence of moving contacts

AD Item Features 03

Helps reduce your maintenance and downtime costs

AD Item Features 04

Wide control voltage for improved process stability even in the case of fluctuation control power supply voltage

AD Item Features 05

Plug-in base allows for a quick replacement

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0100

AD Package Weight UOM

LB

AD Package Width

0.2000

AD Package Width UOM

IN

Brand

Square D

Category

RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

3.5

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-20 To 80

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Screw

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Channel 1-Phase

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

15 to 30

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1NO 1 Form A SPST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.1 in H x 0.2 in W x 0.59 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP67

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

500

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Socket

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

SSL
