Schneider Electric

SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC

Category General Purpose Plug-In Relays & Accessories

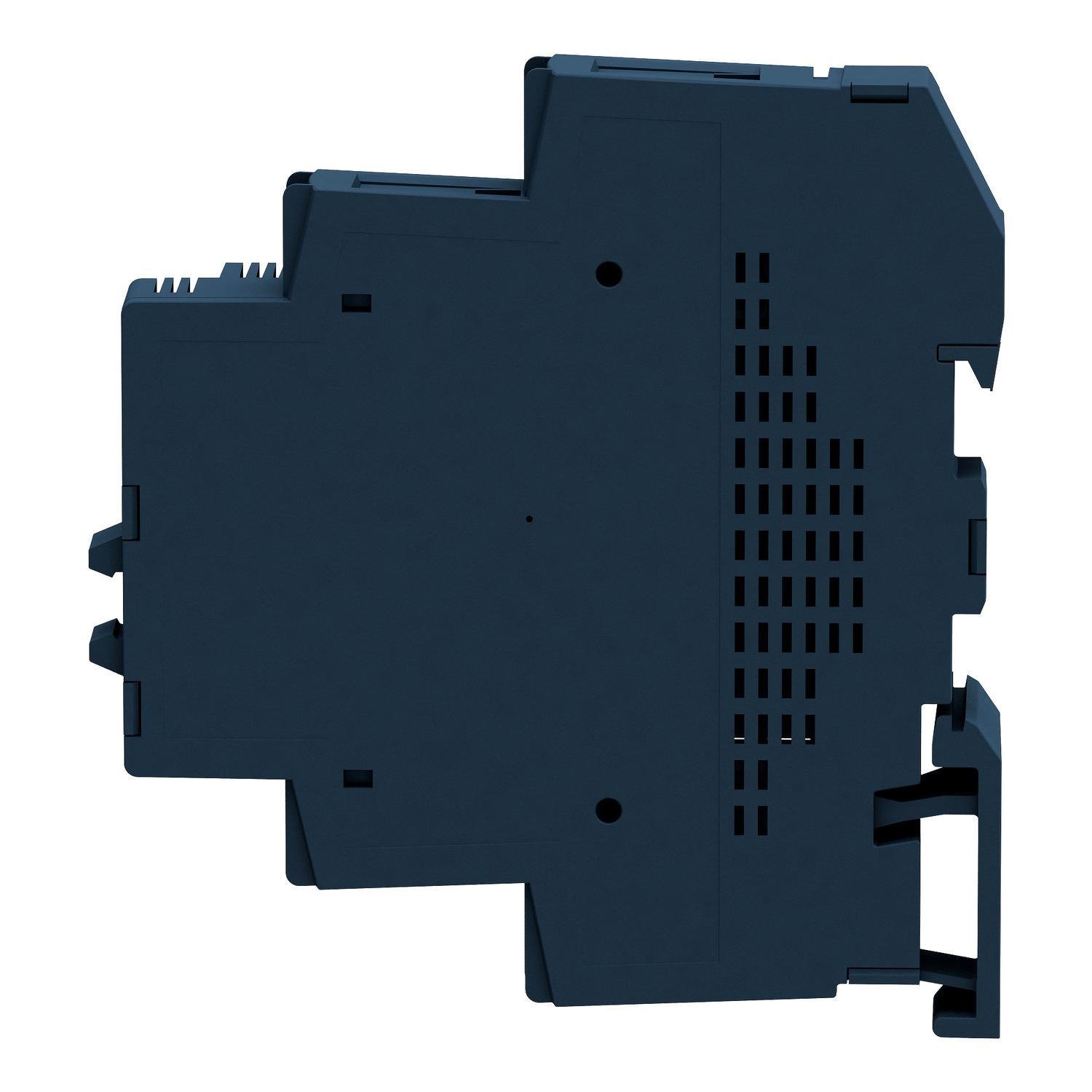

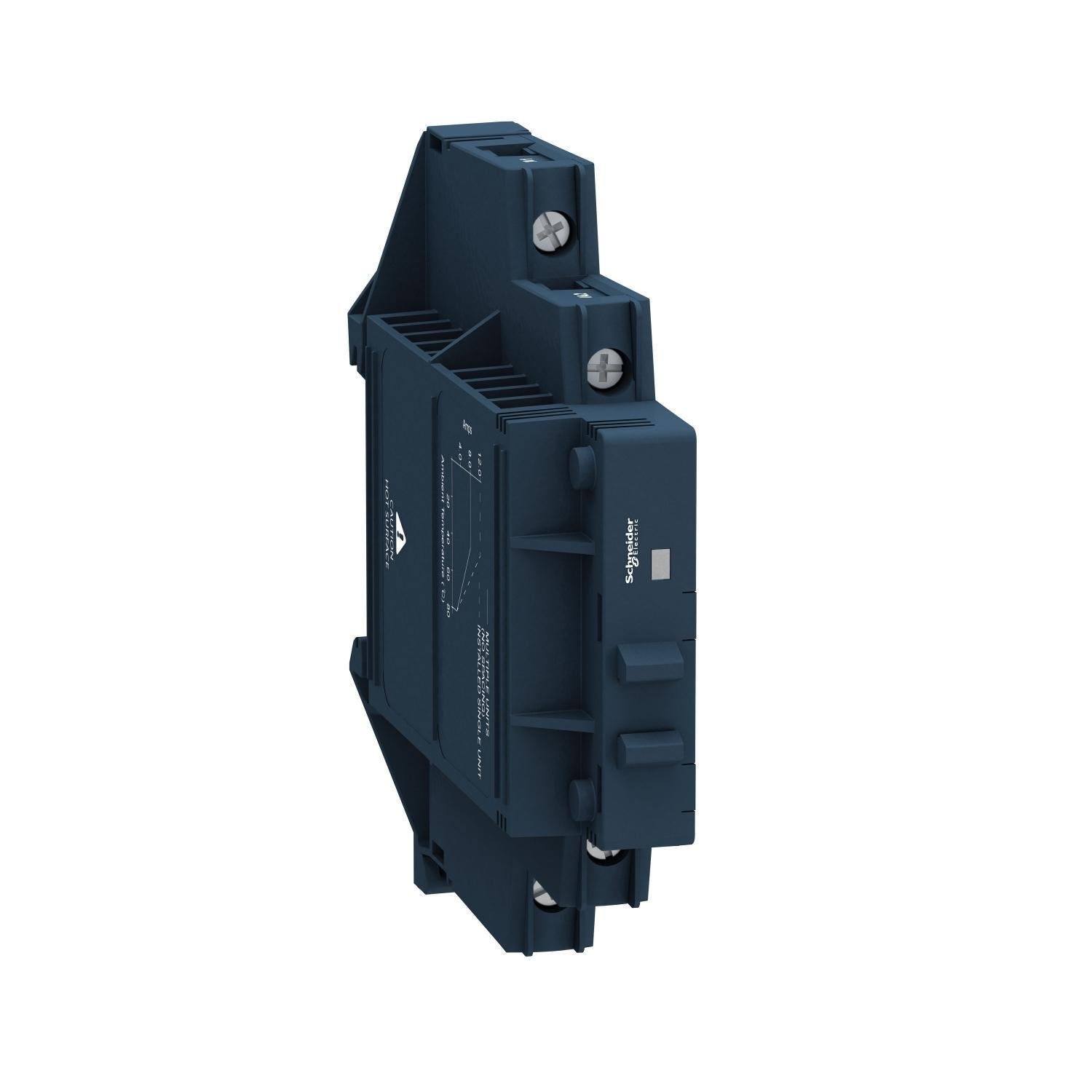

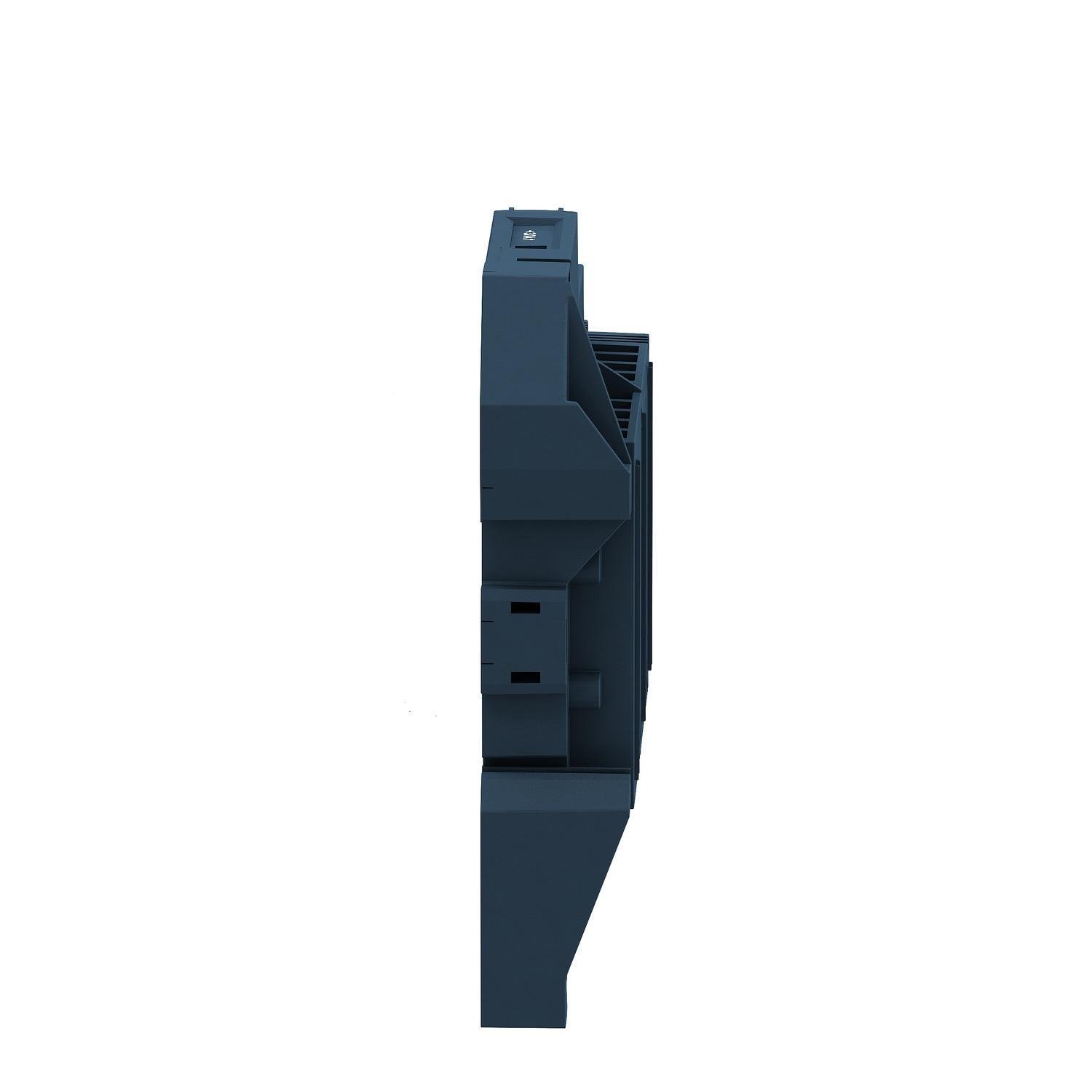

Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC
Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC
Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC
Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC
Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC Picture of SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC
Schneider Electric

SSM1A112BD - single phase relay, Harmony Solid State Modular Relayss, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 24 to 280V AC

Item Code: 988798
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SSM1A112BD

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator show

Specifications

Weight

0.2

Width

3.51

Length

3.71

AD Application

Packaging Machines, Heating Control, Injection Molding, HVAC, Textile Machines and Medical Equipment Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RELAY STATE SOL 12A 1NO-SPST 4 TO 32VDC

AD Item Features 01

Built-in heatsink for maximum performance and less spare parts to manage

AD Item Features 02

Silent and reliable due to the absence of moving contacts

AD Item Features 03

Helps reduce your maintenance and downtime costs

AD Item Features 04

Visual indicator LED for a simpler troubleshooting and commissioning

AD Item Features 05

Clear schematic on the side of the socket, for easier wiring and maintenance

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2000

AD Package Weight UOM

LB

AD Package Width

3.5100

AD Package Width UOM

IN

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

12

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-30 To 80

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Screw

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Channel 1-Phase Zero Voltage Switching

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

4 to 32

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1NO 1 Form A SPST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

18 mm H x 83.7 mm W x 90.3 mm D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

DIN Rail

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute Value

0.33 hp at 240 VAC

Spec 9 Attribute

Series

Spec 9 Attribute Value

SSM
