Square D™

SSP02EMA12 - Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 1

Category Miscellaneous

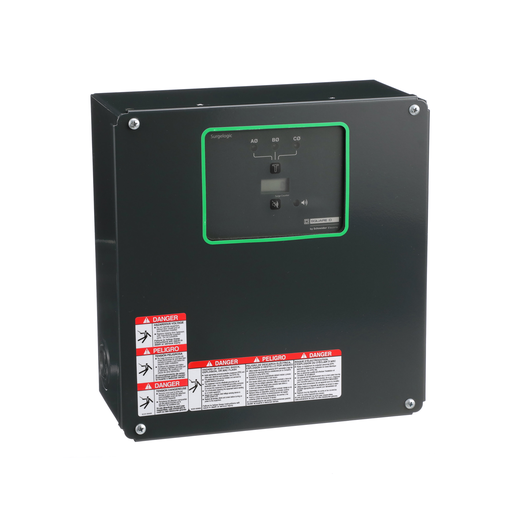

Picture of SSP02EMA12 - Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 1
Square D™

SSP02EMA12 - Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 1

Item Code: 1017856
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SSP02EMA12

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.

Specifications

Weight

15.72lb

Height

6mm

Width

13.37mm

Length

11.89mm

Depth

135mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ssp02ema12/ssp02ema12.spin

AD Alternative Part Number

15645373

AD Application

Low Voltage Products and Systems, Building Automation and Control, Industrial Automation and Control and Critical Power, Cooling and Racks Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901972464

AD Gtin

00785901972464

AD IDEA Index ID

15645373

AD Invoice Description

DEVICE PROT SRG 208Y/120VAC 200KA 3PH

AD Item Features 01

NEMA 1 or 4X rating

AD Item Features 02

High energy suppression circuit that provides 10 modes of suppression from 100000 to 480000 peak amps of surge current rating per phase

AD Item Features 03

Advanced diagnostics allow for visual indication/testing of the suppressor's functionality

AD Item Features 04

Suppression status alarms provide multiple methods of alarm notification

AD Item Features 05

Coordinated fuse technology allows disconnection methods for thermal and high current events

AD Item Features 06

External panel SPDs mount adjacent to the equipment through a conduit connection and as close to the circuit breaker as possible in order to reduce lead lengths and improve surge suppression

AD Keywords

Surgelogic SSP02EMA12 EMA Surge Protective Device, 208Y/120 V AC, 200 kA SCCR, 3 ph ; Schneider Electric ; Square D ; SSP02EMA12 ; SSP02EMA12 ; 785901972464 ; AC Surge Protective Devices

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.0000

AD Package Height UOM

IN

AD Package Length

11.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

972.0000

AD Package Volume UOM

cu-in

AD Package Weight

15.7200

AD Package Weight UOM

LB

AD Package Width

13.3700

AD Package Width UOM

IN

AD Part Number Keywords

SSP02EMA12 ; 15645373 ; 785901972464 ; 78590197246 ; 00785901972464 ; 0785901972464

Brand

Schneider Electric

Category

Miscellaneous

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

8.19 in W x 5.31 in D x 11.42 in H

Spec 10 Attribute

Peak Surge Current

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

120

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Series

Spec 12 Attribute Value

EMA

Spec 13 Attribute

Short Circuit Current Rating

Spec 13 Attribute UOM

KA

Spec 13 Attribute Value

200

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Lug

Spec 2 Attribute

Electrical Ratings

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

208Y/120

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 1

Spec 4 Attribute

Environmental Conditions

Spec 4 Attribute UOM

deg F

Spec 4 Attribute Value

149 deg F Temperature

Spec 5 Attribute

Indicator Type

Spec 5 Attribute Value

Led

Spec 6 Attribute

Material

Spec 6 Attribute Value

Stainless Steel

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Nominal Discharge Current

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

20

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

4
