Schneider Electric

SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC

Category General Purpose Plug-In Relays & Accessories

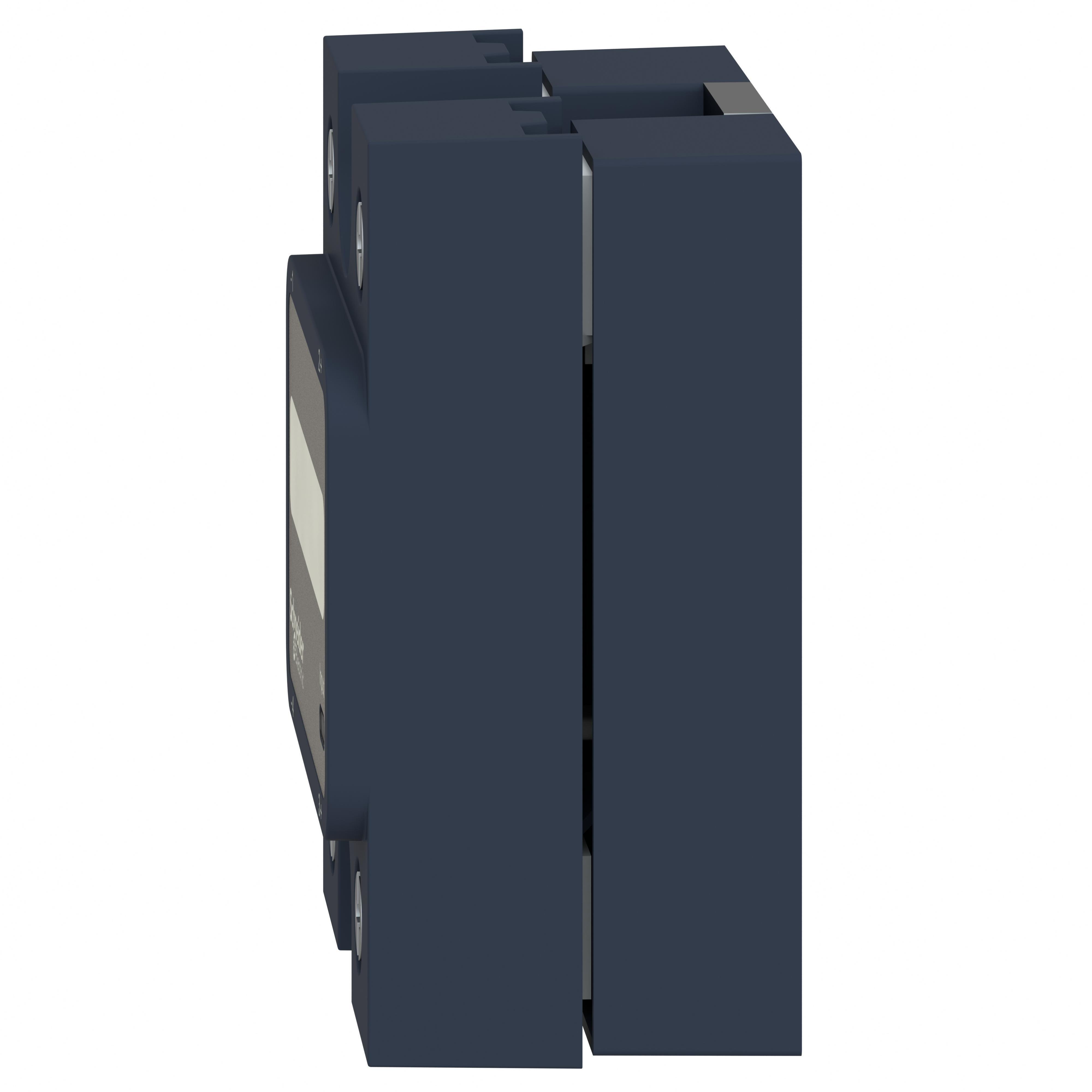

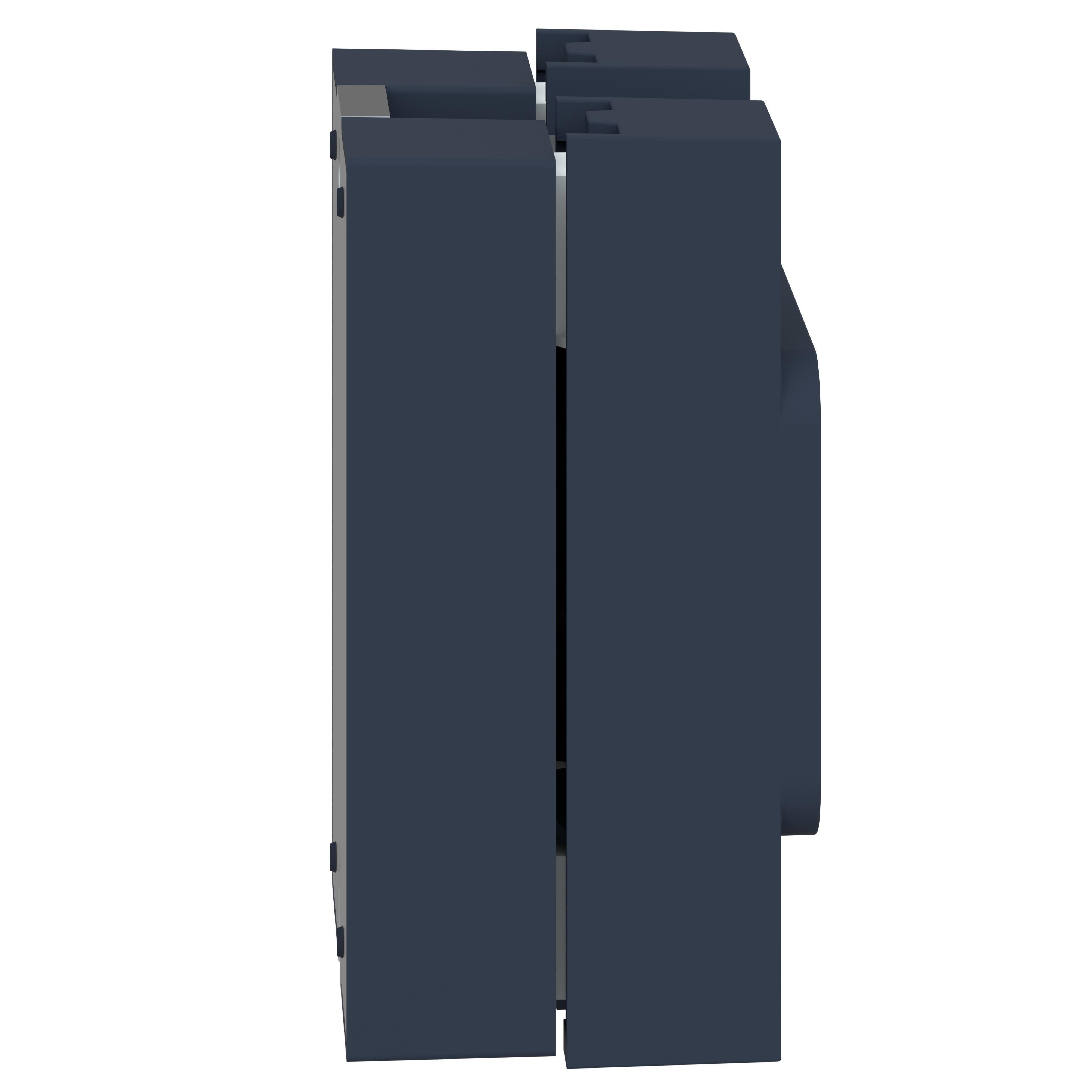

Picture of SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC Picture of SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC Picture of SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Picture of SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC Picture of SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC
Schneider Electric

SSP1A125BDT - single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 3 to 32V DC, output 24 to 300V AC

Item Code: 991771
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SSP1A125BDT

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony SSP solid state panel mount single-phase relay is rated 25A, is controlled with a 3V to 32V DC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the st

Specifications

AD All Features

Factory-installed thermal pad for longer lasting thermal performance of the relay, and lower risk of down-time

AD Application

Packaging Machines, Heating Control, Injection Molding, HVAC, Textile Machines and Medical Equipment Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RELAY STATE SOL 25A 1NO 3TO32VDC 1 PNL

AD Item Features 01

Factory-installed thermal pad for longer lasting thermal performance of the relay, and lower risk of down-time

AD Item Features 02

Silent and reliable due to the absence of moving contacts

AD Item Features 03

Helps reduce your maintenance and downtime costs

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Video Links

https://www.youtube.com/embed/TMEubNQHQSM

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

25

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-40 To 80

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Screw

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Phase Zero Voltage Switching

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

3 to 32

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1NO 1 Form A

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.32 in H x 1.75 in W x 1.35 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute Value

0.5 hp at 120 VAC, 1 hp at 240 VAC

Spec 9 Attribute

Series

Spec 9 Attribute Value

SSP
