Schneider Electric

SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC

Category General Purpose Plug-In Relays & Accessories

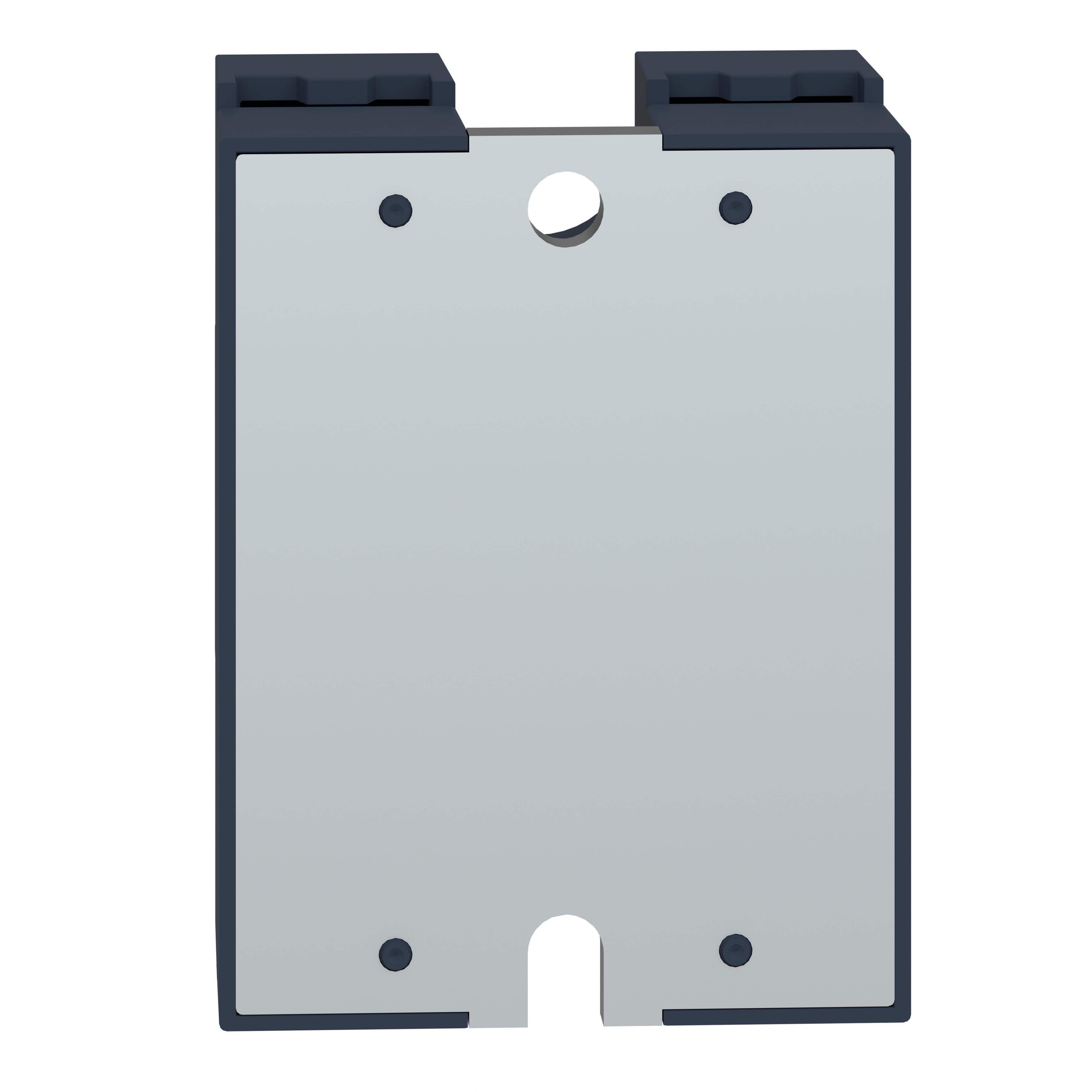

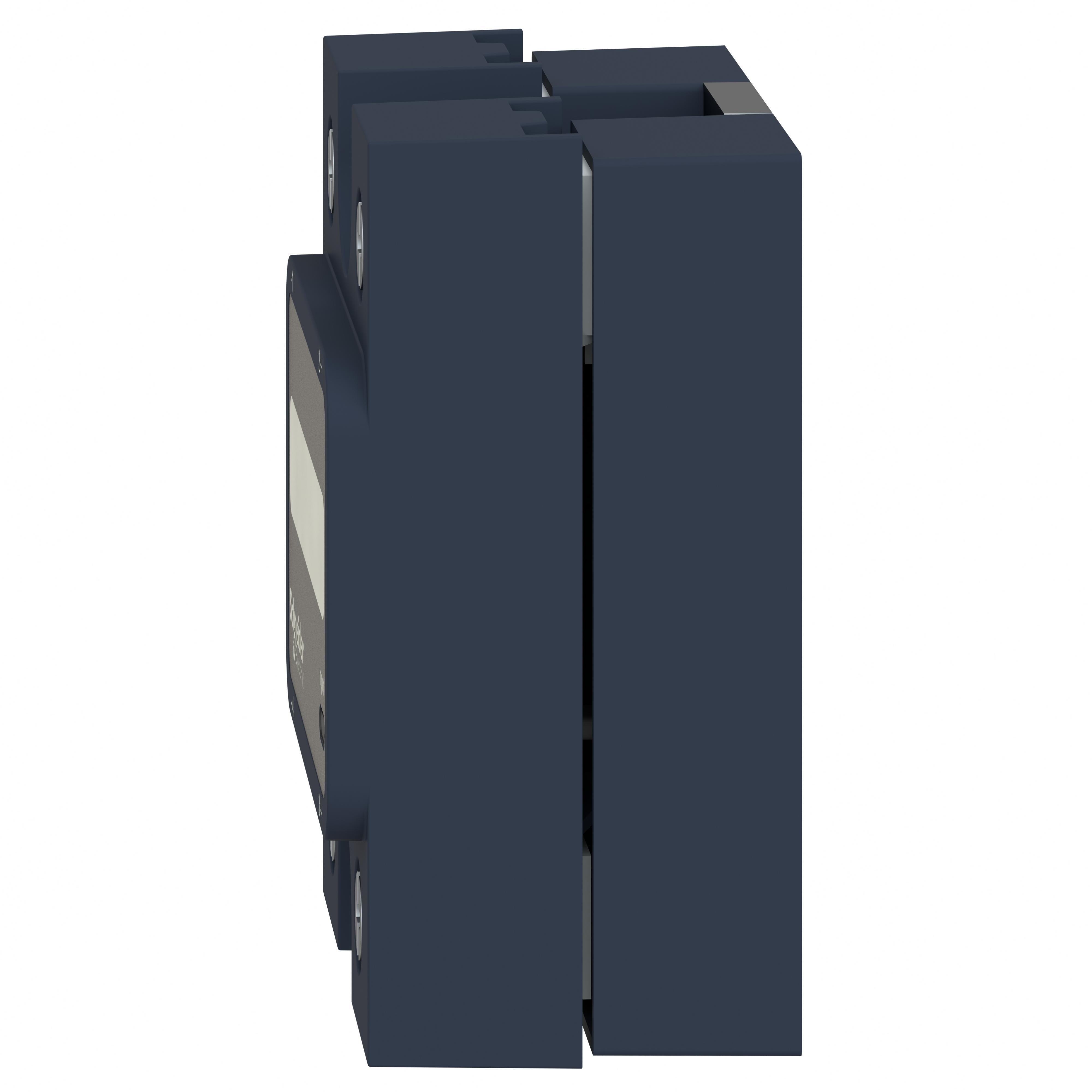

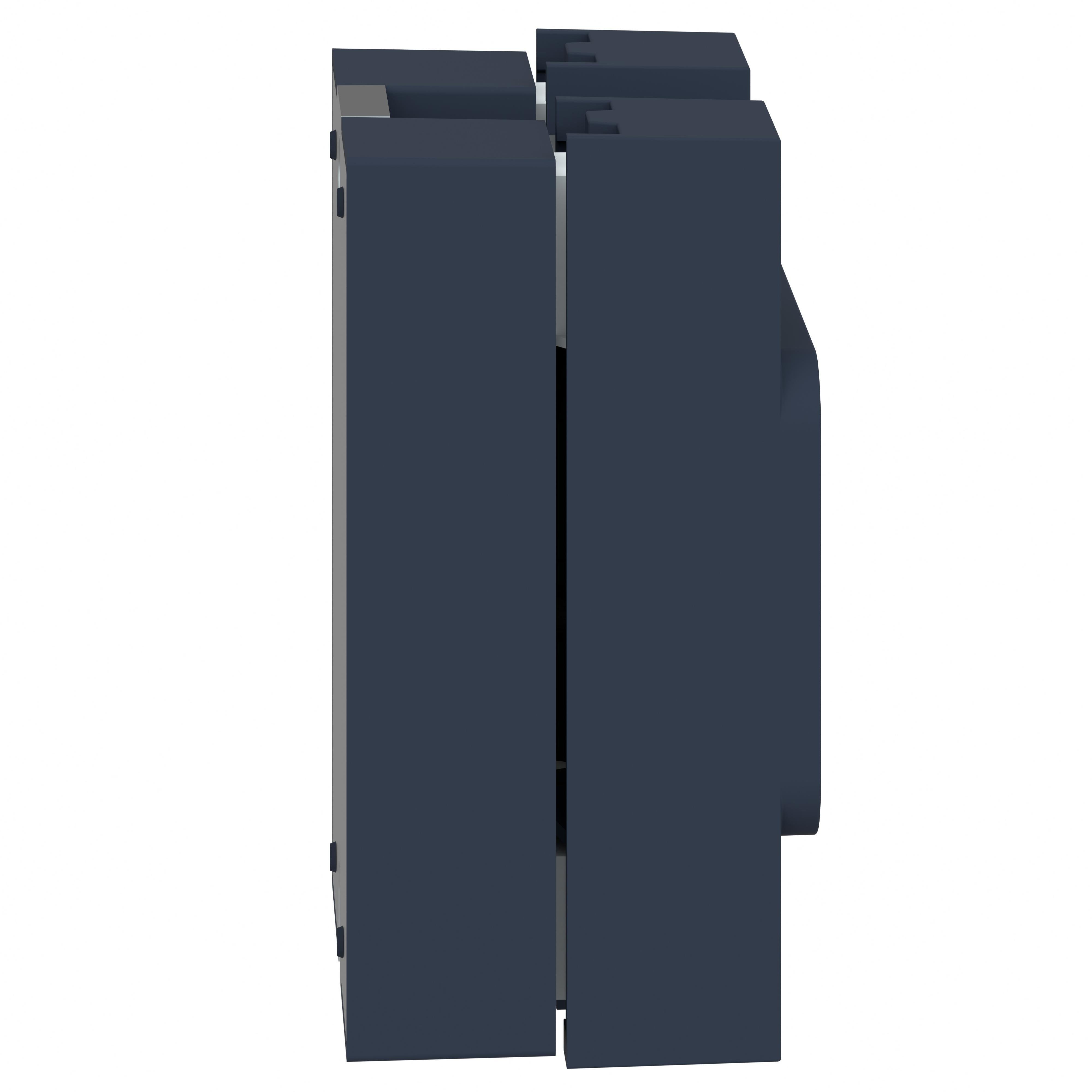

Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC Picture of SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC
Schneider Electric

SSP1D412BDT - single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, thermal pad, input 3.5 to 32V DC, output 1 to 150V DC

Item Code: 1039187
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SSP1D412BDT

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony SSP solid state panel mount single-phase relay is rated 12A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output

Specifications

Weight

0.21

Width

1.87

Length

2.54

AD All Features

Factory-installed thermal pad for longer lasting thermal performance of the relay, and lower risk of down-time

AD Application

Packaging Machines, Heating Control, Injection Molding, HVAC, Textile Machines and Medical Equipment Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

RELAY STATE SOL 12A 1NO 3.5TO32VDC

AD Item Features 01

Factory-installed thermal pad for longer lasting thermal performance of the relay, and lower risk of down-time

AD Item Features 02

Silent and reliable due to the absence of moving contacts

AD Item Features 03

Helps reduce your maintenance and downtime costs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.5400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2100

AD Package Weight UOM

LB

AD Package Width

1.8700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/TMEubNQHQSM

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

12

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Screw

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Phase

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

3.5 to 32

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1NO 1 Form A

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.32 in H x 1.75 in W x 1.35 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Series

Spec 8 Attribute Value

SSP

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-40 To 80
