Square D

SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass

Category Main Circuit Breaker Modules

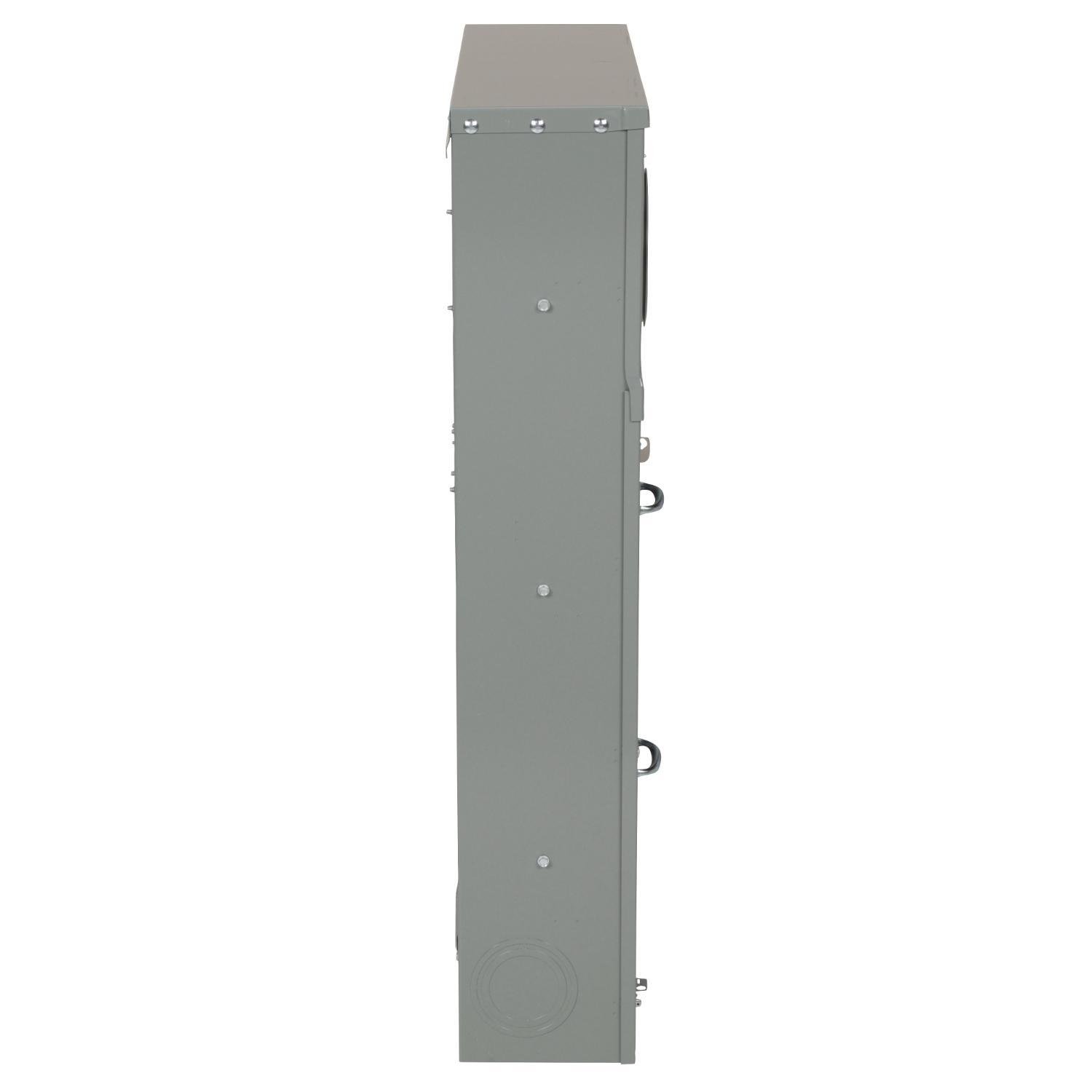

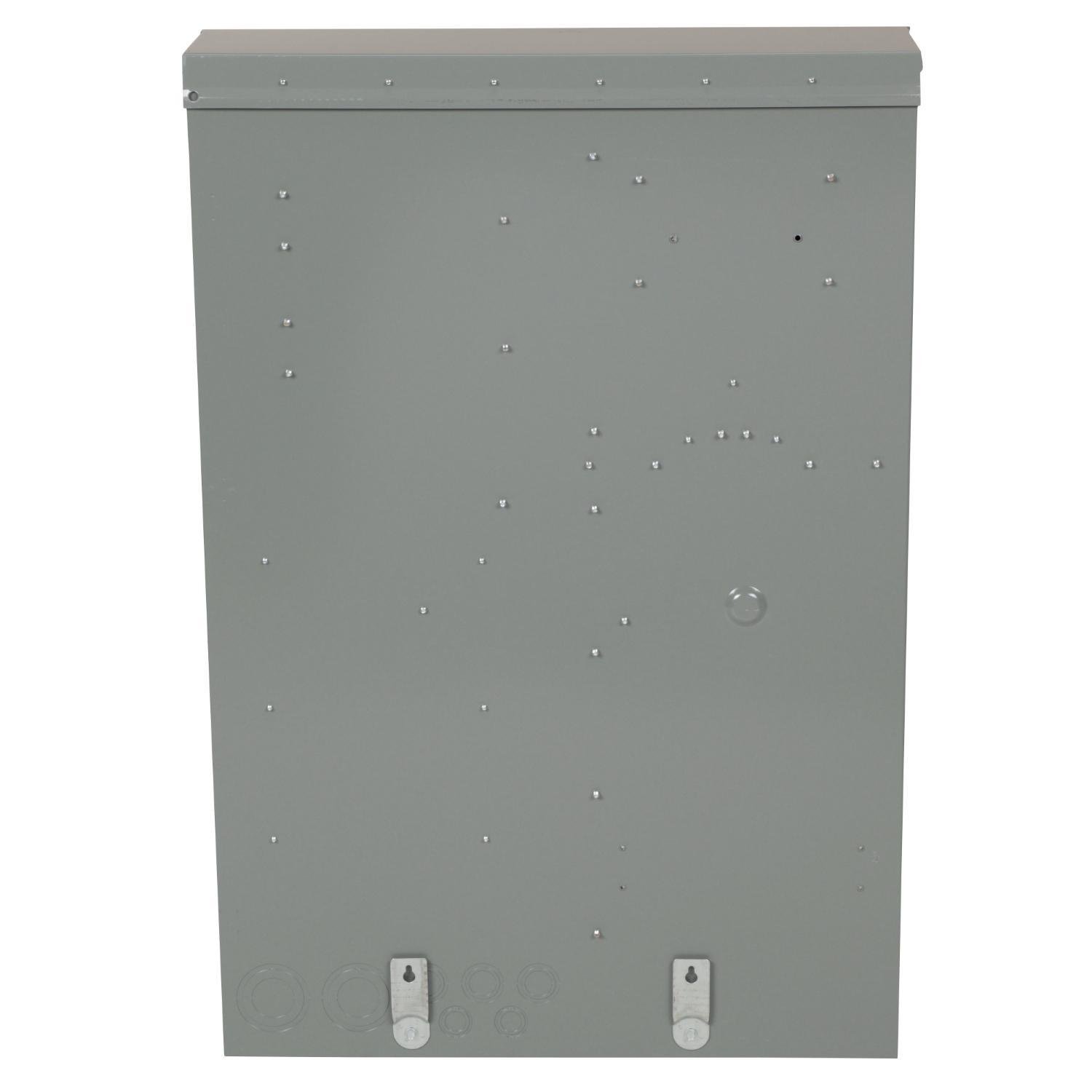

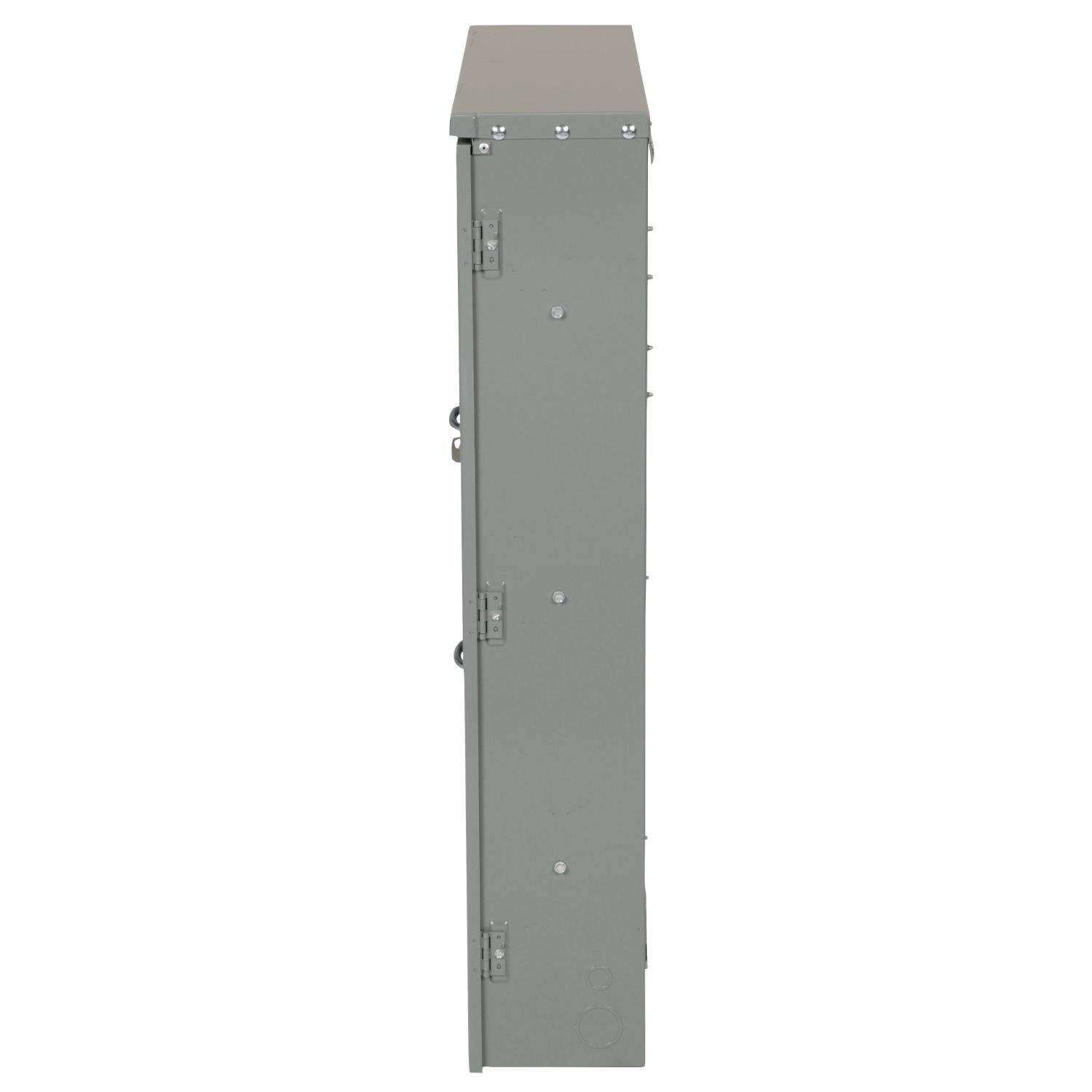

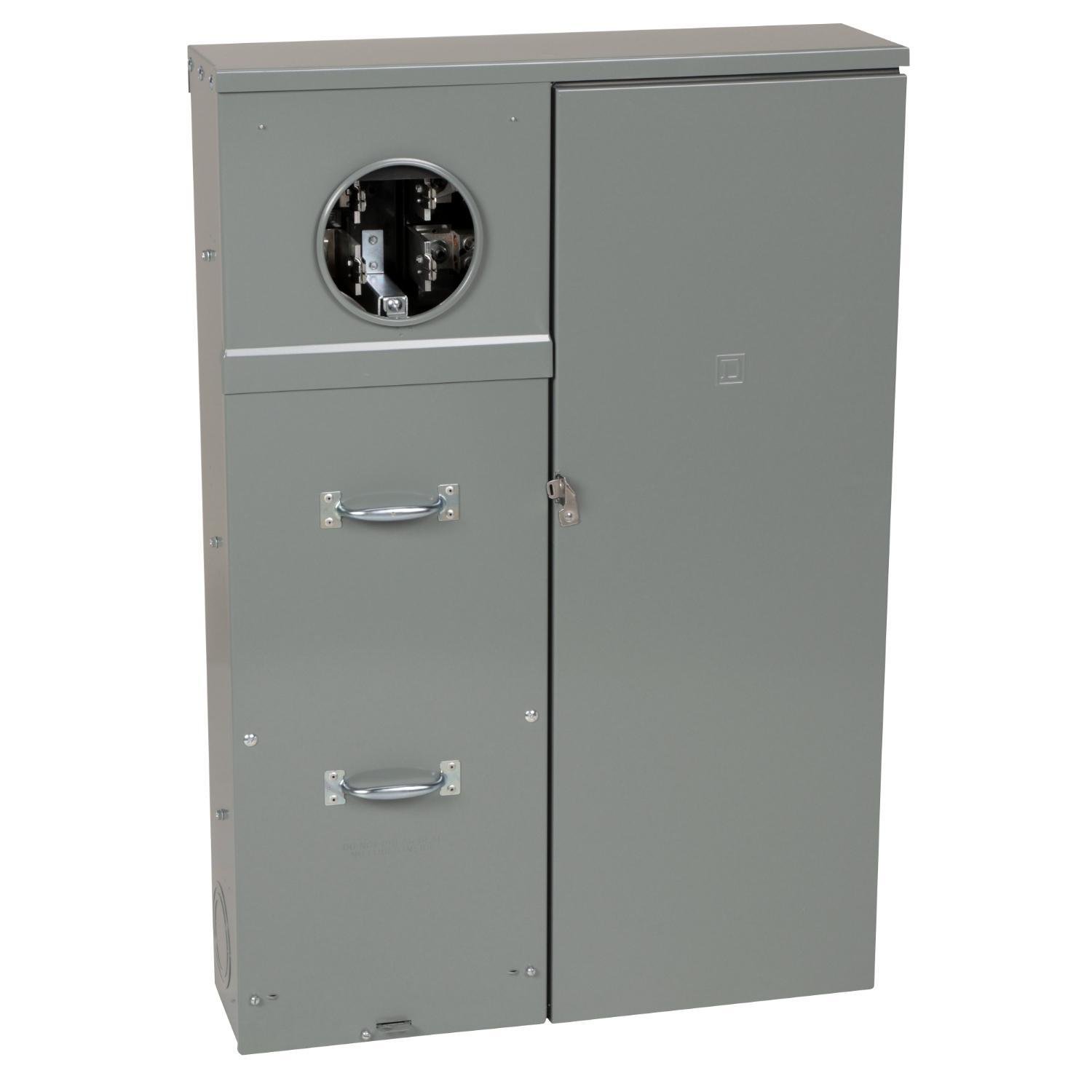

Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass
Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass
Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass
Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass
Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass Picture of SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass
Square D

SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass

Item Code: 877314
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SU3040D400CB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.

Specifications

Weight

111.76

Width

28.74

Length

41.61

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 400A UGND

AD Item Features 01

Compatible with Homeline plug-in mount breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Item Features 05

Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

41.6100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

111.7600

AD Package Weight UOM

LB

AD Package Width

28.7400

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

41-1/4 in H x 28-1/4 in W x 7-1/2 in D

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Underground

Spec 5 Attribute

Hub Type

Spec 5 Attribute Value

A-L

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Flush

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Stud Line/Service Ground Lug

Spec 8 Attribute

Type

Spec 8 Attribute Value

30-Circuit 40-Space All-In-One Field Installed Rainproof

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

4 AWG to 250 kcmil Aluminum/Copper
