Square D™

SU3040D400CN - All in one, Homeline, CSED, ringed socket, 400A, surface/semi mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass

Category Miscellaneous

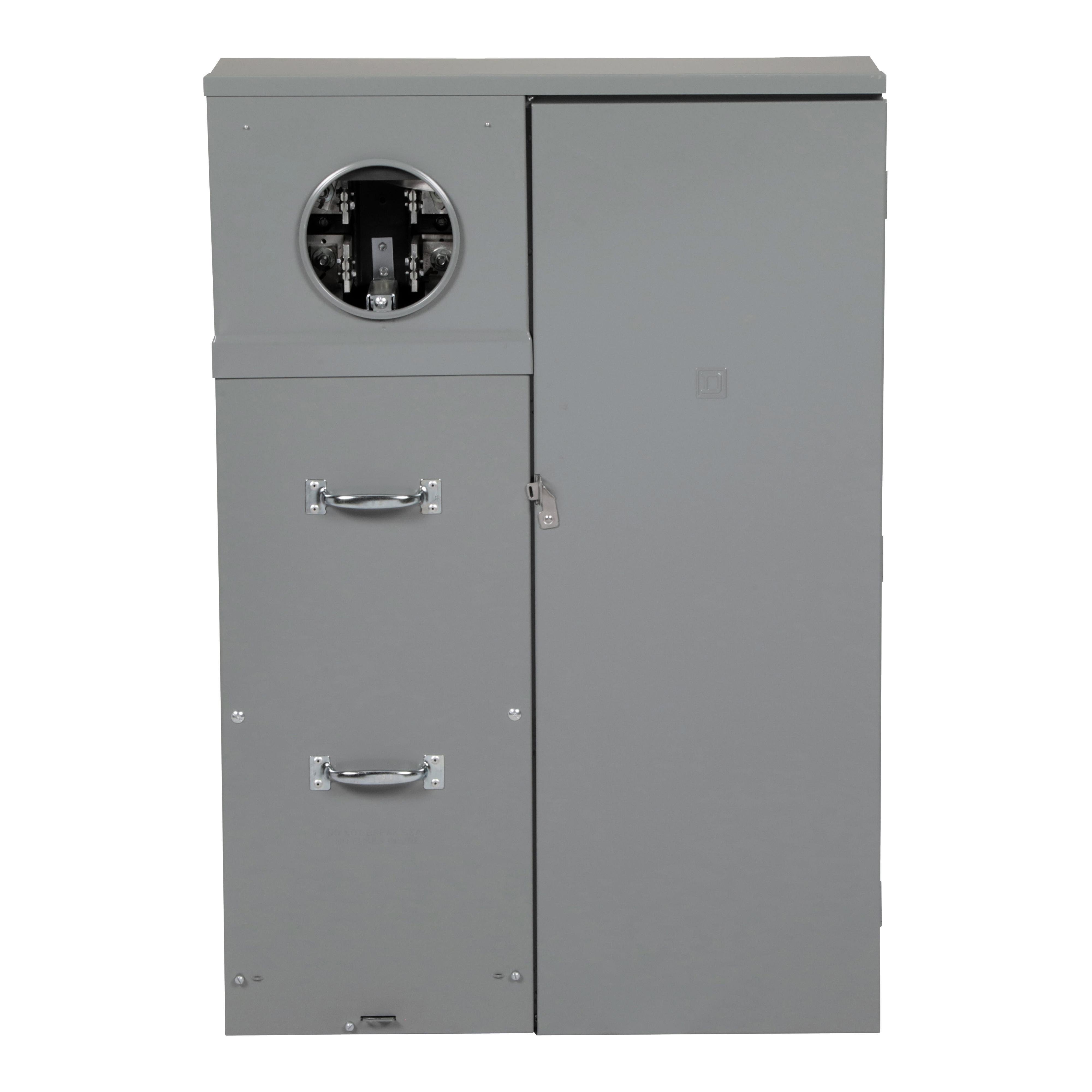

Picture of SU3040D400CN - All in one, Homeline, CSED, ringed socket, 400A, surface/semi mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass Picture of SU3040D400CN - All in one, Homeline, CSED, ringed socket, 400A, surface/semi mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass
Picture of SU3040D400CN - All in one, Homeline, CSED, ringed socket, 400A, surface/semi mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass Picture of SU3040D400CN - All in one, Homeline, CSED, ringed socket, 400A, surface/semi mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass
Square D™

SU3040D400CN - All in one, Homeline, CSED, ringed socket, 400A, surface/semi mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass

Item Code: 1011902
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref SU3040D400CN

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 30 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 400A and short-circuit current 25kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.

Specifications

Weight

109.47

Width

29.13

Length

43.39

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/SU3040D400CN/SU3040D400CN.spin

AD All Features

Compatible with Homeline plug in mount breakers

AD Alternative Part Number

8069722

AD Application

Residential Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901491408

AD Gtin

00785901491408

AD IDEA Index ID

8069722

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 400A UGND

AD Item Features 01

Compatible with Homeline plug in mount breakers

AD Item Features 02

4-jaw no-bypass ringed meter socket

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

30-spaces, 40 circuits

AD Item Features 05

Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

43.3900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

109.4700

AD Package Weight UOM

LB

AD Package Width

29.1300

AD Package Width UOM

IN

AD Part Number Keywords

SU3040D400CN ; 8069722 ; 785901491408 ; 78590149140 ; 00785901491408 ; 0785901491408

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

Wire Size

Spec 10 Attribute Value

4 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

41-1/4 in H x 28-1/4 in W x 7-1/2 in D

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Underground

Spec 5 Attribute

Hub Type

Spec 5 Attribute Value

A-L

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Flush

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

4

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Stud Line/Service Ground Lug

Spec 9 Attribute

Type

Spec 9 Attribute Value

30-Circuit 40-Space All-In-One Field Installed Rainproof
