Schneider Electric

T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open

Category NEMA Contactors

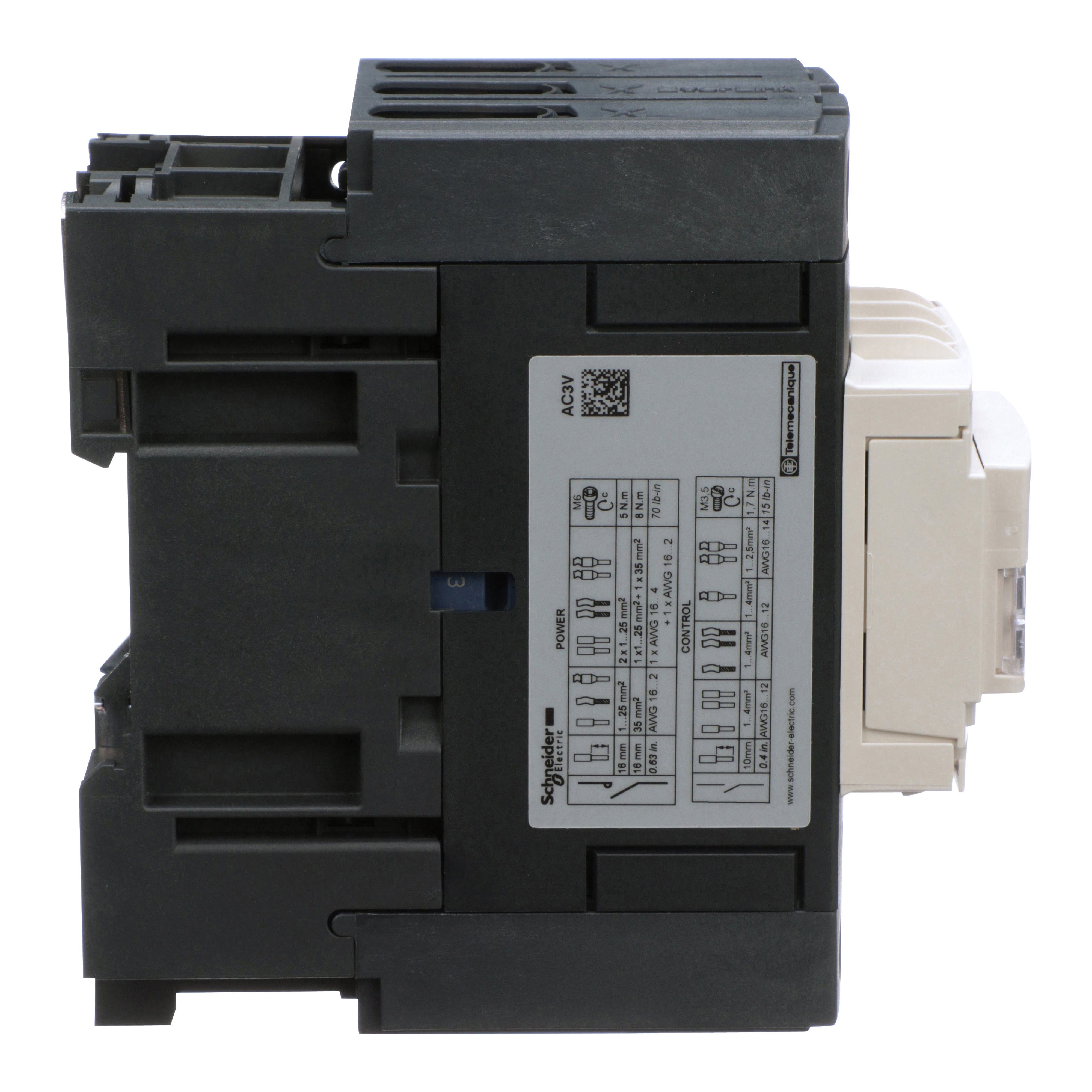

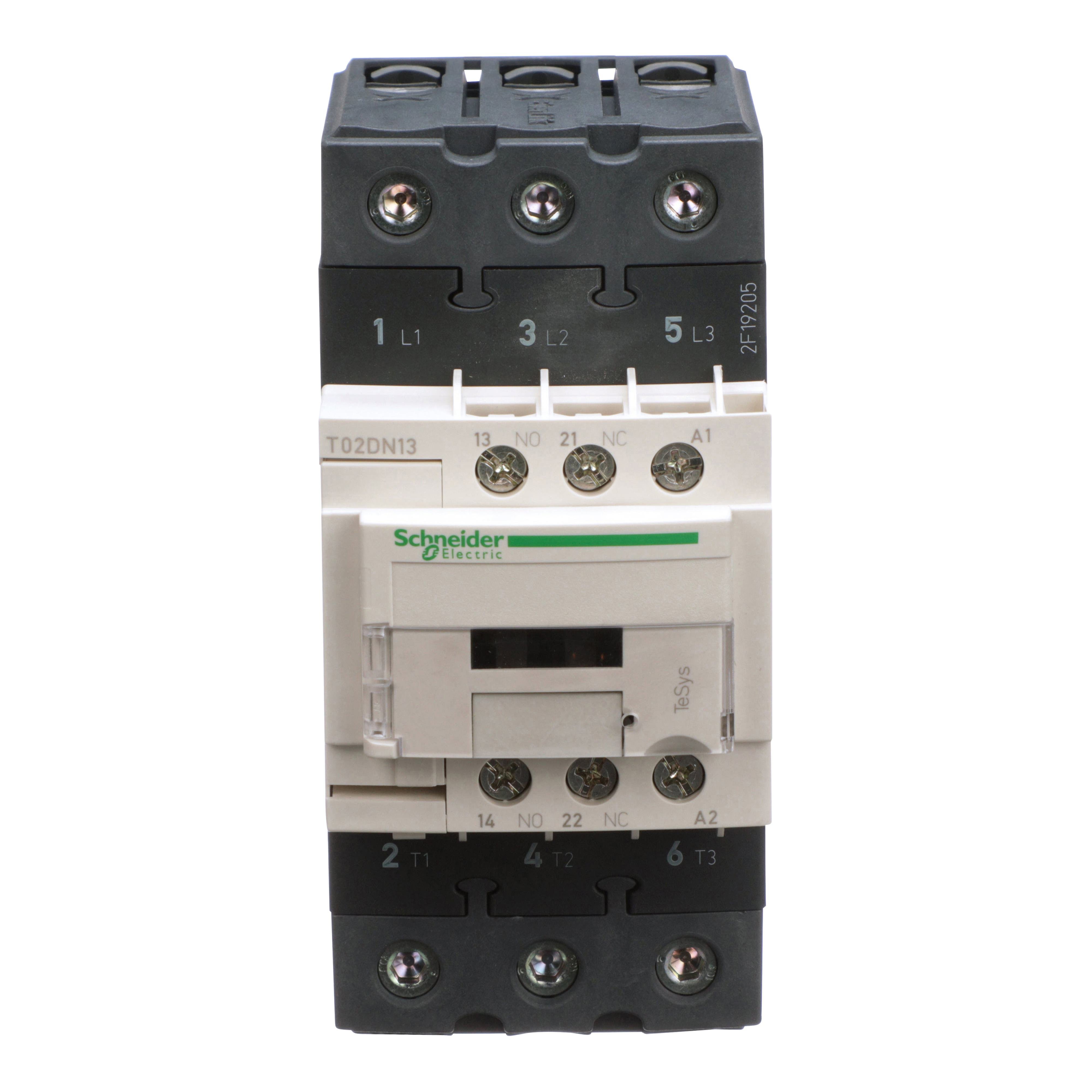

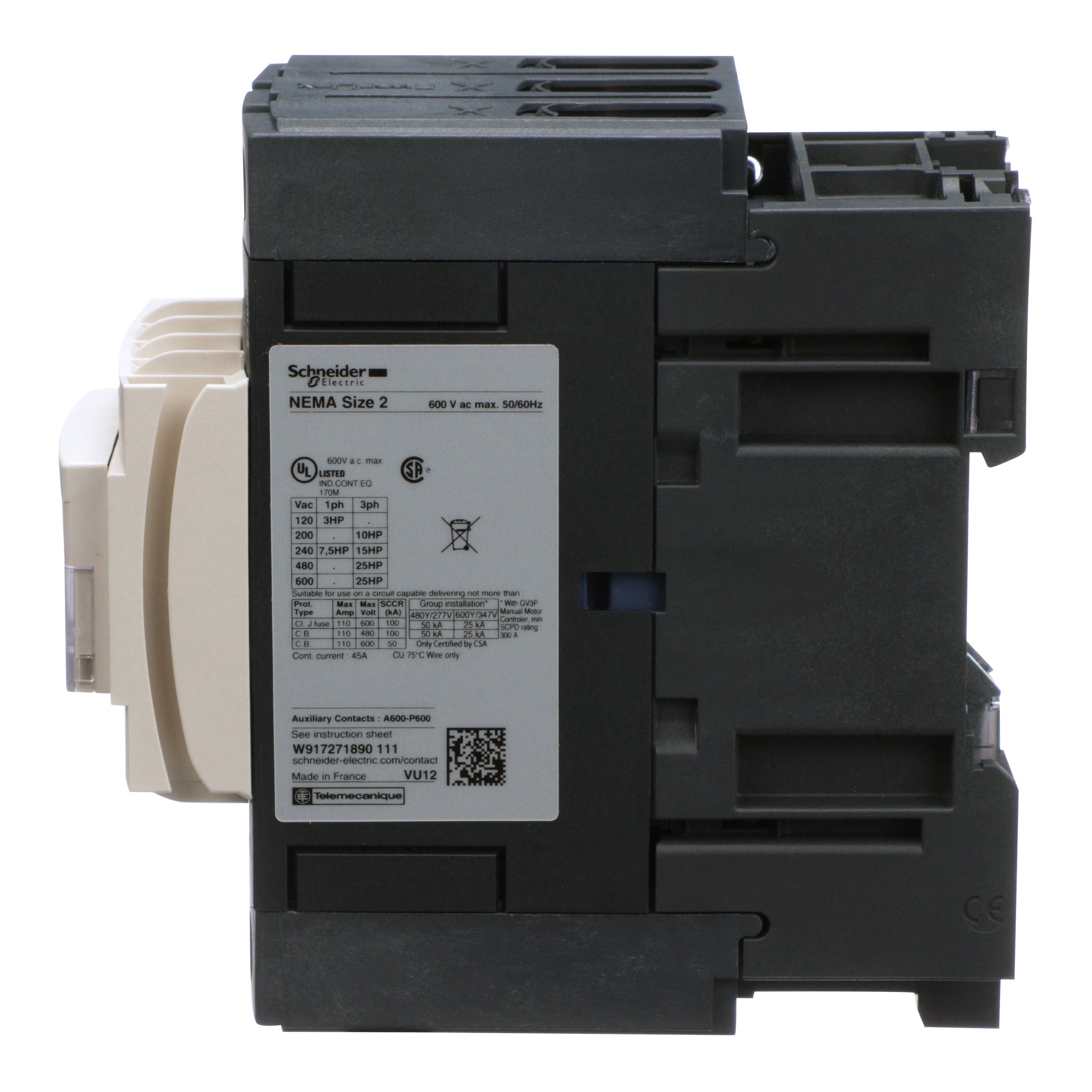

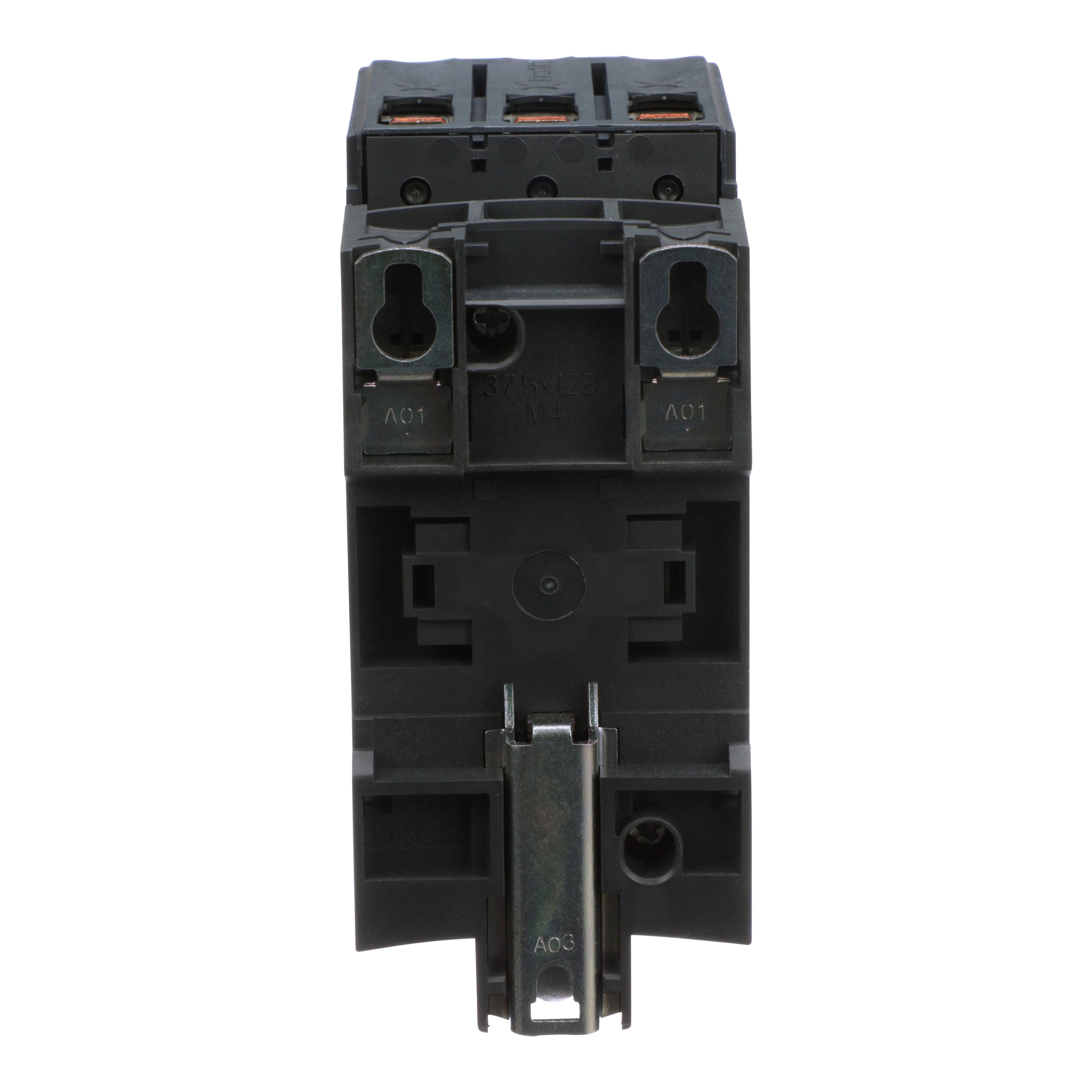

Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open
Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open
Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open
Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open
Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open Picture of T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open
Schneider Electric

T02DN13G7 - Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 45A, 25HP at 460VAC, NEMA size 2, 120VAC 50/60Hz coil, open

Item Code: 1050636
Category NEMA Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref T02DN13G7

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 2 nonreversing contactor mounts on 35mm DIN rail and has a 45 amperage continuous current rating. This contactor has 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase ratings. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 5.47 inches tall, 2.16 inches wide and 4.72 inches deep. It weighs 2.08 lbs. The screw clamp terminals will accept power wires from 16 AWG to 4 AWG and control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.

Specifications

Weight

2.07lb

Height

5.47mm

Width

5.26mm

Length

6.04mm

Depth

4.72mm

AD All Features

High density, space saving design

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

CONTACTOR 120VAC 45A 1NC-1NO 3 45A SCR

AD Item Features 01

High density, space saving design

AD Item Features 02

Sizes 00 -2 are DIN rail and panel mountable

AD Item Features 03

Replacing coils requires no tools

AD Item Features 04

Common accessories across range

AD Item Features 05

Replaceable contacts on Size 3 and larger contactors reduce overall costs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.0400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.0700

AD Package Weight UOM

LB

AD Package Width

5.2600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/Dm0SIlgwD-I

Brand

Schneider Electric

Category

NEMA Contactors

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

120

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

1NO-1NC

Spec 4 Attribute

Contact Rating

Spec 4 Attribute UOM

A

Spec 4 Attribute Value

45

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Maximum Load Current

Spec 6 Attribute UOM

A

Spec 6 Attribute Value

45

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Screw clamp

Spec 9 Attribute

Type

Spec 9 Attribute Value

Non-reversing
