Schneider Electric

TM172PDG42RI - Controller, Modicon M171/M172/M173, performance, display, 42 IO, Ethernet, isolated

Category Miscellaneous

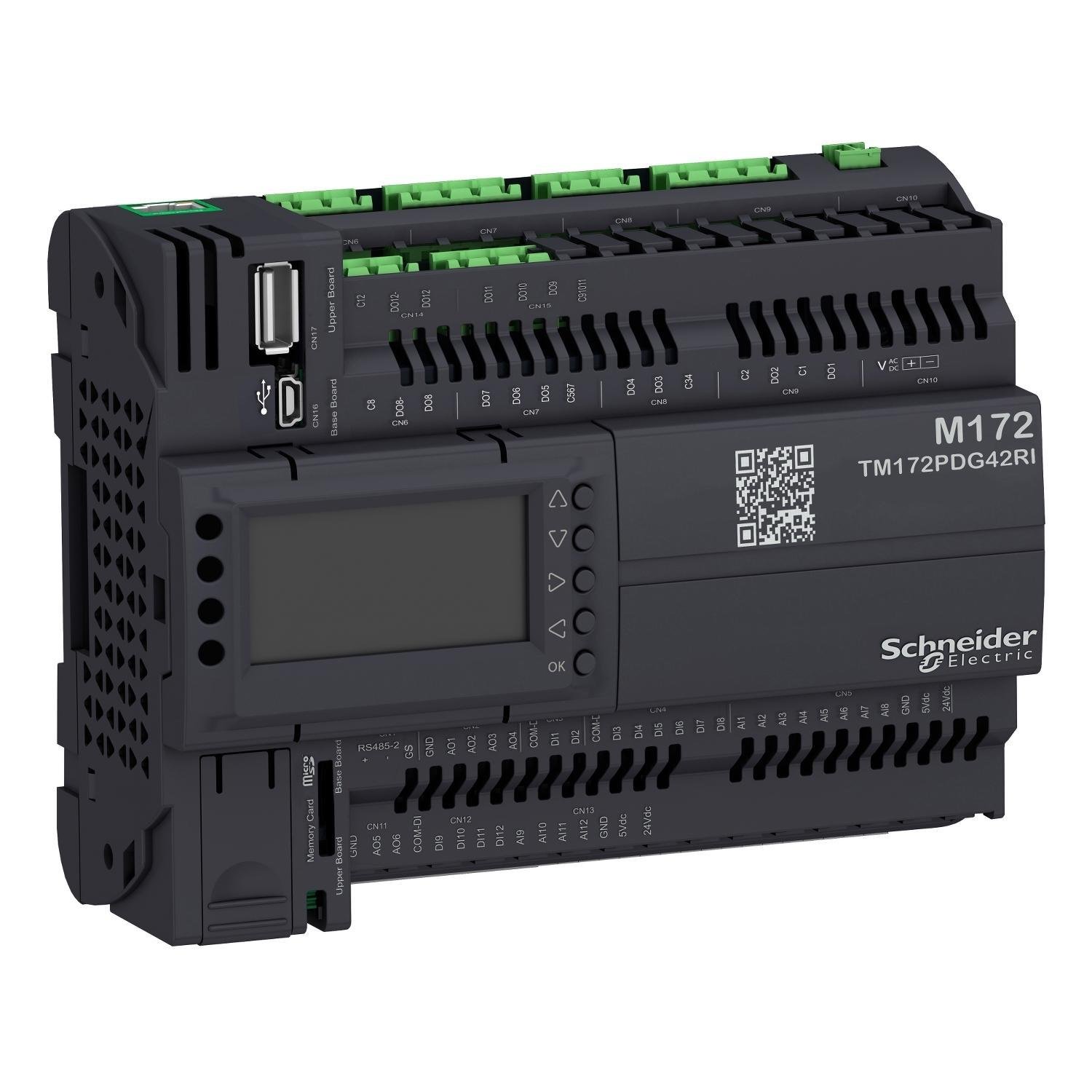

Picture of TM172PDG42RI - Controller, Modicon M171/M172/M173, performance, display, 42 IO, Ethernet, isolated
Schneider Electric

TM172PDG42RI - Controller, Modicon M171/M172/M173, performance, display, 42 IO, Ethernet, isolated

Item Code: 1180296
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref TM172PDG42RI

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Specifications

Weight

0.99

Height

5.5

Width

3.51

Length

7.41

AD Alternative Part Number

15645896

AD Application

Air/Water Cooled Chiller, Rooftop Unit, Heat Pump, Shelters, Compressor Rack, Ventilation Unit, Precision Air Conditioner, Heat Recovery Unit, Packaged Unit, Solid State Relay and AHU

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

IT

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3606489729523

AD Gtin

03606489729523

AD IDEA Index ID

15645896

AD Invoice Description

CONTROLLER LGC 24 VAC/20 TO 38 VDC 42 42

AD Item Features 01

Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency

AD Item Features 02

Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC

AD Item Features 03

All of the features and functions you need to design and build machines more profitably are already embedded

AD Item Features 04

Stay connected everywhere with multiple BMS connectivity and web server embedded

AD Keywords

Square D Modicon TM172PDG42RI M172 Isolated Performance Display Logic Controller, 24 V AC/20 to 38 V DC, 42 Inputs, 42 Outputs ; Schneider Electric ; TM172PDG42RI ; TM172PDG42RI ; Programmable Logic Controllers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.5000

AD Package Height UOM

IN

AD Package Length

7.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

144.3800

AD Package Volume UOM

cu-in

AD Package Weight

0.9900

AD Package Weight UOM

LB

AD Package Width

3.5100

AD Package Width UOM

IN

AD Part Number Keywords

TM172PDG42RI ; 15645896 ; 03606489729523 ; 3606489729523

Brand

Square D

Spec 1 Attribute

Communication

Spec 1 Attribute Value

(2) RS485/CAN Expansion Bus

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute Value

24 V AC/20 to 38 V DC

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5.67 in W x 2.38 in D x 4.33 in H

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

DIN Rail/Panel

Spec 4 Attribute

Number of Inputs

Spec 4 Attribute Value

42

Spec 5 Attribute

Number of Outputs

Spec 5 Attribute Value

42

Spec 6 Attribute

Number of Ports

Spec 6 Attribute Value

1

Spec 7 Attribute

Series

Spec 7 Attribute Value

M172

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute Value

-20 to 65 deg C/-20 to 60 deg C Horizontal

Spec 9 Attribute

Type

Spec 9 Attribute Value

Isolated Performance Display
