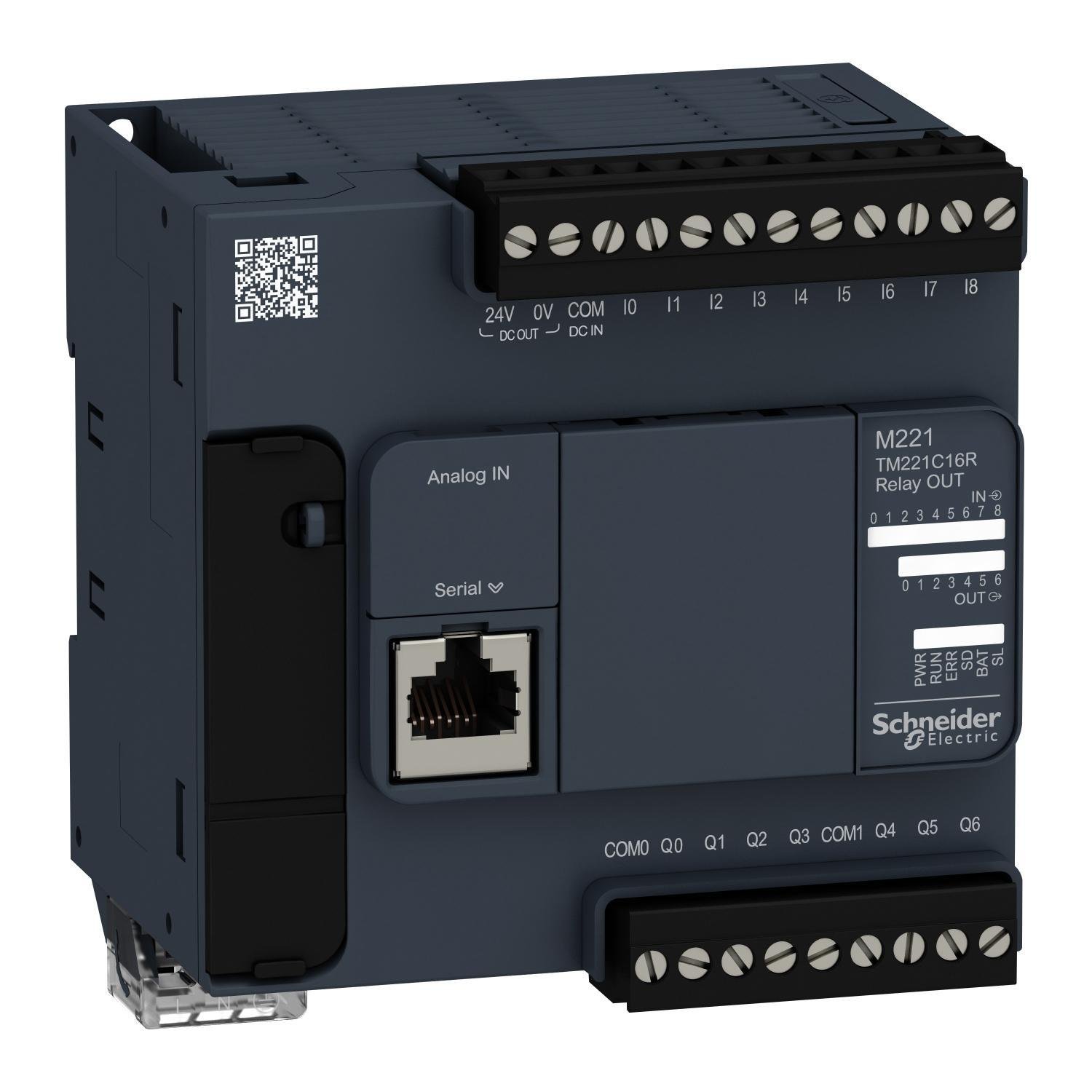

TM221C16R - logic controller, Modicon M221, 16 IO, 7 relay outputs, 100…240V AC
Description
Specifications
0.66
5.46
5.42
SD card and USB port
8027344
For simple machines which optimize the size of wall-mounted and floor-standing control system enclosures due to their compact dimensions
Schneider Electric
USA
TW
RoHS
Specification Sheet
Owners/User Manual
3606480648694
03606480648694
8027344
CONTROLLER LGC 100 TO 240 VAC 24 VDC 2A
SD card and USB port
2 analog inputs and a broad choice of I/Os
Run/stop switch and cartridge extension
Ethernet and serial line ports
M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations
Schneider Electric
IN
5.4200
IN
1
0.6600
LB
5.4600
IN
TM221C16R ; 8027344 ; 785901780632 ; 78590178063 ; 03606480648694 ; 3606480648694
Square D
Amperage Rating
A
2
Power Rating
VA
<=31/46
Programming
Mini B USB 2.0 Connector
Series
M221
Signal Range
5 to 125 V DC, 5 to 250 V AC Relay Normally Open, 7 mA Discrete, 5 mA Fast Input
Temperature Rating
-10 to 55 deg C Horizontal/-10 to 35 deg C Vertical
Transfer Rate
kbps
1.2 to 115.2
Type
Compact
Voltage Rating
100 to 240 V AC/24 V DC
Communication
DHCP Client, Modbus TCP Server, Modbus TCP Client and Modbus TCP Slave Device
Dimensions
70 mm L x 95 mm W x 90 mm H
Frequency Rating
HZ
50/60
Memory
KB
256
Mounting Type
Plate/Panel
Number of Inputs
9
Number of Outputs
7
Number of Ports
2
