Schneider Electric

TM221ME16R - logic controller, Modicon M221, 16 IO, 8 DI, 8 DO, relay, Ethernet

Category Programmable Logic & Automation Accessories

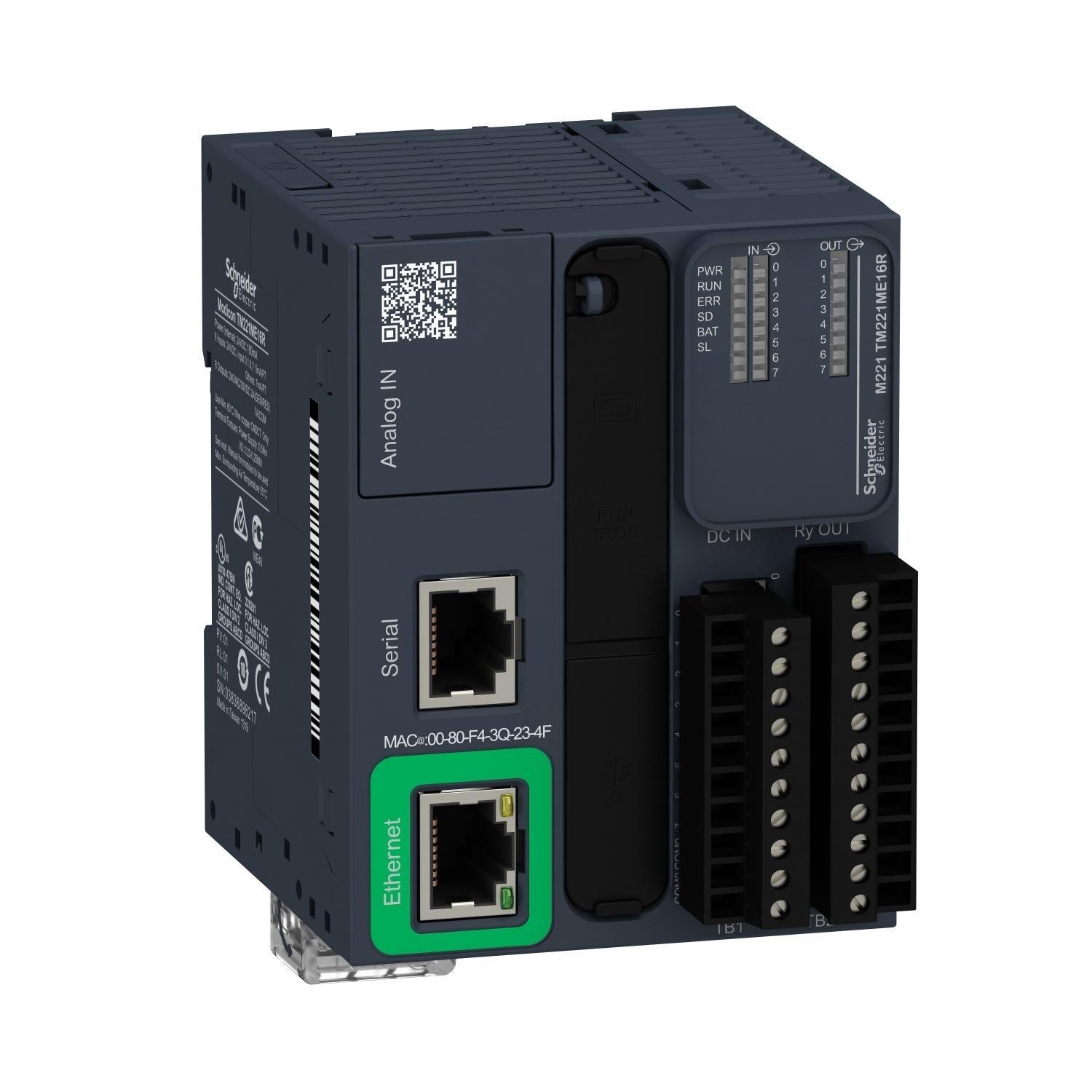

Picture of TM221ME16R - logic controller, Modicon M221, 16 IO, 8 DI, 8 DO, relay, Ethernet
Schneider Electric

TM221ME16R - logic controller, Modicon M221, 16 IO, 8 DI, 8 DO, relay, Ethernet

Item Code: 978528
Category Programmable Logic & Automation Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref TM221ME16R
Call for Availability
Add to Favorites
Compare

Description

This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

Specifications

Weight

0.97lb

Height

90mm

Width

4.99mm

Length

3.78mm

Depth

70mm

AD All Features

SD card and USB port

AD Alternative Part Number

13033670

AD Application

For simple machines which optimize the size of wall-mounted and floor-standing control system enclosures due to their compact dimensions

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3606480611278

AD Gtin

03606480611278

AD IDEA Index ID

13033670

AD Invoice Description

CONTROLLER LGC 24VDC 2A 8 8 <=4.3/23.3W

AD Item Features 01

SD card and USB port

AD Item Features 02

2 analog inputs and a broad choice of I/Os

AD Item Features 03

Run/stop switch and cartridge extension

AD Item Features 04

Ethernet and serial line ports

AD Item Features 05

M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.7800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.9700

AD Package Weight UOM

LB

AD Package Width

4.9900

AD Package Width UOM

IN

AD Part Number Keywords

TM221ME16R ; 13033670 ; 785901956563 ; 78590195656 ; 03606480611278 ; 3606480611278

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

2

Spec 10 Attribute

Programming

Spec 10 Attribute Value

Mini B USB 2.0 Connector

Spec 11 Attribute

Series

Spec 11 Attribute Value

M221

Spec 12 Attribute

Signal Range

Spec 12 Attribute Value

5 to 125 V DC, 5 to 250 V AC Relay Normally Open

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

-10 to 55/-10 to 35

Spec 14 Attribute

Transfer Rate

Spec 14 Attribute UOM

kbps

Spec 14 Attribute Value

115.2

Spec 15 Attribute

Type

Spec 15 Attribute Value

Modular

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V DC

Spec 16 Attribute Value

24

Spec 2 Attribute

Communication

Spec 2 Attribute Value

DHCP Client, Modbus TCP Server, Modbus TCP Client and Modbus TCP Slave Device

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

70 mm L x 70 mm W

Spec 4 Attribute

Memory

Spec 4 Attribute UOM

KB

Spec 4 Attribute Value

256/640

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Plate/Panel

Spec 6 Attribute

Number of Inputs

Spec 6 Attribute Value

8

Spec 7 Attribute

Number of Outputs

Spec 7 Attribute Value

8

Spec 8 Attribute

Number of Ports

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

<=4.3/23.3
