Schneider Electric

TM3AI8 - analog input module, Modicon TM3, 8 inputs, screw, 24V DC

Category Miscellaneous

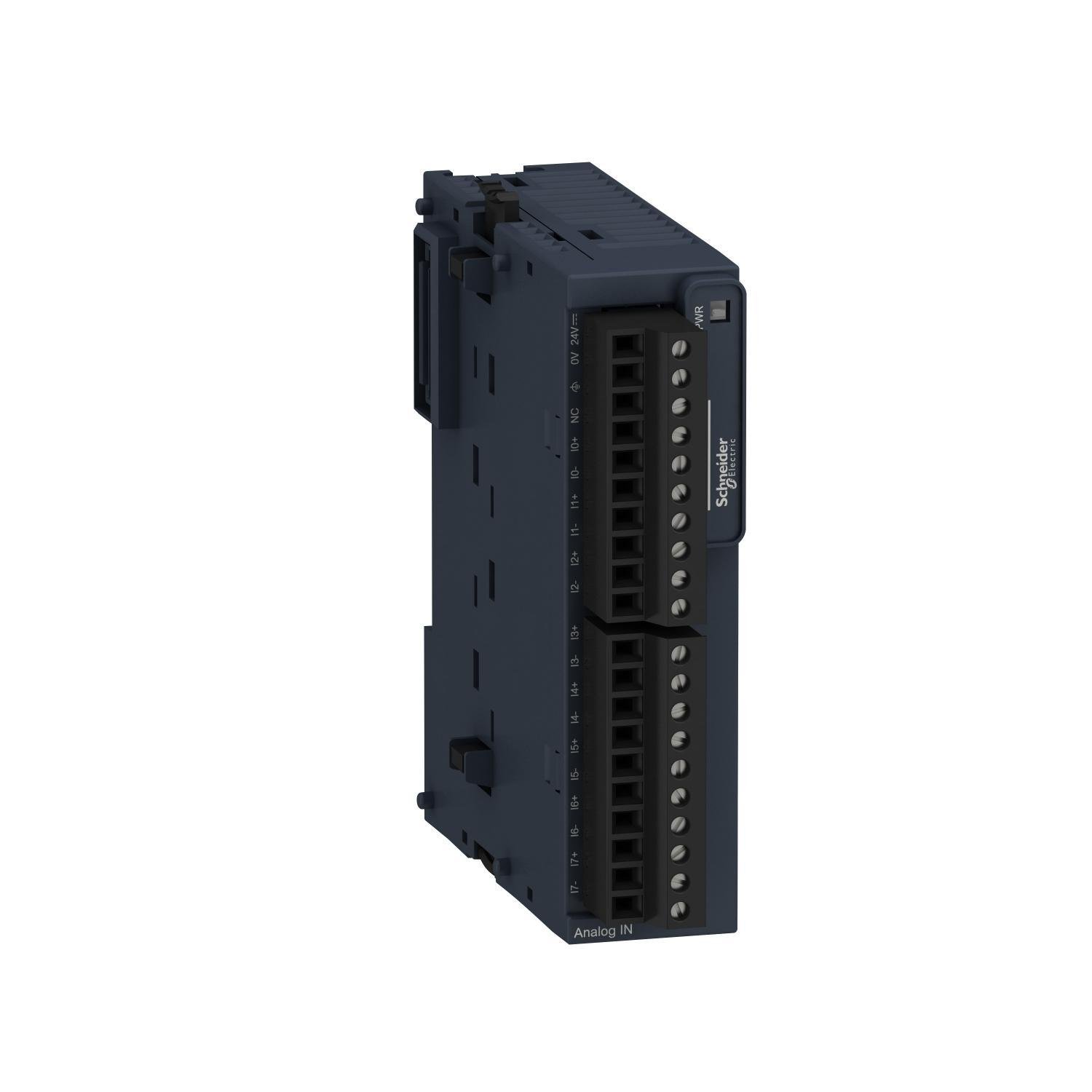

Picture of TM3AI8 - analog input module, Modicon TM3, 8 inputs, screw, 24V DC
Schneider Electric

TM3AI8 - analog input module, Modicon TM3, 8 inputs, screw, 24V DC

Item Code: 897763
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref TM3AI8

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage

Specifications

Weight

0.48

Width

4.1

Length

4.92

AD Alternative Part Number

8146596

AD Application

For Modicon® M221, M241 and M251 motion controller

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

JP

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3606480648922

AD Gtin

03606480648922

AD IDEA Index ID

8146596

AD Invoice Description

MODULE INP ANLG 8 11 TO 12BIT 1MS 24VDC

AD Item Features 01

Modularity and easness of installation

AD Item Features 02

Intuitive machine programming with EcoStruxure Machine Expert

AD Item Features 03

Modicon TM3 system allows to Modicon M2xx plc flexible and customizable I/O extension

AD Item Features 04

TM3 Bus couplers allow Modicon plcs to distribute I/Os on EtherNet/IP, sercos or CANopen

AD Keywords

Modicon TM3AI8 Analog Input Module, 8 Inputs, 11 to 12 bit Resolution, +/-1 to 0.2 % Accuracy ; Schneider Electric ; Schneider Electric ; TM3AI8 ; 785901334088 ; Distributed I/O Analog Modules

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4800

AD Package Weight UOM

LB

AD Package Width

4.1000

AD Package Width UOM

IN

AD Part Number Keywords

TM3AI8 ; 8146596 ; 785901334088 ; 78590133408 ; 03606480648922 ; 3606480648922

Brand

Square D

Spec 1 Attribute

Accuracy

Spec 1 Attribute UOM

%

Spec 1 Attribute Value

+/-1 to 0.2

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V DC

Spec 10 Attribute Value

24

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

MA

Spec 2 Attribute Value

20

Spec 3 Attribute

Conversion Rate

Spec 3 Attribute UOM

Ms

Spec 3 Attribute Value

1

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

70 mm L x 23.6 mm W x 90 mm H

Spec 5 Attribute

Number of Inputs

Spec 5 Attribute Value

8

Spec 6 Attribute

Resolution

Spec 6 Attribute UOM

Bit

Spec 6 Attribute Value

11 to 12

Spec 7 Attribute

Series

Spec 7 Attribute Value

TM3

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

14 To 131

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Threaded
