Square D

UHTRS101B - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W

Category Miscellaneous

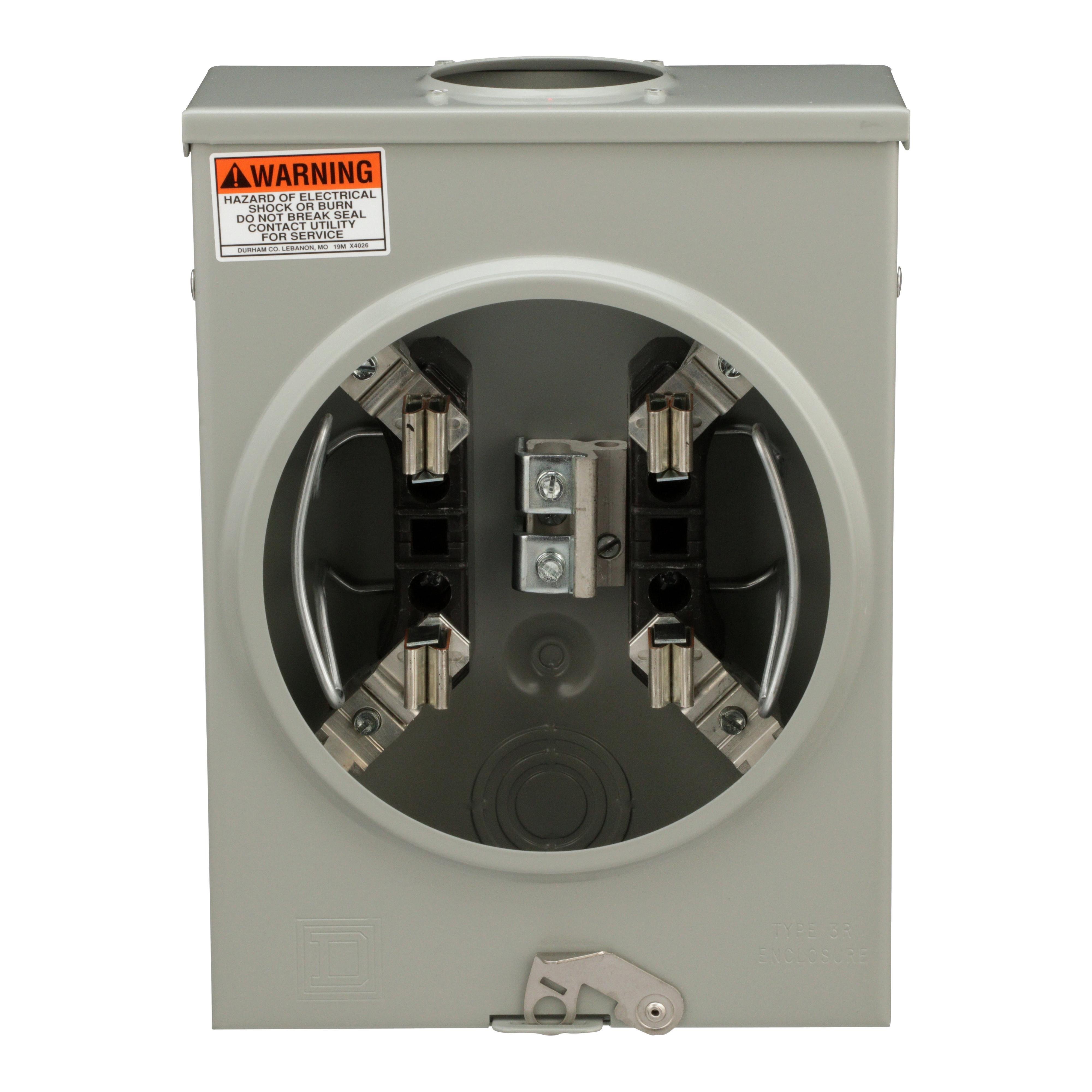

Picture of UHTRS101B - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W Picture of UHTRS101B - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W
Picture of UHTRS101B - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W Picture of UHTRS101B - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W
Square D

UHTRS101B - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W

Item Code: 549405
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UHTRS101B

Document
Call for Availability
Add to Favorites
Compare

Description

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has four jaws with a horn bypass and without jaw release. This meter socket is for single phase 3 wire systems up to 600 VAC. This meter socket has a 125 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 10.88 inches tall, 8.00 inches wide and 3.50 inches deep. The main lugs, the load lugs and the neutral lug will accept one 8 AWG to 2/0 AWG copper or aluminum wire. The ground will accept 14 AWG to 2 AWG copper or aluminum wire. This individual meter socket is UL Listed.

Specifications

Weight

6.88

Width

8.62

Length

12.28

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/UHTRS101B/UHTRS101B.spin

AD All Features

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Alternative Part Number

8085601

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD EAN

0785901911630

AD Gtin

00785901911630

AD IDEA Index ID

8085601

AD Invoice Description

SOCKET MTR 600VAC 125A 1 NEMA 3R

AD Item Features 01

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Item Features 02

For single family residential construction

AD Item Features 03

CSED allows for the meter socket to integrate with the load center into one compact design

AD Keywords

UHTRS101B 3-Wire Individual Meter Socket With Horn Bypass, 600 V AC, 125 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; UHTRS101B ; UHTRS101B ; 785901911630 ; Meter Sockets - Single Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

6.8800

AD Package Weight UOM

LB

AD Package Width

8.6200

AD Package Width UOM

IN

AD Part Number Keywords

UHTRS101B ; 8085601 ; 785901911630 ; 78590191163 ; 00785901911630 ; 0785901911630

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

600

Spec 11 Attribute

Wire Size

Spec 11 Attribute UOM

AWG

Spec 11 Attribute Value

8 to 2/0

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Hub Type

Spec 5 Attribute Value

A ACP Closing Plate

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

4

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Slotted Lug

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Wire Individual
